4inch 5500W AC380V DC530V Brushless high-speed solar deep well pump with permanent magnet synchronous motor max flow 10T/H( m³/h)for house using and irrigating

Special note: the above price includes the pump and the controller.

if you need other relevant supporting products, such as solar panel, submerged pump cable, PV cable, floater, PV mounting bracket, break air switch, controller box etc., please contact me.

The brushless high-speed motor deep well pump is one of the invention patents of our company. We apply high speed brushless

synchronous motor with permanent magnet in our pump so the conversion efficiency is high. With small size, light weight and stainless steel material, our pump is of long lifespan and good reliability. It is characterized by energy saving and convenience.

Our pump can be powered by both AC, DC solar input. Now we have SSW DC series pump and SZW AC&DC series pump.

SZW series work in AC and DC dual-use mode under which the pump can make full use of the solar energy and automatically change to AC. Because of the high-efficiency motor and automatic conversion technology, its water outlet is much bigger than other PV pumps.

There are SZW series pump of 2 inch, 3 inch, 4 inch, 6 inch and 8 inch for you to choose. And for this 4 inch pump, power ranges from 750W to 7500W. And we also supply other relevant supporting products, such as solar panel, submerged pump cable, PV cable, floater, PV mounting bracket, break air switch, controller box etc.

This pump is mainly used for all kinds of water supply and drainage, fountain, solar system and other field requires deep well pump as well as remote areas where city grid power is unavailable.

1. Two working models, one model uses the DC solar energy, the other uses the AC power. And the input power can switch between solar and AC power automatically. Solar power can be 100% fully used under this circumstance.

2. Higher efficiency because it is equiped with permanent magnet synchronous motor which has high speed and higher efficiency compared to asynchronous motor.

3. The pump works both at 50HZ and 60HZ, and also the head and flow can remain unchanged under wide voltage. The output is constant when the voltage pulsation happens.

4. This pump should be worked with our exclusive controller, owns frequency control and constant velocity.

5. Volume and weight are just 1/5 of other pumps in same specifications.

6.  Energy saving and complete functions. It can be applied in industry, agriculture, petrochemical industry, medicinal industry and other kinds of water process.

Model Number Formation

4 Inch Solar Water Pump (DC AC Dual Input)

MODEL

POWER

FLOW(T/H)

HEAD(Meter)

INPUT

SOLAR

VOLTAGE

SPEED

HEIGHT

OUTLET

W

Rated/Max

Rated/Max

KW

KW

AC/DC

r/min

mm

mm

4SZW8-20-0.75

750

8/12

20/25

0.9

1.35

220V/300V

4200

500

38

4SZW8-26-1.1

1100

8/13

26/36

1.38

2.07

220V/300V

5000

500

38

4SZW2-70-1.1

1100

2/7

70/85

1.4

2.1

220V/300V

7200

530

38

4SZW3-50-1.1

1100

3/8

50/65

1.4

2.1

220V/300V

7200

500

38

4SZW4-40-1.1

1100

4/6.6

40/48

1.3

1.95

220V/300V

5700

530

38

4SZW10-18-1.1

1100

10/20

18/22

1.29

1.93

220V/300V

4000

510

38

4SZW2-100-1.5

1500

2/7

100/115

1.85

2.78

220V/300V

7200

540

38

4SZW5-50-1.5

1500

5/10

50/85

1.85

2.78

220V/300V

7200

495

38

4SZW6-45-1.5

1500

6/12

45/65

1.85

2.78

220V/300V

7200

500

38

4SZW10-30-1.5

1500

10/14

30/44

1.8

2.7

220V/300V

5500

500

38

4SZW13-22-1.5

1500

13/23

22/28

1.85

2.78

220V/300V

4500

510

50

4SZW10-37-1.8

1800

10/14

37/52

2.35

3.53

220V/300V

6000

500

38

4SZW10-45-2.2

2200

10/14

45/60

2.85

4.27

220/300V 380V/530V

6500

500

38

4SZW3-130-2.2

2200

3/8

130/150

3.6

5.4

220/300V 380V/530V

7200

560

38

4SZW2-180-2.2

2200

2/7

180/195

3.7

5.5

220/300V 380V/530V

7200

600

38

4SZW8-60-2.2

2200

8/12

60/85

2.89

4.33

220/300V 380V/530V

7200

520

38

4SZW16-25-2.2

2200

16/26

25/35

2.63

3.95

220/300V 380V/530V

5000

500

50

4SZW10-58-3

3000

10/14

58/74

4

6

220/300V 380V/530V

7200

510

38

4SZW3-175-3

3000

3/5

175/198

3.85

5.78

220/300V 380V/530V

6500

630

38

4SZW5-100-3

3000

5/8

100/120

3.57

5.3

220/300V 380V/530V

7200

540

38

4SZW10-50-3

3000

10/14

50/65

3.57

5.3

220/300V 380V/530V

7200

520

38

4SZW18-30-3

3000

18/29

30/42

3.31

5

220/300V 380V/530V

5500

520

50

4SZW6-120-4

4000

6/8

120/142

5.1

7.65

380V/530V

6800

580

38

4SZW10-80-4

4000

10/14

80/180

5.2

7.8

380V/530V

7000

530

38

4SZW20-40-4

4000

20/28

40/66

5.2

7.8

380V/530V

7200

520

50

4SZW20-45-4

4000

20/32

45/57

5.31

7.96

380V/530V

6500

530

50

4SZW5-200-5.5

5500

5/8

200/267

7.2

10.8

380V/530V

7200

640

38

4SZW6-150-5.5

5500

6/8

150/178

6.5

9.75

380V/530V

7200

610

38

4SZW10-120-5.5

5500

10/14

120/148

7.3

11

380V/530V

7200

640

38

4SZW20-55-5.5

5500

20/30

55/75

6.9

10.35

380V/530V

7200

610

50

4SZW10-150-7.5

7500

10/18

150/210

8.8

13.2

380V/530V

7000

650

38

4SZW20-80-7.5

7500

20/28

80/90

9.1

13.6

380V/530V

6800

650

50

Connection between Head and Flow

Connection between Speed, Head, Flow and Power

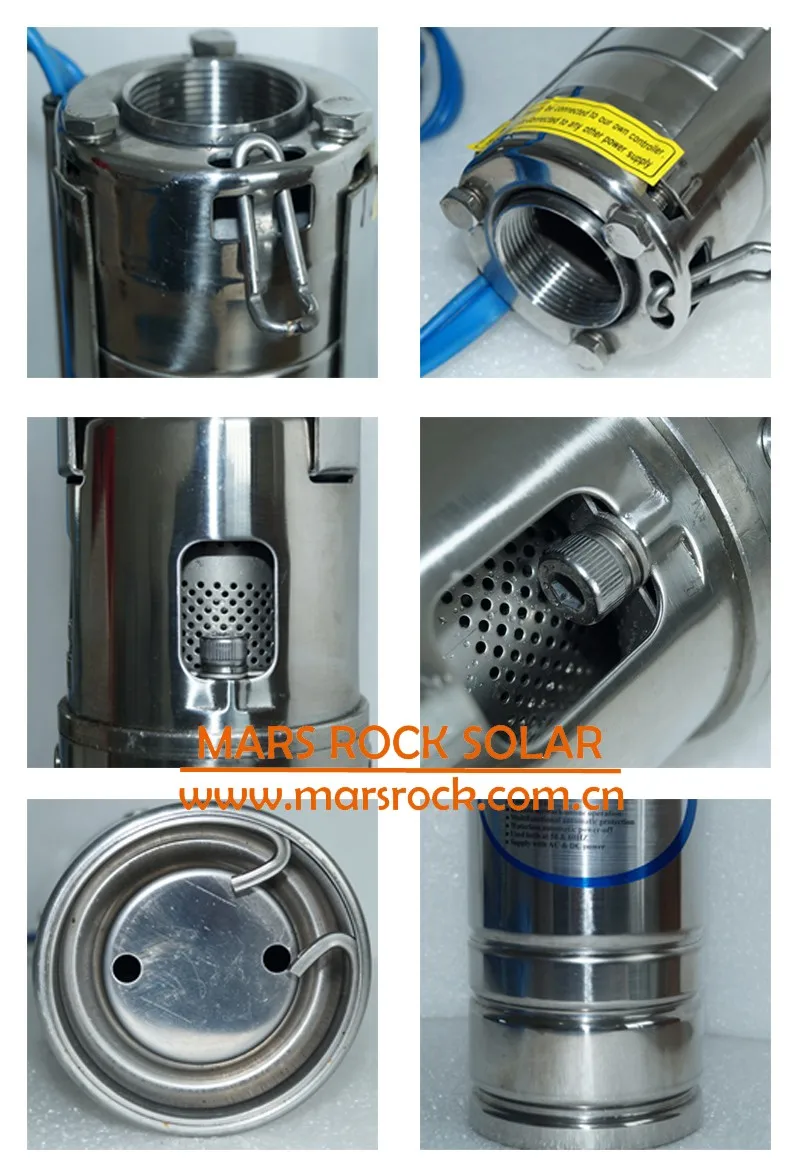

 The Pump

The Motor

Rotor of our permanent magnet synchronous motor is made of rate earth magnet, driven by a diver which works when gap between rotor and winding differs. Pump speed is decided by its driver. Rotating magnetic field of motor and stator keep rotating synchronously.

It can work under constant power, speed, and torque with quick reflection and precise control. With constant speed, it can keep the head and flow unchanged in wide range of voltage.

Its efficiency is 15% to 20% higher than other single-phase asynchronous motor (include loss from motor and controller) and 7% to 10% higher than three-phase asynchronous motor. And if we equip three-phase asynchronous motor with frequency conversion controller, permanent magnet synchronous motor can be 10% to 13% higher than it.

It is equipped with a controller which adopts DC frequency inverter technology. This controller can protect the motor when it is over-heated, over current and over loaded.

Motor speed can be designed as required. When speed is high, motor size will be smaller and material cost will be lower.

Usually efficiency of pump body is 50%-70%, installing permanent-magnetic synchronous motor in the pump, efficiency of pump can be improved by 5%-7%.

Performance comparison between pump with  permanent magnet synchronous motor and pump with normal speed

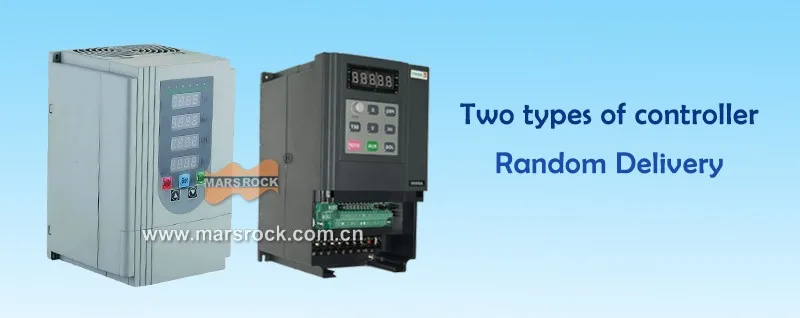

The Controller

This pump should be worked with our exclusive controller. It owns frequency control, constant velocity and so on, so it can be pumped water under the work model such as constant pressure, constant flow, time switch, remote network operation and intelligent operation. The pump works both at 50Hz and 60Hz, and also can remain the head and flow unchanged under wide voltage, output constant when the voltage pulsation happens. As this pump is used high efficiency motor (the max efficiency for motor is about 92%), the power factor is up to 0.99. After deducting the comprehensive loss of controller, the final efficiency still higher than the well pump droved by single phase asynchronous motor.

Our pump can be powered by AC and DC solar. If connected to solar panels, it can be solar pump. Our successfully developed solar pumps can change frequency automatically. Input power can switch between solar and AC power automatically. Solar power can be fully used, which is more advanced than other solar pumps working in MPPT. Power can range from hundreds watt to thousands watt. Efficiency of our pump is at least 20% higher than other pumps.

This pump is mainly used for all kinds of water supply and drainage, fountain, solar system and all other field requires deep well pump, widely used in industry, agriculture, petrochemical industry, medicinal industry and all kinds of water process.

This pump has obvious advantages especially for those request high pump head and big power. It’s a new generation

electromechanical integration well pump, and it would be the future direction of deep well pump development.

High voltage solar energy and AC380V dual-use controller connection diagram

Notice For Using Pump:

1. If pump is working on its max. Head, then pump can be displaced 100 meter under the water. Before working, please check that whether the pump is in good condition, no loose connection, no seepage and leakage of oil and no damage of cable. Use the ohmmeter to measure insulation electric resistance of pump. When the pump is in cold conditions, the electric resistance can be ≥50MΩ, and when the pump is in hot conditions, the electric resistance can be ≥2MΩ.

2. The pump power requirement is±10%. When the controller output power is constant and the voltage is too low, the output current will increase and reach the upper limit of the controller for protection so that the controller will stop working. At this time we should change the pump to manual working mode and slow down the speed a bit.

3. The pump should be equipped with its unique electric brake and switch separately. Ground terminals on the pump housing should be connected to the ground wire. Wires in green and yellow colors are ground wires and should be connected to the ground accordingly. When the cables equipped on the electric pump are not long enough and should be lengthened, the diameter of the lengthened cable must be larger than the previous one. Use waterproof adhesive tape to seal the joint.

4. Before using, connect the pump to power supply and check whether its starting and running are normal. Please note that pump should work in counterclockwise direction. Keep the pump working in short time to check whether the rotation direction of the electric pump is correct for the one that forbids rotating without water. If the rotation direction of the three-phase electric pump si not correct, then adjust any two of the power input lines.

5. The installing and hoisting of electric pump should be performed at the annular ring by the lifting rope. It is forbidden to lift the cable to hoist the electric pump. It should be more than 1m from the water bottom so as to prevent the suction of sediment and avoid the damage of components such as machine ring and impellers.

6. Pay attention to the descending condition of water level when the electric pump is working, especially when it is working under the well. Never keep the electric pump work emerging the water level or without water, otherwise the motor and other components may be damaged. Also the pump can’t work under sludge or the motor will be damaged because of poor heat dissipation.

MARS ROCK GROUP is a high-tech group specializing in the R&D, manufacturer, and marketing of solar photovoltaic systems and solar products. Now as one of the most professional solar products manufacturer, based on self-produce and self-market management. Our beliefs are:

1.  To grow together, to win together with you.

2.  To guarantee our quality and competitive prices for you.

3.  To give first-grade services to you.

Mars Rock MSC pump industry founded in 2008, which has always been committed to the continuous innovation of technology and management, the establishment of a complete quality management system, advanced pump test center, and excellent after-sales service department.

Part 1 Workshop

Part 2 Testing

FAQs

1. Can it be used to swamp?

No, the SZW series water solar pump can only using in the clean water.

2. What kind of pump should I choose?

We will help you to design the perfect pump to satisfy your demand.

3. If there is no sun, can the pump work?

Yes. The pump switches solar DC and AC working model automatically.

4. Can you accept OEM with buyer’s logo and label information?

Yes, we can.

5. Can I buy the pump only without the controller?

No. Our pump can only work with our exclusive controller.

6. What is the MOQ?

The MOQ of water solar pump is 1 set.

7. How about the warranty?

The SZW series water solar pump’s warranty is one year.
