CS 1.5 mm Viton O ring OD42 45 50 55 60mm outer dia

tank fuel joint rubber seal Fuel organic solvent FKM

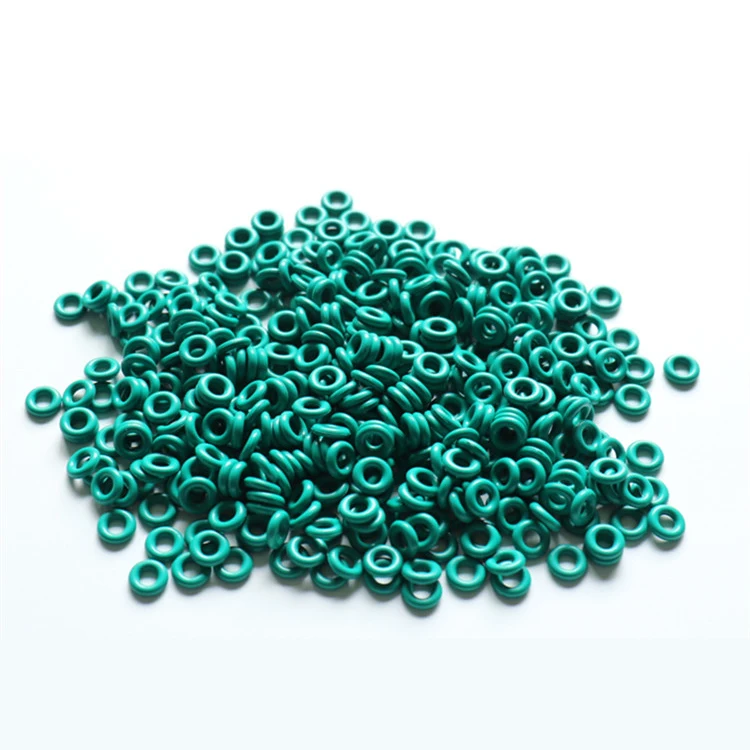

Name :O-ring

Material:Viton Rubber

Color:Green

Spec:thickness 1.5 mm and Outer dia diameter

Outer dia: 4-60 mm

Eg: "OD 9p5mm"  means size is Outer dia 9.5mm

CS   Oring line thickness(mm)

ID    Oring inner diameter(mm)

OD    Oring outer diameter(mm)

Information about material

Advantage:

Good oil resistance, water resistance, solvent resistance.

Good pressure resistance, wear resistance and tensile strength

Using for rubber parts  of fuel tank, oil tank.

Petroleum hydraulic fluids, gasoline, water, grease, silicone oil, diester lubricants, glycol systems.

Hydraulic oil and other fluid using rubber parts.

Shortage:

Not suitable for polar solvents, such as ketones hydrocarbons, ozone, Nitro, MEK and chloroform.

Not well ozone resistance, weather resistance, not hot air aging

Information about material

Nitrile rubber (NBR):MaxTemperature 100 Celsius,good resistance to oil

Silicone rubber:(VMQ):MaxTemperature 200 Celsius,common oil resistant ,non-toxic good waterproof,

Viton:Tmax 280,good oil-resistant,wear - resistant corrosion - resistant

EPDM:Tmax 150,Good Oxidation resistance, ozone resistant and anti erosion,Common oil resistant.

polytetrafluoroethylene(PTFE):Tmax 280,non-stick very non-reactive Acid alkali resistance, resistance to organic solvents extremely low coefficient of friction.

Advantage:

NBR has good resistance to mineral oils, vegetable oils, benzene/petrol, ordinary diluted acids and alkalines.

Weak point:

Not suit for polar solvent,ex.ketone,Ozone,nitro-hydrocarbon,MEK,chloroform

Application:

Fuel container , lube oil container,Hydraulic oil of oil ,silicone lube,water,

diester lube sealing.It's widely used and lower cost for oil.
