Fuse Insurance Connector Box With LED Warning Light For Car Modification Boat Bus NR-shipping | Автомобили и мотоциклы

body,td,th { font-family: Verdana, Geneva, sans-serif; font-size: 16px; color: #636363; } body { margin-left: 0px; margin-top: 0px; margin-right: 0px; margin-bottom: 0px; } a{ color: #636363; text-decoration: none; } a:hover { text-decoration: none; color: #636363; } a:active { text-decoration: none; color: #636363; } em { color: #BD1A1D; font-style: normal; font-weight: 700; } Fuse Insurance Connector Box With LED Warning Light For Car Modification Boat Bus NR-shipping Features:
1.Indicator function: When the red LED is lit,it means the fuse has been disconnected, you need to replace the fuse in time to continue running.
2.Installation range:Can be installed on cars,bus,yacht,boat,etc.
3.Scope of use: It can be directly connected to the line of any electric appliance on the car/ship, such as: roof lamp,car headlight, sight width lamp, fog lamp, warning light, car refrigerator, car charger,car fan,car TV Wait
4.Fuse function: Each fuse has a rated specification. When the current exceeds the rated specification, the fuse will be blown. If the fuse is correctly placed in the circuit, then the fuse will rise abnormally to a certain height and certain At the temperature, the fuse cuts off the current,thus protecting the safe operation of the circuit.
5.The product adopts PBT anti-flame-resistance, high-low temperature and environmental protection materials,the fuse holder have good mechanical strength,insulation,heat resistance and flame retardancy, and not cause breakage,deformation,burning and short circuit.
6.All busbars and fuse clips are nickel plated copper for corrosion resistance and optimum conductivity
7.All fasteners are made of stainless steel, the fuse box is input, the output end is fixed by screwing screws, which can be installed more quickly, and the safety box is fixed by self-tapping screws, which makes installation easier and safer.
8.Red LED indicator design, corresponding to each fuse connected to the appliance, when the fuse is disconnected, the red light will be on, you can immediately know which fuse is broken, convenient and timely processing
9.With sticker, according to the name of the sticker on the sticker, it can be attached to the electrical appliance we have connected. When the fuse is broken and the red light is on, we can tell the first time which electrical appliance has a problem, saving time.

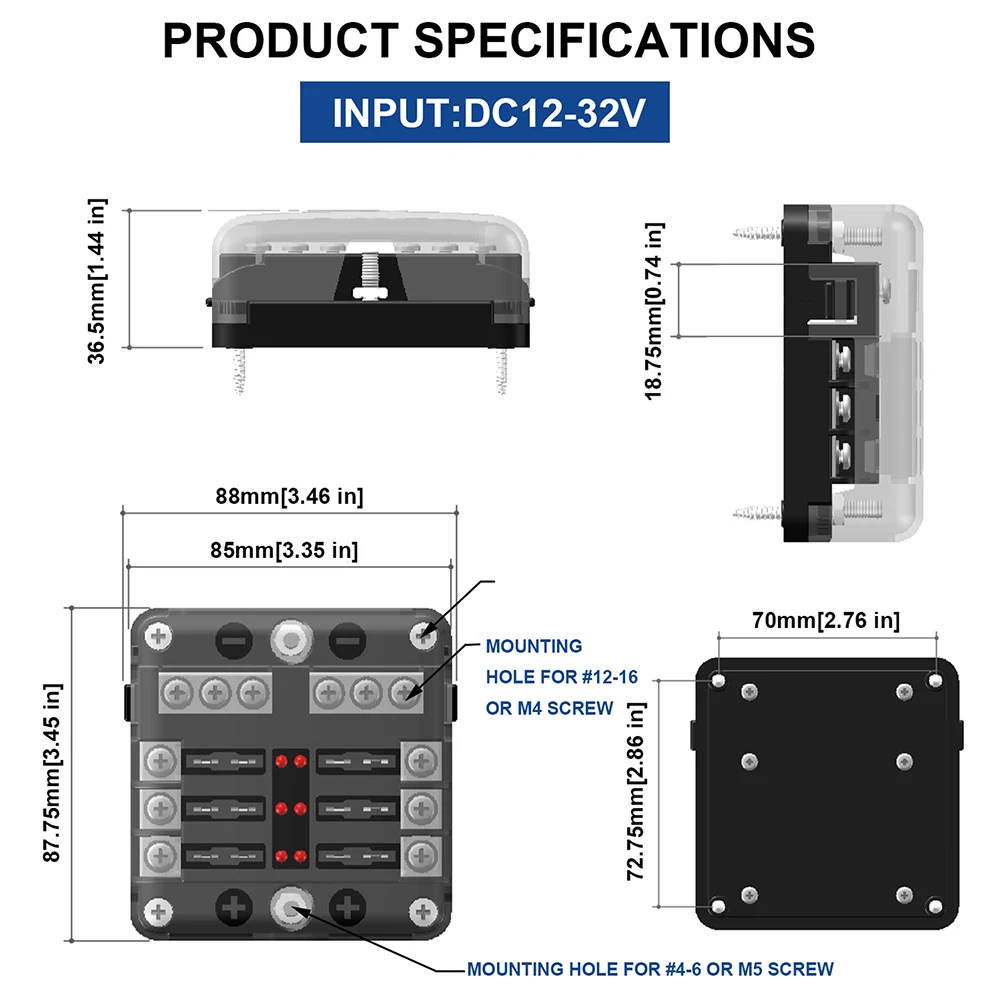

Specification:
Size: 87.75x85x36.5mm
Material: PBT body, PC waterproof dust cover, nickel-plated copper connection terminal, PPX40 sticker
Input rated voltage: 32V
Input rated current: 100A
Output maximum current: 30A per circuit
Indicator color: Red
Main line terminal: M5 threaded stud
Main line wire: #4-6
Single wire terminal: M4 threaded stud
Single wire: #12-16
Accessories:Sticker x2;screw x4;20A fuse x4;15A fuse x4;10A fuse x2;5A fuse x2


1x Insurance Connector Box
