Бесплатная доставка 40G QSFP + к AOC 1 м кабель 40 Гбит/с OM3 OM4 метр MPO SFP модуль активный

Бесплатная доставка 40G QSFP + к AOC 1 м кабель 40 Гбит/с OM3 OM4 метр MPO SFP модуль активный

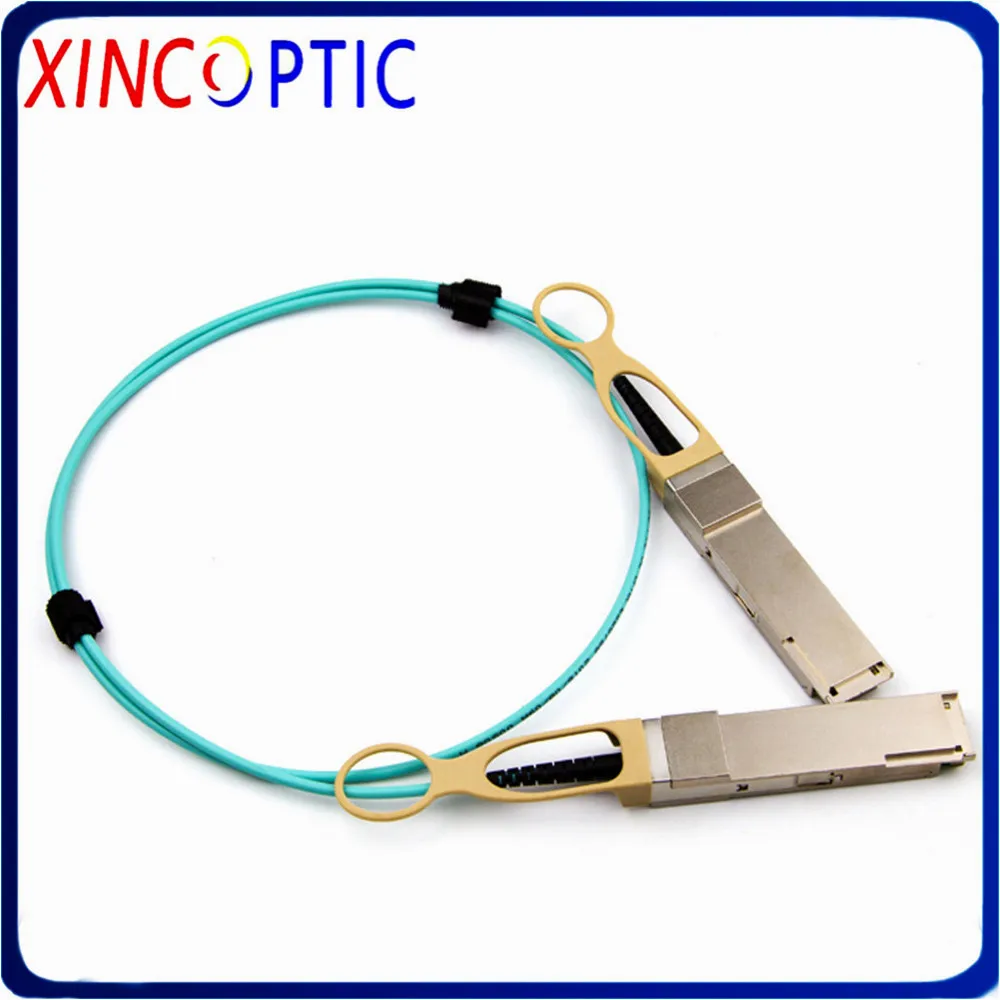

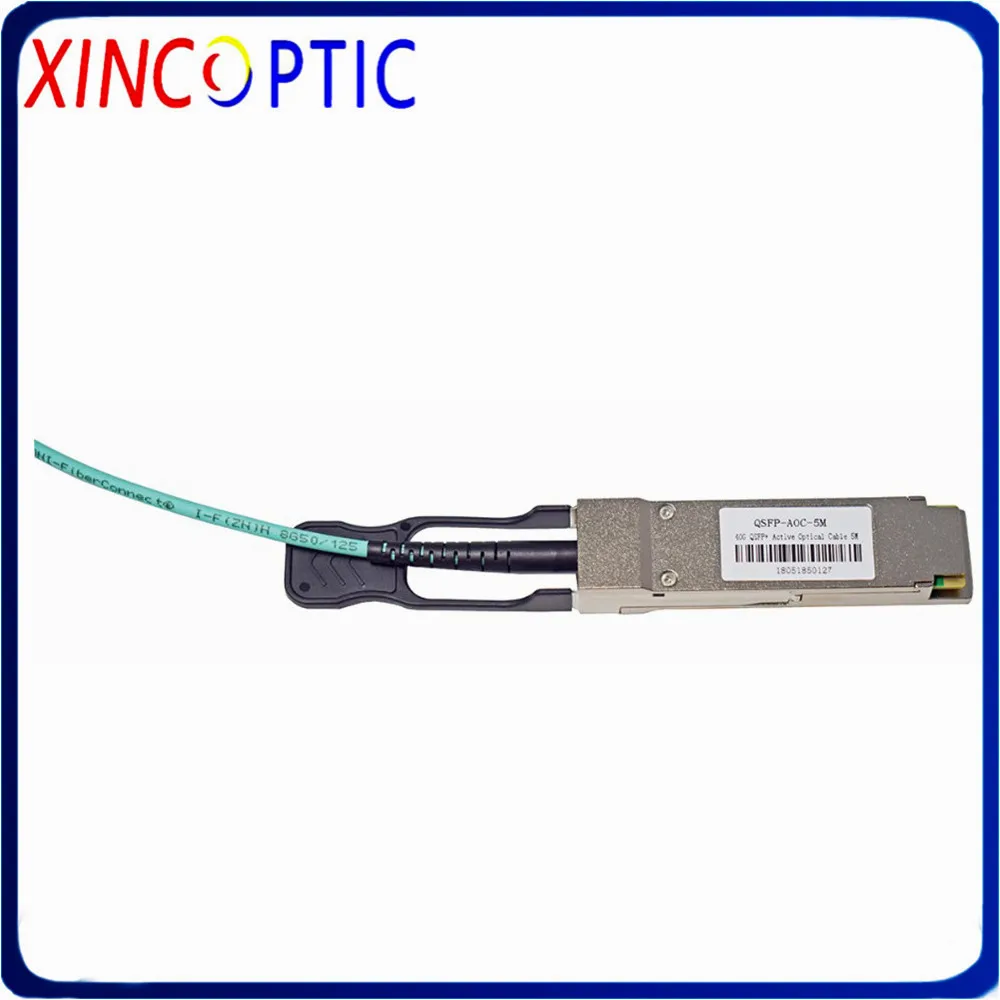

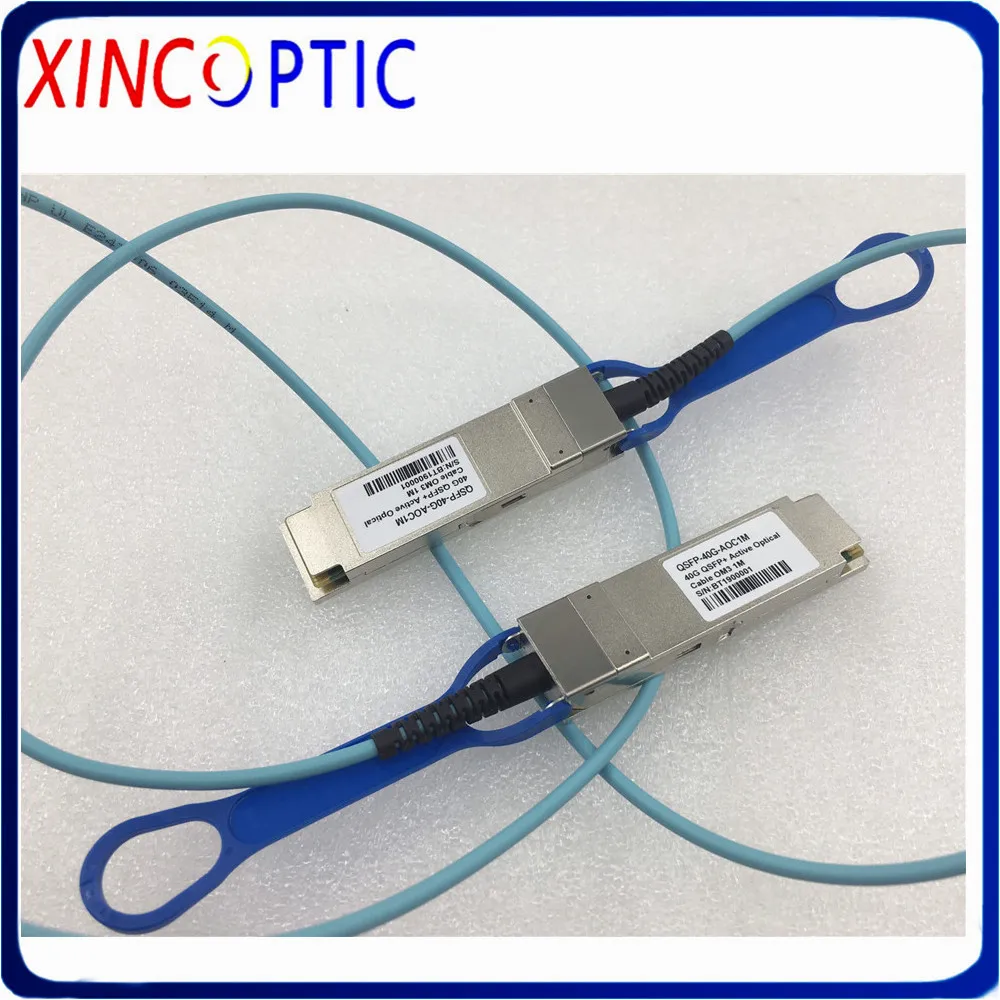

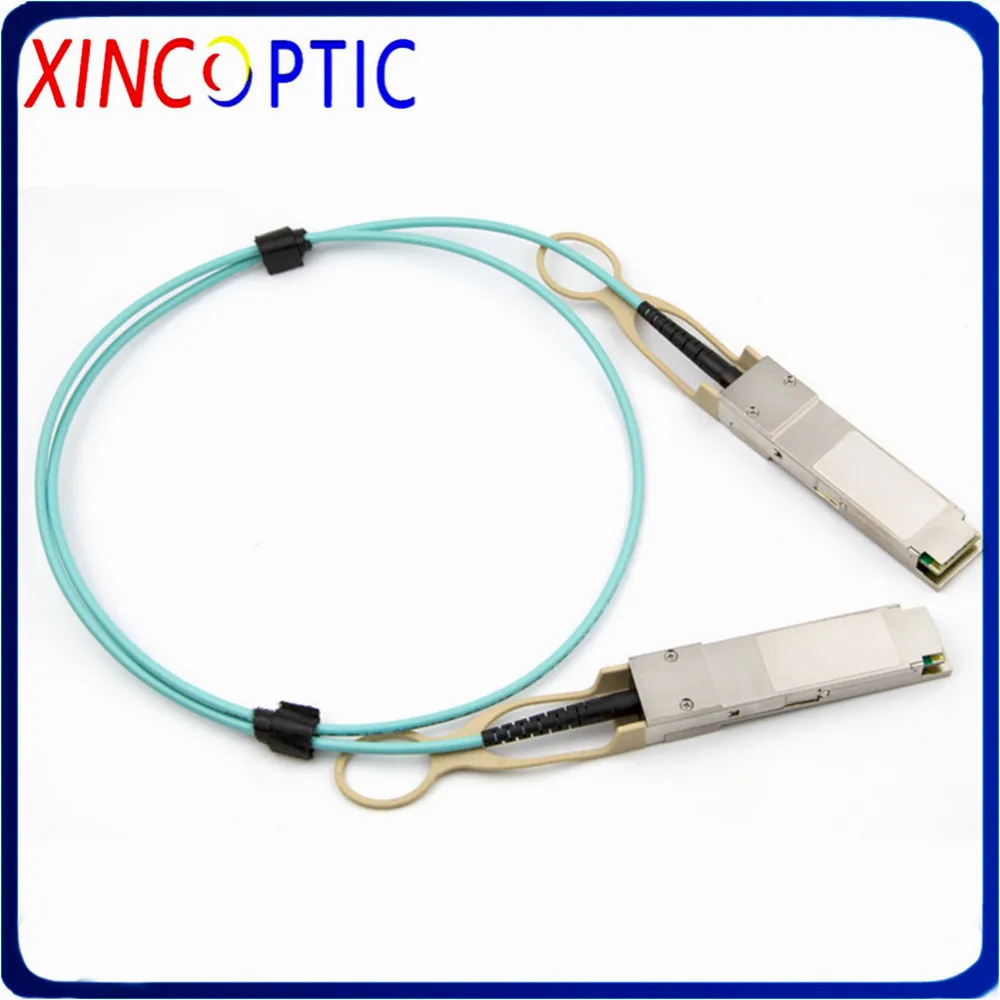

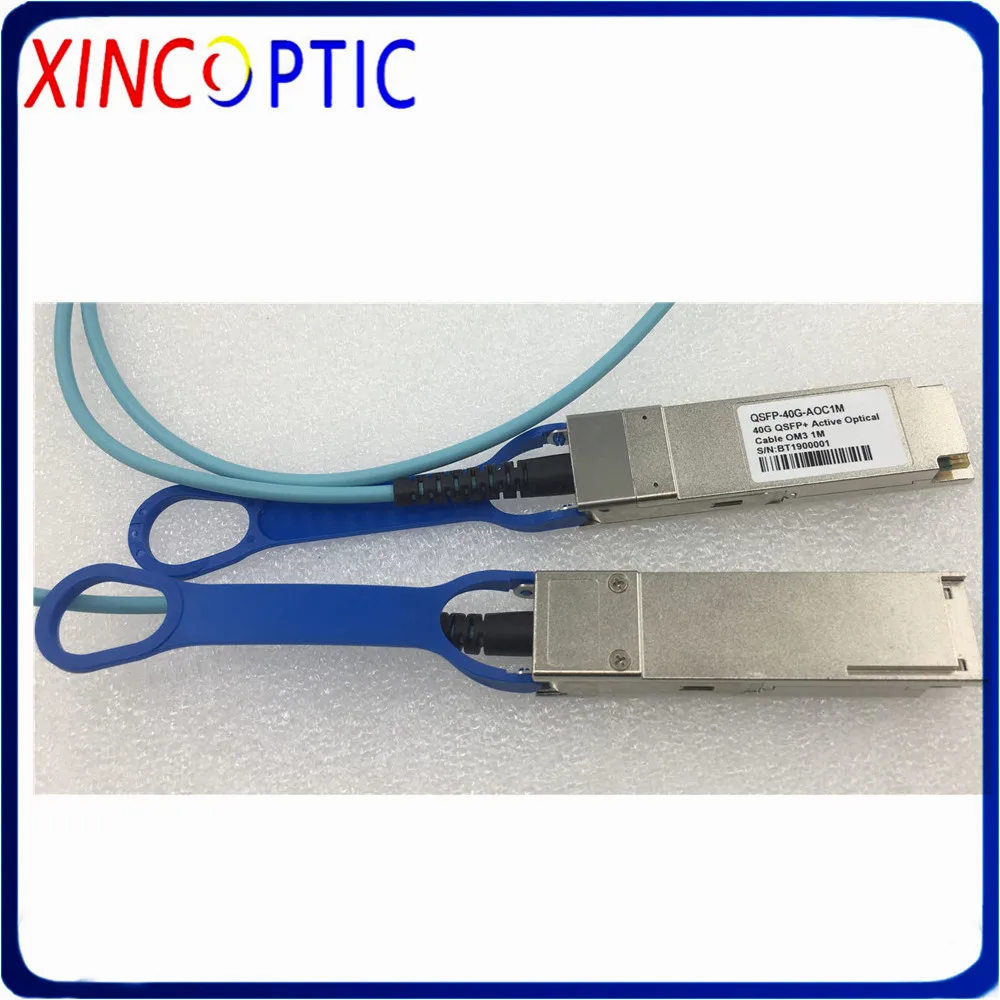

Free Shipping 40G QSFP+ to QSFP+ AOC 2M Cable, 40Gbps OM3 OM4 2 Meters MPO SFP Module AOC Active Optic Fiber Cable

What is Your Switch Mode?

Note：This listing is for CiscoSwitch, if you need other compatibility please kindly leave the Switch's Brand and Model, when you make an order!

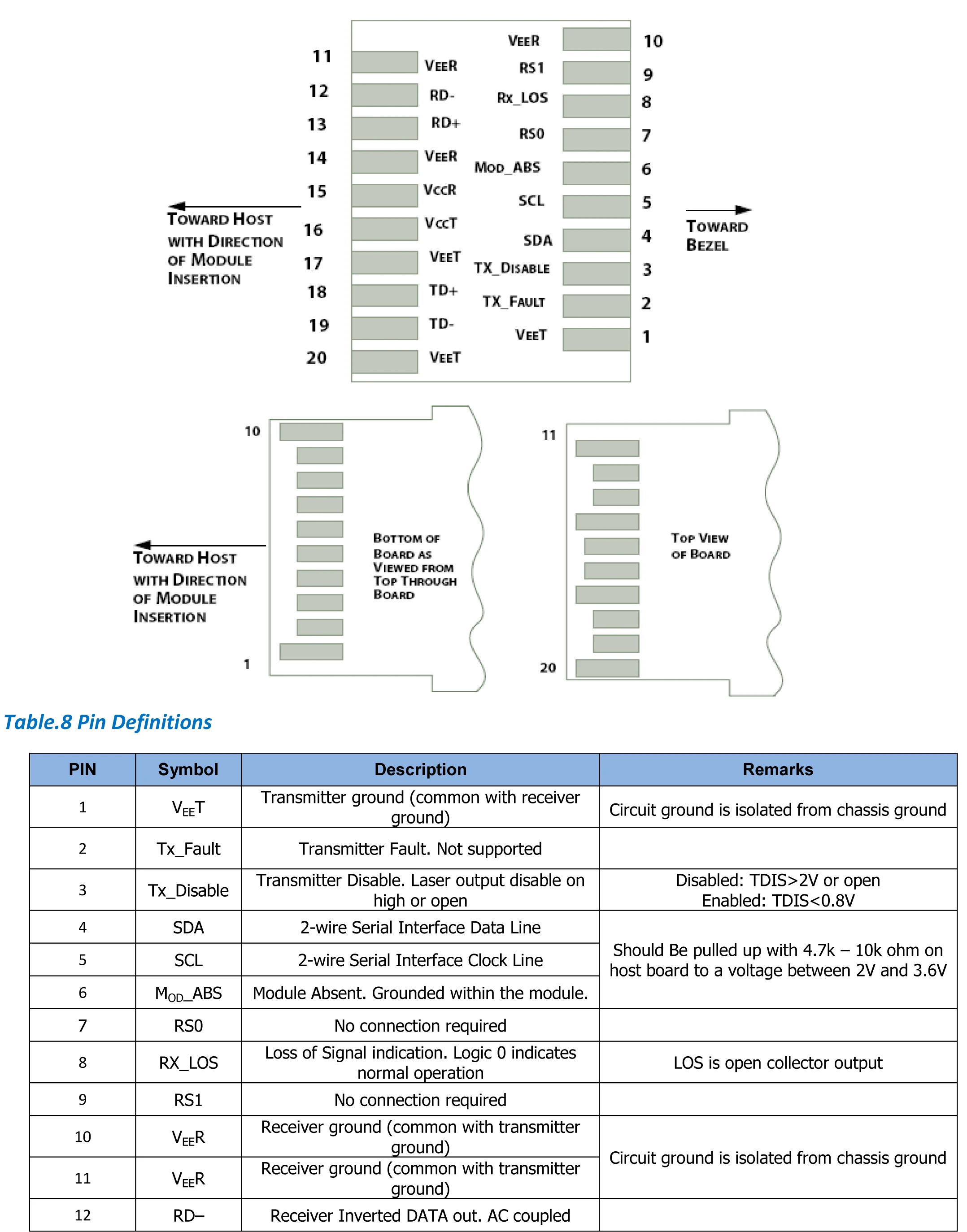

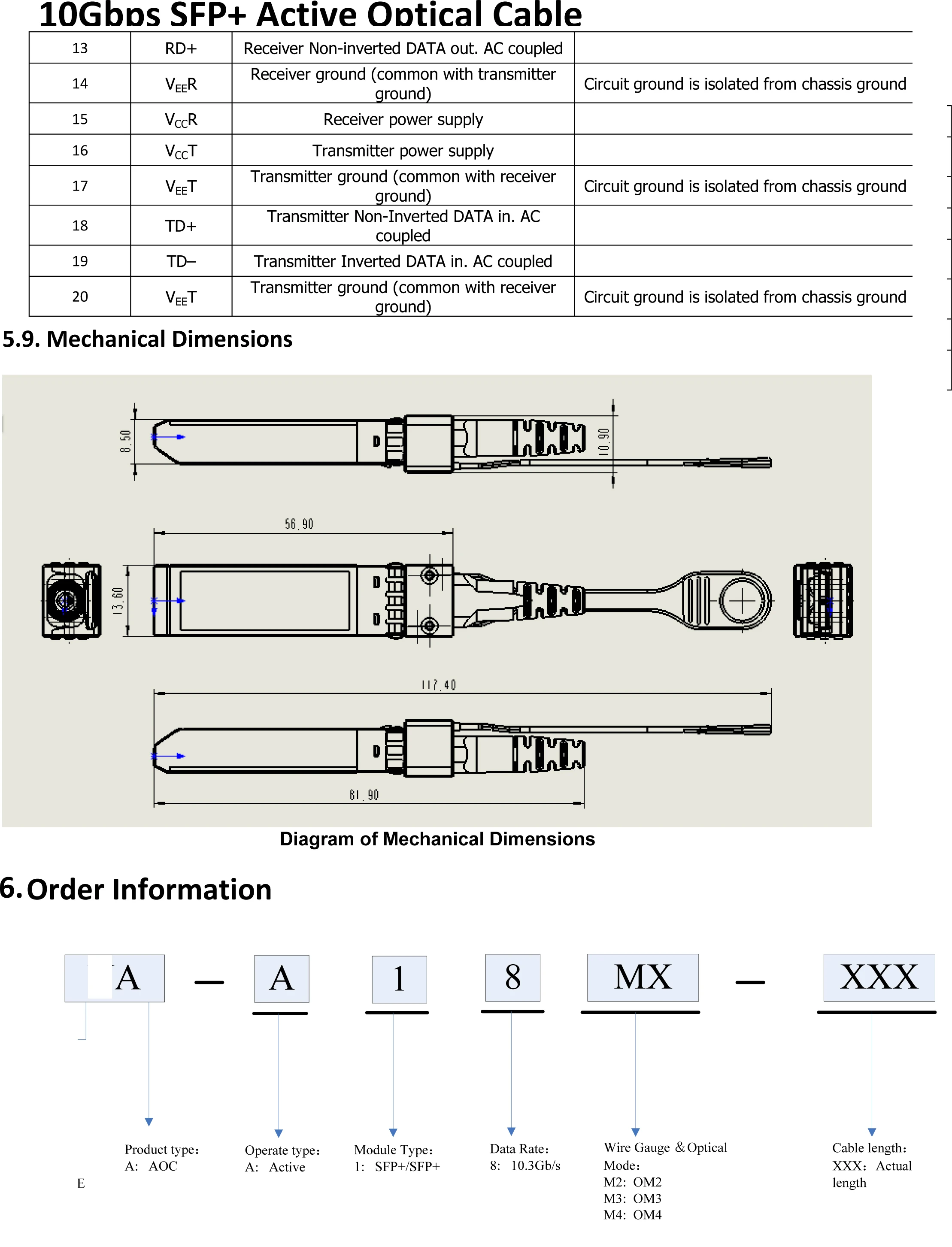

10G AOC Specs

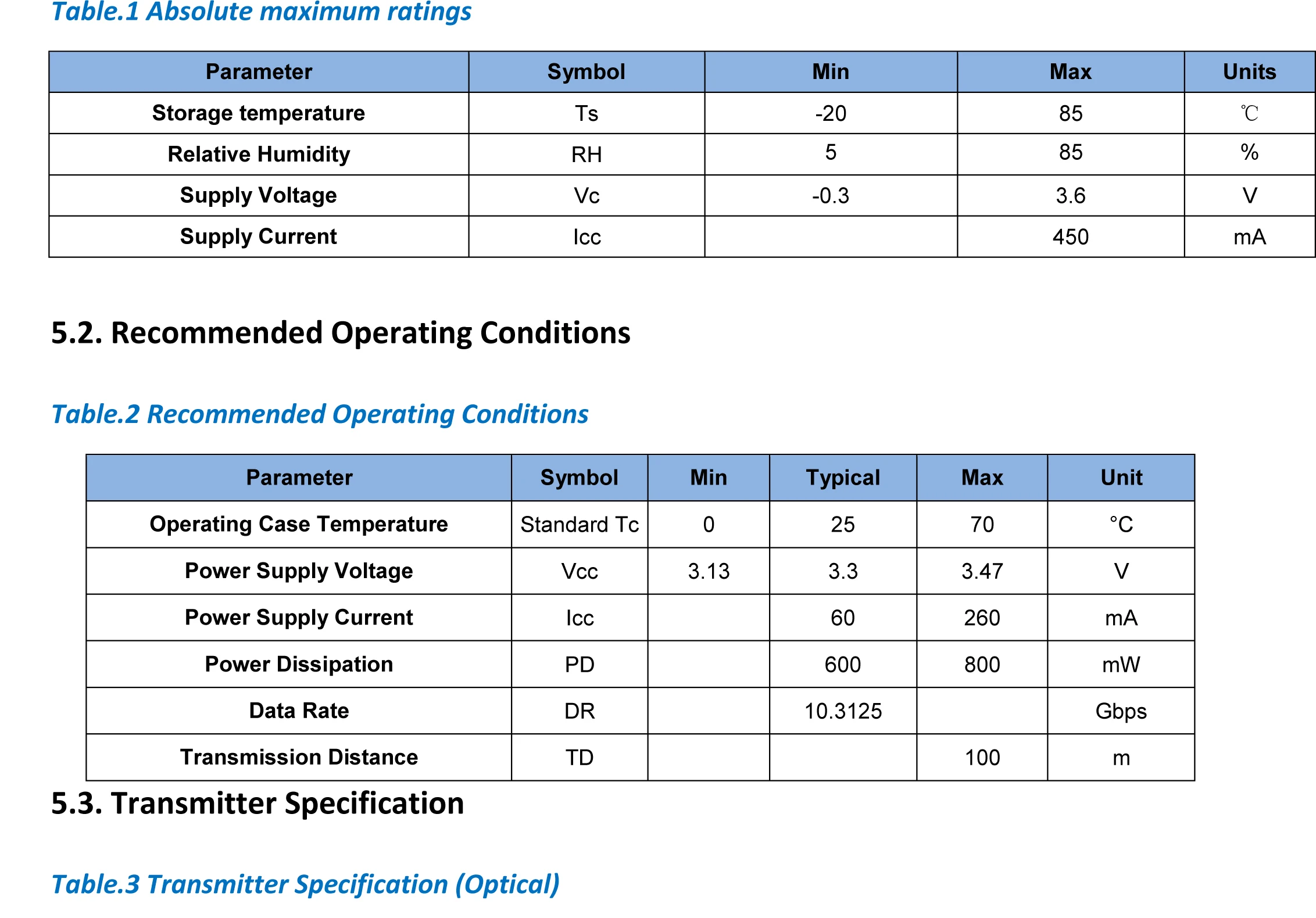

10Gbps SFP+ Active Optical Cable A18MX-XXX 1. Applications  Datacom  10G Ethernet  Other high-throughput data transmission network 2. Features  10Gb/s active optical cable up to 100m OM2 MMF  850nm VCSEL and PIN receiver  Single 3.3V power supply  Operating Case Temperature: -5~75℃  Hot pluggable  Low Power Consumption  Light weight  Small Bend Radius  Digital Diagnostic Monitor(DDM)  All-metal Housing for Superior EMI Performance 3. Description SFP+ Active Optical Cable (AOC) is a 10Gbps solution to10G Ethernet, and datacenter. The integrated cable transmits 10Gbps data in each direction over MMF with distance up to 100m. The AOC is SFP+ MSA compliance, low power consumption and lightweight. 4. standard  Compliant with SFF-8431 and SFF-8432  Compliant with SFF-8472 Rev 10.2  Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW  RoHS Compliant 5. Performance Specifications 5.1. Absolute Maximum Ratings These values represent the damage threshold of the module. Stress in excess of any of the individual Absolute Maximum Ratings can cause immediate catastrophic damage to the module even if all other parameters are within Recommended Operating Conditions.

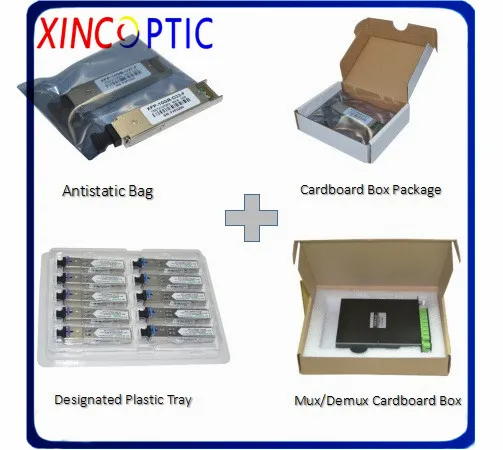

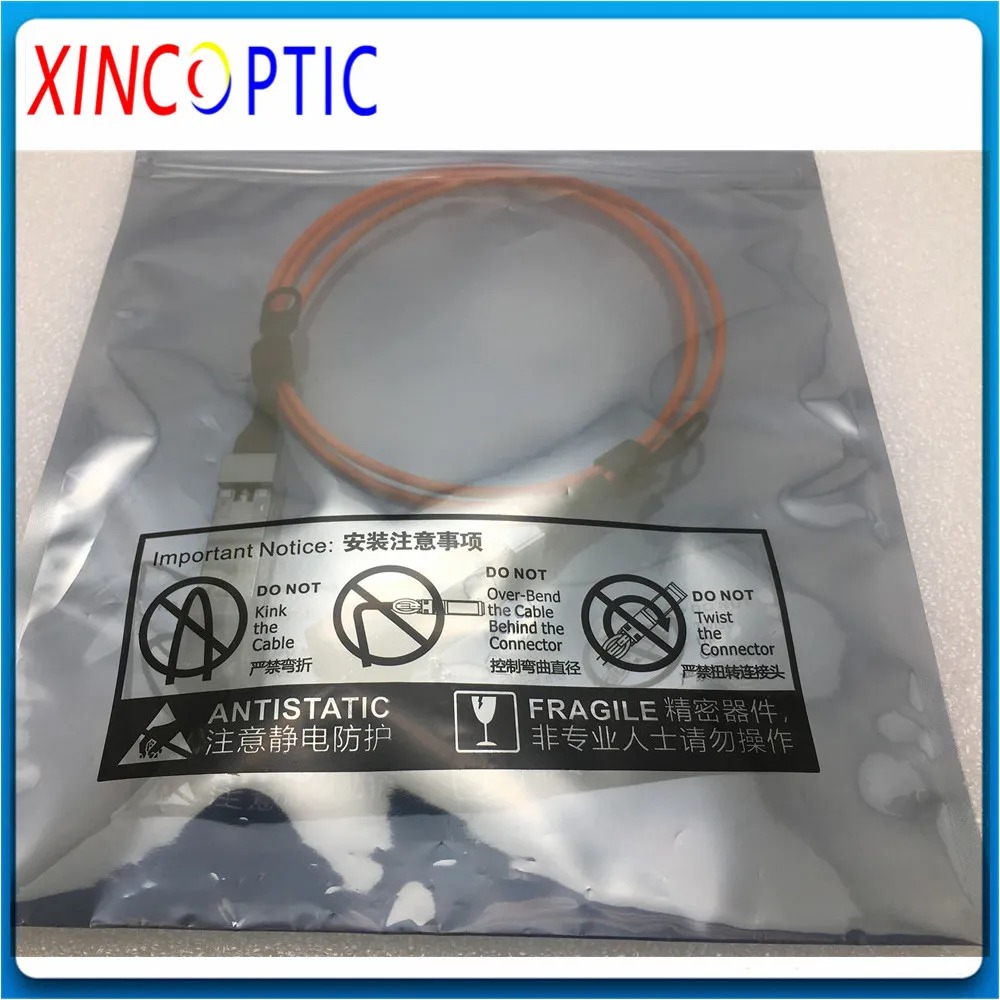

Package

Package

Package

Hot-selling

Company Brief

Shenzhen Xinchuang Optical Communication Technology Co., Ltd. is one of the powerful and high-tech companies specialized in Optic fiber transmission, network communications equipment and the provision of fiber to the home (FTTH) products. All the products manufactured strictly carry out international and national relevant technical standards. ISO9001-2008 quality management system and ISO14001-2004 environment management system are implemented comprehensively. The products are widely used in telecommunication and electric power and optical fiber CATV and the transmission network of data optical fiber and optical fiber communication system and Security field of high-definition video. Our major products are Communications Fiber cable, Power Fiber cable, FTTH fiber cable and Mobile fiber Cable; optic media converter, digital video optical transmission systems and Optical Transceiver Modules; HD HDMI / SDI video optical transceiver , optical transceiver modules, Ethernet fiber optic transceivers and fiber optic accessories. Professional research ,design and production team,The concept of innovation and mutual benefit and win-win. The multiple OEM/ODM service is provided for famous brand of domestic and overseas. It is exported to America, Canada, Romania, Mexico, Argentina, Brazil, West Africa, Thailand, and Saudi Arabia

FAQ

Payment

1.You can Pay via Alipay, Visa, MasterCard, Western Union, Bank transfer on AliExpress. 2. Please make the payment as soon as possible so that you can get the item earlier. 3. Note: Any import tariff of the item is the buyer's responsibility, not included in the selling price or shipping fees; But we will declare the product as a gift with a lower value to help you easily get the item through the Customs.

Shipment

1. WORLDWIDE SHIPPING (except a few countries and APO/FPO). 2. All the orders will be promptly processed and will be shipped out in 2-3 days after the payment is confirmed Holiday time extended. 3,Please kindly do not 1-3 low scores on shipping cause the overseas shipping will be affected by many factors such as Customs processing, Post strike etc. 4. We o nly ship the item to the confirmed order addresses, so please make sure that your order address matches your delivery address. 5. Optional shipping ways: China Post Air Mail, HongKong Post Air Mail, ePacket, EMS, DHL, Fedex, UPS, etc. 6. Almost all the orders under 2kg is for free shipping by China Post Air Mail. Please choose other shipping ways if you need the item urgent

Guarantee

1. 12 months Manufacturer’s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty. 2. Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY. You agree to all of the above-listed policies upon ordering on aliexpress! 3.Warranty freight borne by the buyer.

Feedback

Feedback We maitain high standars of excellence and strive for 100% customer satisfcation! Feedback isvery important to us,we request that you contact us before you give us neutral or negative feedback,so that we can satisfactorily address your concerns It is impossible to address issues if we dont know about them
