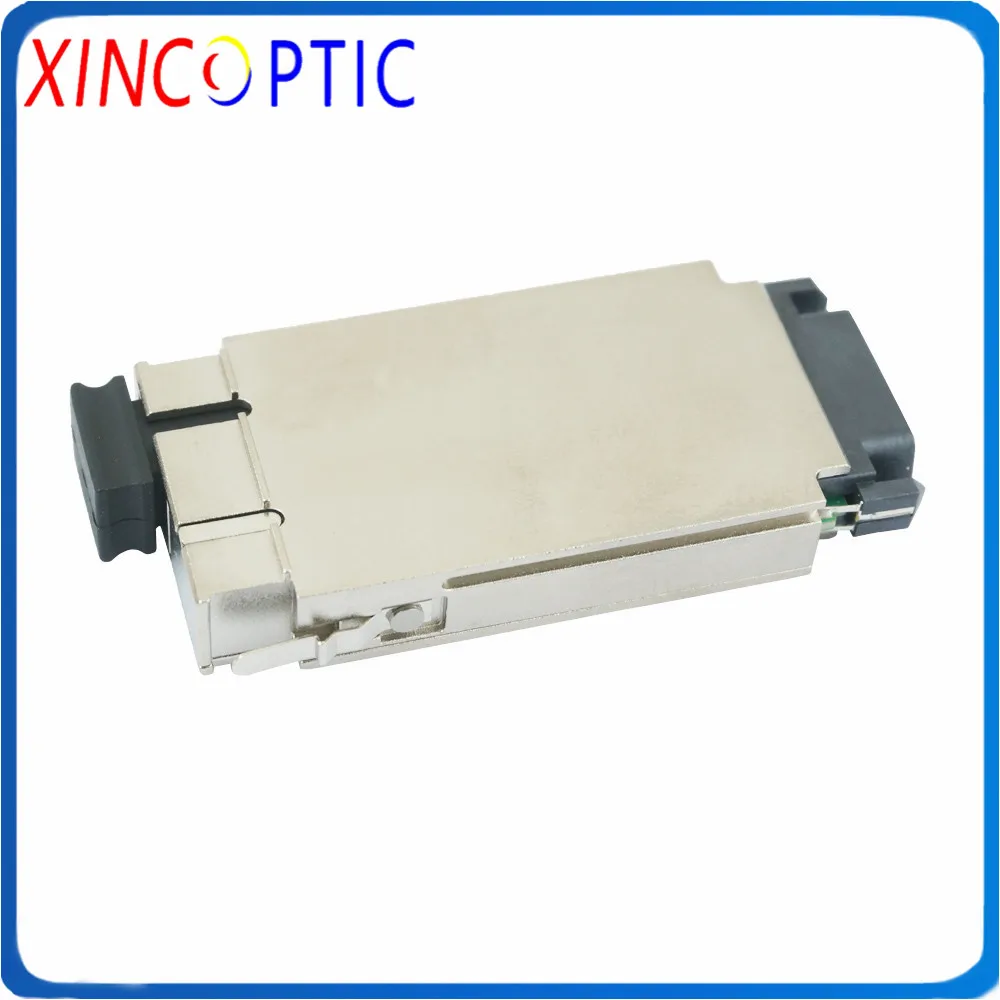

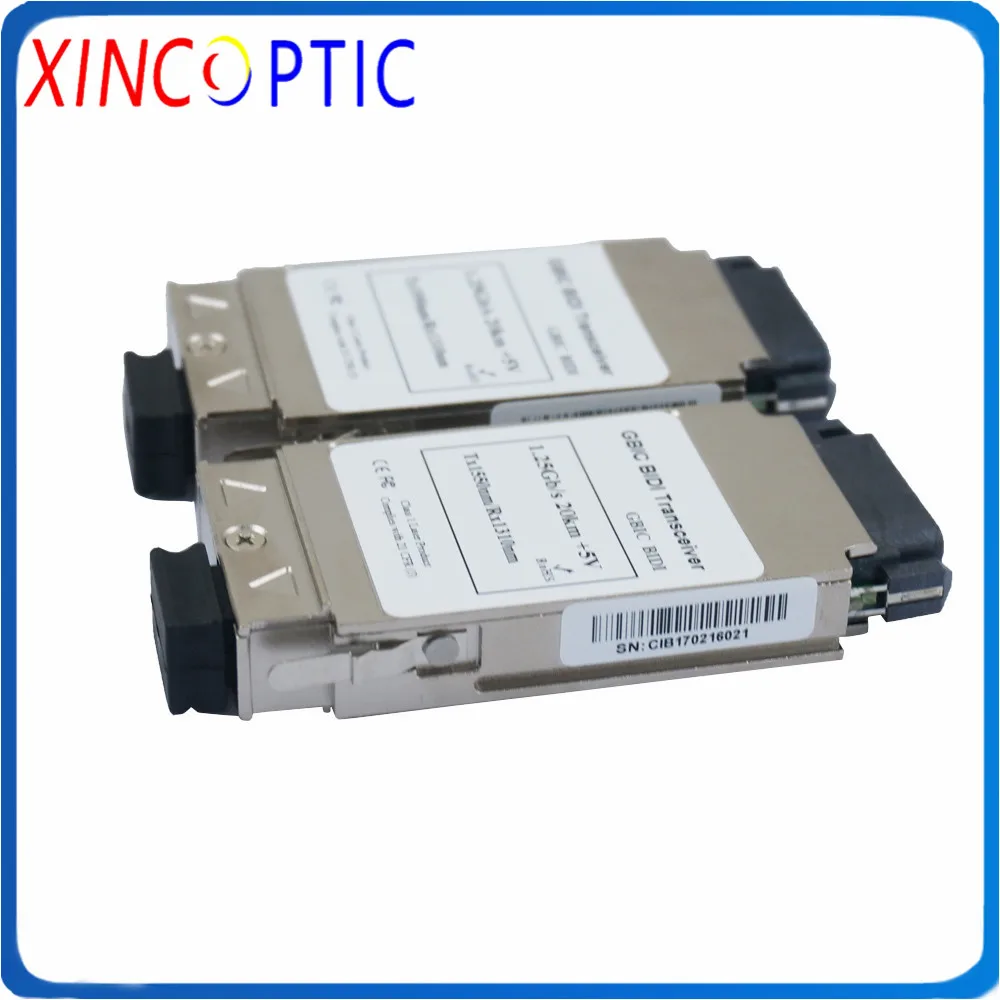

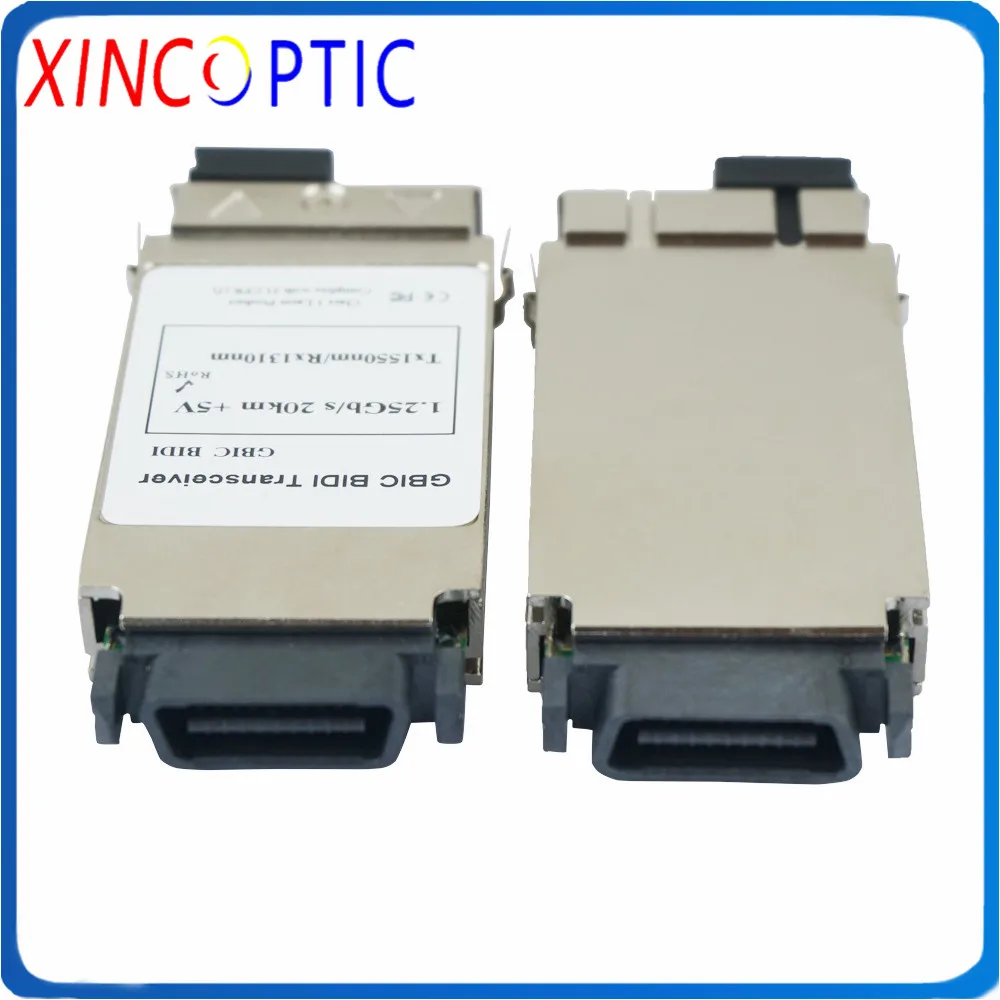

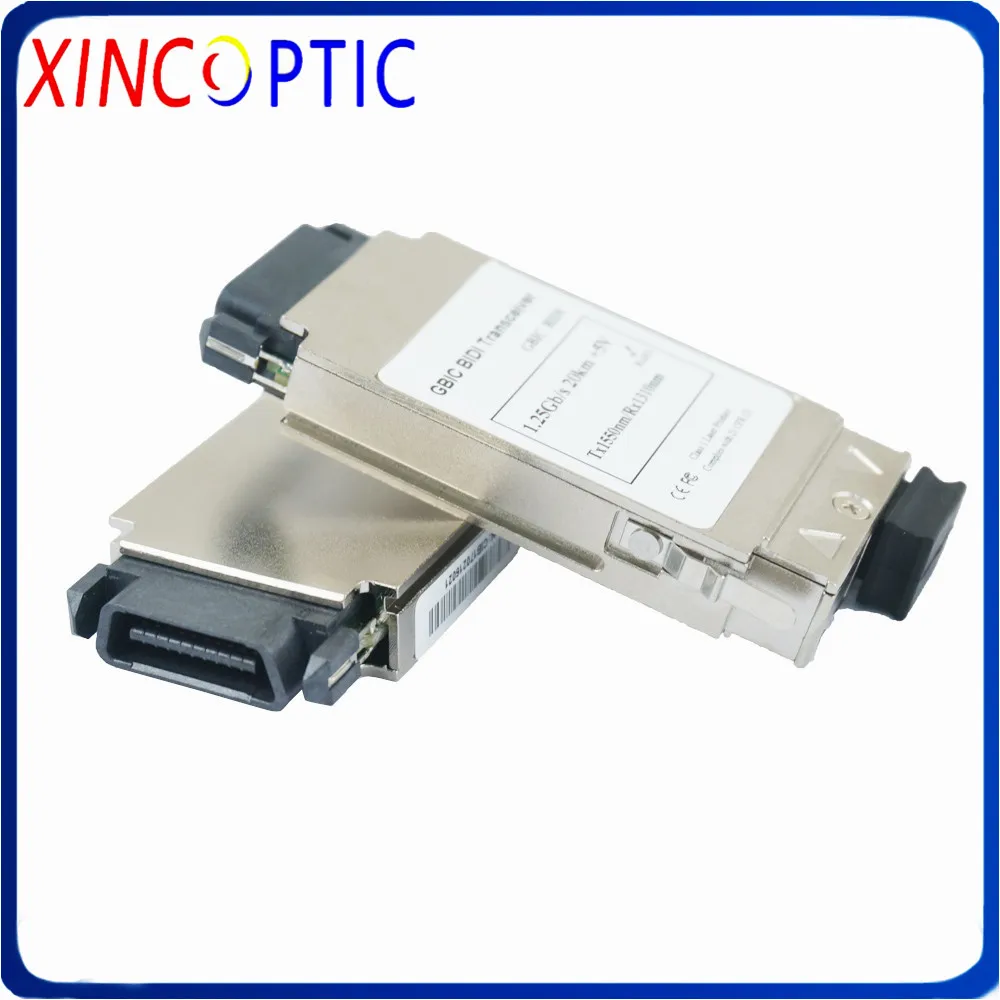

1.25Gbps GBIC WDM 20Km 1310/1490nm SFP 1.25Gb/s BIDI Bi-Directional 20km SFP Optic Transceiver Module

What is Your Switch Mode?

Note：This listing is for CiscoSwitch, if you need other compatibility please kindly leave the Switch's Brand and Model, when you make an order!

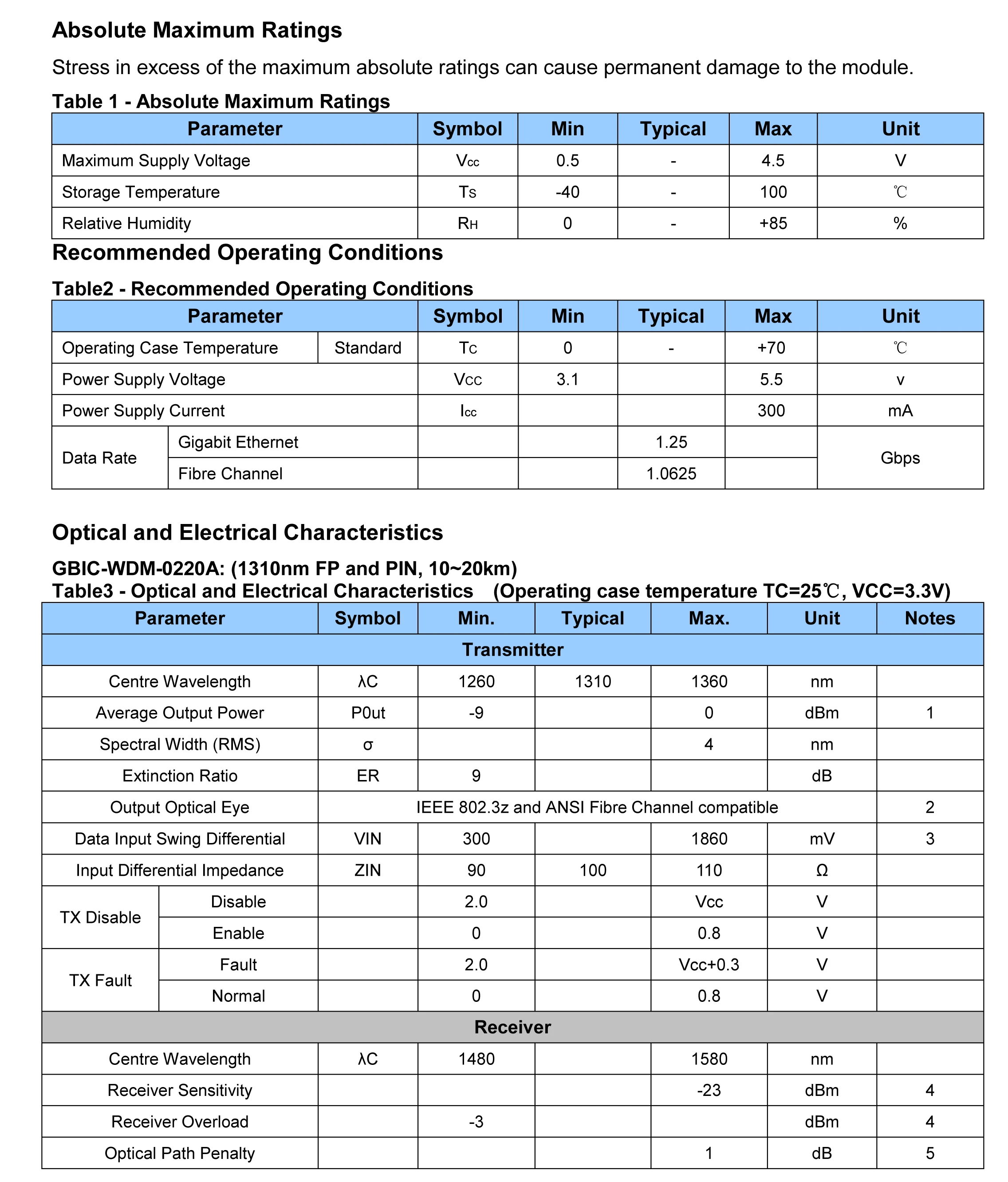

1.25Gbps GBIC BIDI Optical Transceiver Specs

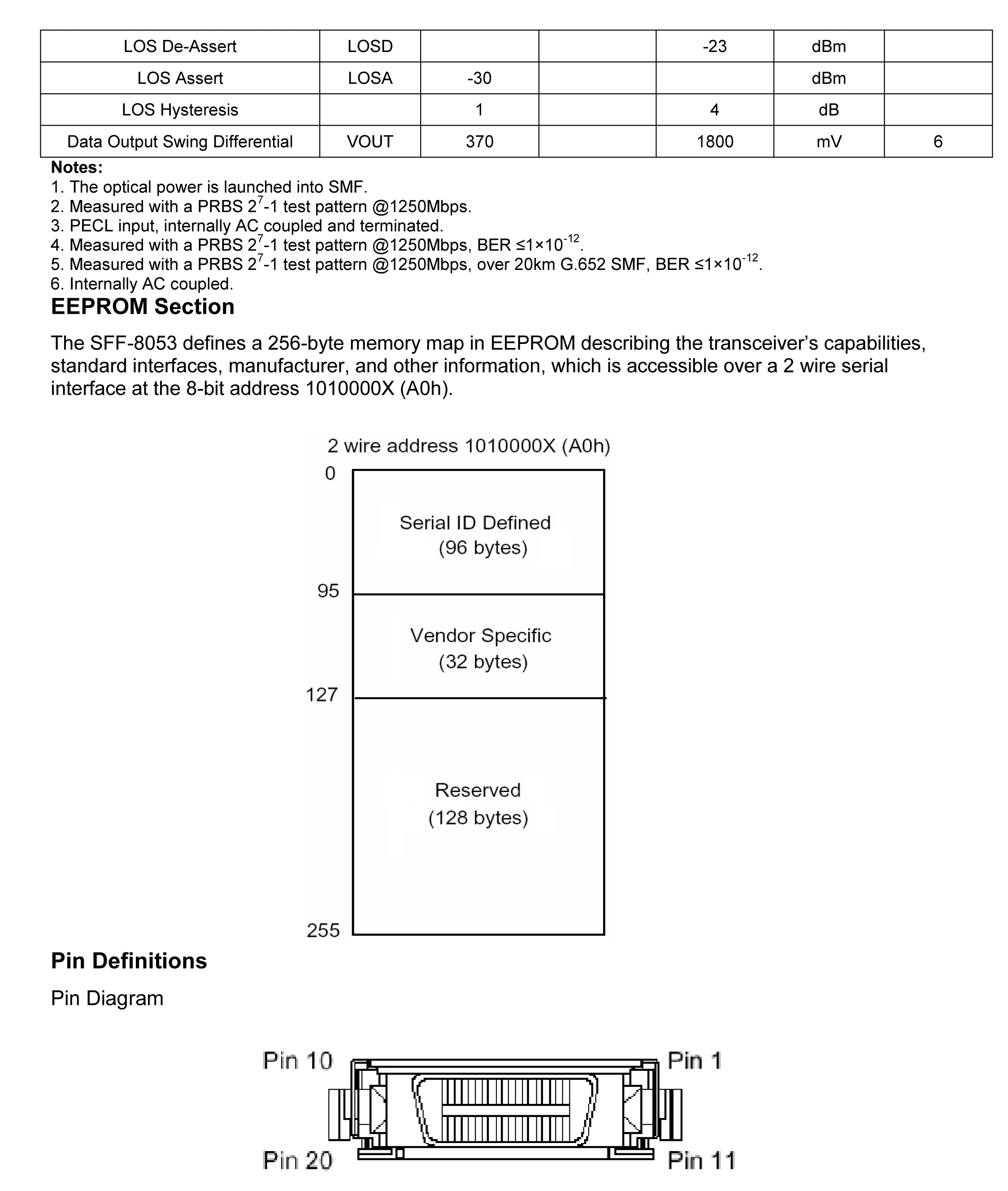

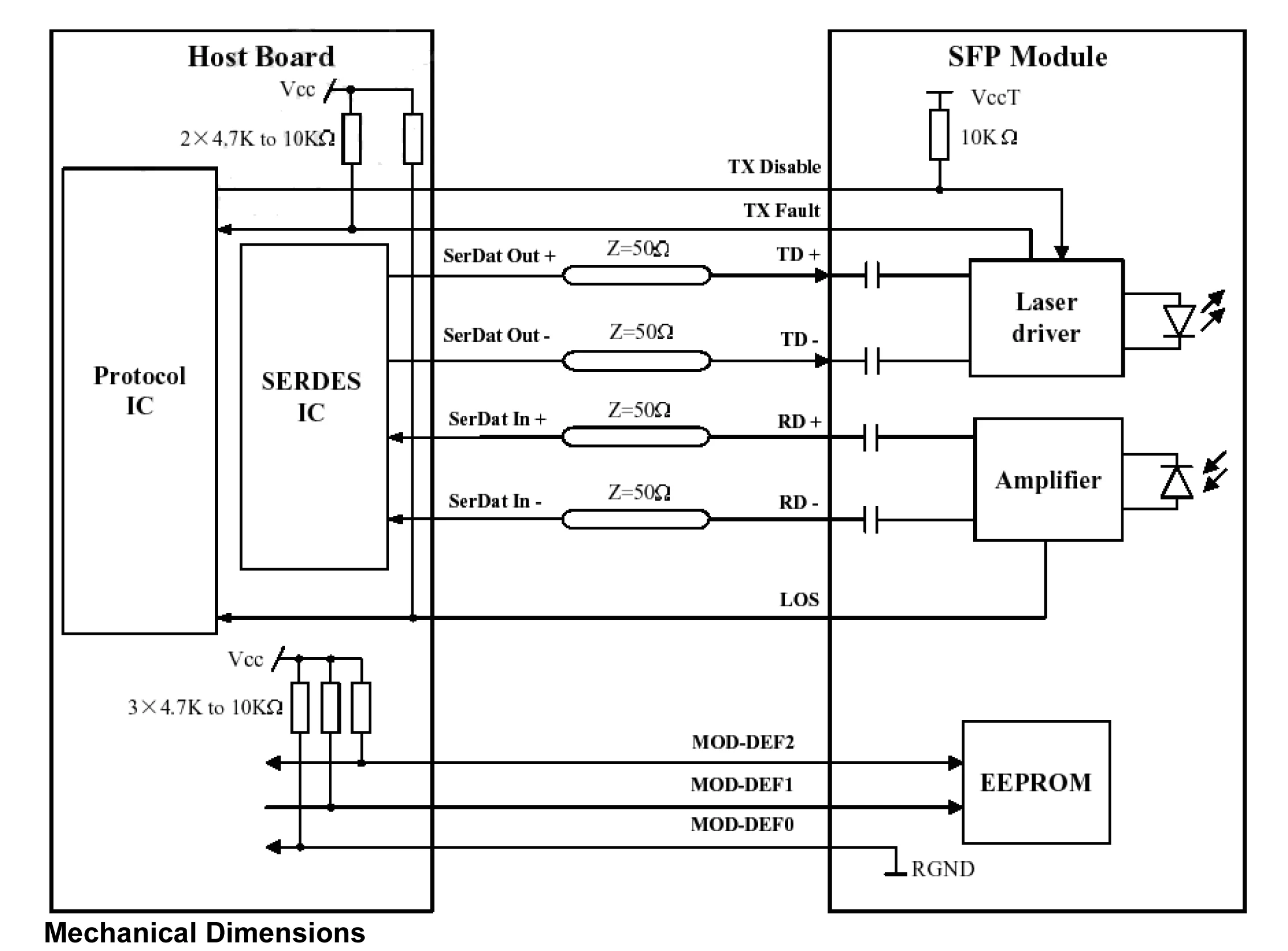

Features ►Dual data-rate of 1.25Gbps/1.0625Gbps operation ►1310nm FP laser and PIN photodetector for 20km transmission ►Duplex SC optical interface ►Standard serial ID information compatible with SFF-8053 ►+3.3V/5Vsingle power supply ►RoHS Compliant ►Operating case temperature: Standard : 0 to +70°C Applications ►Switch to Switch interface ►Switched backplane applications ►Router/Server interface ►Other optical transmission systems Description The GBIC transceiver is high performance, cost effective module supporting dual data-rate of 1.25Gbps/1.0625Gbps and from 20km transmission distance with SMF. The transceiver consists of two sections: The transmitter section incorporates a FP laser. And the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All odules satisfy class I laser safety requirements. The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver. The standard serial ID information Compatible with GBIC MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the two-wire serial CMOS EEPROM protocol. For further information, please refer to SFF-8053
