The great advantage of the Miller Technics 4000 automation is the ability to install on wide brick poles. After all, many famous competitors (for example, came Krono 300 and 310) require the cutting of deep niche directly in the carrier colony. But it is not always convenient, requires additional costs, spoils the appearance and reliability of the bearing post. In the case of automatic swing gate Miller Technics 4000 there is no need to ugly bearing poles-it quietly becomes on standard brick columns. Opening outside is also not a problem.

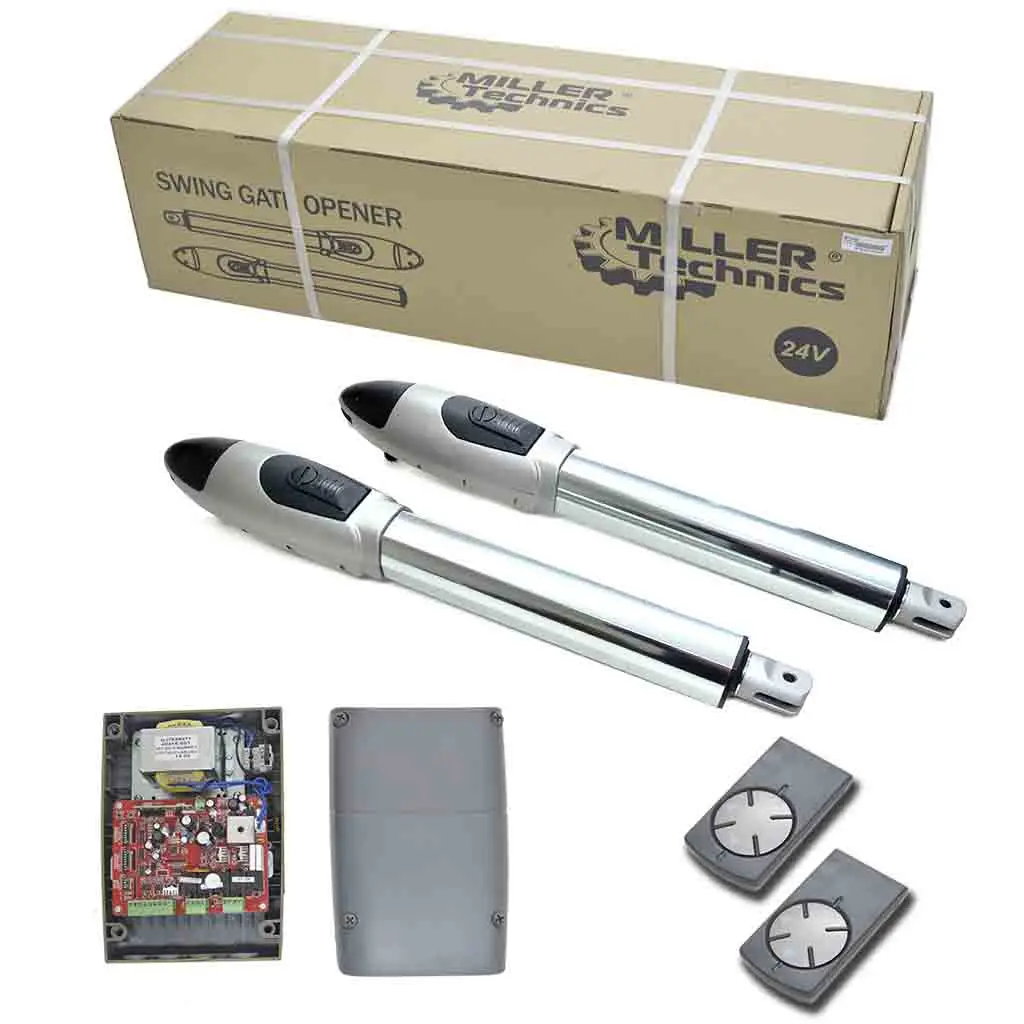

Package Contents:

1. drive Miller Technics 4000 - 2 PCs The Miller Technics 4000 drive motor is designed for 24 volts, which is the guarantee of the safety of this model. It мощность-120 Tues. Do not be surprised if you find in the instruction "power in 150 W", the manufacturer indicated the power of the top versionMiller_Technics_5000For Miller Technics 4000 series drives andMiller_Technics_3000Although their engine does not have such power. Marketing?

2. pc170 control box with built-in receiver-1 pc This fee is probably one of the most multifunctional. Adjustable almost all-traction, opening width of the pedestrian aisle, auto close, speed, etc. At the same time, you do not need to think how to adjust all this, factory installations are suitable in 90% case of installation of swing gate automation. After installation, you will only have to connect 220 volt power!

3. Remote Control Panel 4 PCs

4. set of fasteners, brackets, emergency unlock keys.

The drive is designed for swing gates with a sash width of up to 4 m and a weight of up to 800 kg. Miller Technics 4000 design out of competition-its cases are made of polished stainless steel and cast aluminum cases, in which there is a worm reducer and an engine.

Almost all competitors Miller Technics 4000 drive cases are made of black steel coated with Powder painting. And it's at best. At worst-they are generally plastic, and plastic under the influence of sunlight in the first years loses color, and later it becomes fragile. Miller technix chose not the most budgetary solution for creating a reducer housing (cast aluminum), for this we put him a higher score.

In the absence of electricity, the drive is easy to unlock with the key to unlock. To do this, with the help of a screwdriver, we move the protective cover.

Next, with the help of the key, we turn the mechanism. After this operation, the gate can be closed-open manually. To lock the drive, turn the key in the opposite direction and close the lid.

The automatic settings for the swing gate Miller Technics 4000 are selected using DIP switches. The big plus of this way of programming is the fact, that the drive settings do not knock down during voltage surges or impact by lightning, as they are fixed in DIP switches. Drives for the gate, which have settings stored in the memory of the control unit, after the surge voltage often require re-adjustment and training. Such a flaw suffers, for example, the FAAC 455d control unit, which is equipped with most automation for the swing gates of FAAC.

The drive is massive enough, although compared toMiller_Technics_5000Its size is difficult to call "giant." The stroke of the stem is 4000 model-35 cm, at 5000ой-54 cm.

The Miller Technics 4000 control unit is able to open both two and one gate sash. To do this, select the appropriate button on the remote control. Also you can choose the drive speed. If the standard speed is high, it can be adjusted in the range of 70 to 100% of the maximum.

For soft operation of drives at the end points, a deceleration mode is provided-the drive before stopping will slow down its movement, quietly and gently tighten the gate to the thrust.

For those who do not make purchases without clarifying technical nuances, continue. The autopsy shows that the worm on the motor shaft rotates the brass gear wheel, I will remind many suppliers to sin the sale of drives with plastic gear, and allegedly a very cheap replacement for one. Especially "pleases" this argument at the time of departure from the House and the inability to open the gate with the help of a drive.

The reducer transmits torque with a running screw with multi-Fitting thread. The use of multi-Fitting thread increases the angle of lifting the spiral, and this in turn increases the speed of moving the carriage, which moves through the thread. Трапецеидальная screw thread is a running thread that has a relatively high friction force, it is self-motorized. Its advantage-in the rest position (the engine does not work) does not require additional fixing. That is, when exposed to wind or other load on the gate sash, no torque from the carriage (nuts) through the undercarriage screw on gear reducer and motor.

The application of gear transmission and thread gives the drive for swing gates Miller Technics 4000 a huge force in front of competitors. Why is this important to the gate? If an effort is made from the side of the gate (and this can be a strong wind or human force, breaking the gate), then the reducer will not rotate in the opposite direction-the gate from the wind itself will not open. Due to these features, the drive is an engine-that is, only works from the electric motor. When the electric motor is turned off (without operating the emergency unlock mechanism), it is impossible to close or open the gate.
