SCAPC плагин фиксированный волоконный аттенюатор SC/APC SM 1dB 2dB 3dB 5dB 7dB 10dB 15dB 20dB женский

SCAPC плагин фиксированный волоконный аттенюатор SC/APC SM 1dB 2dB 3dB 5dB 7dB 10dB 15dB 20dB женский

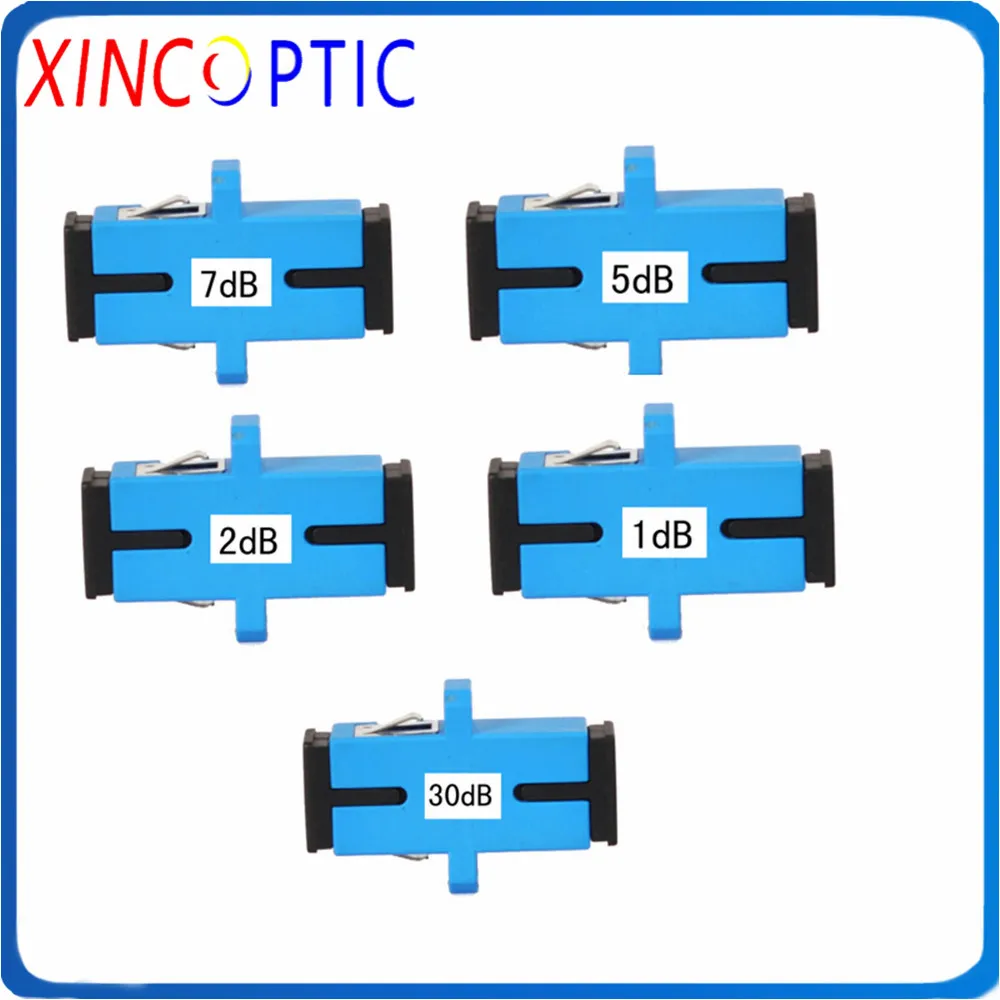

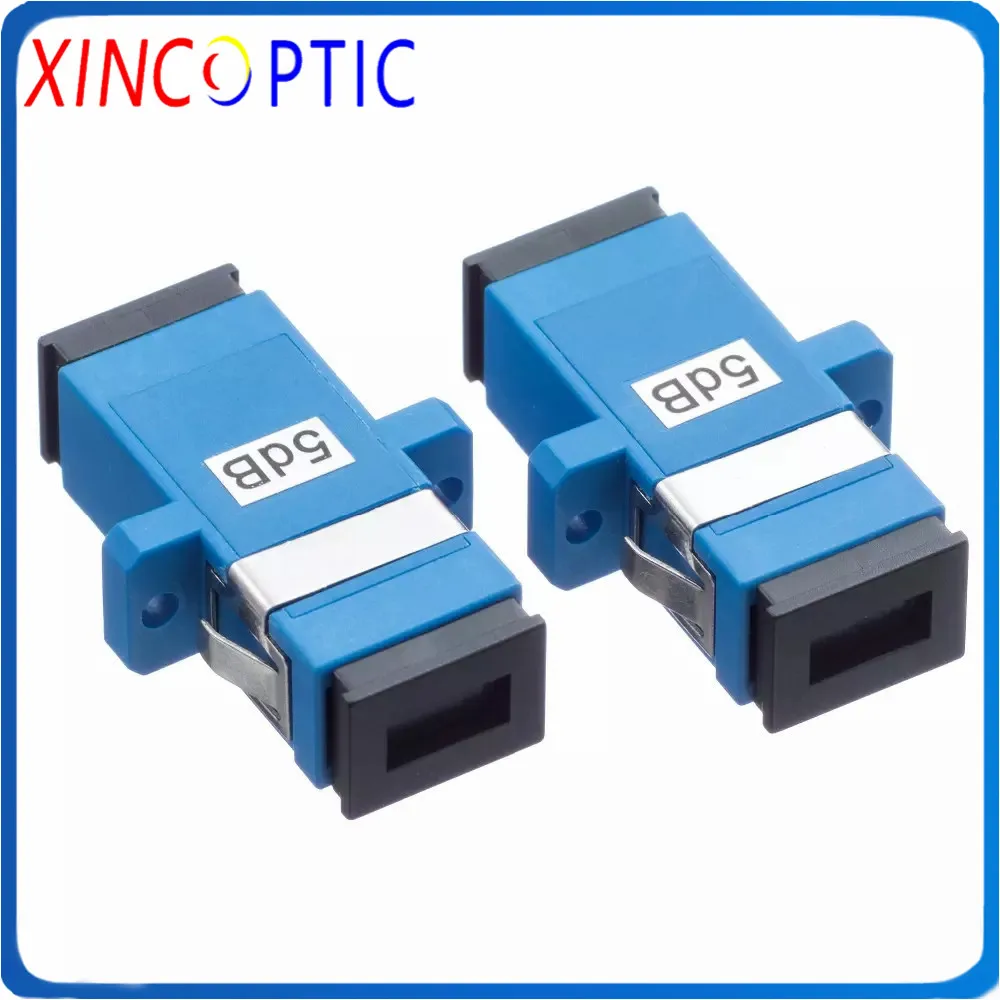

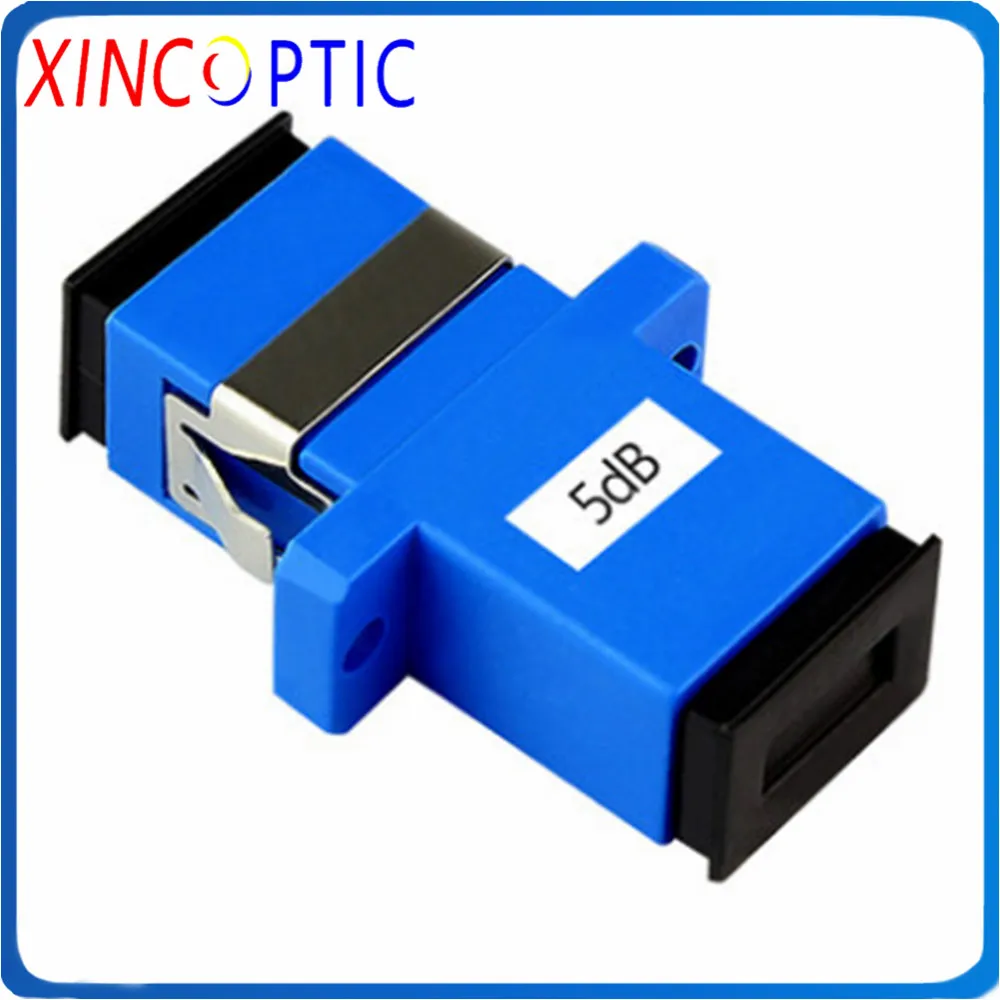

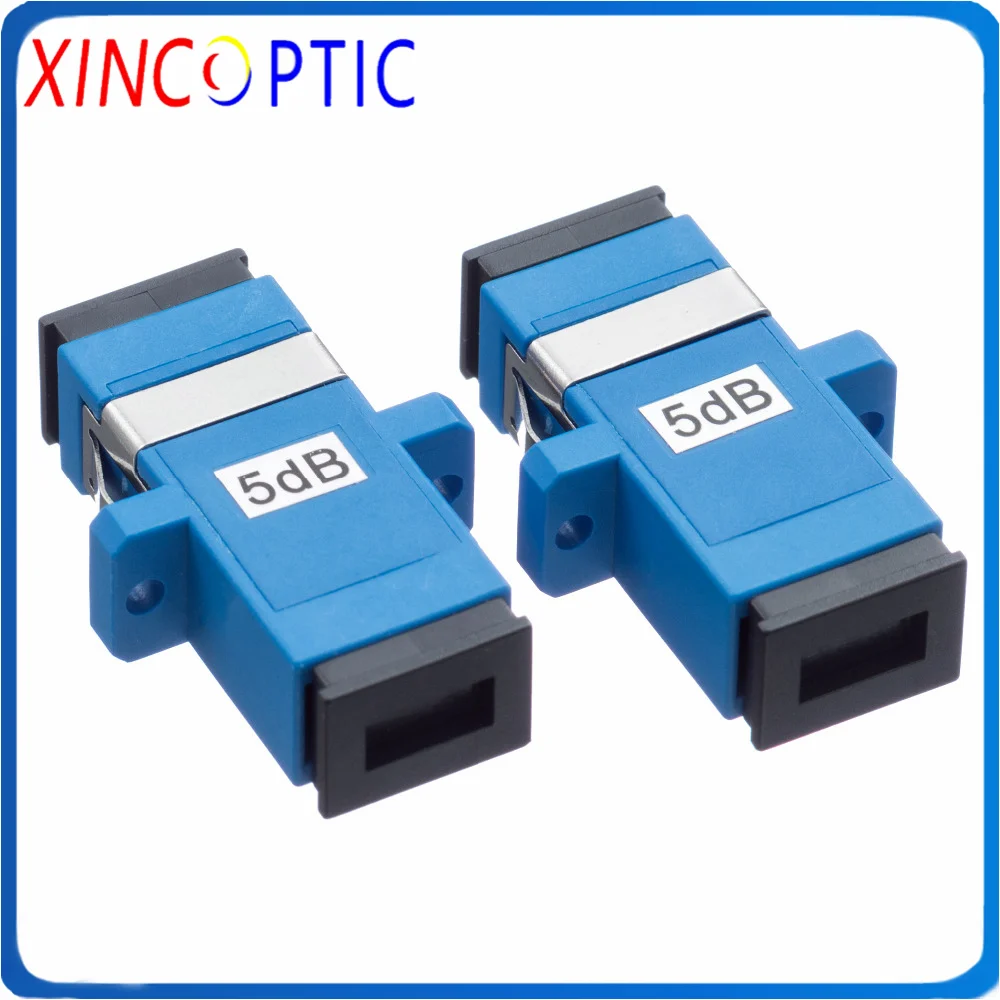

SC 5dB Fixed Fiber Optic Attenuator,Flange Type Optical Attenuator,SC UPC Fiber Optic Attenuator Coupler Adaptor

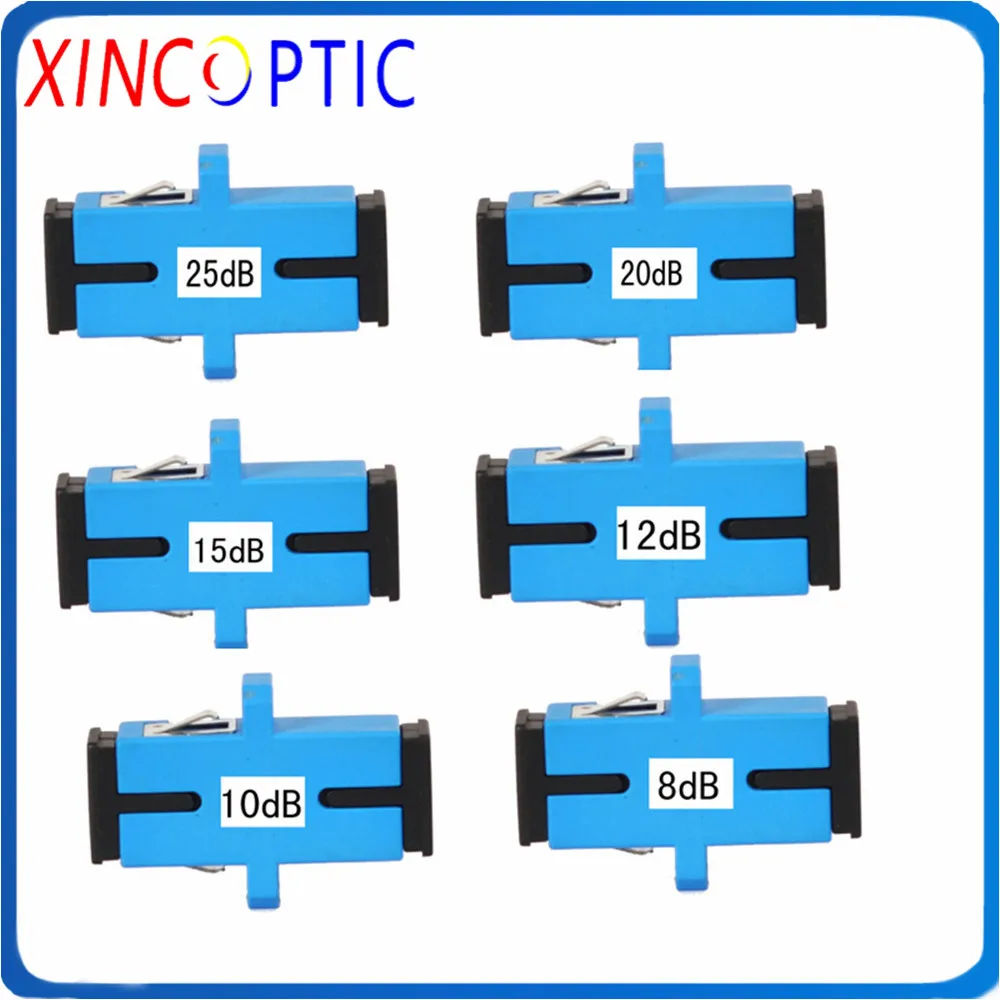

The DB data can be 1~30DB ,The price is same ,if you need any other DB which is not in the list ,Please leave me a message ,I will send the DB you need ,Thanks !

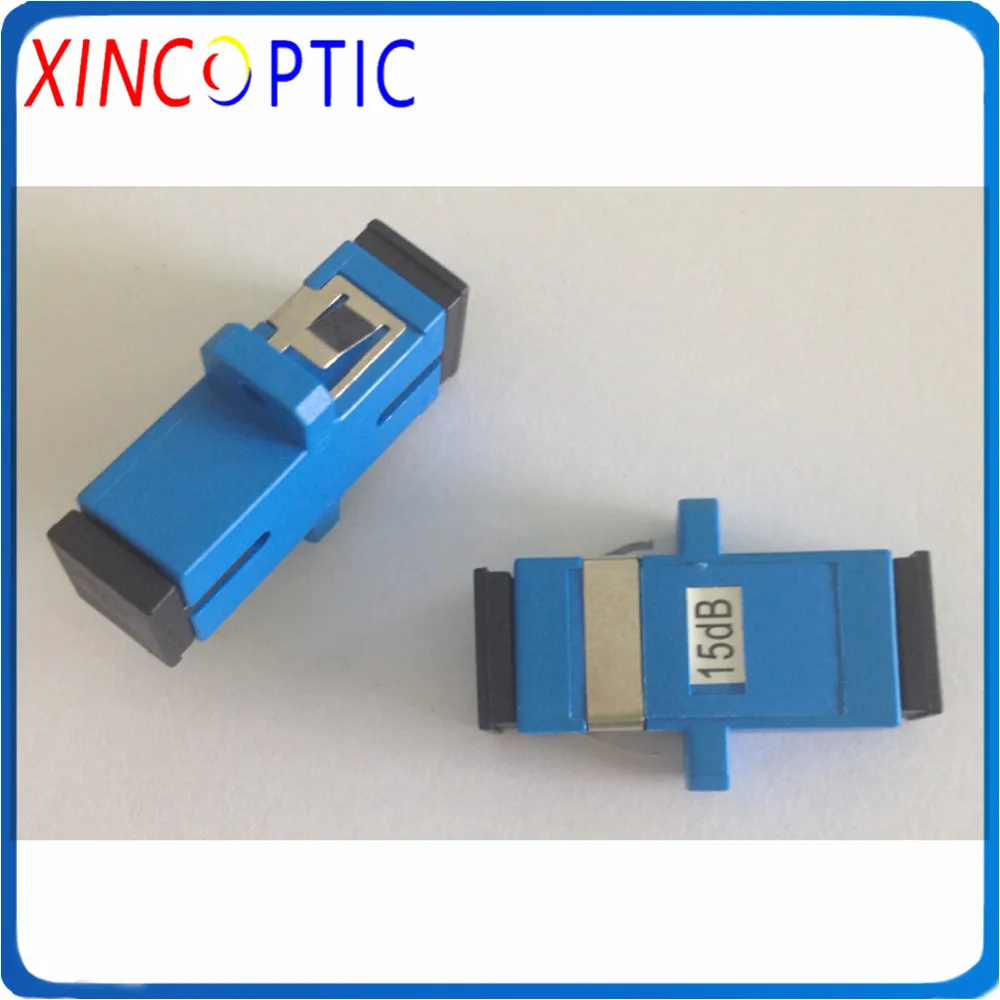

SC Plug-in Fixed Fiber Optic Attenuator

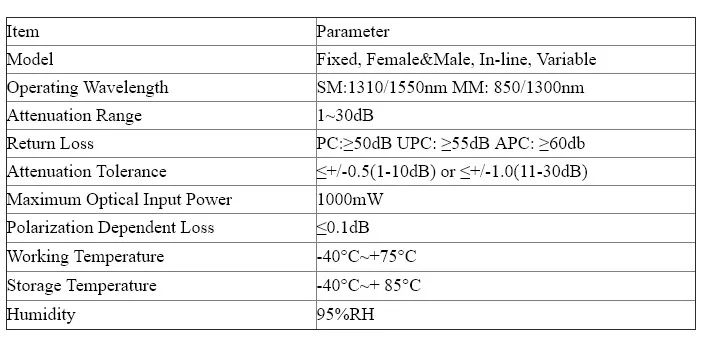

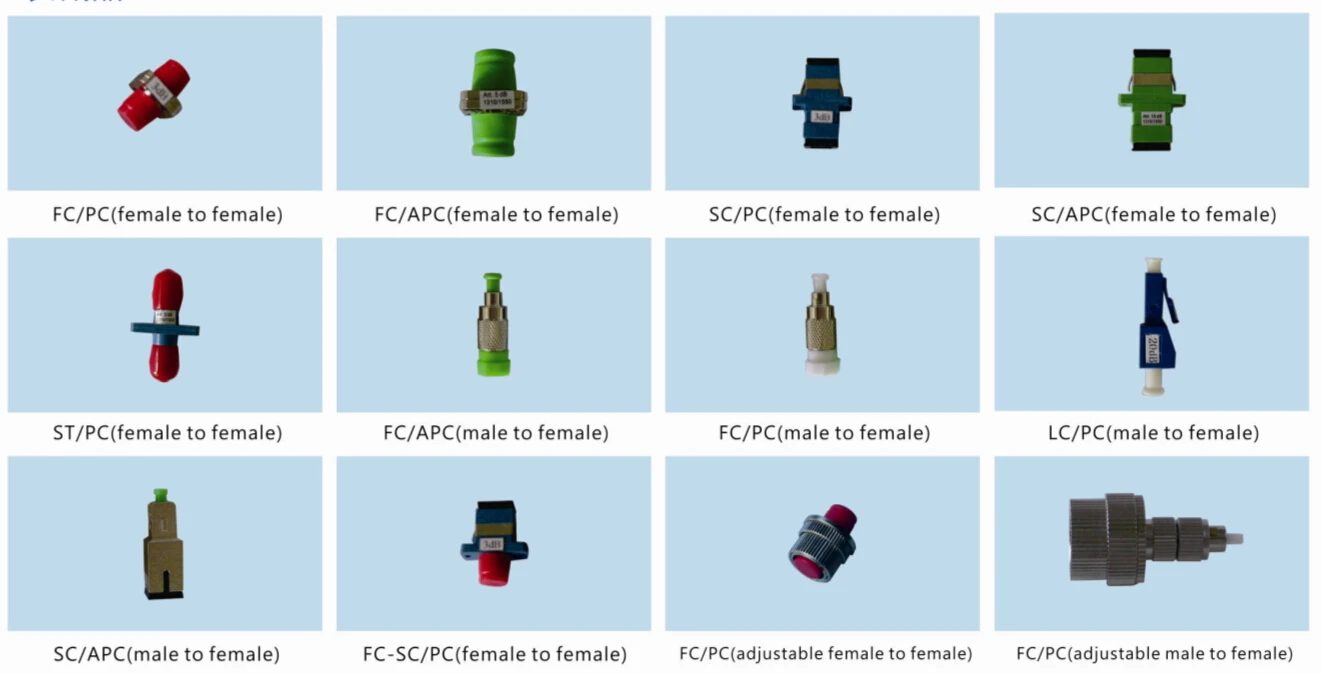

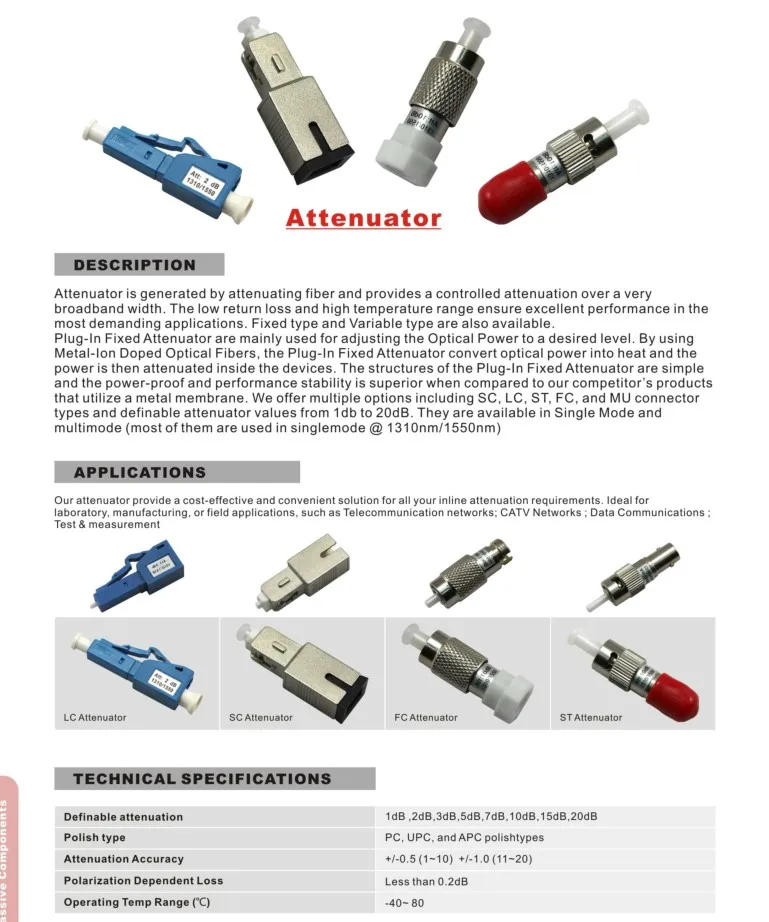

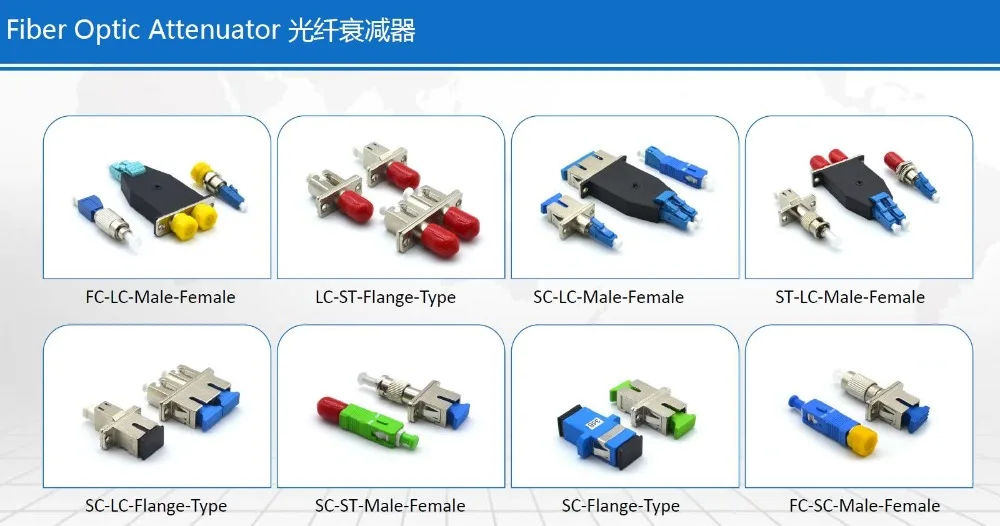

Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. We supply various kinds of fiber attenuators, including LC, SC, and ST, FC, and Variable fiber optic attenuators. Product Description Low back reflection and Low PDL High precision attenuation value Precision control of attenuation range Wide attenuation range Precision ceramic ferrule FC, SC, ST, LC … optional Plastic or metal housing material Application: Fiber optical telecommunication system Fiber optical CATV Fiber optical sensor Testing equipment Specifications: Attenuation Value: 1dB ~ 30dB Operating Wavelength : 1240 ~ 1620nm (Dual 1310/1550nm) Return Loss UPC >50dB APC >60dB Attenuation Accura : 1 ~ 7dB ±0.5dB 8 ~ 12 dB ±0.7dB 13 ~ 17 dB ±1.0dB 18 ~ 25 dB ±1.3dB Maximum Optical Input Power 1000mW Polarization Dependent Loss ≤0.1dB Operating Temperature Range -40 to 75 Storage Temperature Range -40 to 85 Humidity 95%RH Features : Fixed Attenuator(Fixed Type FC, SC, ST, LC) Female to male type ( FC, SC, ST, LC) In-Line Attenuator(Fused and Fiber Jumpers Type) High Return Loss(In-Line and High RL Type) Exact and Stable Attenuation(Variable Type) Application: Testing equipment Fiber optical CATV Fiber optical sensor Fiber optical telecommunication system

Hot-selling

Company Brief

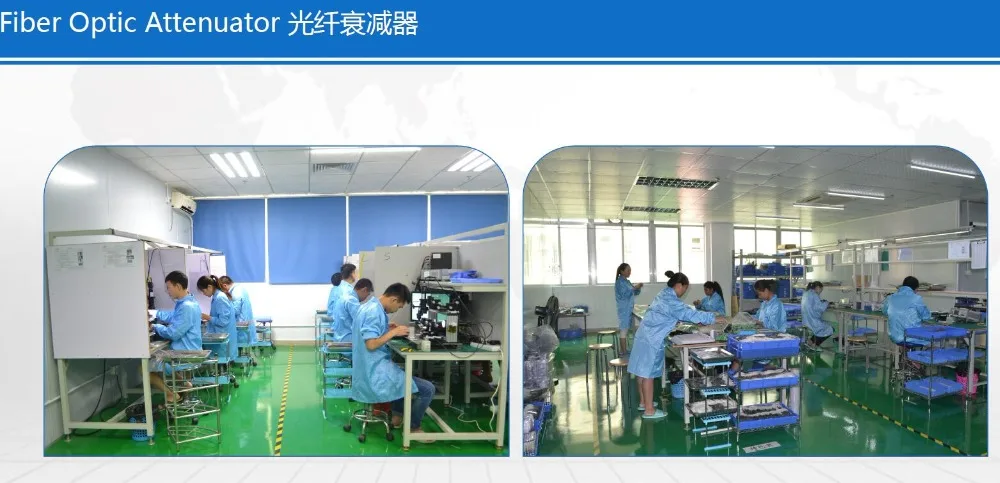

Shenzhen Xinchuang Optical Communication Technology Co., Ltd. is one of the powerful and high-tech companies specialized in Optic fiber transmission, network communications equipment and the provision of fiber to the home (FTTH) products. All the products manufactured strictly carry out international and national relevant technical standards. ISO9001-2008 quality management system and ISO14001-2004 environment management system are implemented comprehensively. The products are widely used in telecommunication and electric power and optical fiber CATV and the transmission network of data optical fiber and optical fiber communication system and Security field of high-definition video. Our major products are Communications Fiber cable, Power Fiber cable, FTTH fiber cable and Mobile fiber Cable; optic media converter, digital video optical transmission systems and Optical Transceiver Modules; HD HDMI / SDI video optical transceiver , optical transceiver modules, Ethernet fiber optic transceivers and fiber optic accessories. Professional research ,design and production team,The concept of innovation and mutual benefit and win-win. The multiple OEM/ODM service is provided for famous brand of domestic and overseas. It is exported to America, Canada, Romania, Mexico, Argentina, Brazil, West Africa, Thailand, and Saudi Arabia
