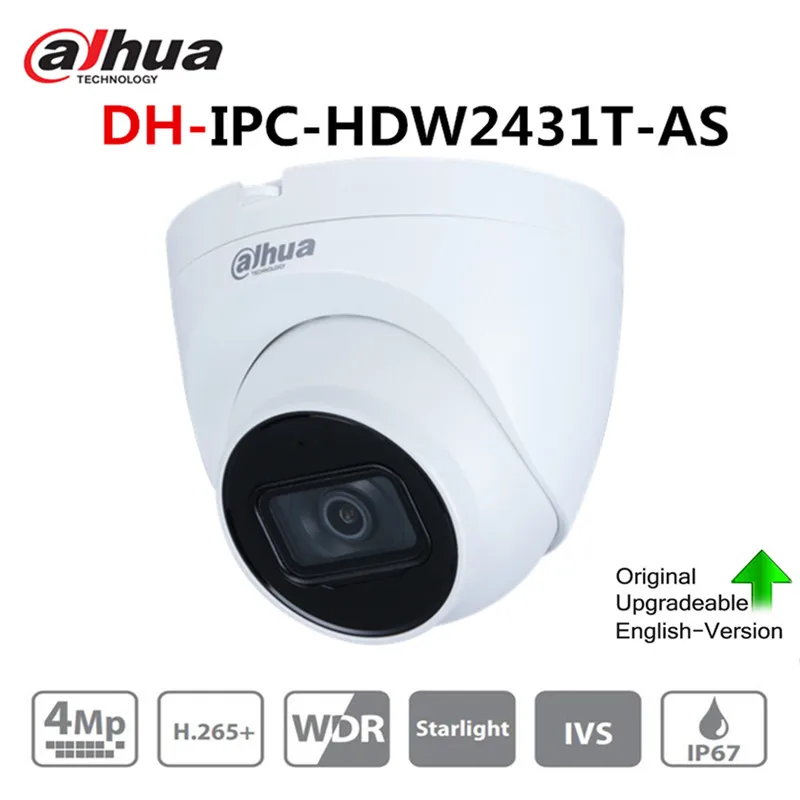

IP-камера Dahua английская версия 4 МП WDR ИК глазное яблоко сетевая IPC-HDW2431T-AS замена

IP-камера Dahua английская версия 4 МП WDR ИК глазное яблоко сетевая IPC-HDW2431T-AS замена

Dahua English Version 4MP WDR IR Eyeball Network IP Camera IPC-HDW2431T-ASreplace IPC-HDW4433C-A Smart IR POE CCTV Mic Built-in

1.New Policy: If you order ≥ 4pcs,we could send items via express shipping for free .

2.As different country has different shipping rules.We will choose the express method for you according to our experience. Besides,if your shipping cost is too high,Hope you kindly understand that we could not remove the shipping cost for you.

IPC-HDW2431T-AS-S2

Camera

Image Sensor

1/3” 4Megapixel progressive CMOS

Effective Pixels

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.008 Lux @ F1.6

IR Distance

30 m (98.43 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

2

Pan/Tilt/Rotation Range

Horizonal: 0°–360°
Vertical: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F1.6
F1.6

Field of View

2.8 mm:
Horizonal: 102.0°
Vertical: 55.0°
Diagonal: 121.0°
3.6 mm:
Horizonal: 84.0°
Vertical: 45.0°
Diagonal: 100.0°

Iris Type

Fixed aperture

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (3.61 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

56 m (183.73 ft)

22.4 m

(73.49 ft)

11.2 m

(36.75 ft)

5.6 m

(18.37 ft)

3.6 mm

80 m (262.47 ft)

32.0 m (104.99 ft)

16.0 m

(52.49 ft)

8.0 m

(26.25 ft)

Smart event

General IVS Analytics

Intrusion; tripwire

Video

Video Compression

H.265; H.264; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream:

2688 × 1520 (1 fps-20 fps)

2560 × 1440 (1 fps-25/30 fps)

Sub stream:

704 × 576 (1 fps-25 fps)

704 × 480 (1 fps-30 fps)

Stream Capability

2 streams

Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 1080p resolution.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711A; G.711Mu; G.726; AAC

Network

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Interoperability

ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

User/Host

20

Edge Storage

Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 6.6W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than ≤ 95%

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Protection

IP67

Structure

Casing

Metal + Plastic

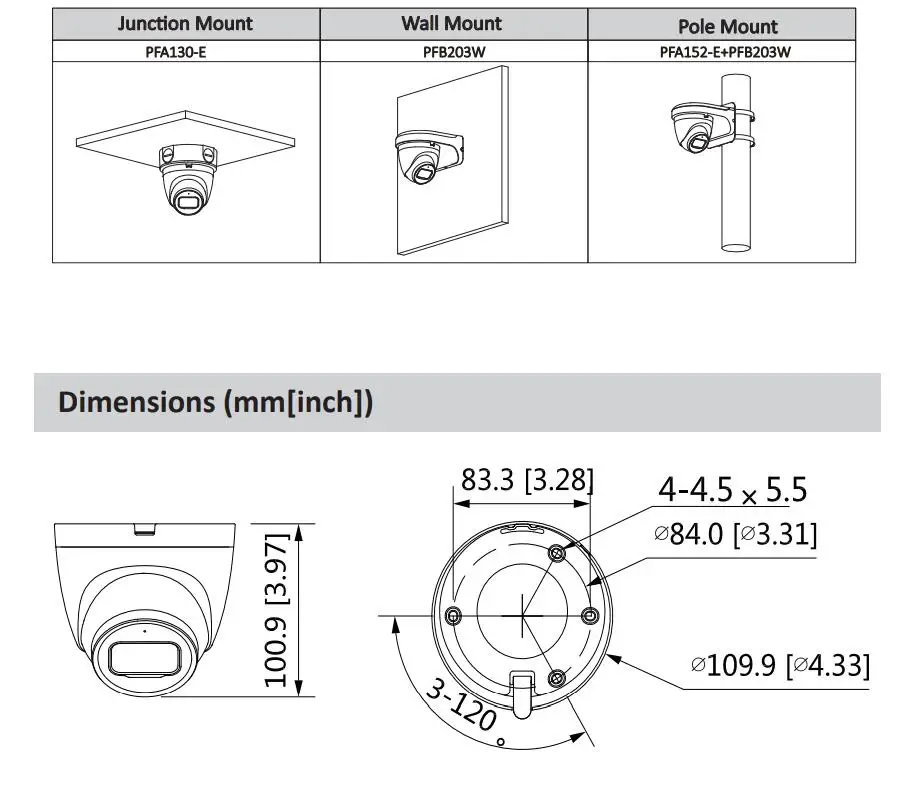

Dimensions

100.9 mm × Φ109.9 mm (3.97" × Φ4.33")

Net Weight

0.39 kg (0.9 lb)

Gross Weight

0.56 kg (1.2 lb)
