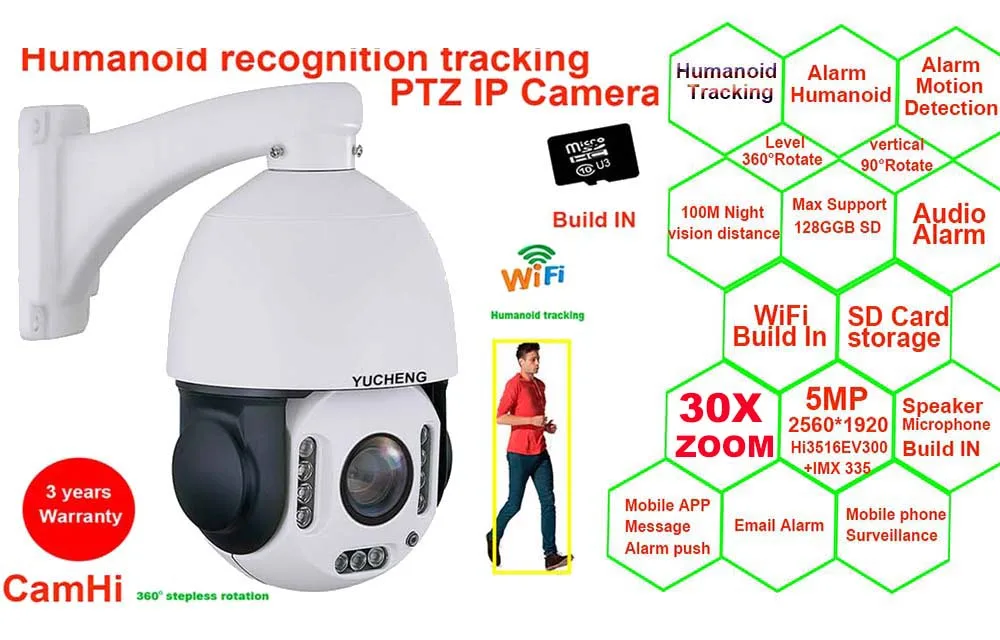

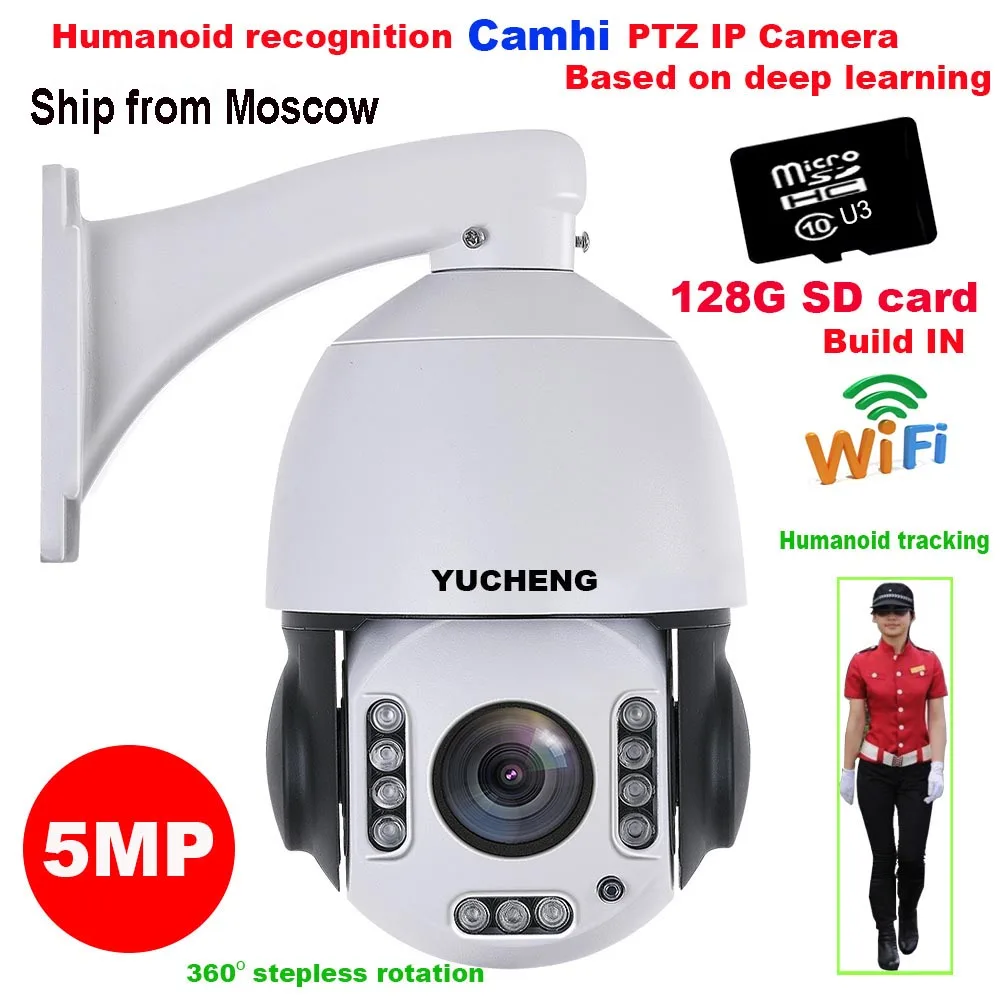

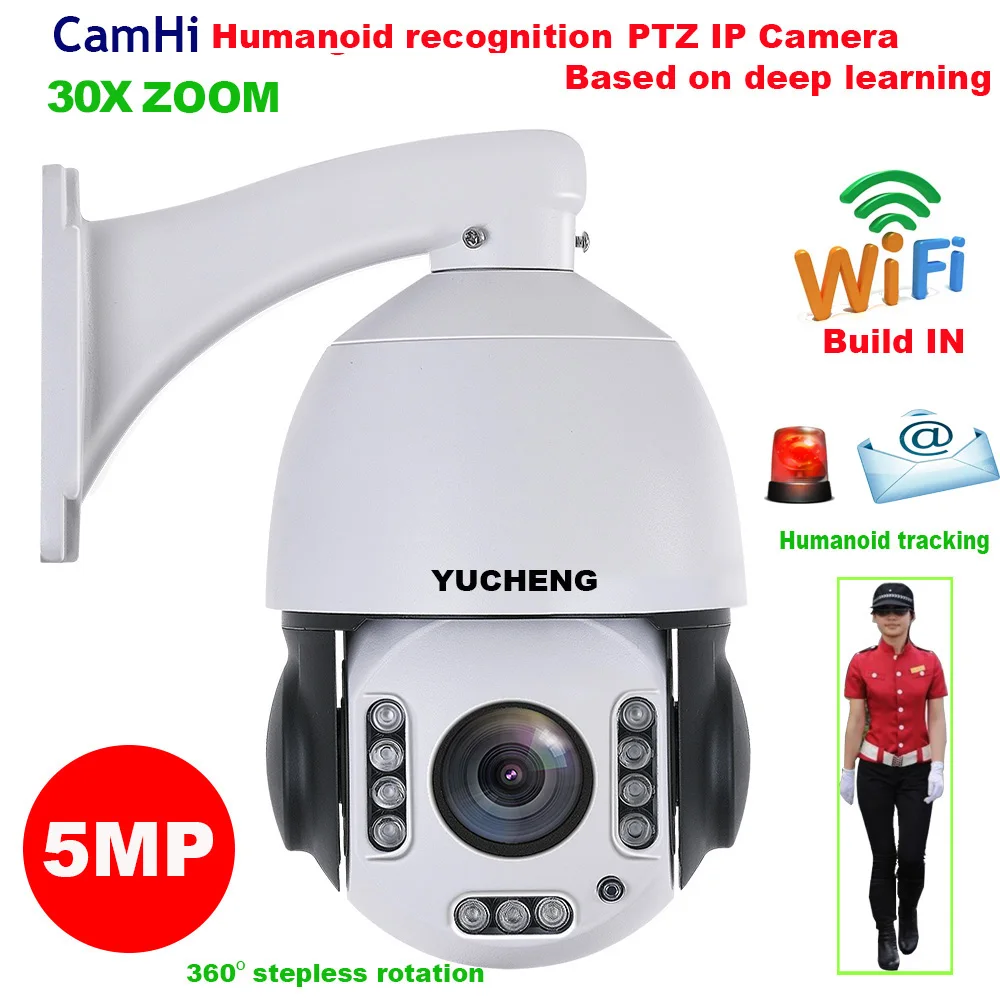

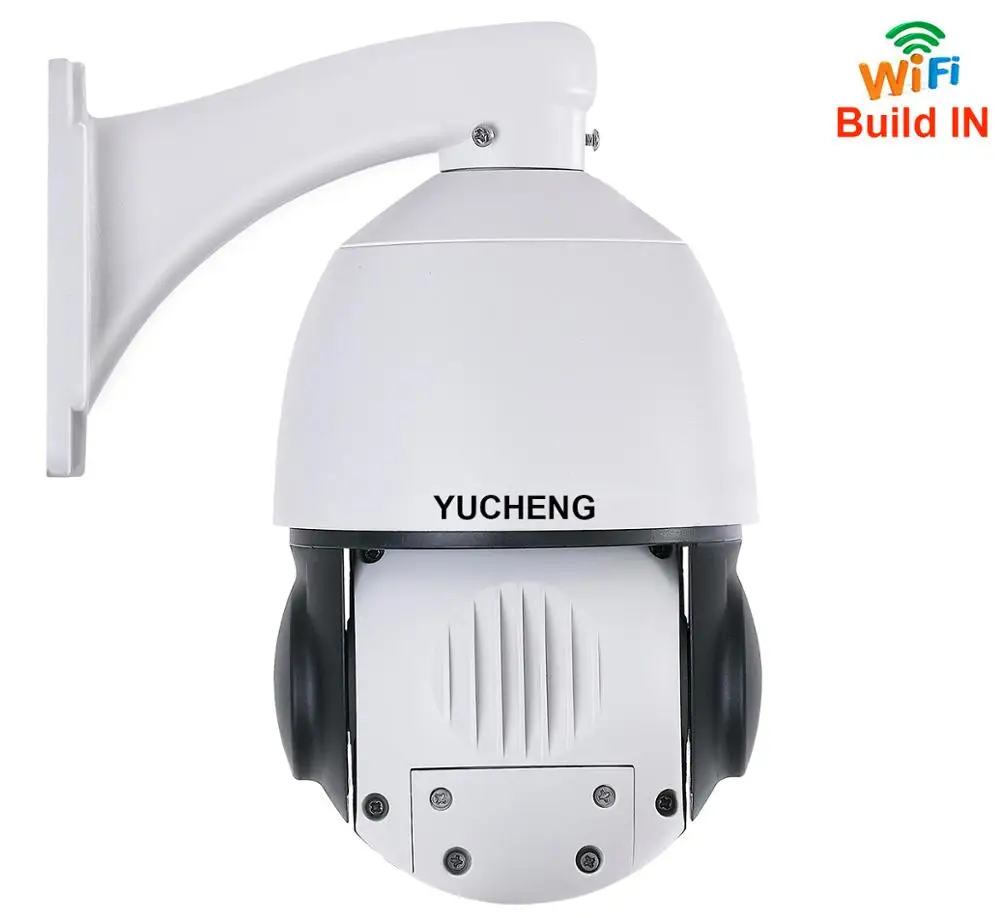

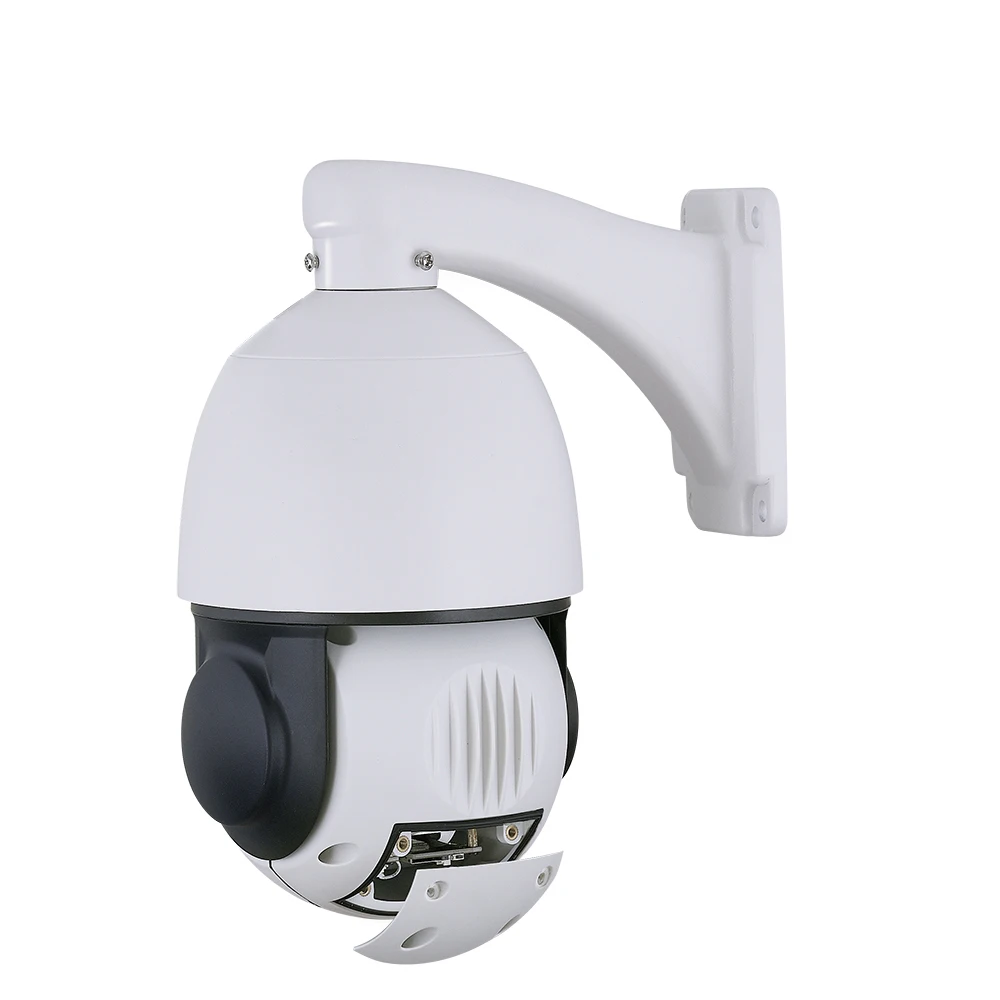

CamHi Wireless 5MP 30X zoom 4MP humanoid Auto Track SONY IMX 335 PTZ Speed dome IP Camera build MIC speaker

This is a 4.5 inch outdoor smart Track PTZ IR PTZ camera. The night vision distance is 100 meters. Supports 30X optical zoom, 360 degree horizontal rotation and vertical 90 degree rotation. Support 5MP HD quality. Can do 5MP 15FPS, Support for Humanoid recognition, SD card storage, and support ONVIF protocol. If you use ONVIF NVR, your NVR can be seamlessly connected to provide the perfect connection solution. The camera has a built-in wifi module, With friendly operation programs and stable hardware, we provide long-term uninterrupted and stable monitoring services. and 128GB sd card builded in the camera for recording

Based on Huawei's deep learning humanoid recognition algorithm V2.0, it provides accurate humanoid recognition, providing continuous humanoid coordinates for the camera and smooth tracking of the camera.

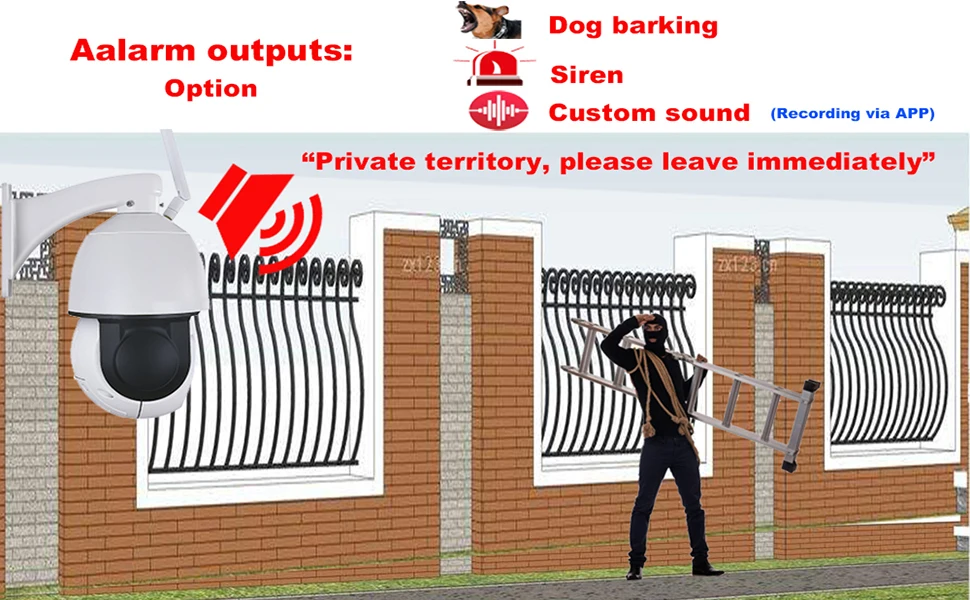

Support audio alarm output

You can turn this on and select the sound category, currently supports dog barking, alarm sound, The alert area, Monitoring area, welcome, The deepwater warning, The private sector, The danger zone, The valuables, Highland warning, A private cars And custom sounds. When the camera detects the human form, the horn will emit an alarm sound of your choice.

Fixed point tracking:

Before turning on the track function, you need to set the return position (return position) after the end of the track. Then turn on tracing. In the case of no tracking action, the camera is waiting at the return position, The camera is turned on when the person is detected. After tracking is completed, the camera automatically returns to the return position and continues to wait for the next tracking.

Cruise tracking:

Before turning on tracking, you need to set the camera's cruise point in advance. A maximum of 16 preset points can be set. These cruise points are the few locations you want to monitor. The camera will cruise back and forth between these locations to find a tracking target. Really made a camera monitors multiple angles of demand. Turn on cruise trackingfunction,The camera will cycle moving through the preset cruise points. When the person is detected, the camera will turn on the tracking. After the tracking is completed, the camera automatically resumes the cruise until the next time the person is detected, the tracking is turned on again.

High sensitivity, high signal-to-noise CMOS image sensor
Using the HiSilicon 3516EV300 processing chip;
The highest pixel is up to 500W, and the highest resolution is up to 5MP (2560x1920)

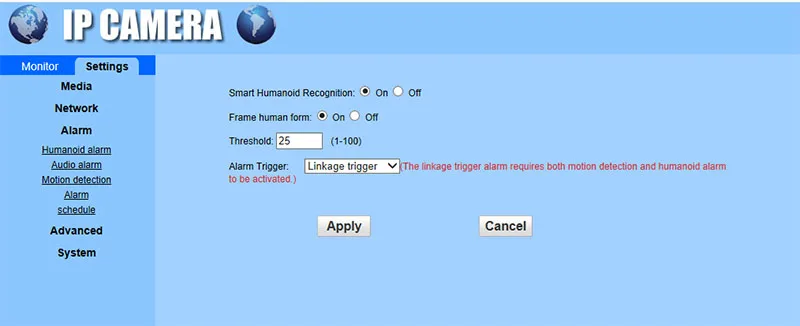

Support the detection of humanoid frame and no humanoid frame, support humanoid detection on and off, support humanoid detection  sensitivity adjustment, support humanoid detection trigger mode modification.
H.265 compression algorithm, effectively reducing network bandwidth, supporting dual stream, supporting mobile phone monitoring

Support humanoid recognition to trigger SD card recording, SD card capture, voice alarm, message push, email alarm and other functions.
Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, etc.
Support ONVIF protocol
Support for manufacturer dynamic domain name and third-party dynamic domain name resolution
Support alarm picture sending E-Mail
Support alarm picture upload FTP server
Support alarm sound outputs
Support timing capture pictures to FTP server
Support static IP, also support dynamic IP (DHCP)
Support P2P plug and play
Support IE, Google, Firefox browser
Supports up to 6 users to browse at the same time (3 users per stream)
Provide motion detection (area, sensitivity can be set) alarm function
Support UPNP automatic port mapping
Support Micro SD card function, support up to 128G Micro SD card
Support PC client to download SD card video
Support mobile phone download and playback SD card recording

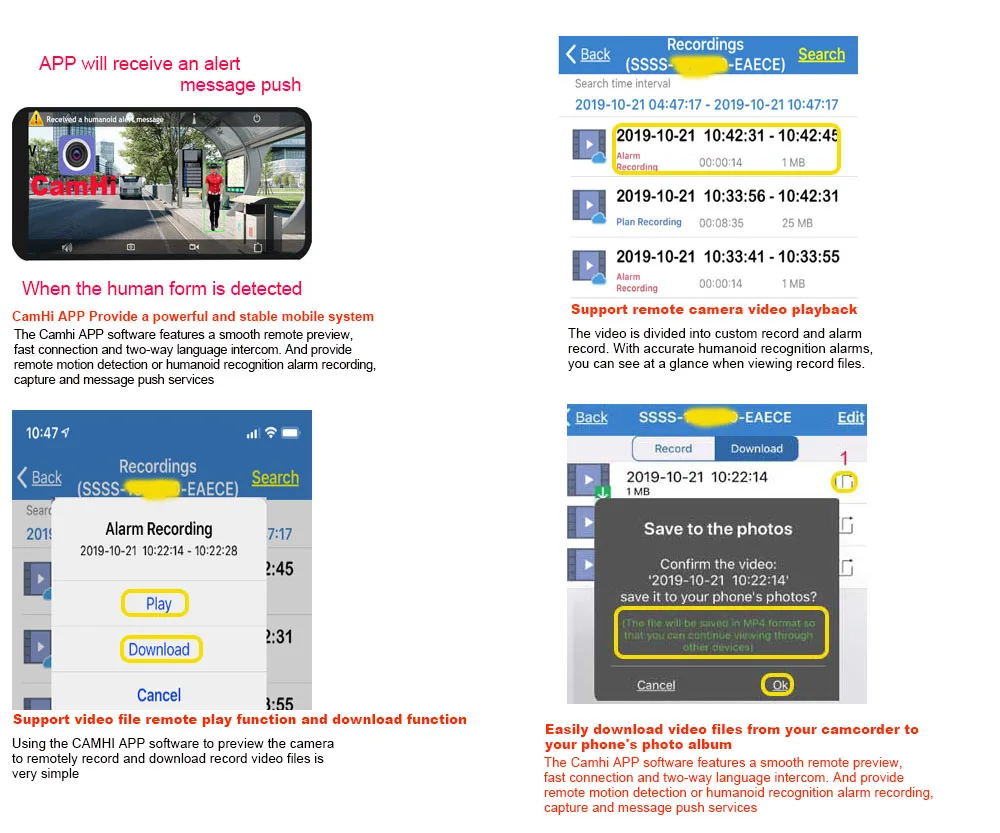

The powerful mobile phone app offers a wealth of features.

Why choose us?

Model

P03H35LW4T20

Chip combination solution

System

Linux

Processor

HI 3516C V300

Image sensor

1/2.8 SONY IMX335 Super Low illuminance image sensor

Compression standard

Compression standard

Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline

Audio compression algorithm

G.726/G.711

Compressed transport stream

32Kbps-12288bps, can be customized, default 1536Kbps

Images

Maximum image size

5MP (2560*1920)

Sharpness

First stream: 5MP (2560*1920),4MP:(2560*1440)

Substream :800x448 or 640x352 can be set

Video frame rate

5mp 15fps,4mp 25fps

Character overlay

Support OSD name,time and date information overlay

Image settings

Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable

PTZ Speed Dome

LENS

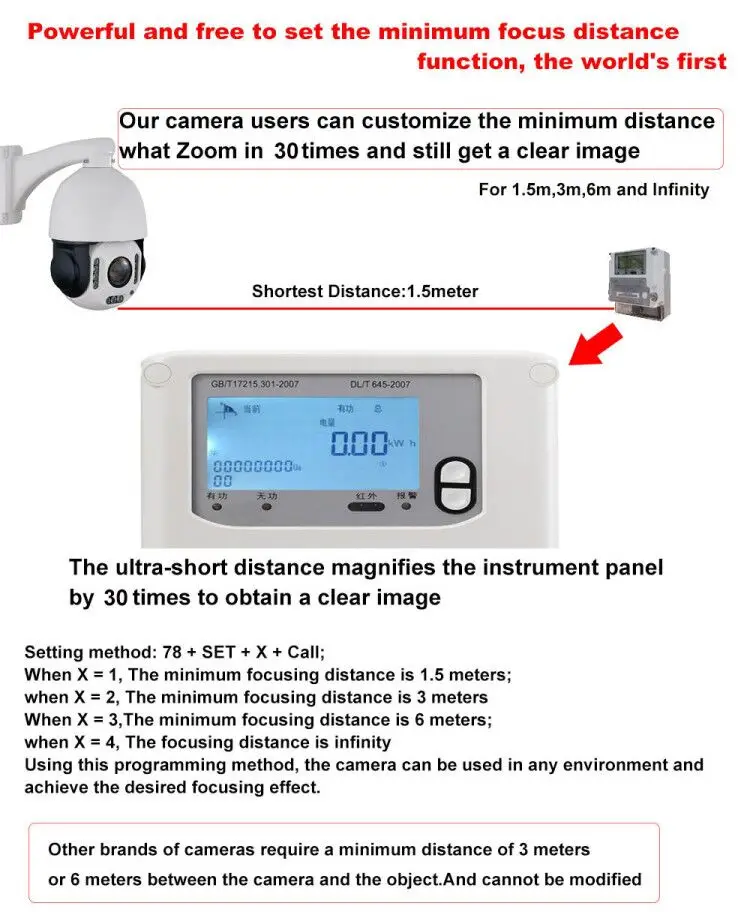

3.3-97mm zoom lens,and support 30X zoom OSD display

Rotation angle

horizontal 360-degree stepless rotation, vertical 90-degree rotation

Rotation speed

45 ° / S. And can customize the speed

Preset position

256 pcs Preset position:

Tracking function

support fixed-point tracking and cruise tracking. And can customize the speed and waiting time

Infrared light

11 high-power infrared LEDs, group control, infrared distance 100 meters

Programming function

Support horizontal 360 ° linear scan, support left and right limit scan, support home (return) position, support auto cruise, support idle action. And can customize the speed and waiting time

Waterproof rating

IP66

Installation method

wall installation and ceiling installation are optional, the default is wall installation

IP Features

Frame rate

5mp 15fps un-realtime,4mp 25fps realtime

Bit rate

32-6144kbps

Min.Lux

Color>0.01 LUX B&W=0 LUX

SD card

Support MAX128GB

LAN Client softwawre

IP Camera Client,Blue Iris software and other IP camera client with ONVIF,

P2P Client

No matter when, no matter where, as long as there is network, can you open the computer and  install the P2P software , you can easily access and control your remote cameras. And this is don't need any network configuration

Support Browser

MS Internet Explorer,Firefox,google browser,and support record and playback in Browser,and support Management 9 cameras in the same Browser

OSD

Support OSD character stack.You can set the time and channel name display or not

Audio

Support G711 and G726 Coding format,and support 3 streams audio in and output

IP address

Support Automatic access and customization ip address

LAN interface

Wifi wireless ,RJ45 10Base-T/100Base-TX,

Wireless wifi

Support 2.4G WIFI IEEE802.11B/G/N ,Security mode:WEB ,WPA+PSK,WPA2+PSK,WIFI Antenna builded in camera

WIFI hotspot(PA)

Support Wifi hotspot,If you don't have a network, you can use your phone to connect to your camera by wireless hotspot.

Network Protocol

TCP/IP，https，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP

Access Protocol

ONVIF

DDNS

Support We have ourselves DDNS resolution server(www.hipcam.org) and compatible with third-party DDNS parsing services.

Auto snap

SD cardsnap and FTP snap

Time

Support :time.windows.com,time.nist.gov ,time.kriss.re.kr,time.nuri.net etc. ,Network Time Protocol

Motion detection

At most 4 respective regions

Humanoid detection

Support the detection of humanoid frame and no humanoid frame, support humanoid detection on and off, support humanoid detection sensitivity adjustment, support humanoid detection trigger mode modification.

Alarm linkage

E-mail Alarm and Send with Picture ,  Save Picture on the FTP Server , Save Video on the FTP Server , Relay out , Save Picture on the SD Card ,  Save Video on the SD card ,alarm send message to mobile phone APP

Record

Support computer local record,SD card record,Browser record,FTP record,P2P client software record.Video recording includes: timing record,motion detection record,Schedule record,alarm record

User management

Provide three levels of rights management (admin), support to modify login password

External interfaces and electrical standards

Power,consumption

DC12V 3A

Working temperature

-40℃ ～ +55℃

Working Humidity

10-95%

Audio

MIC builded in camera, and one External 3W speaker

Tail line interface

Lan port, LAN port,Power input,reset button,Speaker interface

1X Wireless 5MP Track PTZ IP CAMERA
1X 2W Speaker
1X DC12V 3A Power adapter
1X Manual
1X 1M network cable
1X Installation kit
