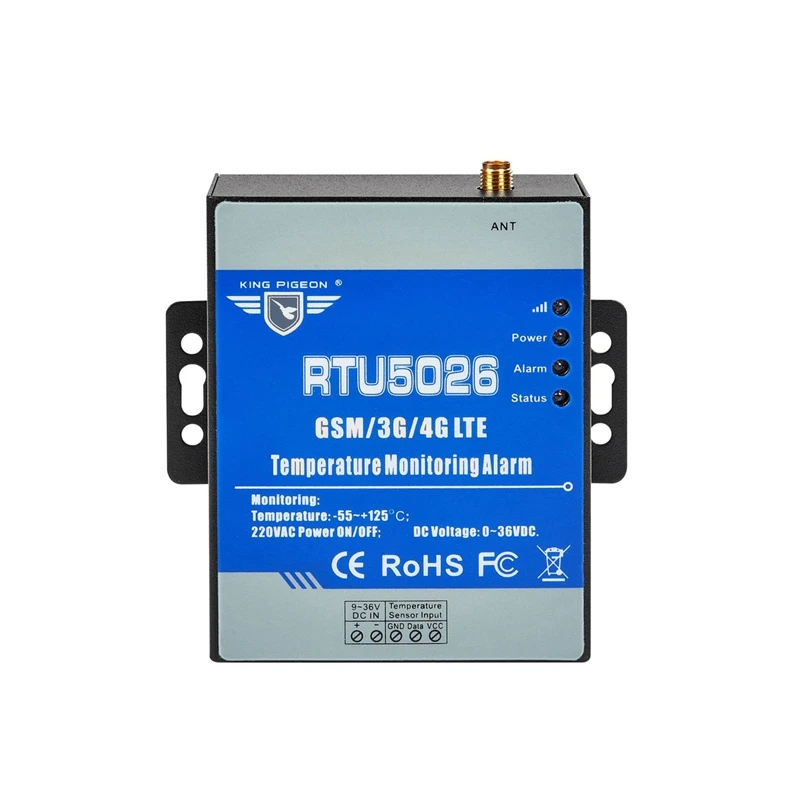

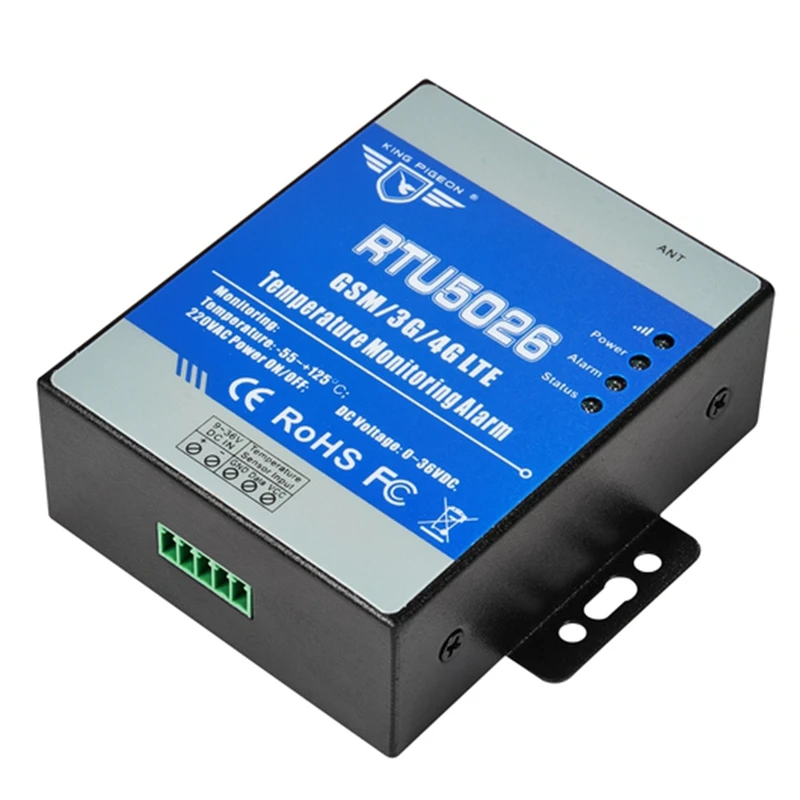

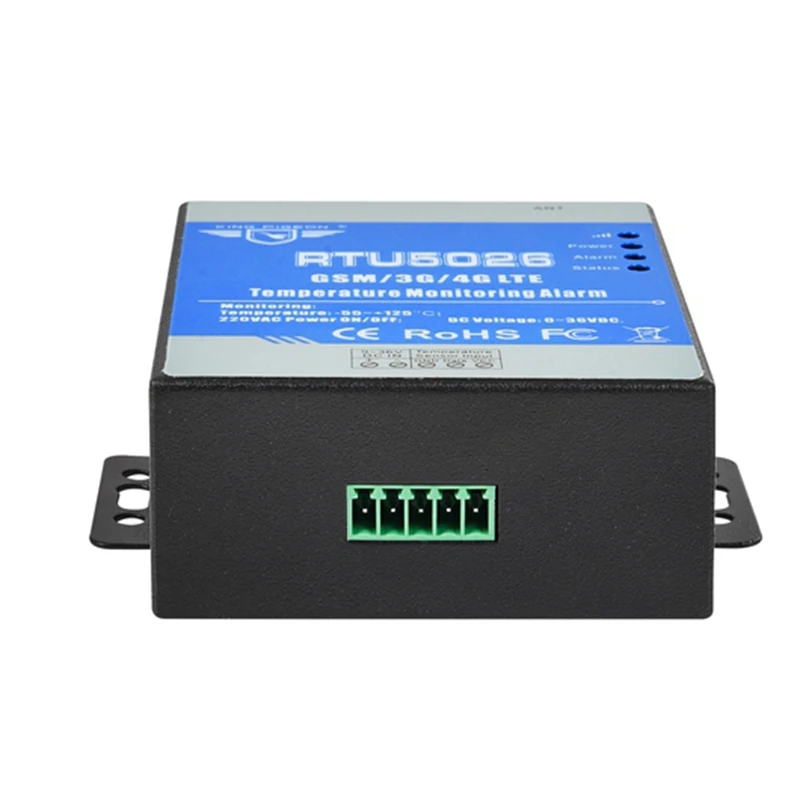

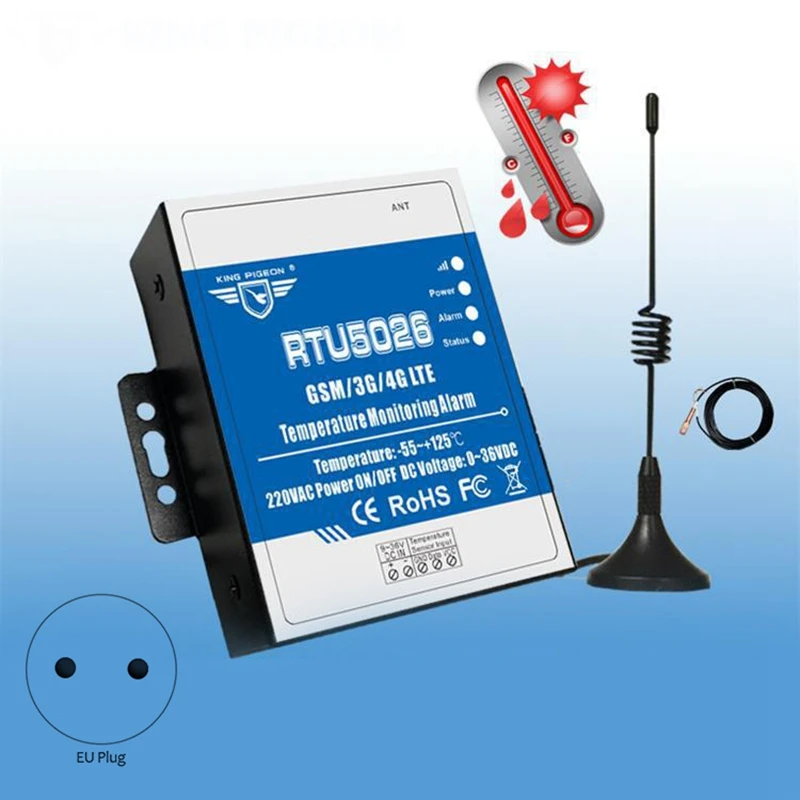

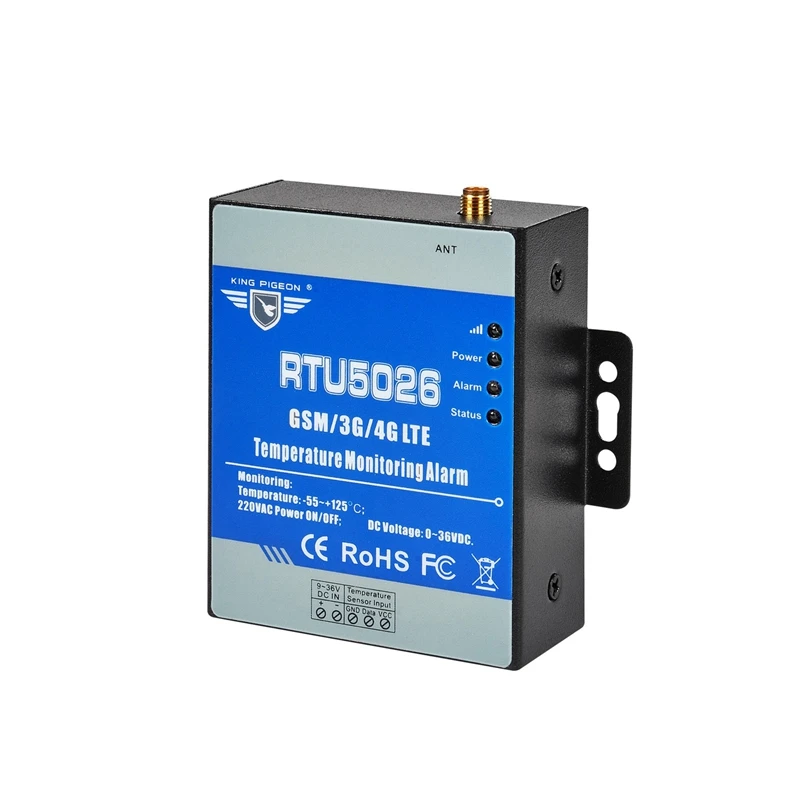

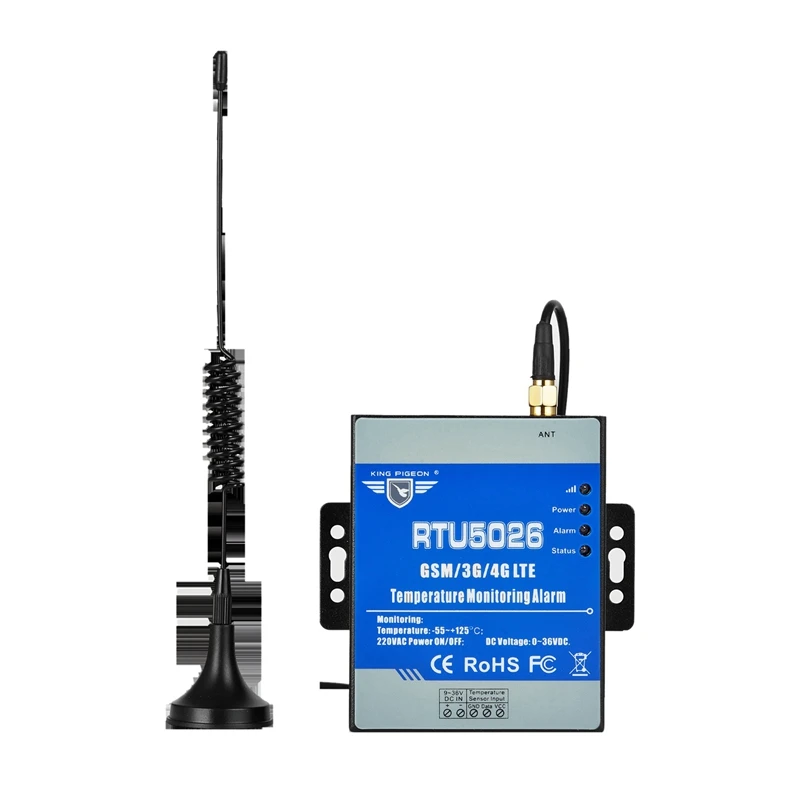

4G LTE RTU Modbus TCP Gateway AC/DC Power Status Temperature Monitoring Alarm System Support Remote Reset Reboot RTU5026 EU Plug

1.Can be operated from anywhere, no distance limitation;
2.No call charges for inquiry.the 4G LTE Temperature Monitoring Alarm rejects the call from authorized number then return onsite temperature and power voltage on the first 'ring';
3.Multiple applications.(temperature, power status, solar panel, dc voltage);
4.Up to 10 authorized phone numbers,5 can be used to receive call or SMS,and 5 can be used to call and SMS while alarm occurrence;
5.One DS18B20 temperature sensor input,measures temperatures from -55-+125°C,0.5°C accuracy from -10-+85°C
6.External AC Power status monitoring, AC On/OFF will send SMS to authorized phone numbers;
7.Inbuilt MCU monitoring the DC input Voltage value,measure range is 0-36VDC, no need additional sensor to save cost;
8.Timer Report-Can setup every x hours automatically send its status/Value to the authorized numbers;
9. Support remotely read historic data via SMS;
10.Support Modbus TCP and Modbus RTU Over TCP protocol for cloud monitoring;
11.Rechargeable Backup Battery inside can last 8hours;
12.Secure - Using caller ID and password for identification, unknown callers are ignored;
13.Programmable by SMS Commands or APPs with password protection;
14.Based on GSM/3G/4G Network, applied to many applications.
15.Remote Reset via SMS, Remote Reboot via SMS, Automatic Reboot Periodicity.
Model Number: RTU5026L
Name: Power status Temperature Monitoring Alarm
Temperature measuring range: -55~125 Celsius degree
Working Temperature: -10-+85 Celsius degree
Frequency range: 4G FDD-LTE,TDD-LTE
Power supply: 9~36VDC, recommend 12VDC1A
DC Power Measuring range: 0-36V
Protocol: Support Modbus TCP and Modbus RTU Over TCP
colour:Blue + silver
Material:metal
size:88*70*30mm
Package Contents:
1 * controller
1 * antenna
1 * EU Plug
Plug Type: EU Plug, it applies to Indonesia, Germany, France, Spain, Italy and so on.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
