Support dropshipping and wholesaling.

100% Original and with free after-sale warranty.

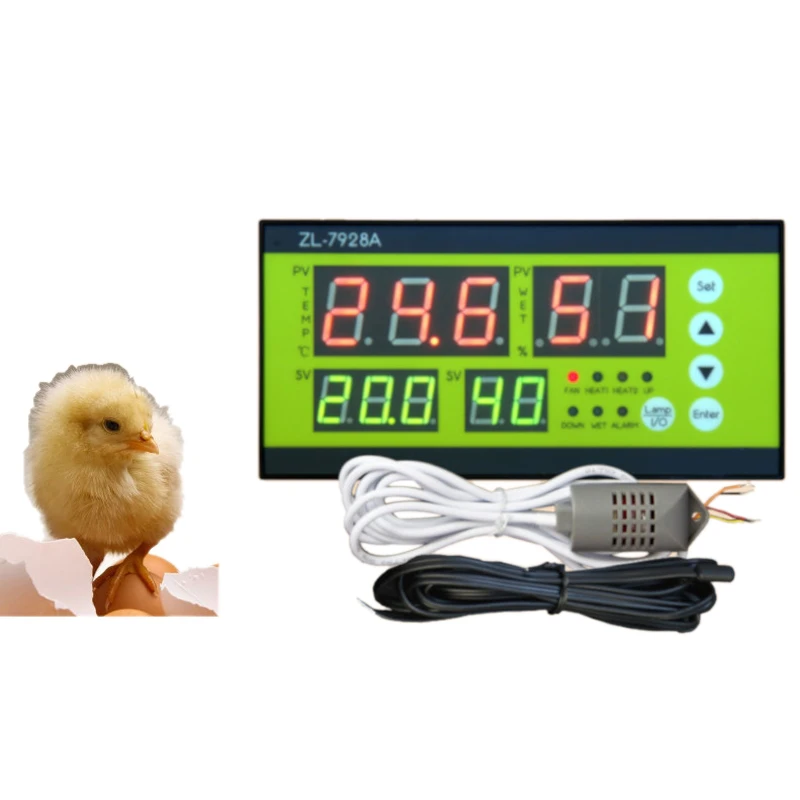

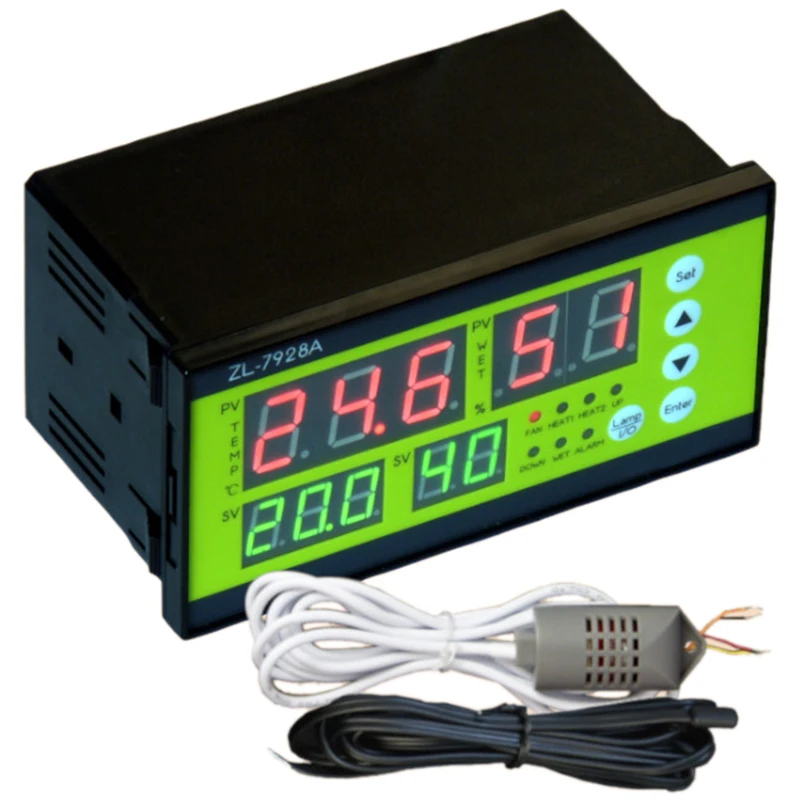

Model Number: ZL-7928A
Style: Embedded,Max Measuring Temperature: 70 Celsius- 99 Celsius,Display Type: Digital,Usage: Industrial
Power Type: Charger,Theory: thermostat, hygrostat, hatching

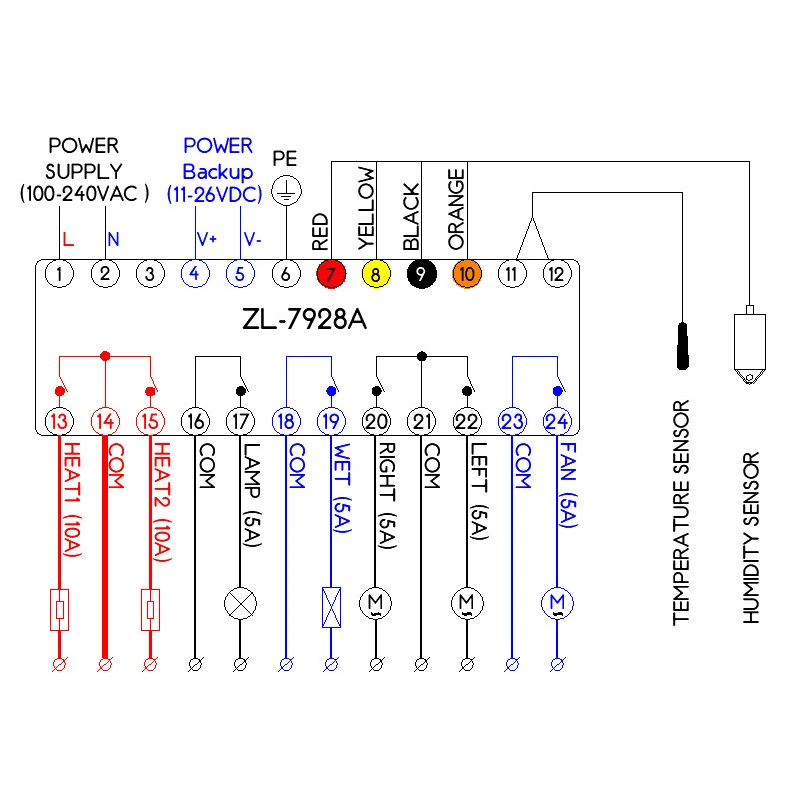

220/110Vac and/or 12/24Vdc power supply
All outputs could be different voltages respectively,full battery system, including all outputs, to meet:power supply often loses,solar energy source system,wind energy source system,Drive any size (egg qty.) incubators

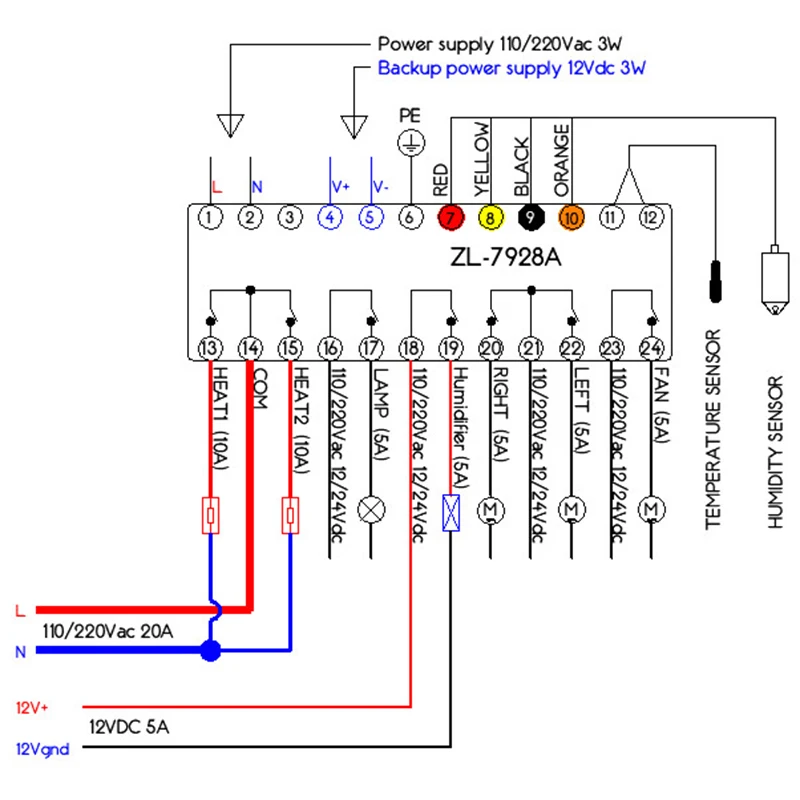

Power supply: 110/220Vac, and/or 12Vdc backup
Power supply consumption: 3W
Outputs: different output voltage for different output

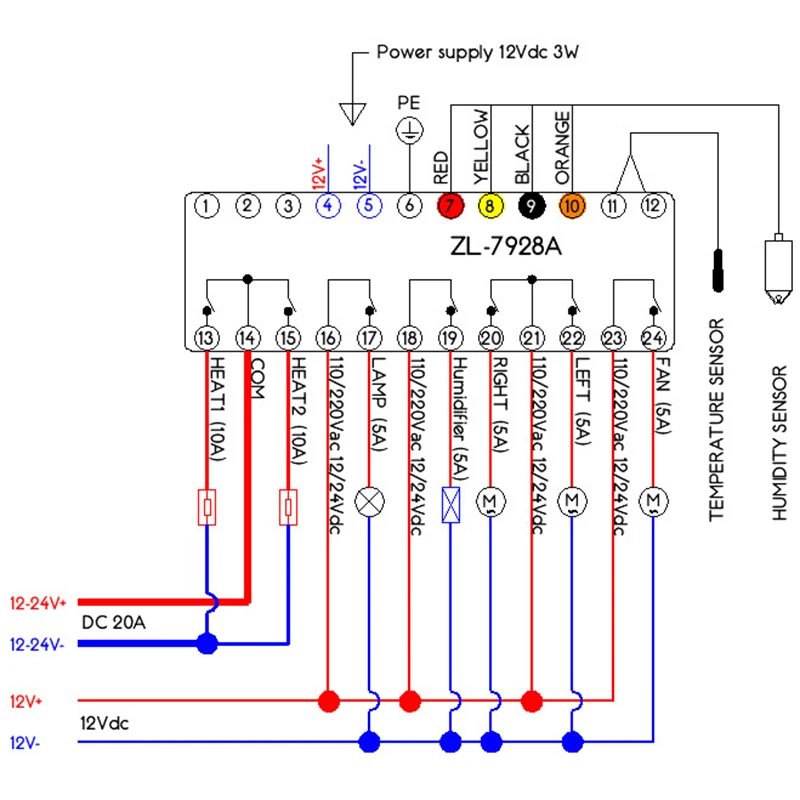

Power supply: 12VDC
Output for heaters: 12, 24VDC. Rated current less than or equal to 10A for every output
Output for others: 12VDC. Rated current less than or equal to 5A for every output

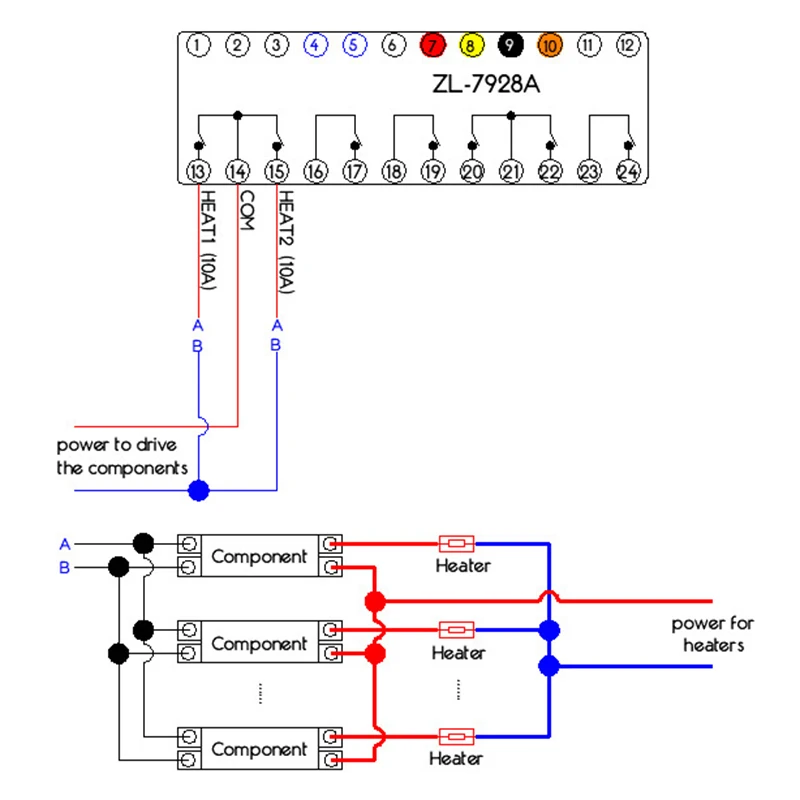

For larger size incubator, it needs bigger heating energy.

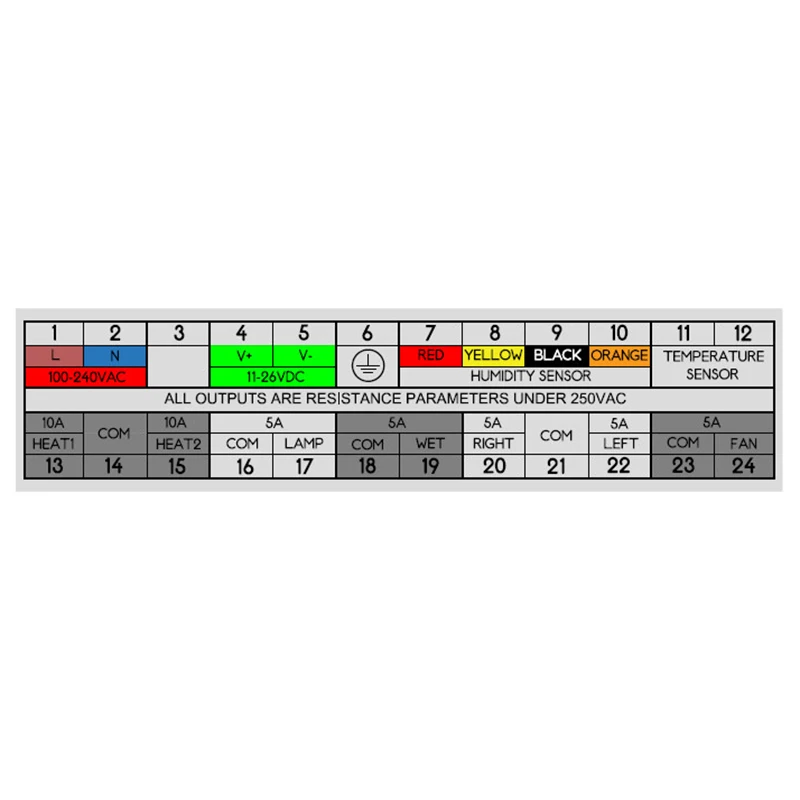

For 110/220Vac heaters, the controller heat1/heat2 output drives the following component(s in parallel):
The controller PIN14 supplied with 110/220Vac.
The component input is 110/220Vac.
The components could be used:
SSR-40AA
Megetic contactor
Relay (eg.: JQX-38F xx0VAC)
The controler PIN14 supplied with 12Vdc.
The component input is 12Vdc.
The componest could be used:
SSR-40DA
Relay (eg.: JQX-38F 12VDC)
The component(s) output drives heater(s)
For 12/24VDC heaters, the controller heat1/heat2 output drives the following componet(s in paralle):
The controller PIN14 supplied with DC.
The component input is the DC.
The component could be used:
SSR-40DD
Relay (eg.: JQX-38F XXVDC)
The component(s) output drives heater(s)
colour:black
Material:plastic
size:Display Size: 1.9 Inches & Under
Package Contents:
1*Thermostat Device
1*temperature and humidity sensor
1*temperature sensor
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
