Pay attention:

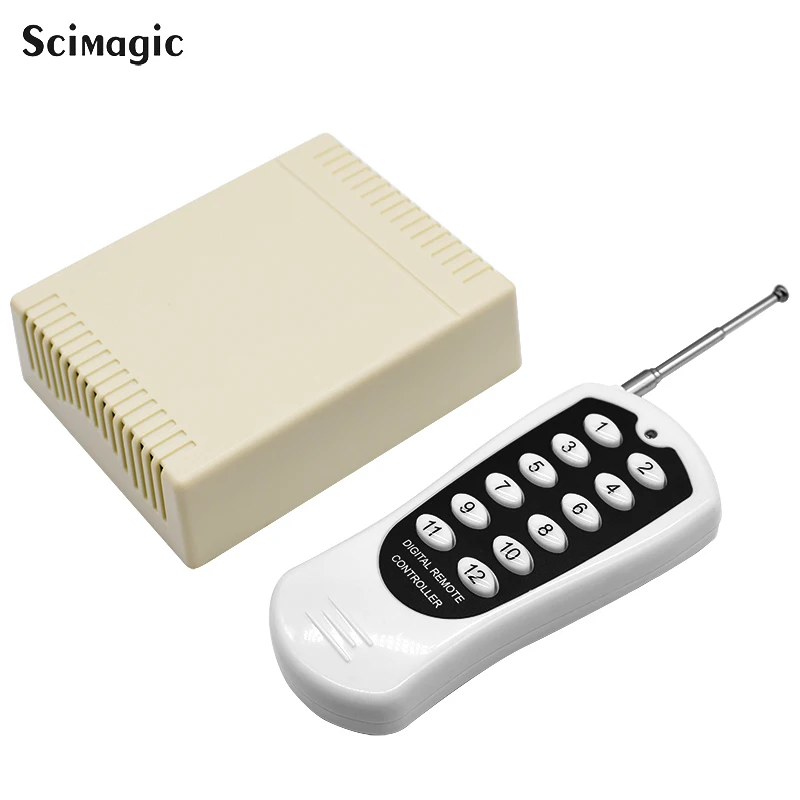

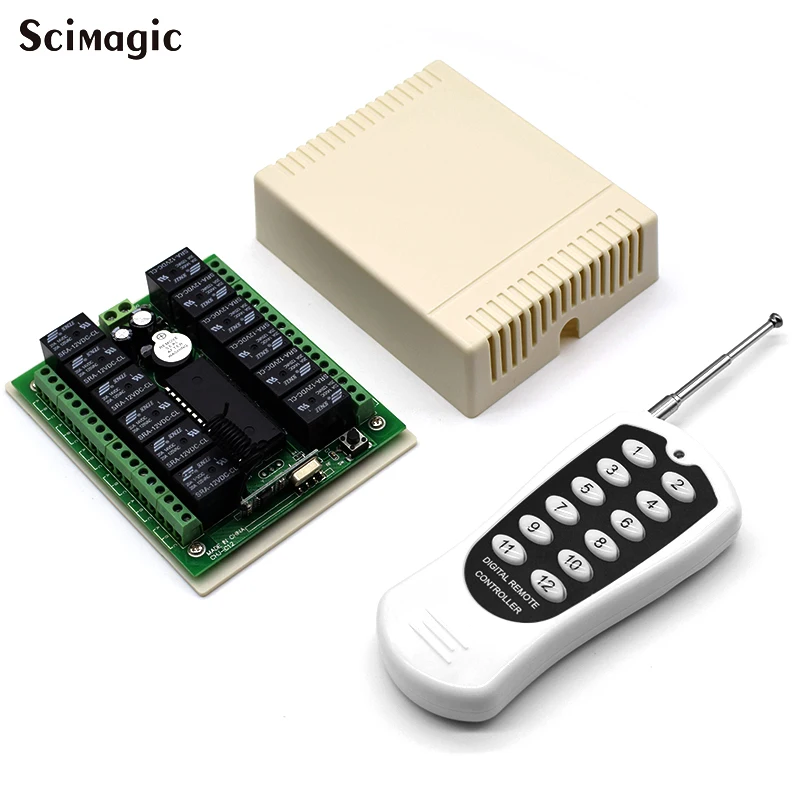

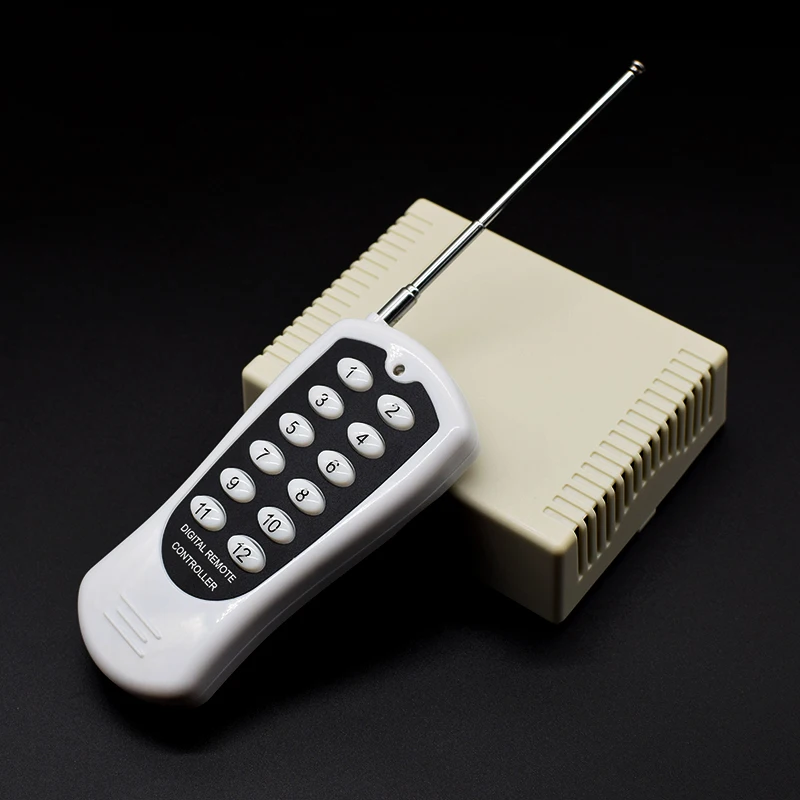

The default setting of output way is momentary, press is on, release is off. If you need other output way can leave a message to change it for you before the delivery. Here is 12 Channel switch and 12-button remote control. You can choose the working way as you need. We default is momentary.

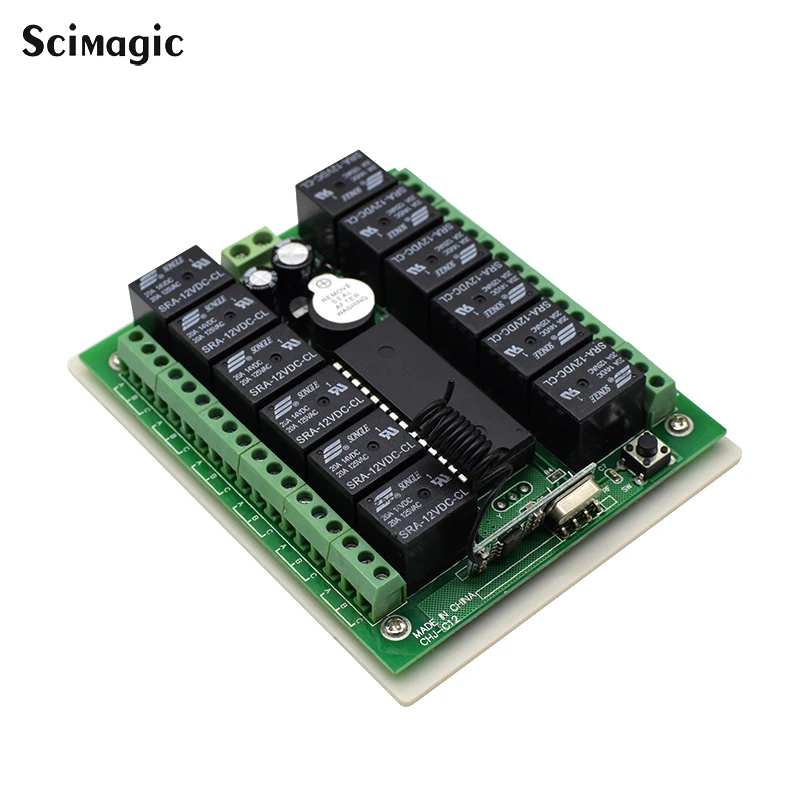

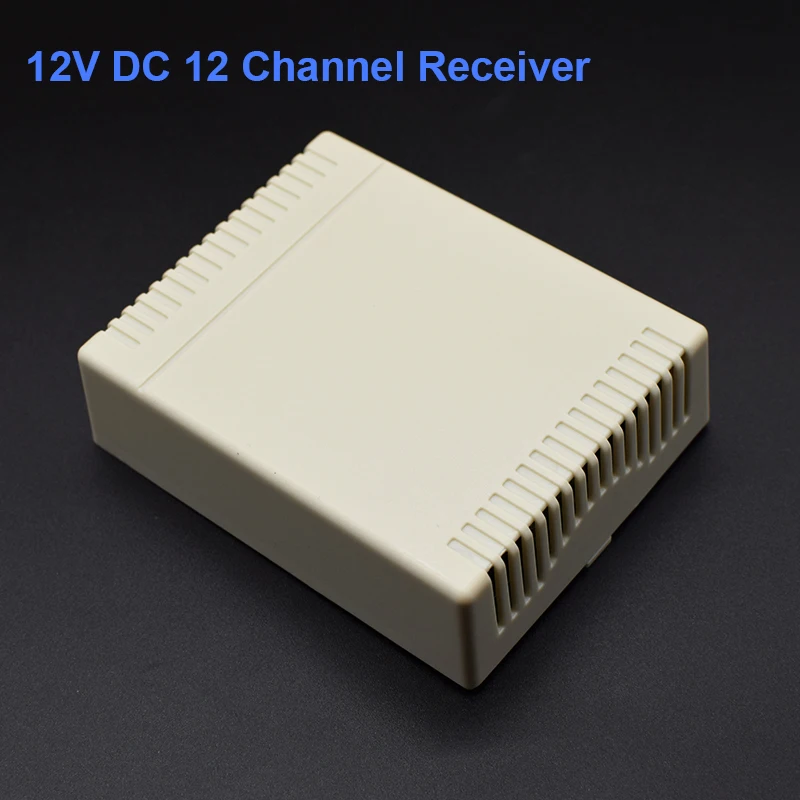

Receiver

Channel: 12 CH Control Types: Toggle, Momentary, Latched Decode: Learning code Frequency:433MHz Power Supply (Operating Voltage): DC12V or DC24V

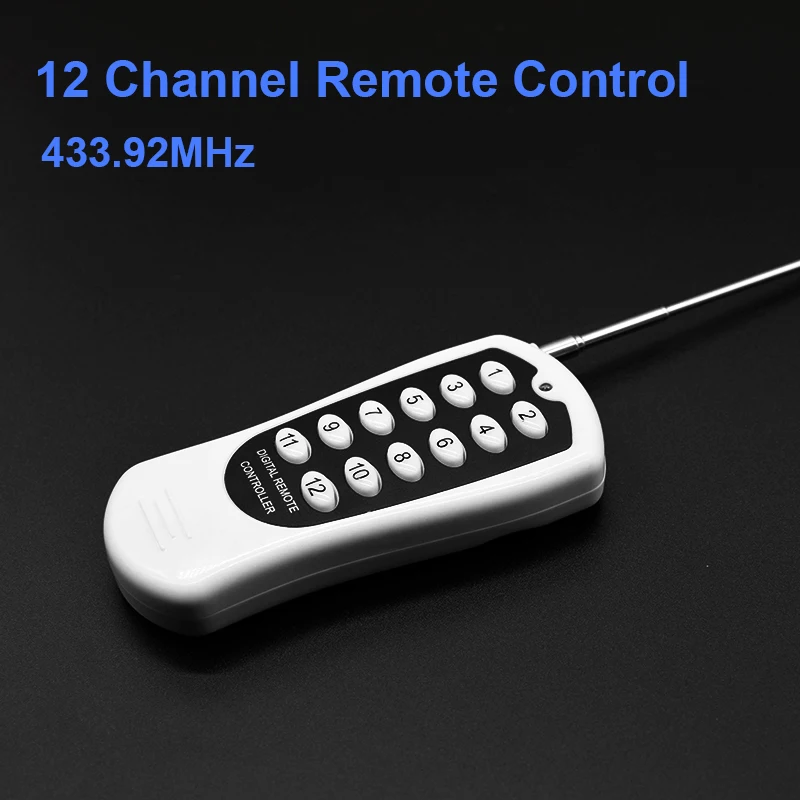

Transmitter

Channel: 12 CH Distance: 100 meter(open/ideal) in theory, 10%-50% in reality(In open environment,receiver antenna outside the box) Encode: Fixed code, Soldering Size: 125mm x 49mm x 20mm Power Supply: 1 x 23A-12V battery

The way of output

Channel: 12 CH Radio Frequency: 433MHZ Operating Voltage: DC12V or DC24V The way of output: A. 1-12CH Momentary-----Set jumper ON "A&L" B. 1-12CH Latched----- Set jumper ON 1 PIN (Don't used jumper) C. 1-12CH Toggle-- --Set jumper ON "B&L" 3 working models: 1. Momentary: Delete code first, press and hold programming button 2-3 seconds until heard long “B” Sounds. Press and hold button 1 to programming 2. Latched: Delete code first, press and hold programming button 2-3 seconds until heard long “B” Sounds. Press and hold button 2 to programming 3. Toggle:Delete code first, press and hold programming button 2-3 seconds until heard long “B” Sounds. Press and hold button 3 to programming

Notice:

Different options include different packages:

Package include:

package1 1 x Transmitter (Batteries not included) package 2 1 x Transmitter (Batteries not included) 1 x Receiver

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
