This wireless HD adapter will give you a high-definition audio and video wireless transmission experience, which can remotely transmit HDMI high-definition audio and video content to high-definition display devices such as TV/projector/display. This product adopts standard Ethernet TCP/IP wireless transmission protocol, which has fast transmission speed and strong anti-interference ability. Support HDMI local loop-out and infrared remote control for extended applications, suitable for conferences, training, education, home entertainment and other applications.

Features:

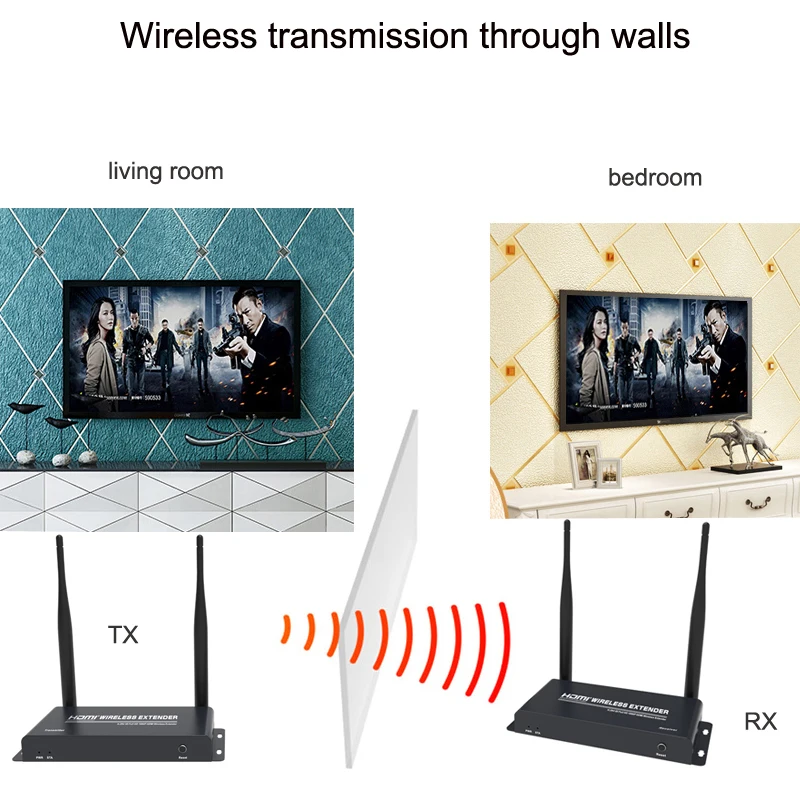

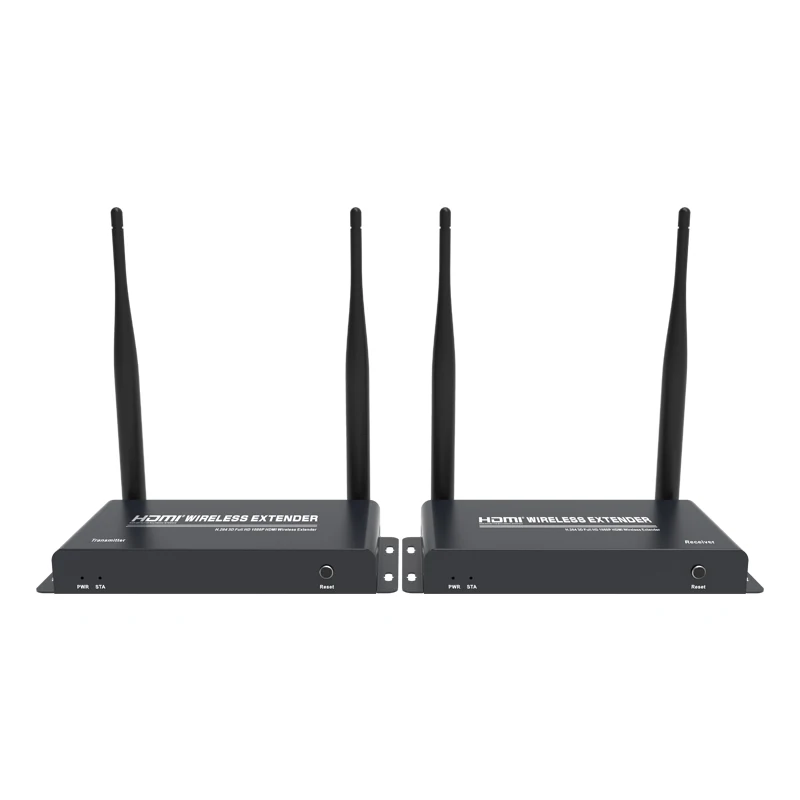

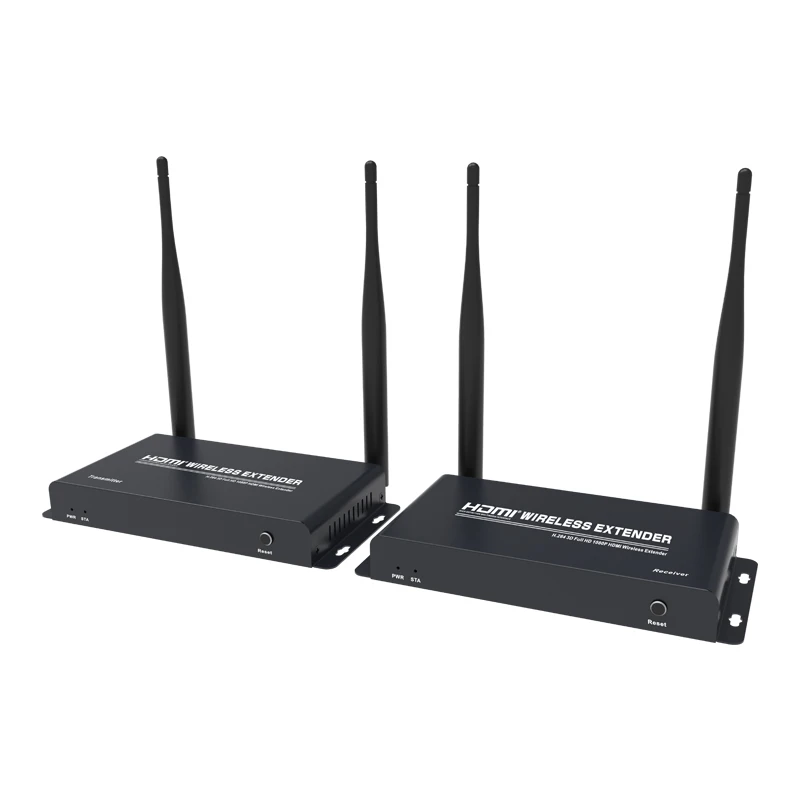

1. The product consists of a transmitter and a receiver, which transmits HDMI signals through wireless WIFI, and supports up to 1 transmitter to 4 receivers, 200 meters no obstruction; 164 ft (50 meters) through the wall. 2. The transmitter supports an HDMI ring to make it easier to monitor the source. 3.Support 1080P resolution. Compatible with a variety of HDMI devices and multiple types of resolution. 4. Adopt international 2.4G / 5G wireless dual-frequency transmission signal, fast transmission speed and strong anti-interference ability. 5. Support infrared remote control remote expansion, remote control source device on the display side, easy to install, plug and play.

Product parameters:

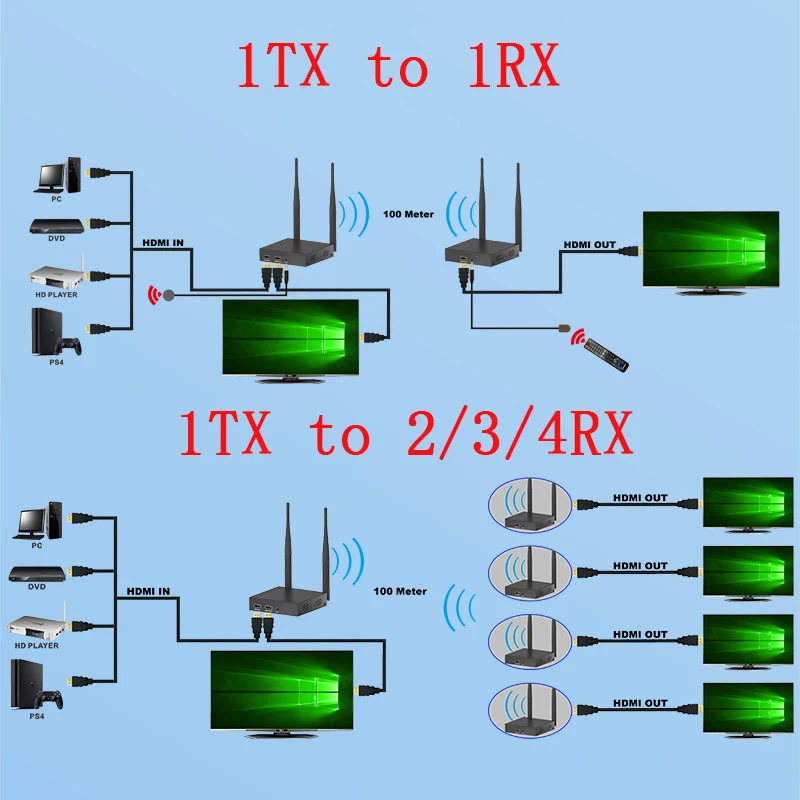

HDMI and HDCP versions: HDMI1.3/ HDCP1.2 Maximum support resolution: 1920X1080P@60HZ Interface: HDMI interface HDMI maximum input / output distance: less than 5 meters, 1920X1080P@60HZ resolution Signal transmission distance: 200 meters no obstruction; 164ft (50 meters) through the wall Wireless frequency: 2.4GHZ/5GHZ Support: unicast, one TX to one RX app Support: Broadcast, one TX to multiple RX applications (up to 4 RX) Support infrared remote control remote expansion, display remote control source device Easy to install, plug and play

Product accessories

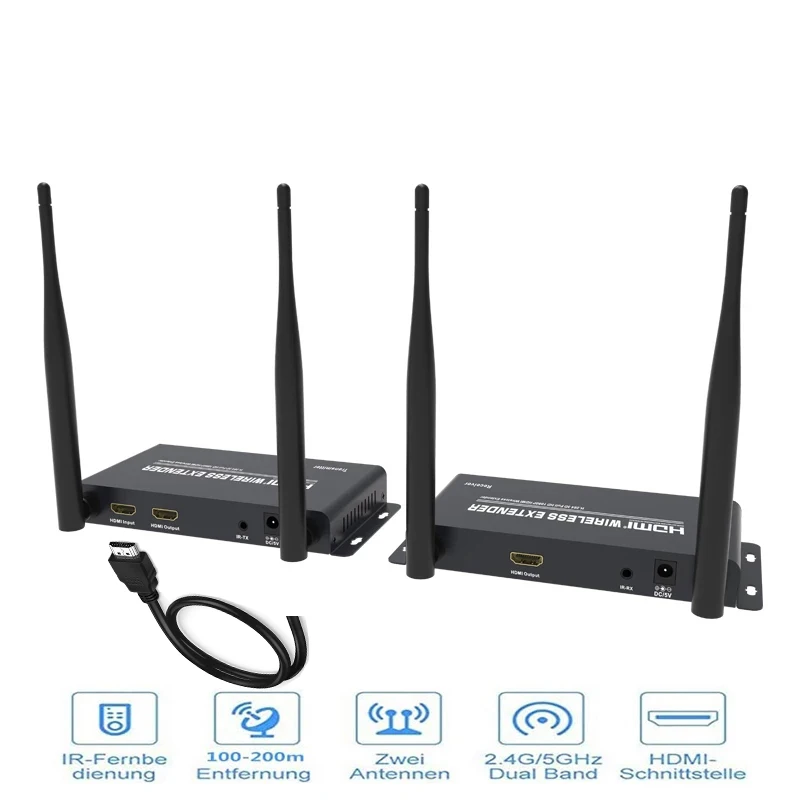

1. HDMI Transmitter (Transmitter)--------------------1 2. HDMI receiver (Receiver) ------------------1 3.WIFI antenna -----------------------------------------4 4.12V 1A power adapter -------------------------------2 pcs 5.IR-RX infrared signal receiving line----------------------------1 6.IR-TX infrared signal transmission line ---------------------------- 1 7. Product manual ---------------------------------------1

Six, connection indication and usage method

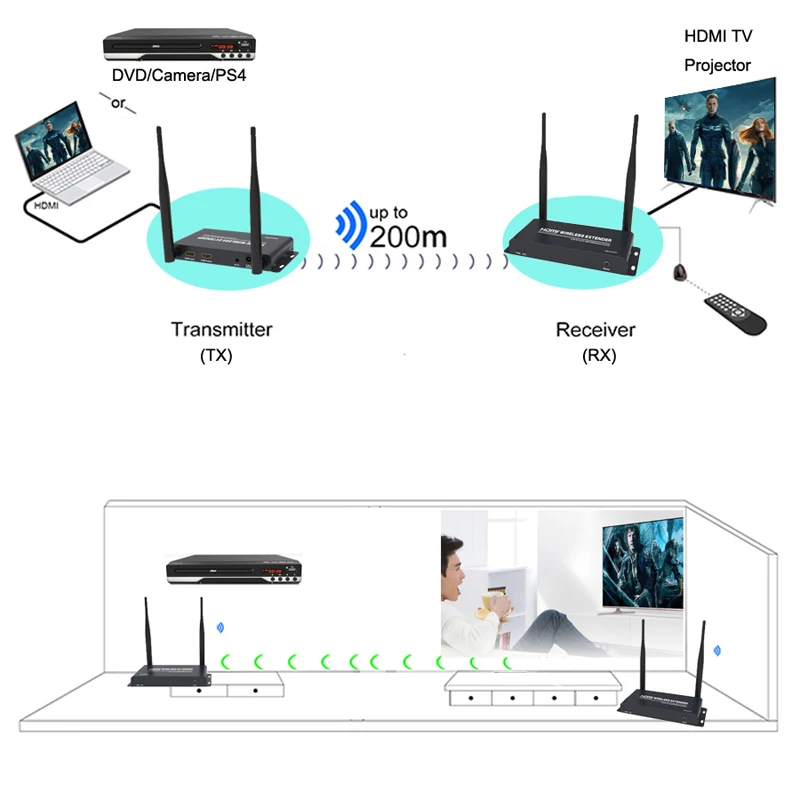

1. Install the transmitter and receiver antennas. The antennas are screwed in, please pay attention to screw in smoothly; 2. Connect the signal source (computer, player, set-top box, etc.) to the input port (HDMI Input) of the HDMI transmitter with an HDMI cable; 3. Connect the display device (TV, monitor, projector, etc.) to the output port (HDMI Output) of the HDMI transmitter with HDMI cable to realize the local loop-out function; 4. Connect the display device to the output port (HDMI Output) of the HDMI receiver with an HDMI cable to realize the wireless transmission function; 5. Connect the IR-TX and IR-RX cables according to the interface and wire identification (if the signal source is a computer, the infrared return function cannot be realized). 6. Connect the power adapter of HDMI transmitter and HDMI receiver, and the product starts to work. Note: If the display device has multiple HDMI ports, you need to select the corresponding HDMI port.

Seven, wireless check and pairing method

Description: 1. The blue lights of the transmitter and receiver are flashing quickly, which means that the pairing and wireless transmission functions are normal, and no pairing operation is required. 2. The pairing is done as required before leaving the factory, and you do not need to pair by yourself. If the pairing information is lost, you need to pair again. Pairing method: 1. Connect the HDMI Output of the HDMI transmitter (Transmitter) with the HDMI Output of the HDMI receiver (Receiver) with an HDMI cable; 2. Connect the power adapter of Transmitter (PWR power indicator, red light is on); 3. Connect the power adapter of Receiver (PWR power indicator, red light is on); 4. Wait for the Status (status light) of the Transmitter and Receiver to start to flash slowly or to light up, first press the Reset button on the Receiver, and then press the Reset button on the Transmitter (transmitter during pairing) The Reset button on the transmitter and receiver can be repeatedly pressed back and forth repeatedly until the pairing is successful.) The status lights of the transmitter and receiver flash quickly to indicate a successful pairing. 5. After the pairing is completed, unplug all the cables and the power adapters on both sides, and then connect them according to normal use.

Eight, failure phenomena and troubleshooting methods

Phenomenon 1: HDMI wireless transmitter (Transmitter) has no display in local loop; 1. Please check that the video resolution of the signal source (for example: computer/DVD/set-top box/player, etc.) is 1080P (i.e. 1920x1080) and below. The maximum resolution of H.264 products can only support 1080P backward compatibility; 2. Please check whether the HDMI Input cable from the signal source to the transmitter end of the HDMI transmitter is normal. Due to the uneven quality of the HDMI cable in the market, it is recommended to use a cable with a length of 3-5 meters or less; 3. Please check whether the HDMI cable between the HDMI Output (output) of the HDMI transmitter transmitter and the display device (for example: monitor/TV/projector, etc.) is normal; Phenomenon 2: HDMI wireless receiver (Receiver) HDMI output no display 1. Please check if the HDMI cable between the HDMI Output (output) of the HDMI wireless receiver and the display device is normal; 2. If the TV is connected, please check whether the connected port is correct (selected by the TV remote control); 3. When the normal working status is transmitting and receiving, the blue light of the Status (status light) flashes quickly, indicating that the wireless pairing is normal. If the blue light is on or off, please re-pair the HDMI transmitter and receiver.
