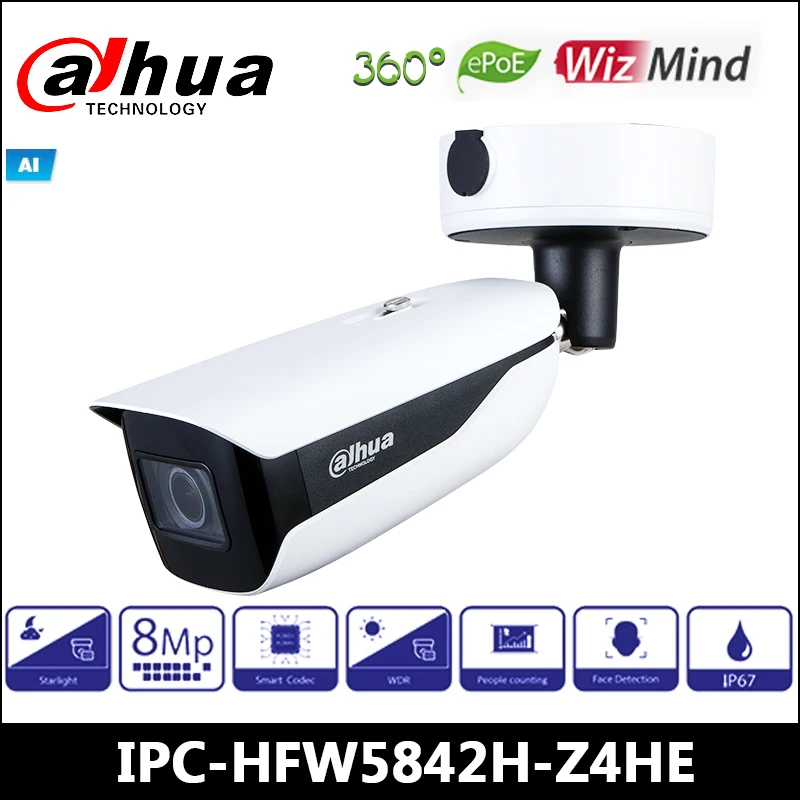

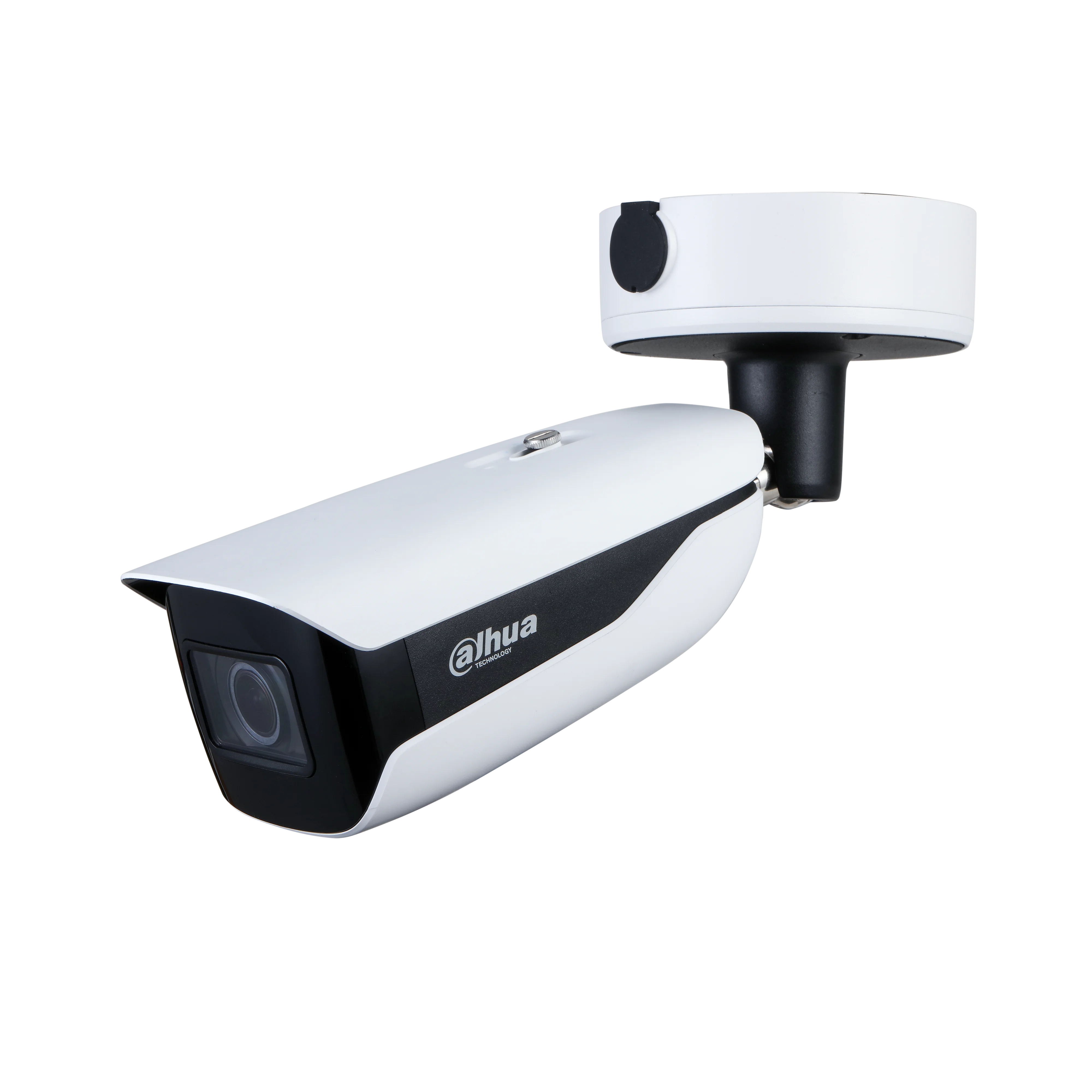

8MP IR Bullet WizMind Network Camera

> 8MP, 1/1.8” CMOS image sensor, low illuminance, high image definition

> Outputs max. 8MP(3840 × 2160) @25/30 fps

> H.264&H.265 coding, high compression ration

> WDR, day/night, 3D NR, AWB, HLC, BLC

> ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> With deep learning algorithm, it supports people counting, face detection, perimeter protection etc

> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD card

> 24V AC/12V DC/PoE power supply (the power ports are different depending on the power supply)

> Three streams for two-channel HD video

> IP67, IK10 protection

> 12V DC power output, max. current 165mA , easy for installation

Camera

Image Sensor

1/1.8”8Megapixel progressive CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

4 G

RAM

2 G

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005@F1.6

S/N Ratio

>56 dB

Illumination Distance

120 m (393.7 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (IR LED)

Pan/Tilt/Rotation Range

Pan:0°–360°
Tilt:0°–90°
Rotation:0°–360°

Lens

Lens Type

Motorized vari-focal

Mount Type

Module

Focal Length

8 mm–32 mm

Max. Aperture

F1.6( Constant F1.6 throughout the zoom range)

Field of View

Horizontal: 40° (W)–15° (T)
Vertical: 23° (W)–9° (T)
Diagonal: 45° (W)–17° (T)

Iris Type

Auto

Close Focus Distance

W: 2.5 m (8.20 ft)
T: 6 m (19.68 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

218.0 m (715.2 ft)

87.0 m

(285.4 ft)

43.0 m

(141.1 ft)

21.0 m

(68.9 ft)

T

580.0 m (1902.9 ft)

232.0 m (761.2 ft)

116.0 m (380.6 ft)

58.0 m

(190.3 ft)

Smart Event

IVS

Abandoned object; moving object

Professional, intelligent

IVS (Perimeter Protection)

Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.

Face Detection

Face detection, track, priority, snapshot;
Upload Optimized snapshot picture;
Face enhancement, face exposure, face attribute extract,6 attributes and 8 expressions: Gender, age, glasses,expressions (anger, sadness, disgust, fear, surprise,calm, happiness and confusion), Mouth mask, beard;
Face matting setting: face, single inch photo;
Three snapshot methods: real-time snapshot, priority snapshot, quality priority;
Face angle filter Priority time setting;
Support Duration Optimal,Non-living Filtering

People Counting

Support tripwire number counting; people counting in

area, and displaying and outputting yearly/monthly/daily reports.

Support queue management, and displaying and

outputting yearly/monthly/daily reports.

Support 4 tripwire rule configuration, people counting in

4 areas, and 4 queue managements.

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B;MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/H.264+

Video Frame Rate

Main Stream: 3840 × 2160 (1-25/30 fps)
Sub stream: 704 × 576 (1-25 fps)/704 × 480 (1–30 fps)
Third stream: 1920 × 1080 (1-25/30 fps)

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048/3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); CIF (352 × 288/352 × 240); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps-16384 kbps
H.265: 12 kbps-16384 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Electronic Image Stabilization (EIS)

Yes

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Audio Compression

G.711a; G.711Mu; G726; AAC; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; people counting in area; stay alarm; people counting; people No. exception detectiong exception detection; safety exception,queue management

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

HTTP; HTTPS; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP; Genetec; Bonjour; Multicast

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P; RTMP

User/Host

20 (Total bandwidth: 160 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); Dahua Cloud; NAS

Browser

IE: IE9 and earlier
Chrome: Chrome 42 and earlier
Firefox: Firefox 48.0.2 and earlier

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

1 channel (3.5mm JACK port)

Audio Output

1 channel (3.5mm JACK port)

Alarm Input

3 channels in: 5mA 3V–5V DC

Alarm Output

2 channels out: 1,000mA 30V DC/500mA 50V DC

Power

Power Supply

DC12V/AC24V/PoE+ (802.3at)

Power Consumption

<17.3W

Environment

Operating Conditions

–40°C to +60°C (–40°F to 140°F)/Less than 95% RH

Strorage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67; IK10

Structure

Casing

Metal + plastic

Dimensions

340.1 mm × 108.5 mm × 92.9 mm (13.4" × 4.3" × 3.7")(L×W×H)

Net Weight

1600 g (3.53 lb)

Gross Weight

2400 g (5.29 lb)
