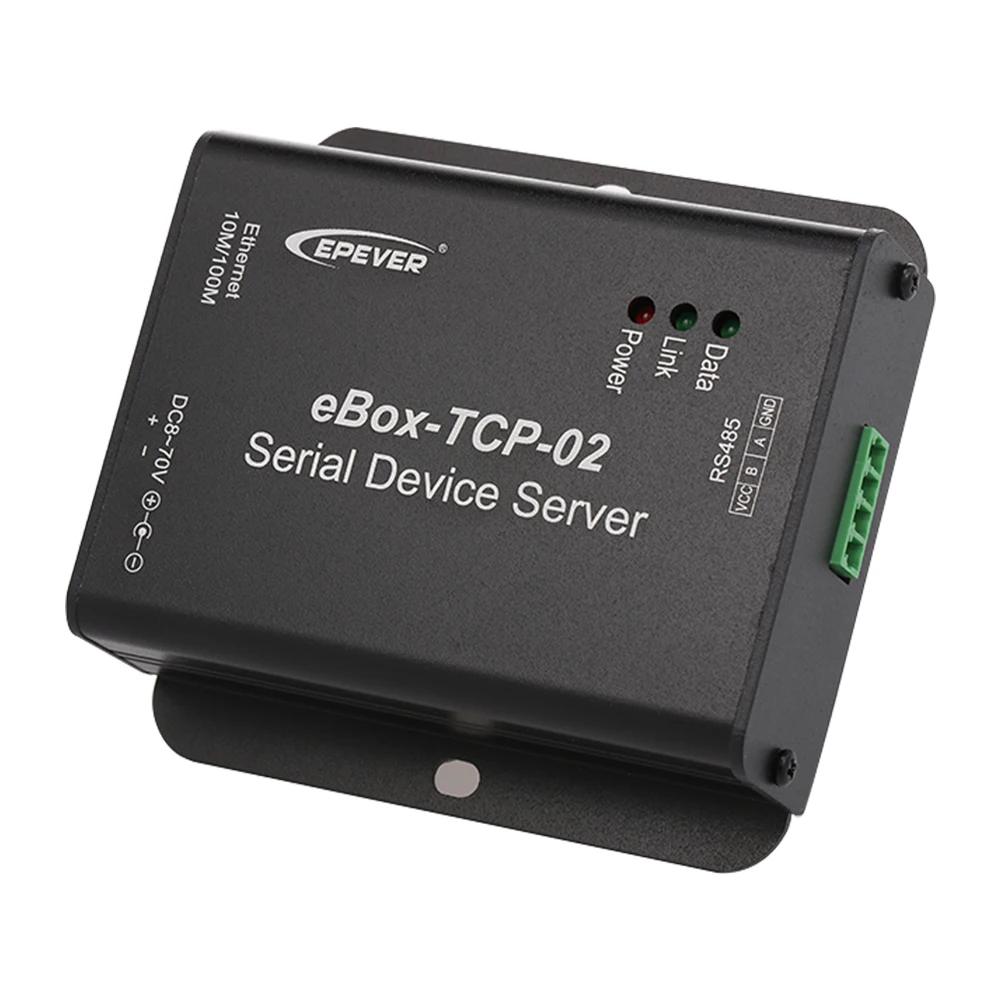

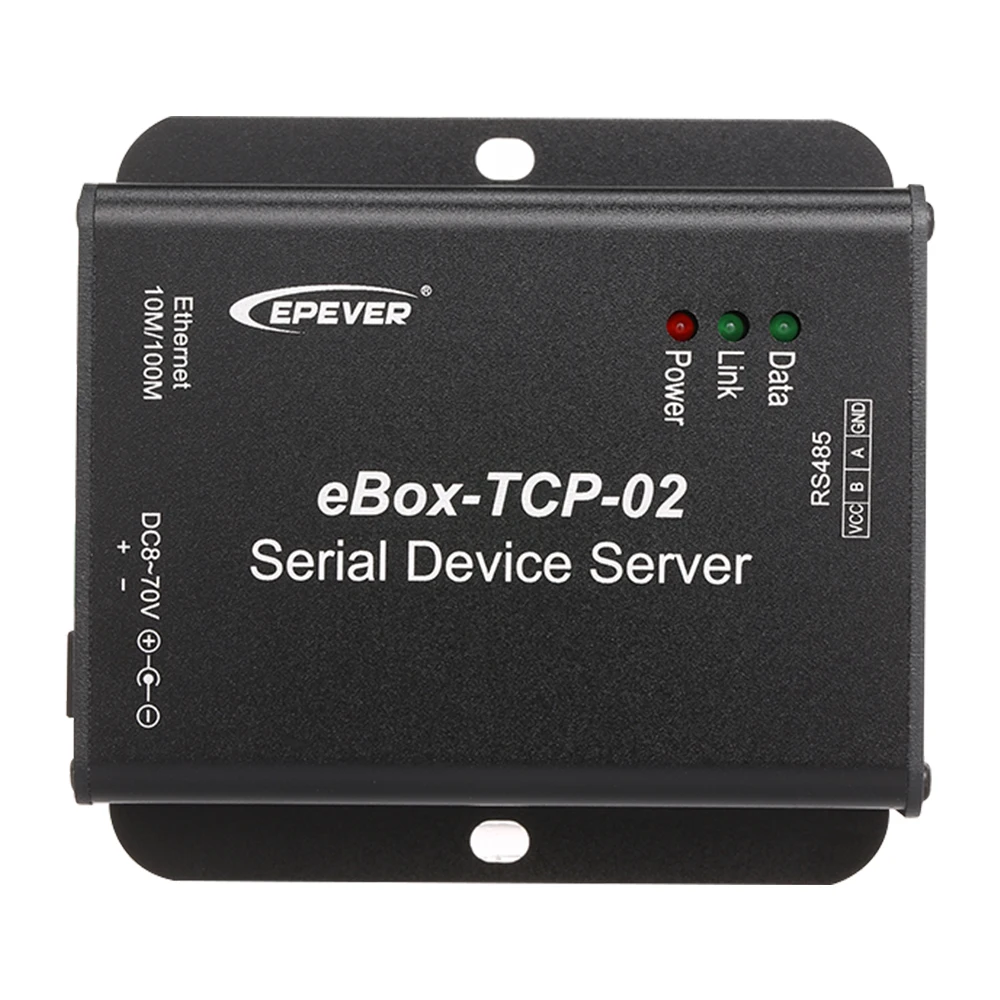

eBOX-TCP-0 Serial Port Networking Server Ethernet Convert Module For Solar Controller Solar Regulator

Description:

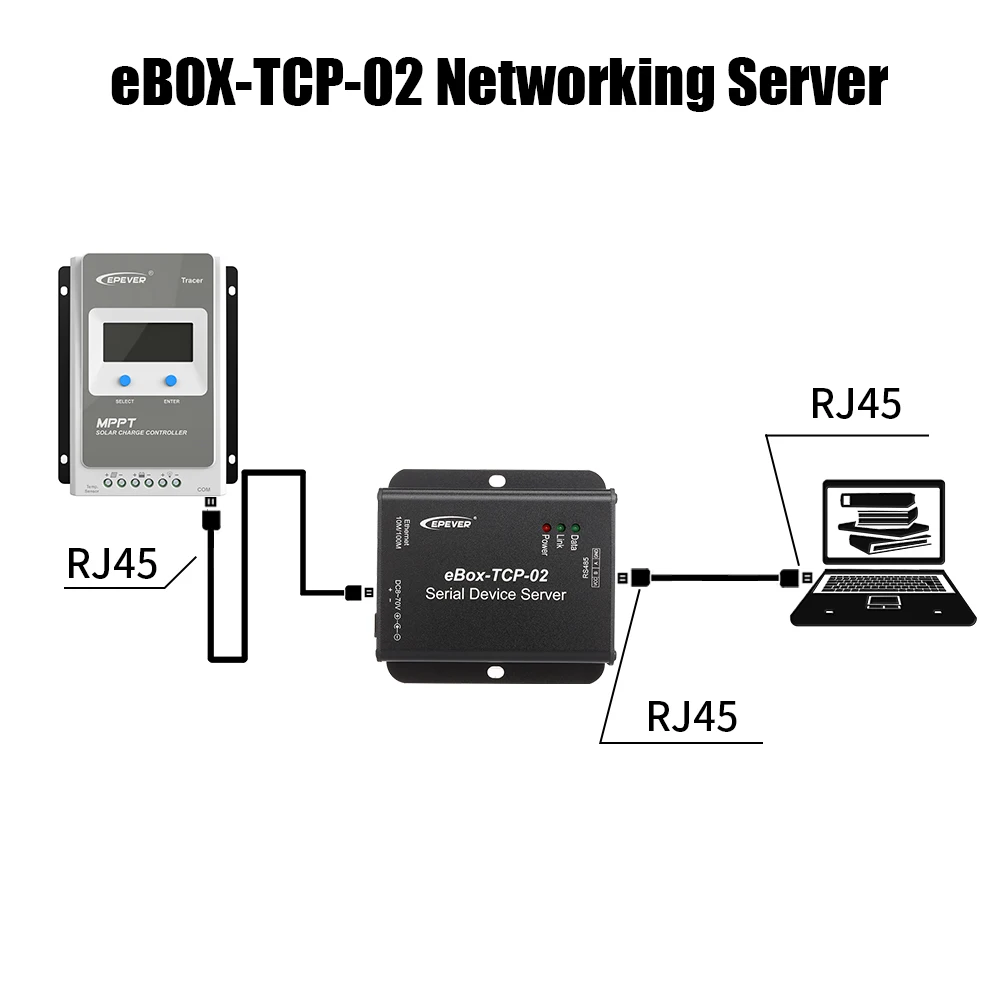

eBOX-TCP-02 is a serial port networking server, which can achieve Ethernet communication function, and centrally monitor and manage the decentralized solar controllers and inverters via the Ethernet network. Support IP, TCP/UDP, ARP, ICMP, IPV4 protocols, support past-gateway, cross-routing communication, etc. Simple and conveient to operate, it can set the IP address easily through the PC management and configuration tool.

Features:
Support the conversion of solar controller and inventer serial port to Internet, and realize the function of LAN and cross-network remote monitoring.
Support cloud platform remote monitoring, no need to install any drives and with high compatibility.
With low power comsuption, high speed, high efficient
Adopt standard network cable interface, 10M/100MA adaptive Ethernet
Communication distance up to 140m(Max), flexible power supply.

Specifications:

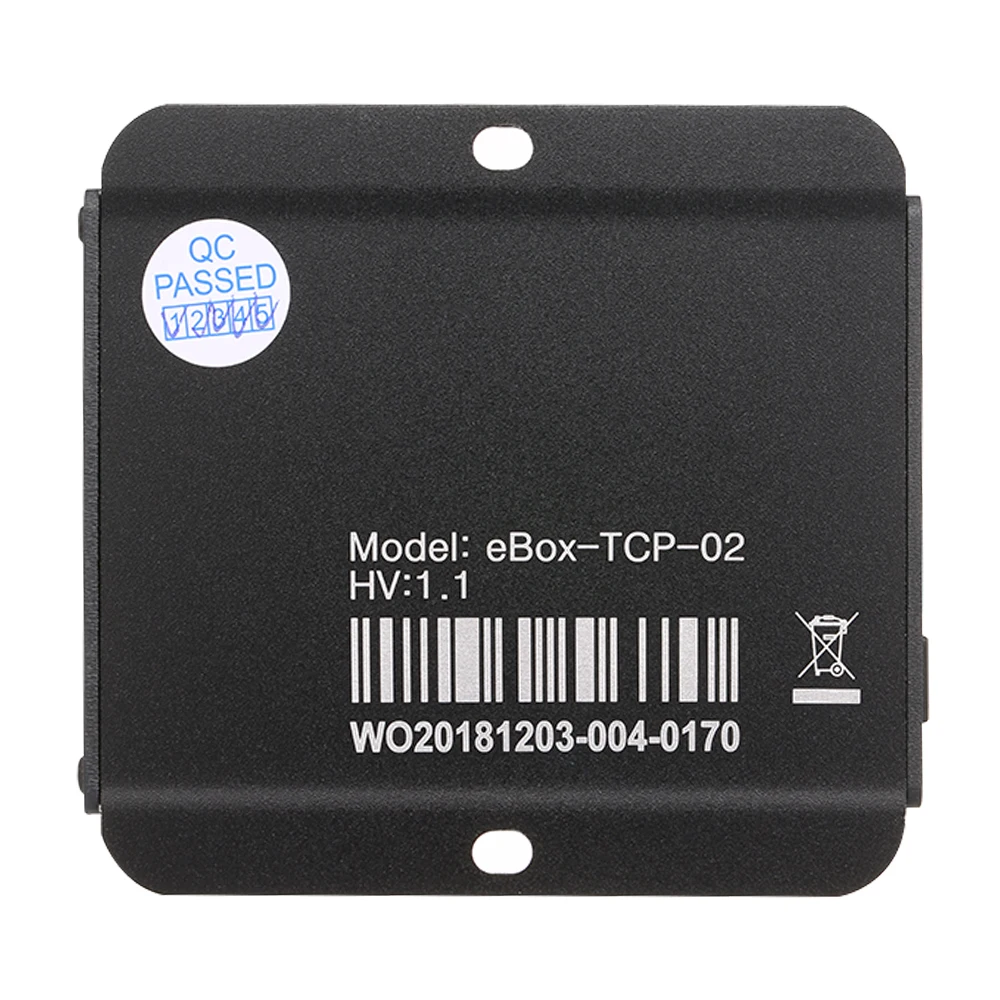

Model: eBox-TCP-02
Input Voltage: DC 8-70V
Standby power consumption: 0.44W
Operation power consumption: 0.92W
Communication distance: 140m(Ethemet:100m.RS485:40m

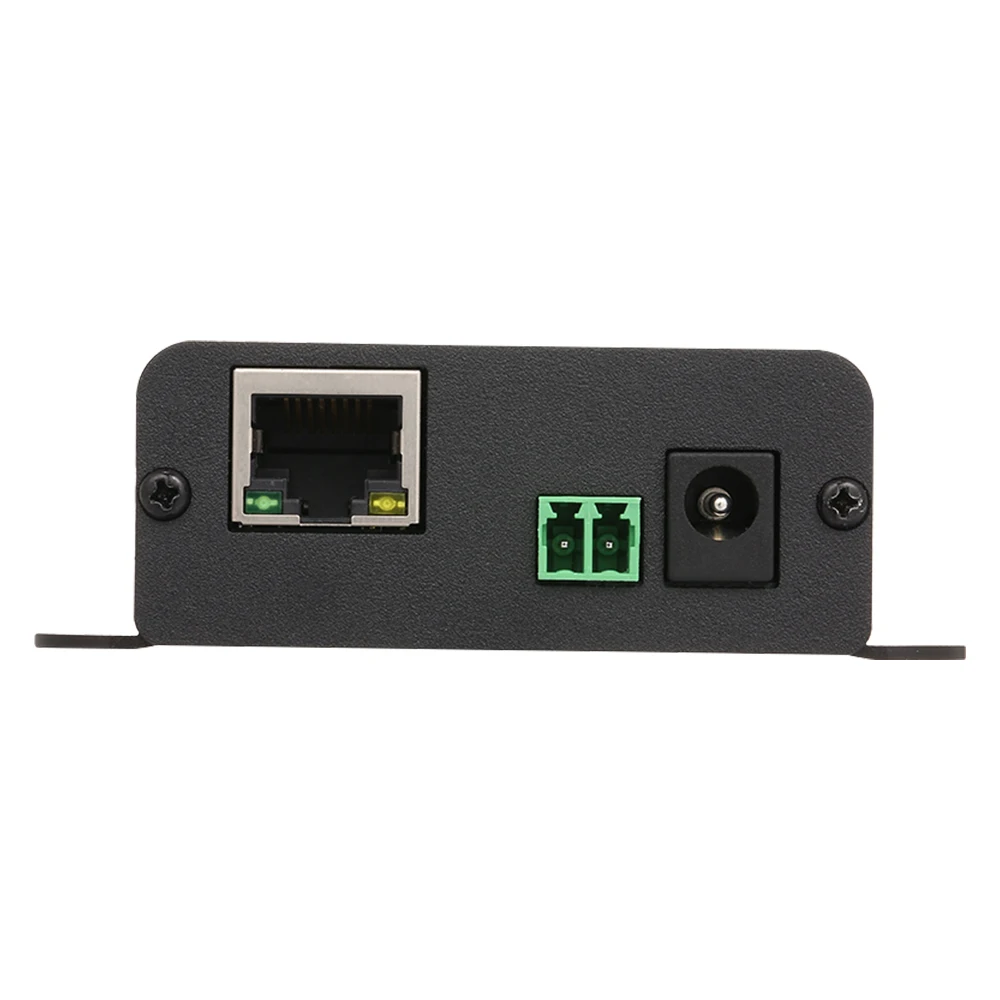

Ethernet port: 10M/100MAdaptive
Port baud rate: 600bps~460.8kbps Default 115200
Communication: RS485 to TCP/IP

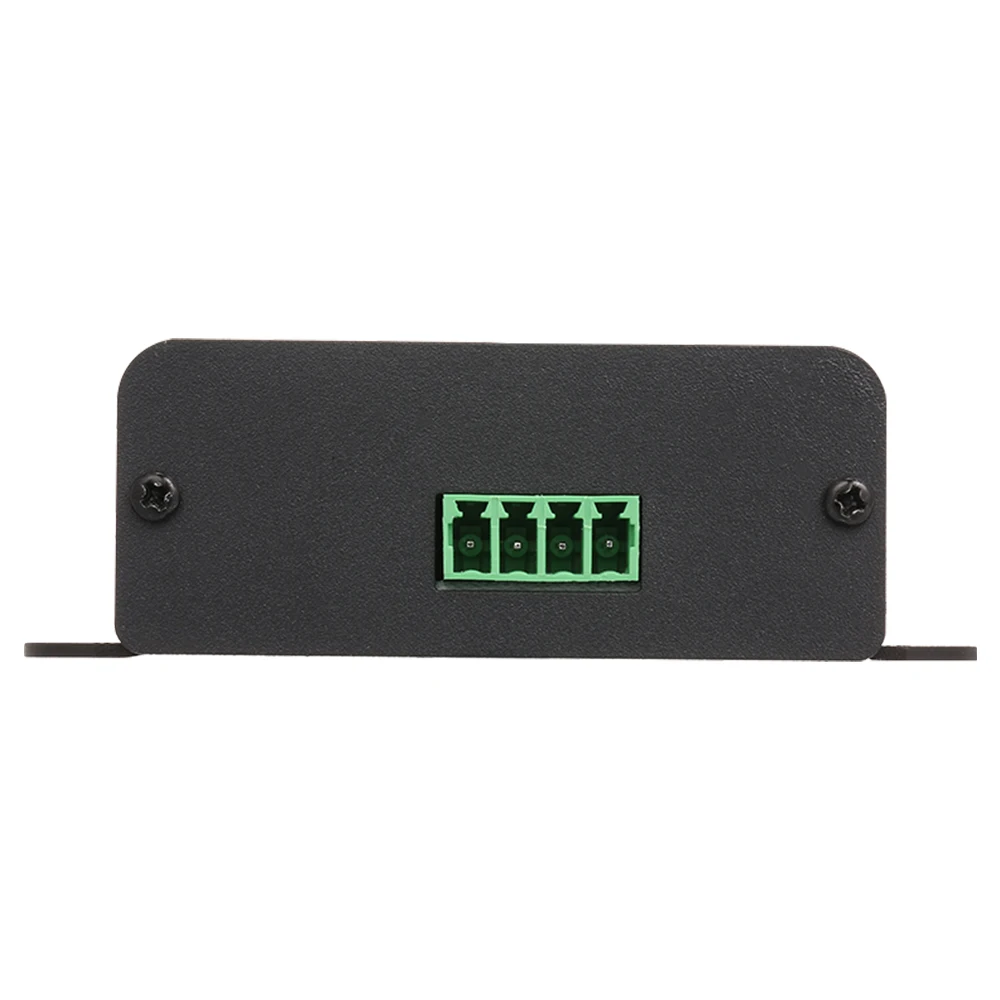

Interface type: 3.81-4P
Connecting cable: 3.81-4P to 3.81-4P, 3.81- 4P to RJ45

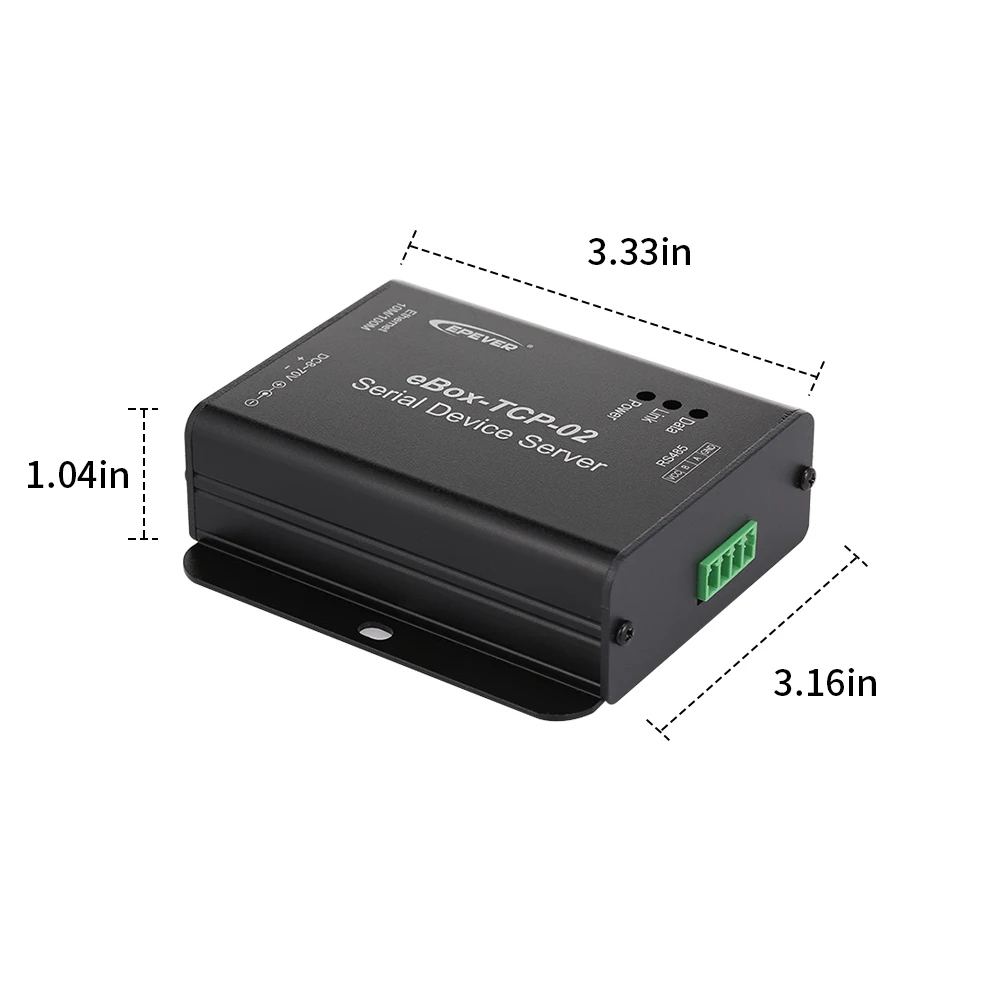

Overall dimension: 84.8*80.5*26.5mm
Mounting dimension: 71 5mm
Mounting hole size: Ф4.2
Working temperature: 20~70C
Enclosure: IP30
Net weight: 123g
Package Size: 14*10*6cm / 5.5*3.9*2.4inch
Package Weight: 135g / 4.8oz

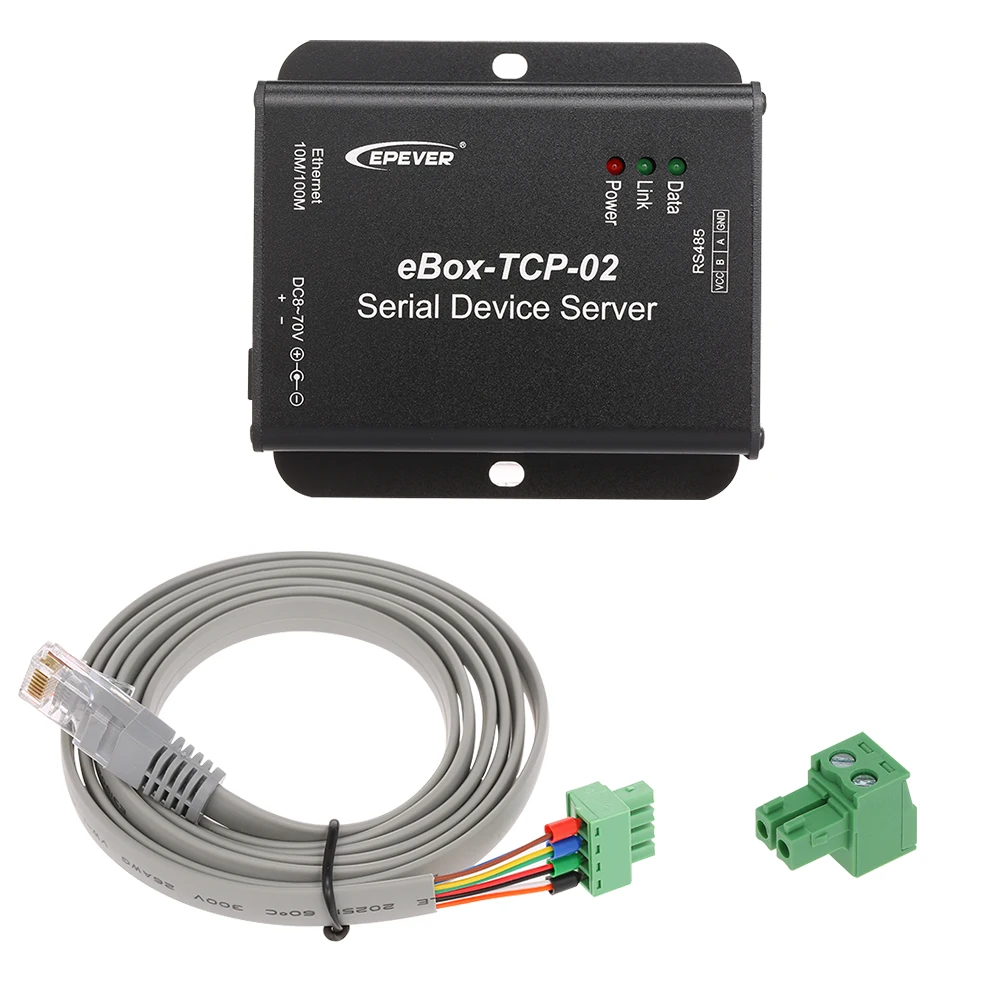

Package List:
1 * eBOX-TCP-02 Serial Port Networking Server
1 * CC-RJ45-3.81-150U cable
1 * Temperature sensor
