10-мм ход маленького линейного привода, 4-мм/5-мм миниатюрного точного шагового двигателя, 2-фазного 4-проводного планетарного редуктора с шестернями



Tips:If you like our product and store, you can add favorite and follow us.
For more similar and related product, can browse the category, or search in our store.

Similar item for sale:



Specification:

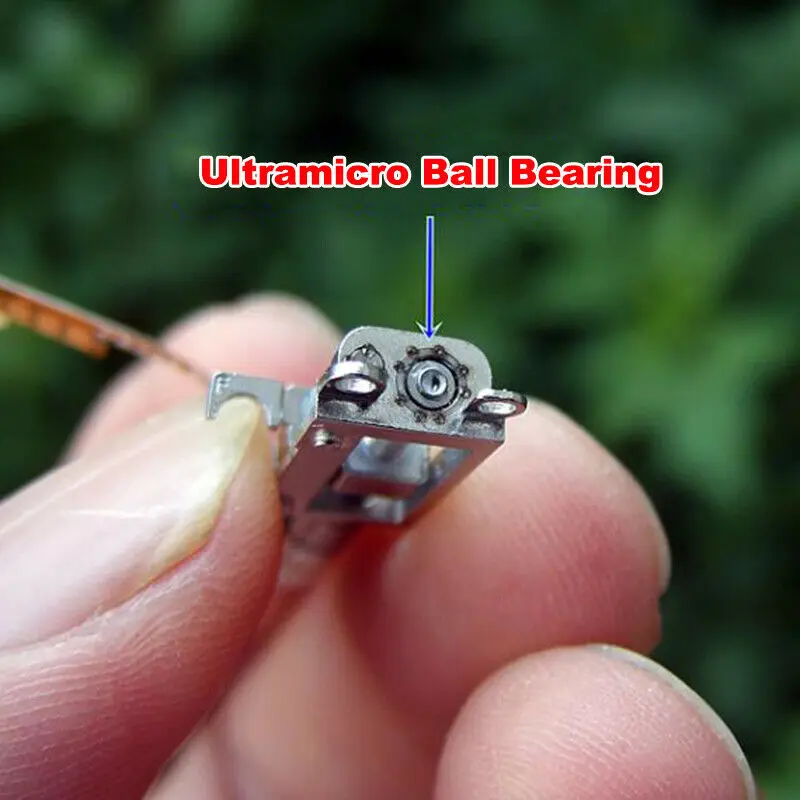

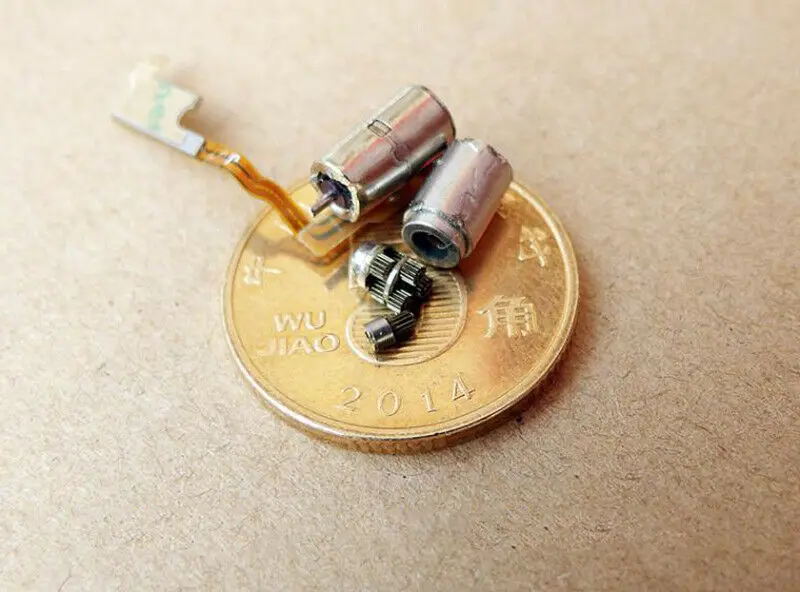

Brand new micro 2-phase 4-wire stepper motor,with planetary gearbox.The planetary gearbox reducer adopts all-metal structure, including metal outer wall and secondary metal gears, and then drives the precise skewed grains to move the metal slider up and down. The bracket is basically made of metal structure, and the screw uses ultra-miniature precision ball bearings.

1.Slider stroke: about 12mm

2.Motor phase resistance: about 14.4 ohms

3.Weight: 3g

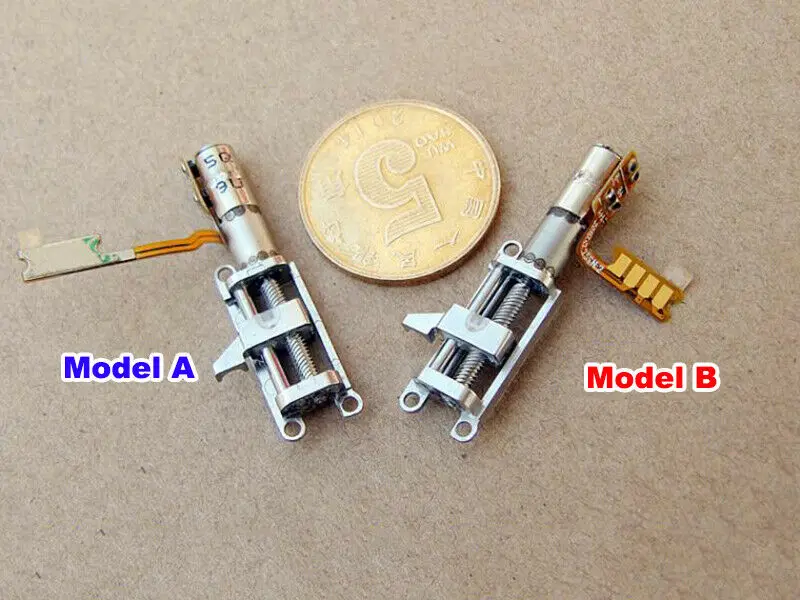

Model A:

Model B:

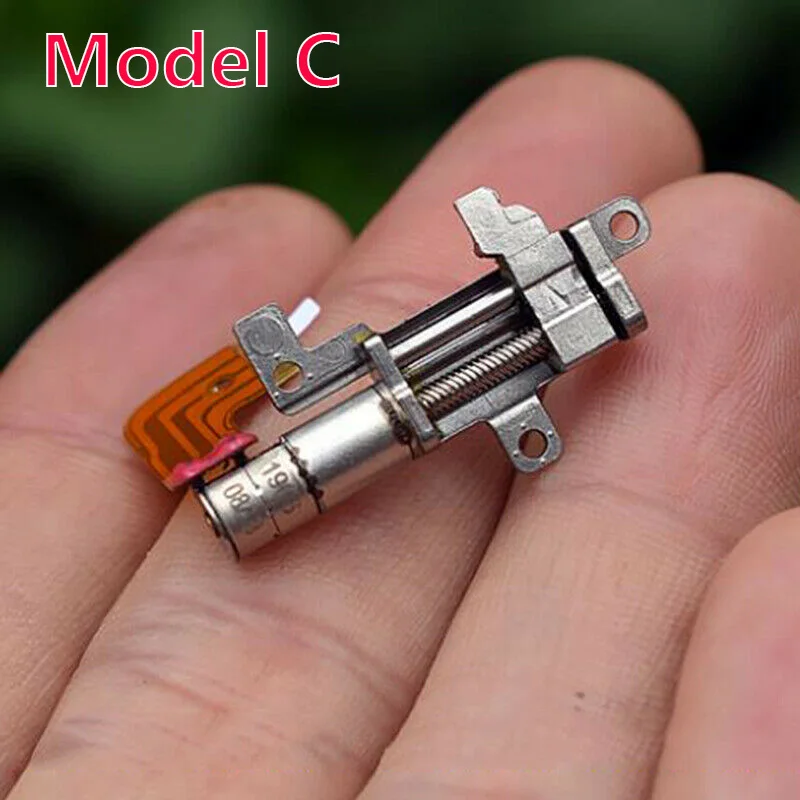

Specification: Modle C

Micro 2-phase 4-wire 5mm stepper motor,with planetary gearbox.

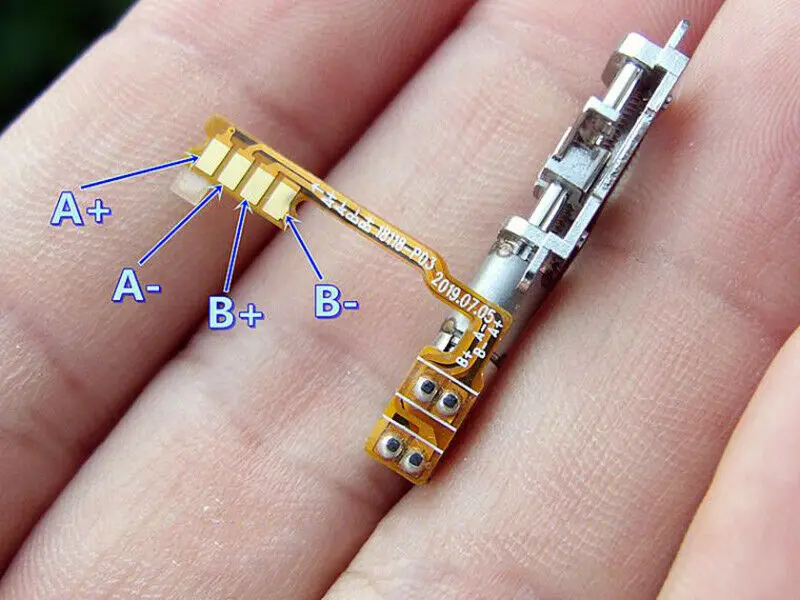

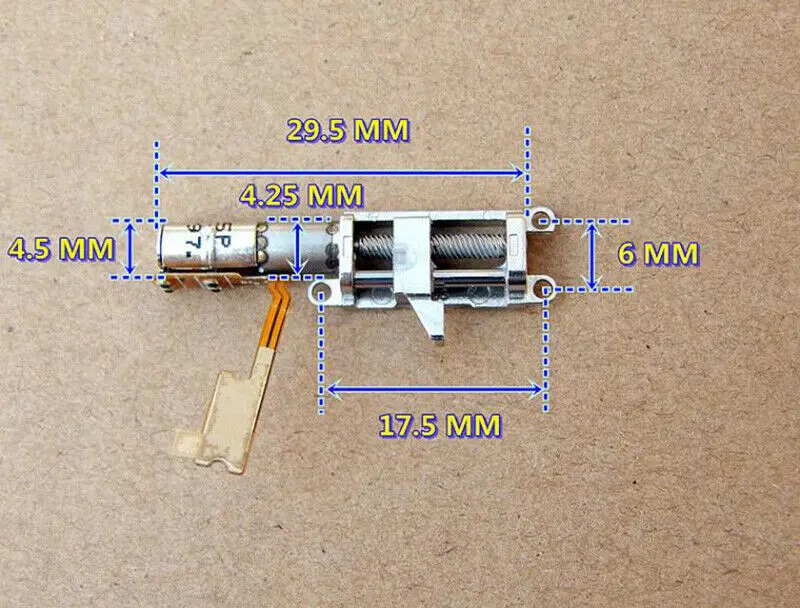

The motor drives the precise skewed lever to move the metal slider up and down. The brackets are basically made of metal, and the spindle is made of ultra-fine precision ball bearings. 1.Type: 2-phase 4-wire 2.Phase sistance: 14.1 ohms 3.@5V short circuit current: 280mA 4.Gearbox diameter: 5mm 5.Gear motot length: 12.7mm 6.Slider stroke: 8mm 7.Total max length: 30.9mm 8.Total max width: 15.7mm 9.Weight: 3.6 grams 10.Note: The lead foot cable of this stepper motor is relatively fragile. It will break if pressed hard. Buyer friends should be very careful when using it. For this ultra mini stepper motor,professional knowledge is required. Buyers should be cautious in welding line to avoid burning motor. We also lack of more data for the motor,please buyers know how to use it before buy.

Package Include:

Motor x 1pcs

---
