Motorcycle Speeeter LCD Display Odemeter Electric Injection Carburetor Meter |

Brand NameNoneOriginMainland ChinaMeasurement unitpiece/piecesEach pack1

Unavailable in

Description

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } DC12V:Speeeter LCD display, speed up 5%, 36Hz=63KM/H;Tachometer LCD display, 166Hz to 10x1000RPM,The fuel sensor of the fuel gauge is not connected, and the related is not displayed.
button:Short press the left button to switch between total and subtotal.
In the subtotal state, long press the left button for 3 seconds to clear the subtotal.
Long press the right button for 3 seconds to switch between metric and imperial systems.
Backlight LCD backlight: blue

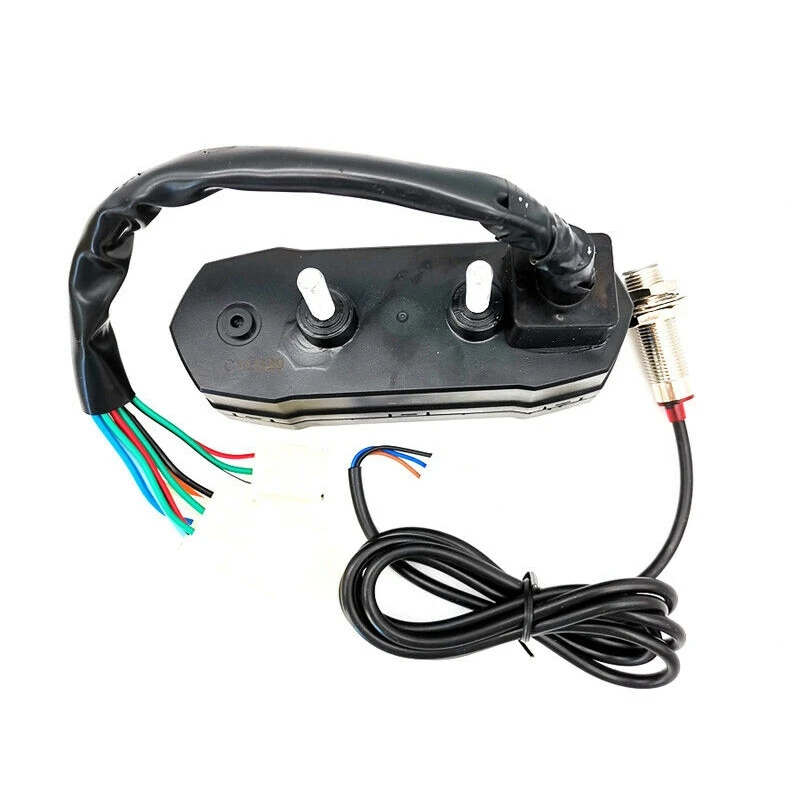

wiring
Green/Red: Neutral, negative control, LCD display
Red/Black: Speed signal
Light blue: turn right, 12V positive control, green light
Green: 12V negative
Yellow/White: Fuel signal
Blue: high beam, 12V positive control, blue light
Black: Electric door lock (12V positive)
White: low beam, 12V positive control, green light
Orange: turn left, 12V positive control, green light
sensor
Red/White: Positive sensor
Green: sensor negative
Black/white: sensor signal
colour: black
Material: Plastic

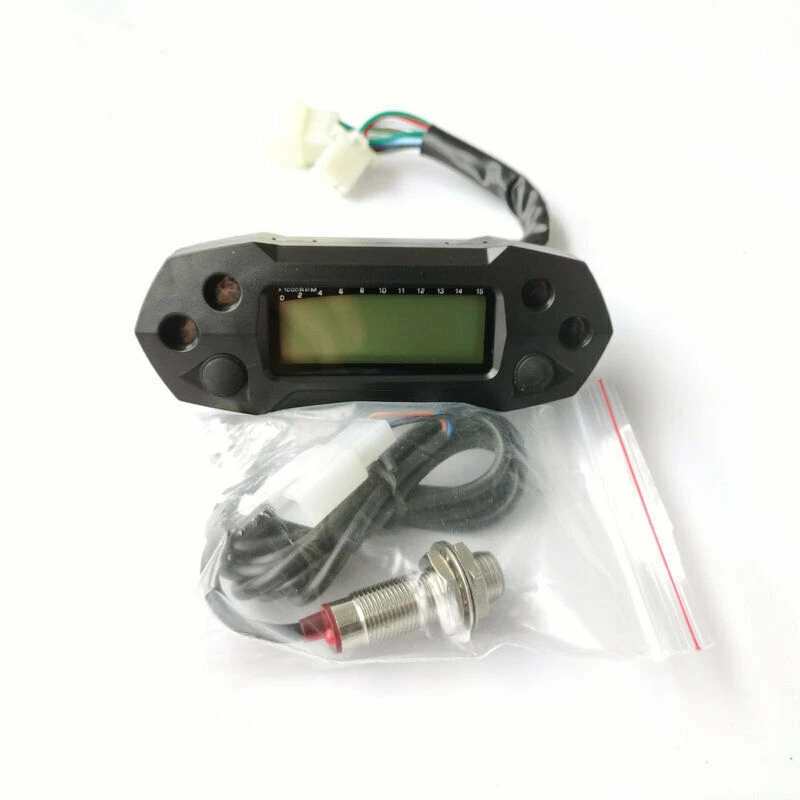

Package Contents:
1 * Motorcycle Speeeter
1 * sensor
Only the above package content, other products are not included.

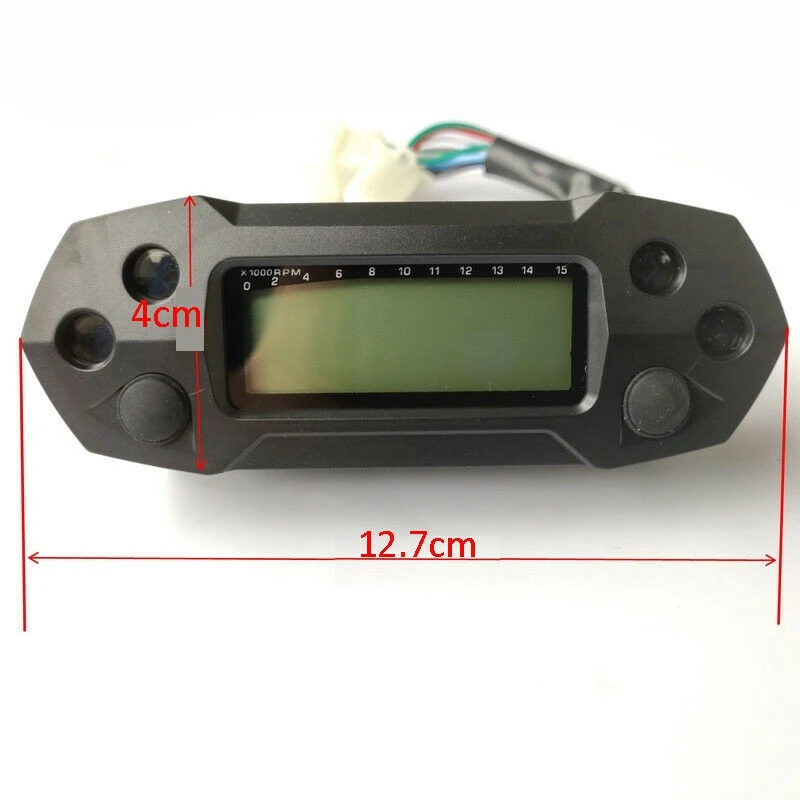

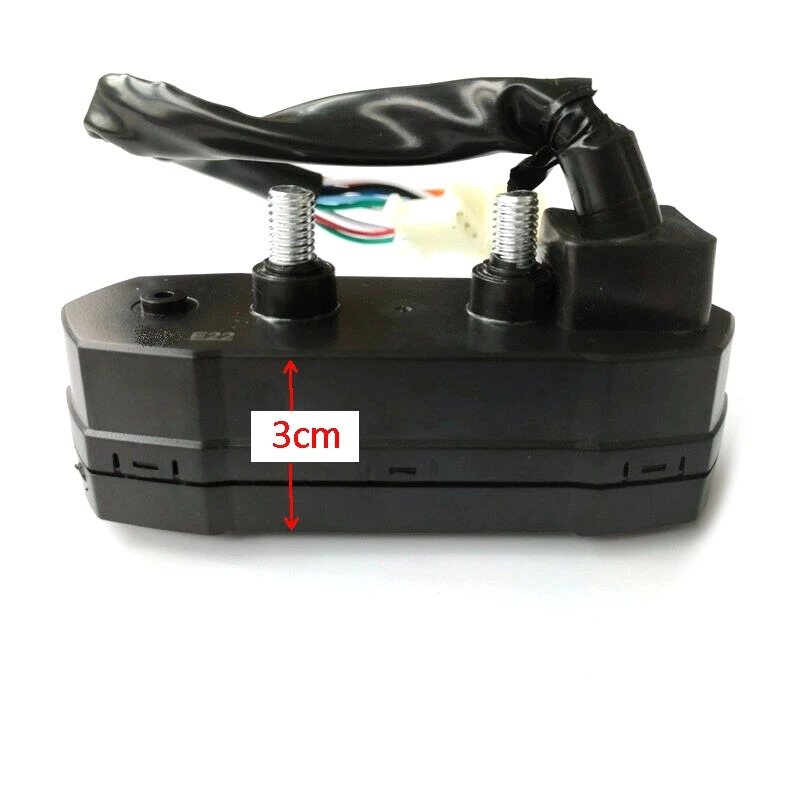

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
