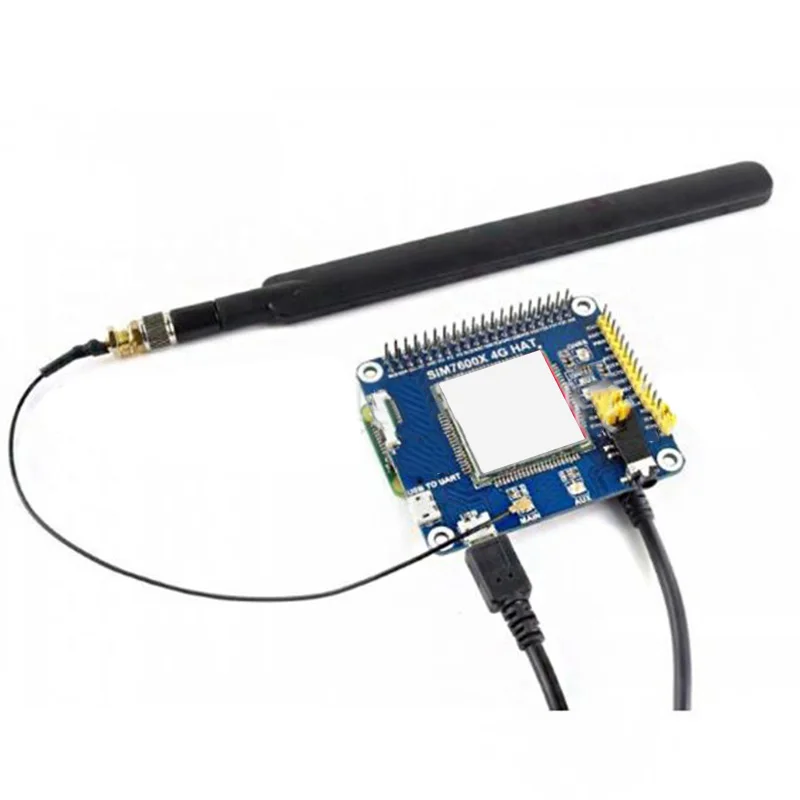

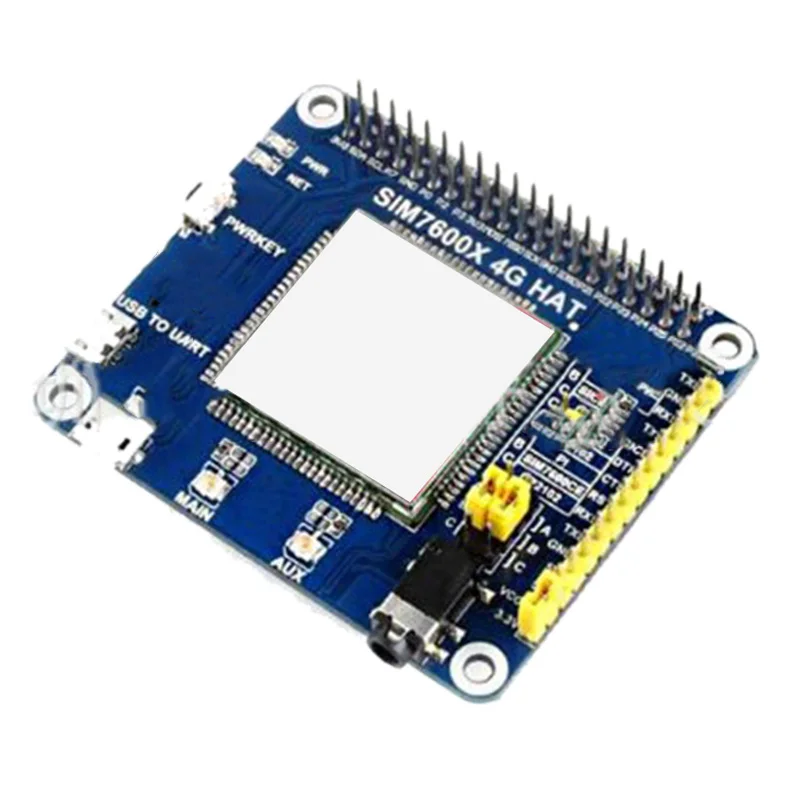

SIM7600G-H 4G HAT 4G / 3G / 2G / GSM / GPRS / GNSS HAT for Raspberry Pi, 4G Expansion Board,4G Module,LTE CAT4 SIM7600

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano;Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc;Supports GPS, BeiDou, Glonass, LBS base station positioning;Onboard USB interface, to test AT Commands, get GPS positioning data, and so on

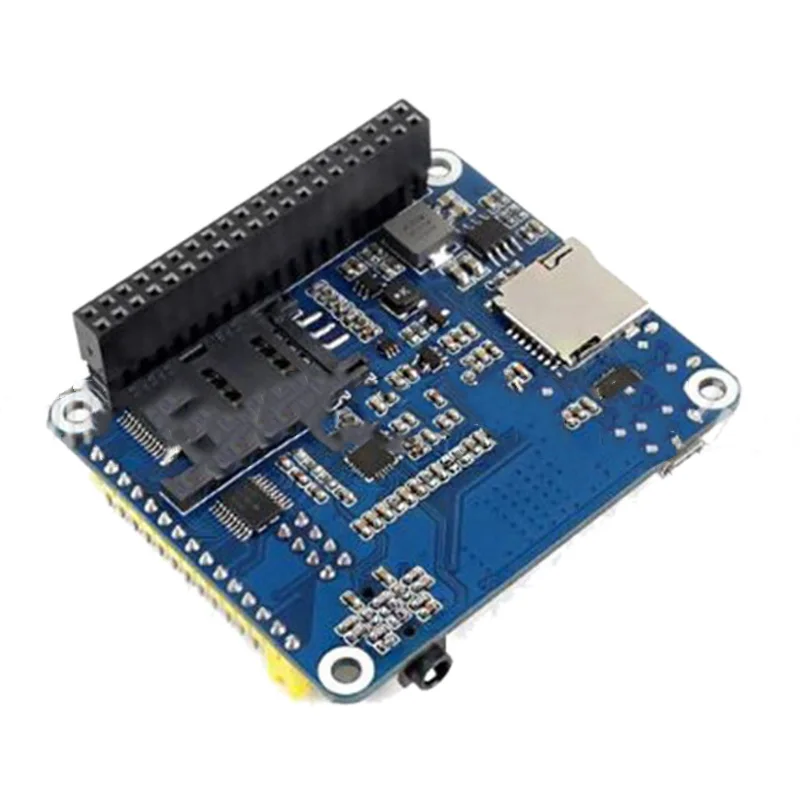

Onboard CP2102 USB to UART converter, for serial debugging;Breakout UART control pins, to connect with host boards like for Arduino/STM32;SIM card slot, supports 1.8V/3V SIM card;TF card slot for storing data like files, messages, etc.
Onboard o jack and o decoder for making telephone call;2x LED indicators, easy to monitor the working status;Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper;Baudrate: 300bps ~ 4Mbps (default: 115200bps)
Autobng baudrate: 9600bps ~ 115200bps;Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set);Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
Comes with user manual and circuit schematic (examples for Raspberry Pi/Jetson Nano/for Arduino/STM32)
GNSS Specifications
Receiver type
16-channel
C/A code
Sensitivity
Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)
Cold starts: -148 dBm
Time-To-First-Fix (open air)
Cold starts: less than 35s
Hot starts: less than 1s
Accuracy
Position: less than 2.5m CEP
SMS and o Specifications
SMS
Supported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
o feature
Supports echo cancellation
Supports noise reduction
Other Specifications
Power supply: 5V
Operating voltage: 5V/3.3V (configured via jumper)
Operating temperature: -30 Celsius ~ 80 Celsius
Storage temperature: -45 Celsius ~ 90 Celsius
Dimension: 56.21mm x 65.15mm
colour: picture color
Material: PCB

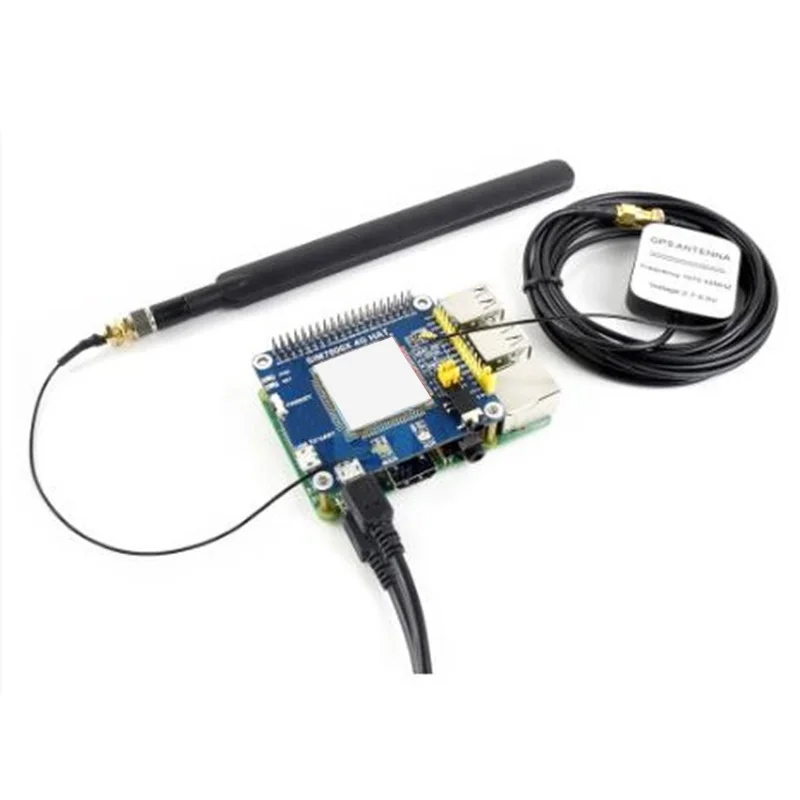

Package Contents:
1*SIM7600G-H 4G HAT
1*LTE antenna
1*GPS External Antenna (B)
2*USB cable type A male port to minimale port
1*RPi Copper Pillar Pack (2PCS Set)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
