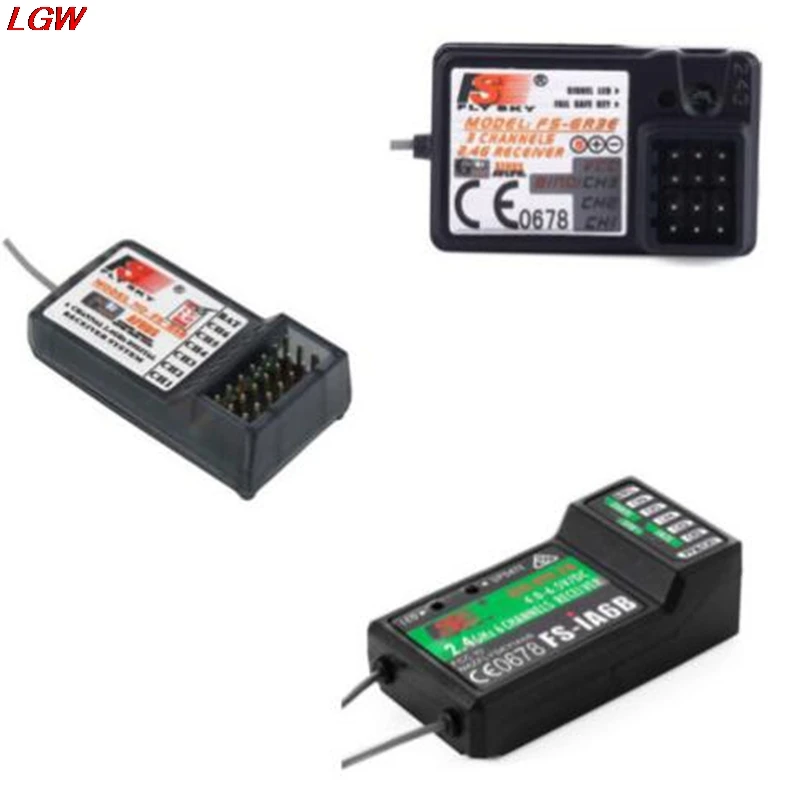

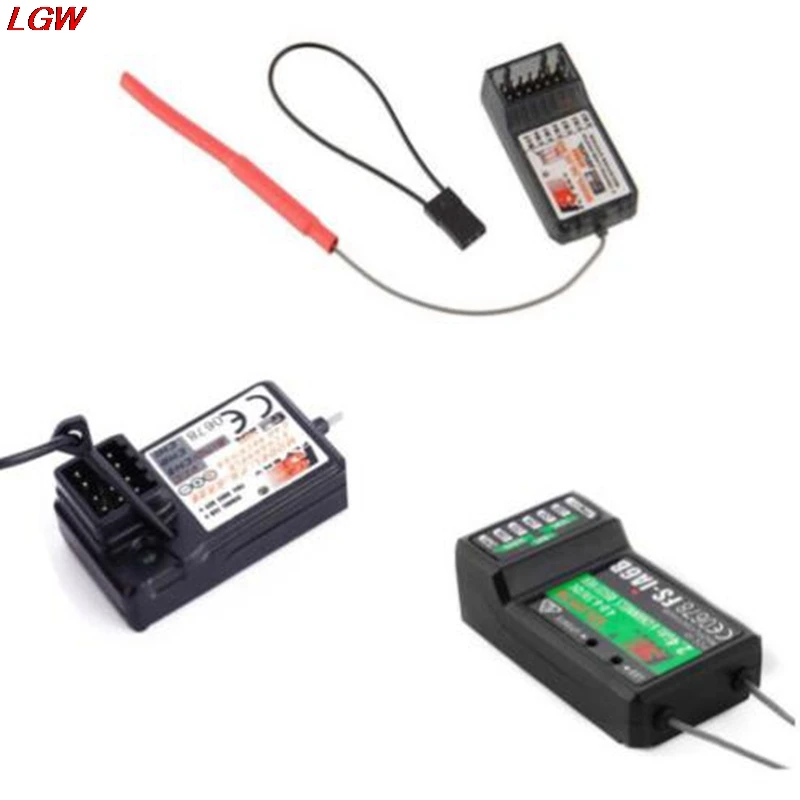

2.4G Flysky FS-iA6B/FS-R6B/FS-GR3E 3/6Ch Receiver PPM Output，Flysky RC CAR L2KO |

2.4G Flysky FS-iA6B/FS-R6B/FS-GR3E 3/6Ch Receiver PPM Output，Flysky RC CAR L2KO |

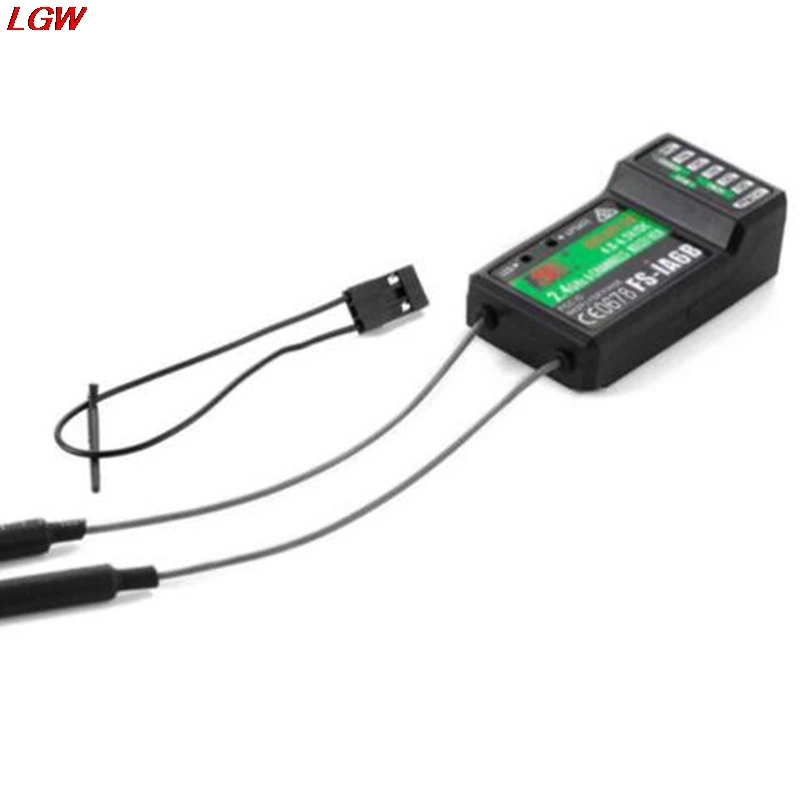

 FS-iA6B 2.4G 6CH

Features:

6-channel receiver compatible with Flysky FS i4/i6/i6S/i10/GT2F/GT2E/GT2G/iT4S transmitter.
Reliable, interference free 2.4GHz AFHDS2A signal operation.
Quick and extremely stable in performance.
Easy to bind and very fast link-up.
Ultra light weight design.

Specifications:

Channel: 6 channels
This type of model: Airplane / glider / helicopter
Frequency range: 2.4-2.48 GHz
Bandwidth: 140
RF Receiver Sensitivity: -105dBm
2.4G mode: the second generation of an enhanced version of FM automatic digital system
Coding: GFSK
Antenna Length: 26 mm x 2 (dual antenna)
Input power: 4.0-6.5 V DC
Dimensions: 47 x 26.2 x 15 mm/1.9" x 1.0" x 0.6"

Package includes:

1 x 2.4GHz FS-iA6B Receiver

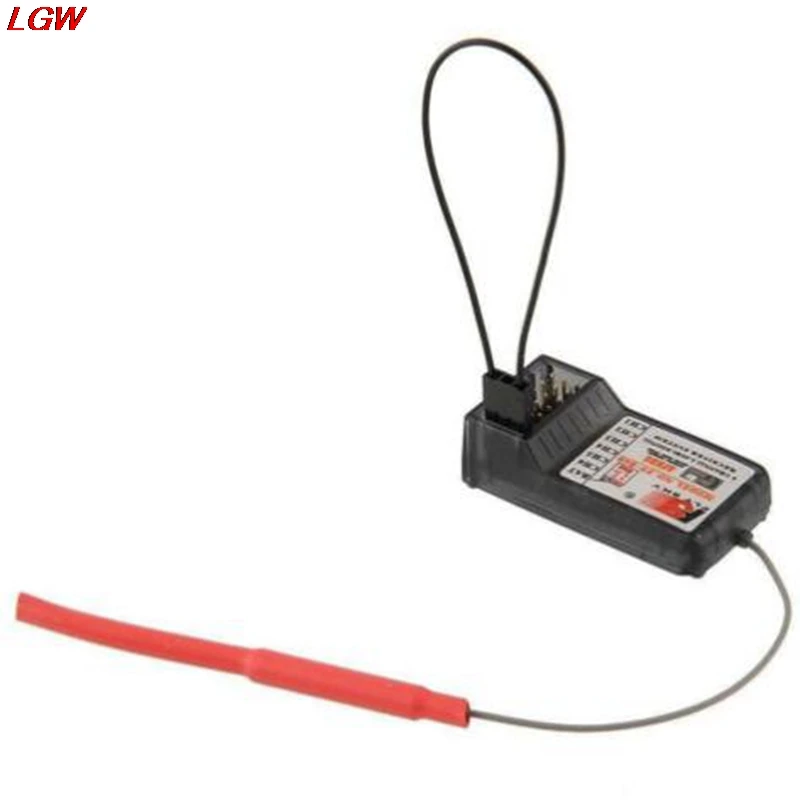

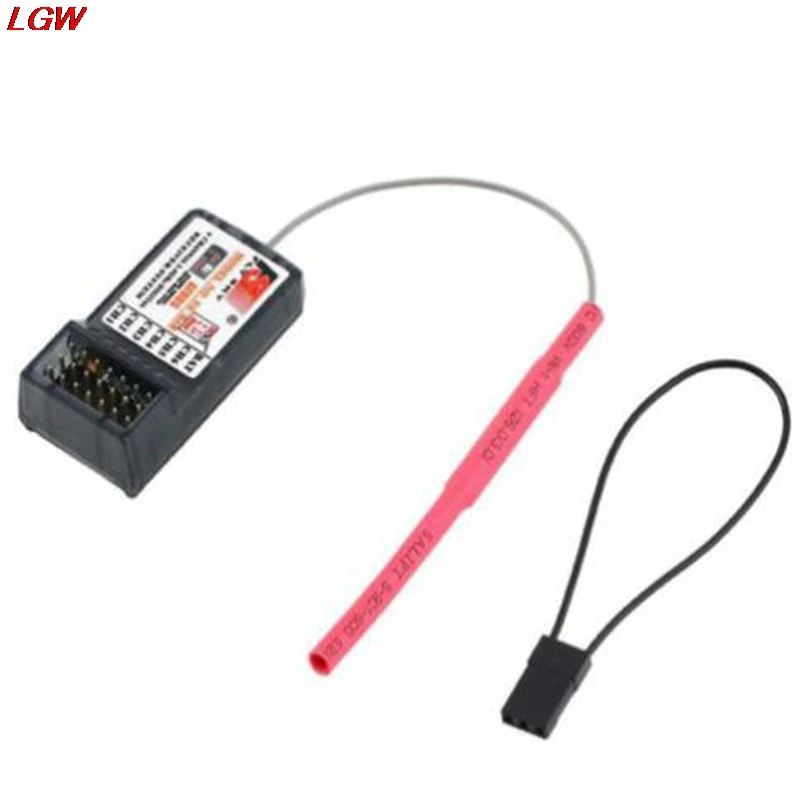

FS-R6B 2.4G 6CH
Features:

Channels: 6channels;
Modulation Type:2.4G;
modulation:GFSK;
Difference Frequency:No;
Frequency:2.4G
Power:5V DC(1.5V AAA*4)
weight:25g;
ANT length:26mm;
size:30*25*8mm;
Color:Dark Green;
Certificate:CE,FCC,RoHS;

Includes:

1 x FlySky receiver FS-R6B
(The pictures are reference only. Factory may change the design of the product without further notification. )
FS-GR3E 2.4G 3CH
Features:
The Standard 2.4Ghz 3-Channel Receiver for RC car and boat .
Compatible with FS 2.4Ghz Surface Transmitter, very easy to bind.
channels: 3 channels
model type:airplane,glid
modulation:GFSK
code type:PPM
frequency:2.4G
certificate: CE FCC
power:5V DC(1.5AAA x 4)（not included)

Specifications:
Original box: NO
size:35.5 x 22 x 13mm
Ant lenght :180mm
Color : Black
Net Weight:2g
Package weight:8g

Matching(Code)
A. Install the battery to 2.4G transmitter and shut it down.
B. Insert the matching lines to the channel BIND/CH3 port of the receiver.
C. Connect the receiver battery to VCC port of the receiver, on the same time the two LED are
flashing and this means the receiver are going to the matching status.
D. Press and hold the button on the transmitter, and then switch on the power supply.
E. Observe the LED on the receiver, if find that the LED is not flash anymore and that means successful Matched. (This process about 5s)
F. Release the match button on the transmitter, take out the match line.
G. Install the server and then test.
H. If the tests fail, please repeat the action above.
G. If the tests success, then insert the power supply port into VCC, match complete.
(The above ways of match is only suitable for FLYSKY 2.4G products)

Packing content:
1 x FS-GT2 2.4G 3CH RECEIVER FOR RC CAR AND BOAT
