24V 100AH Waterproof LiFePO4 Battery

Tax Free
A SPECIAL NOTICE to customers from EUROPEAN UNION:
1. VAT IS INCLUDED in our price!! (Due to systematic reason, you will see extra VAT added on our price, but it won't appear when proceeding to ACTUAL PAYMENT PAGE!!)
2. CUSTOM TAX IS INCLUDED in our price!! (Shipping Rule is DDP!! The goods would be shipped to our warehouse in Europe first, then delivered to your address from Europe. ) (Isn't it great?!!LOL)
3. Special attention for CUSTOMERS FROM FRANCE: The SAME TAX TULES APPLIES!! Please contact us if you can't place an order properly. (Because the system will block orders over $150 sometimes, we can find out a solution specially for you in this cases.)

Technical Parameters

Rated voltage 24V
Rated capacity:100AH
1. Battery cell type: LiFePO4 battery
2. Weight: About 18 kg

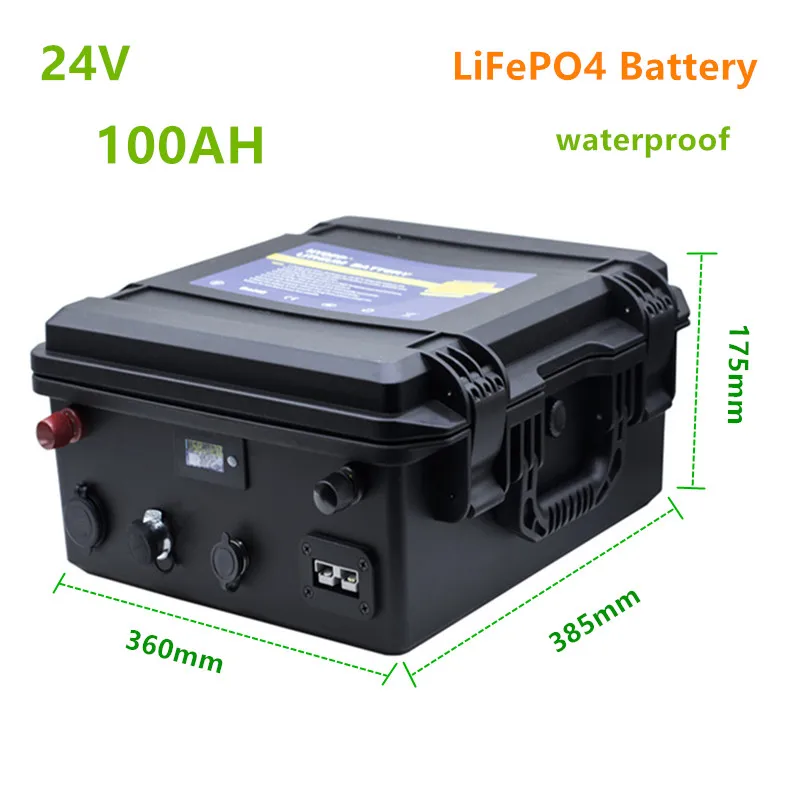

3. Size: 385*360*175 mm
4. Nominal voltage: 25.6V
5. Operating voltage range: 20V~ 29.2V
6. Maximum charging current: 20A
7. Charging voltage: 29.2V
8. Continuous discharge current: ≤ 100A
9 Instantaneous discharge current: ≤ 200A
10. Service life: more than 3000 cycles
11. Operating environment: 0 ~ 45℃ (charging), -20 ~ 60℃ (discharging)
12. Battery storage period: 90% power (6 months)
13. Battery warranty: 12 months (free warranty)

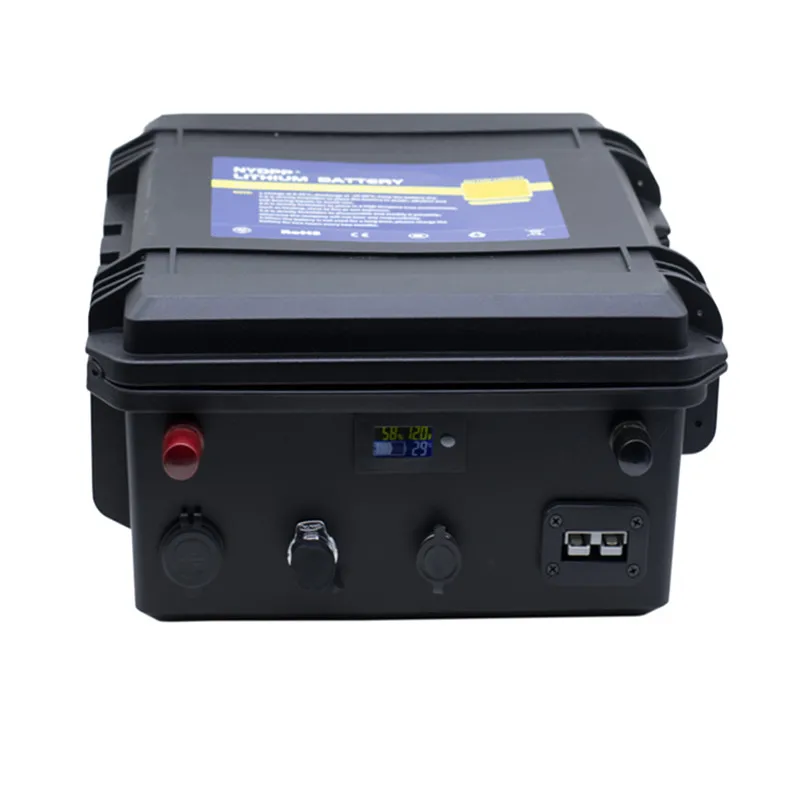

Interface Introduction

Note: all interfaces can be charged and discharged!

① Charging socket (GX20,3-pin airhead)
This interface is used by the charger to charge the battery, Its overcurrent is less than 20A.

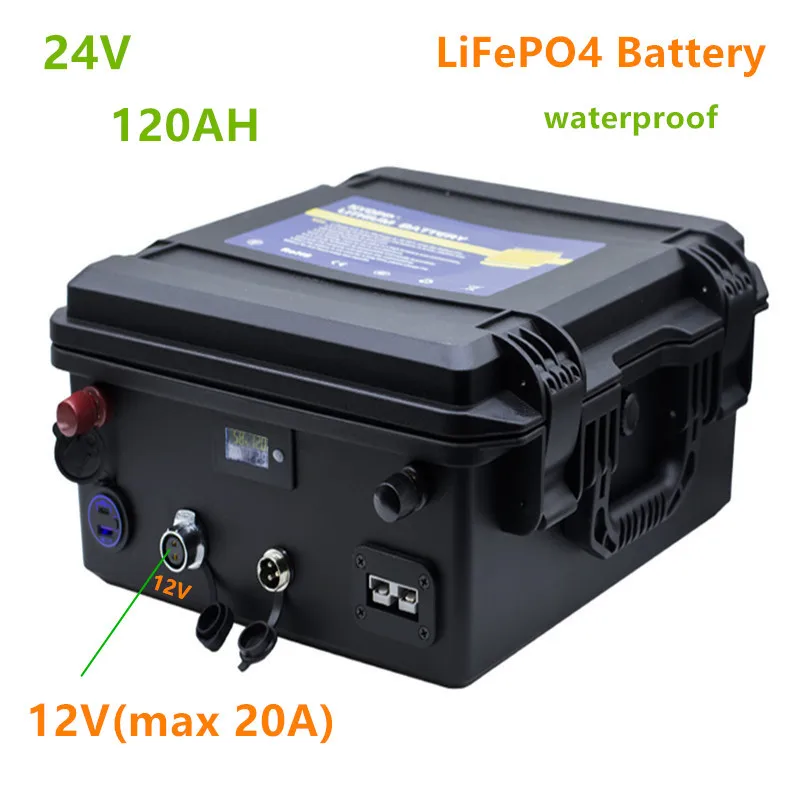

② Waterproof plug (20A，12V)
This waterproof plug is generally used to connect low-power load equipment such as fish detector. Its overcurrent is less than 20A.

③ Anderson plug (50A，24V)
Anderson plug (50a specification) is mainly used to connect low-power electric motor( below 1200W). Its overcurrent is less than 50A


④⑤ 8mm terminal (Discharge/charge interface)
Its overcurrent is less than 100A.
Suitable for connection with 8 mm diameter copper nose.

⑥ USB3.0/PD
It can charge electronic and digital products such as mobile phones and Notebook computer.


⑦ Display
It can display voltage, power percentage and temperature.
Please note: The voltage display is not accurate when the battery is in charging or discharging state.The LiFePO4 battery's voltage is unstable, so the display's percentage of charge is not accurate.

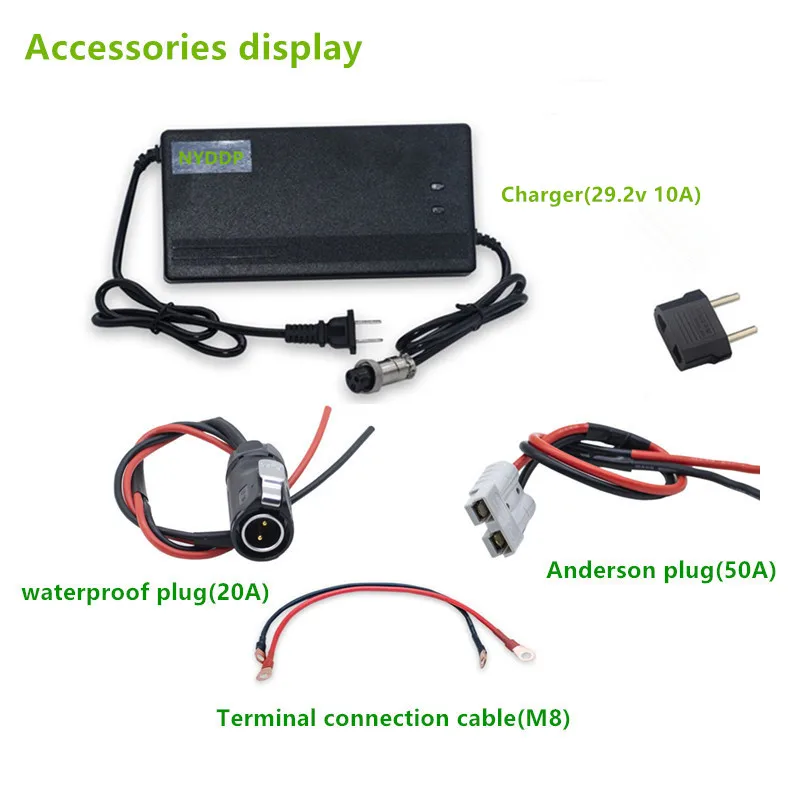

Including 10A charger

10A charger with European standard or American standard or the British standard or Australia standard plug (according to buyer's national standards).

1. Charging voltage: 29.2V
2. Charging current: 10A
3. Input voltage: 100v-240v
4. Charging time: about 12 hours

NOTE: The red indicator light indicates that the charging is in progress, and the green indicator light indicates that the charging is completed.

Application

Boat propeller battery, Camper/scooter, golf trolley/carts, power tools...

Inverter, Solar and wind power system, RV, caravan...

Back-up system and UPS...

Torch LED light emergency light.

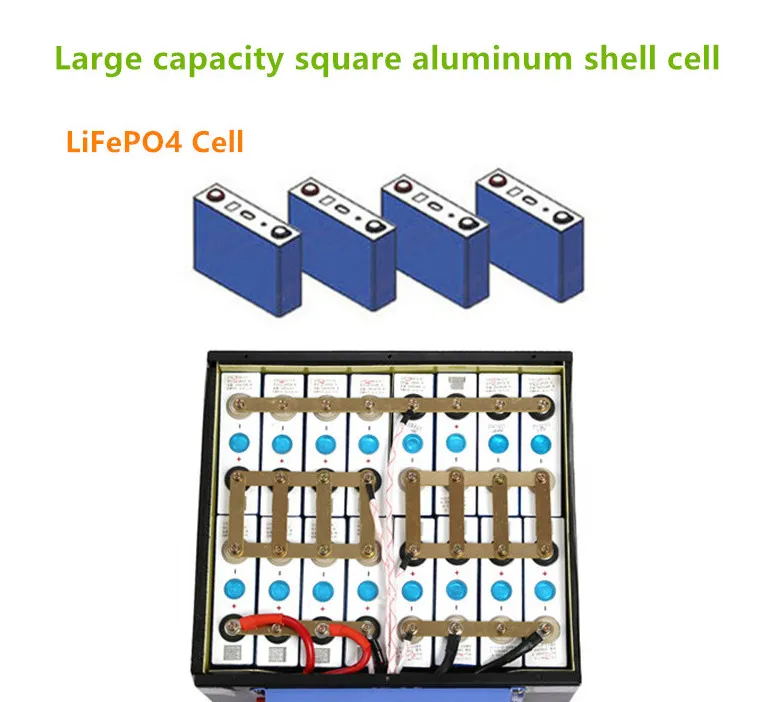

Battery cell type

Adopts large single high power LiFePO4 lithium battery. The current output is more stable and stronger.
LiFePO4 lithium battery have higher safety, longer service life and a wider operating temperature range.
The battery consists of eight 100AH cells in series, 8S.

Built-in BMS

If you need a BMS with Bluetooth to support mobile app, please contact us.

Built-in BMS (battery management system, functions)
1. over charge protection. 2. over current protection. 3. over voltage protection
4. discharge protection. 5. short circuit protection. 6. over power protection.
7. temperature protection.

Customized Service

If you need other connection plug, please contact us, thank you!
