Bluetooth 5.0 o Receiving Module PCM5102A I2S Decoding Module DAC Board Support APTX-HD with Antenna G11-006

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; }

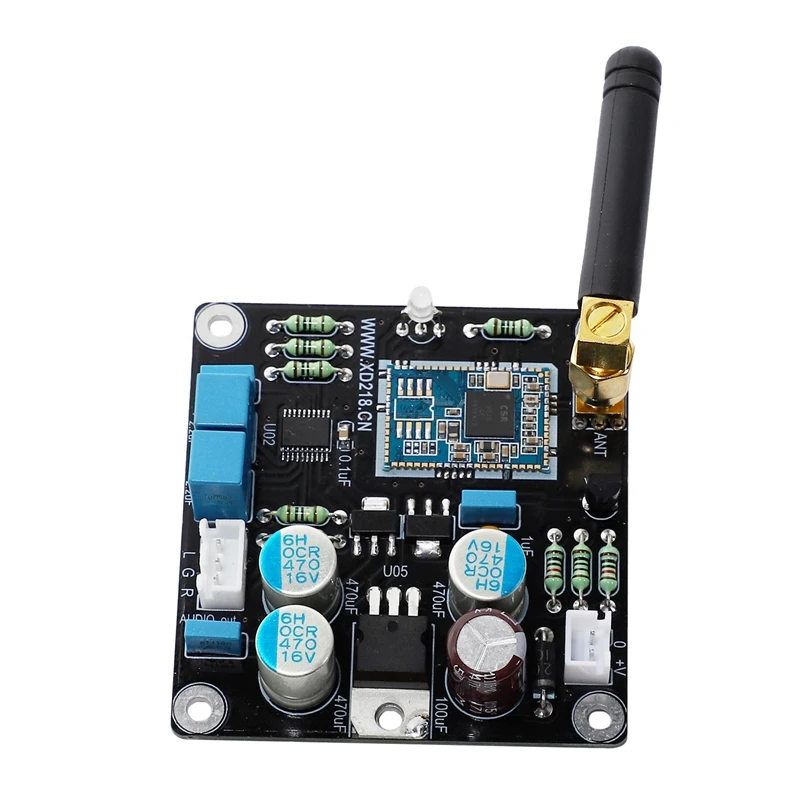

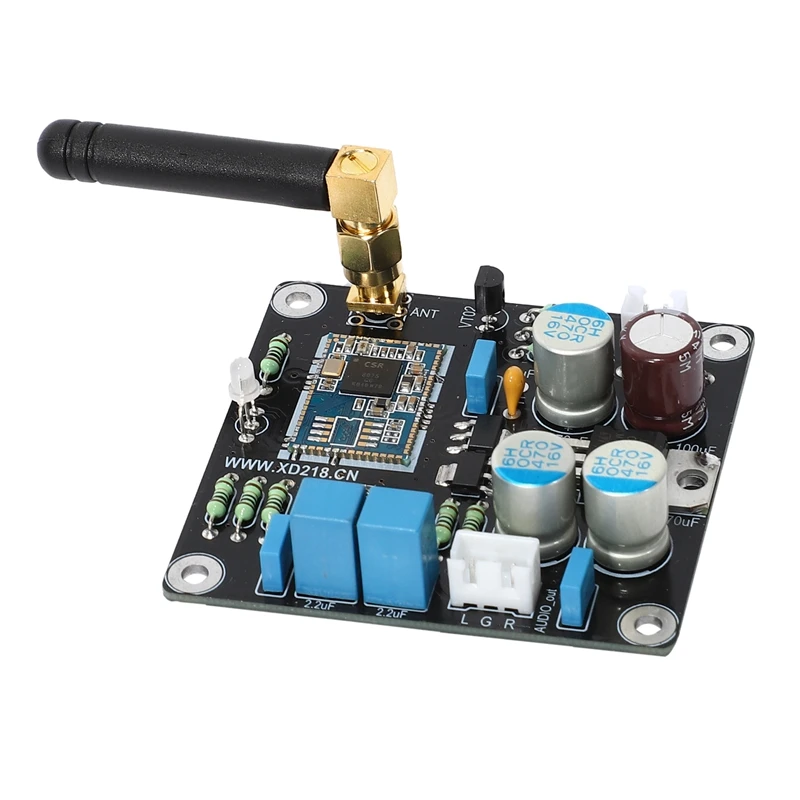

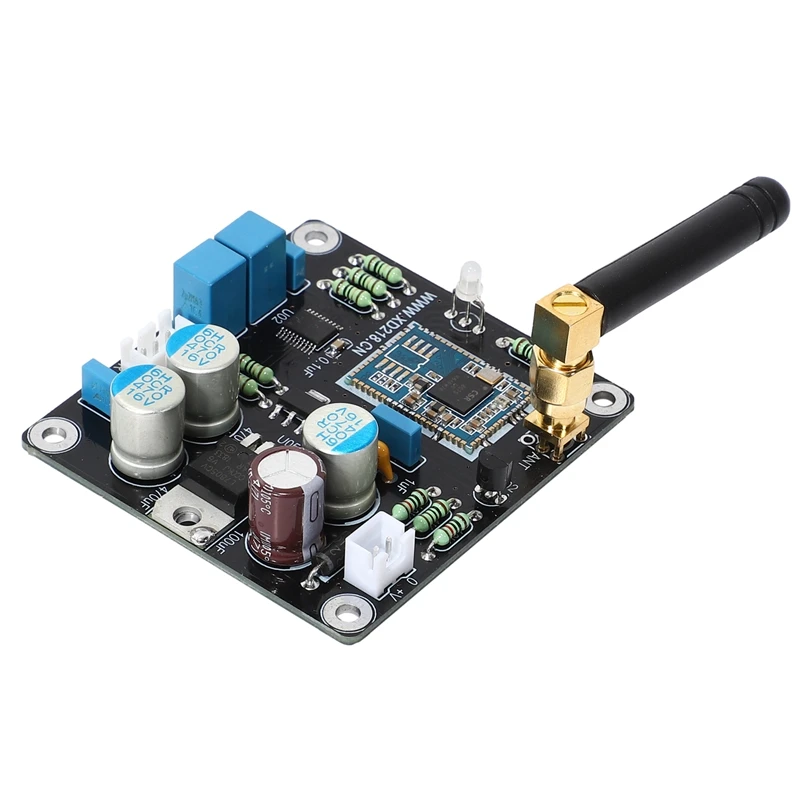

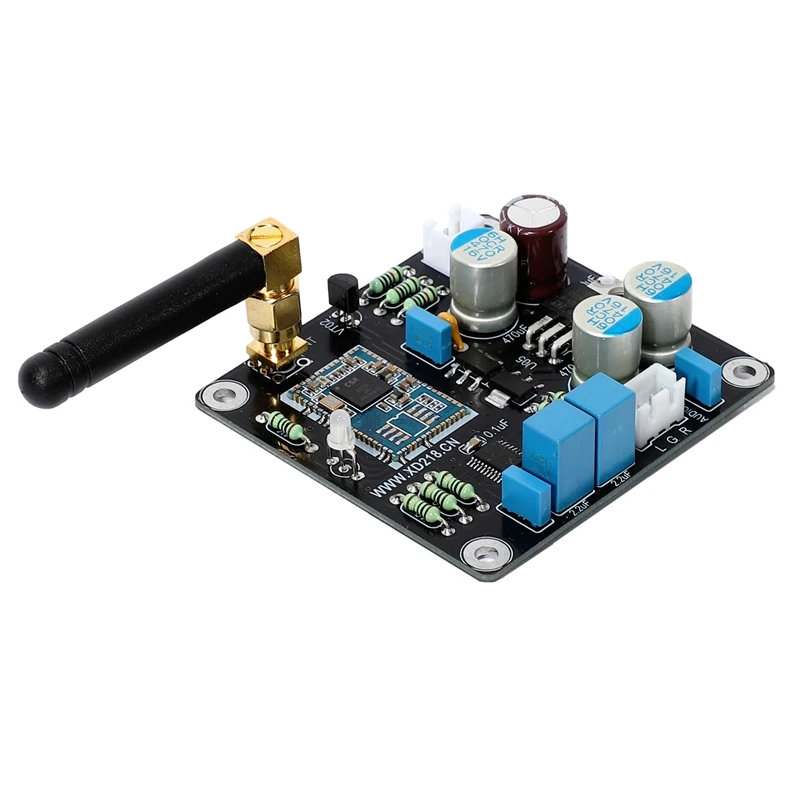

Description: CSR8675 (version 5.0) for Bluetooth data reception, supports APTX-HD protocol, converts Bluetooth signals into I2S data format
DAC data decoding uses PCM5102A, which decodes the I2S data in DAC and outputs analog signals, which can directly push headphones and amplifiers.
Working voltage: DC 9-20V
Output level: 2.1 V (maximum)
Signal to noise ratio: 112DB

Total Harmonic Distortion: -93DB

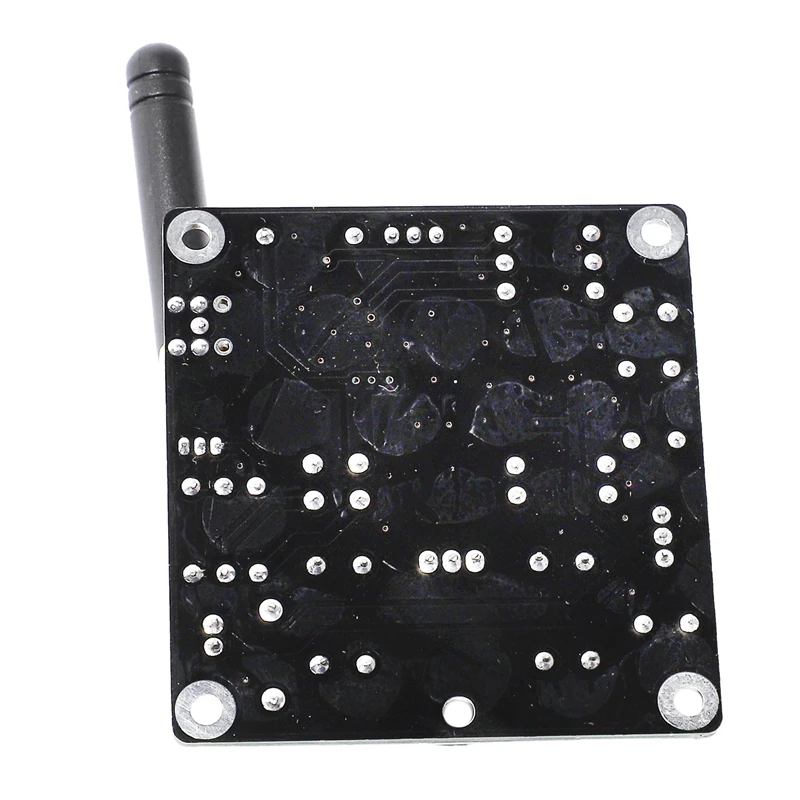

PCB size: 62.5 x 59mm, 1.6mm thick PCB
colour:picture color
material:ABS
size:62.5 x 59mm

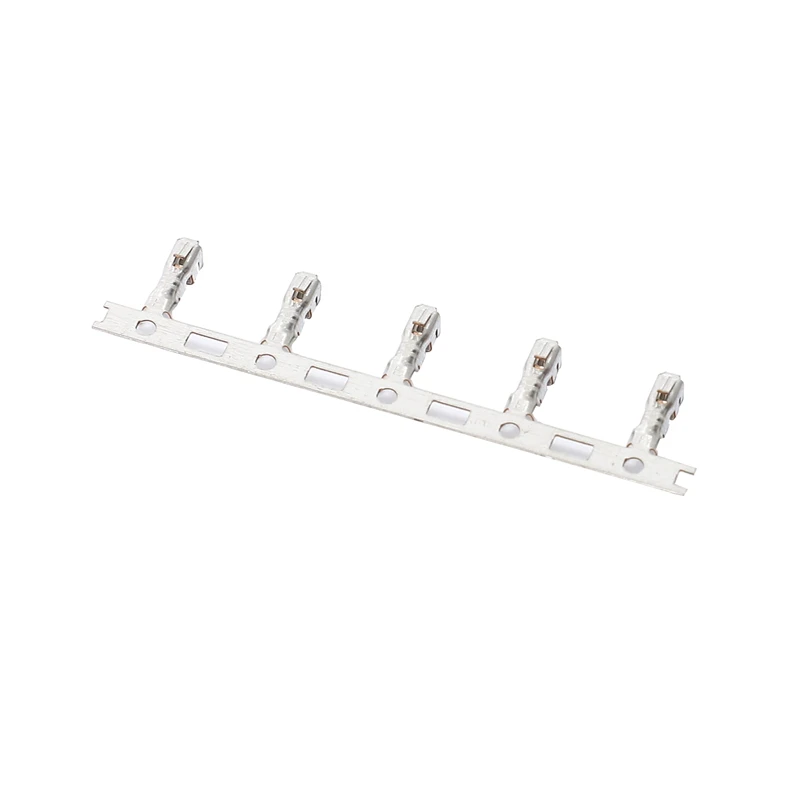

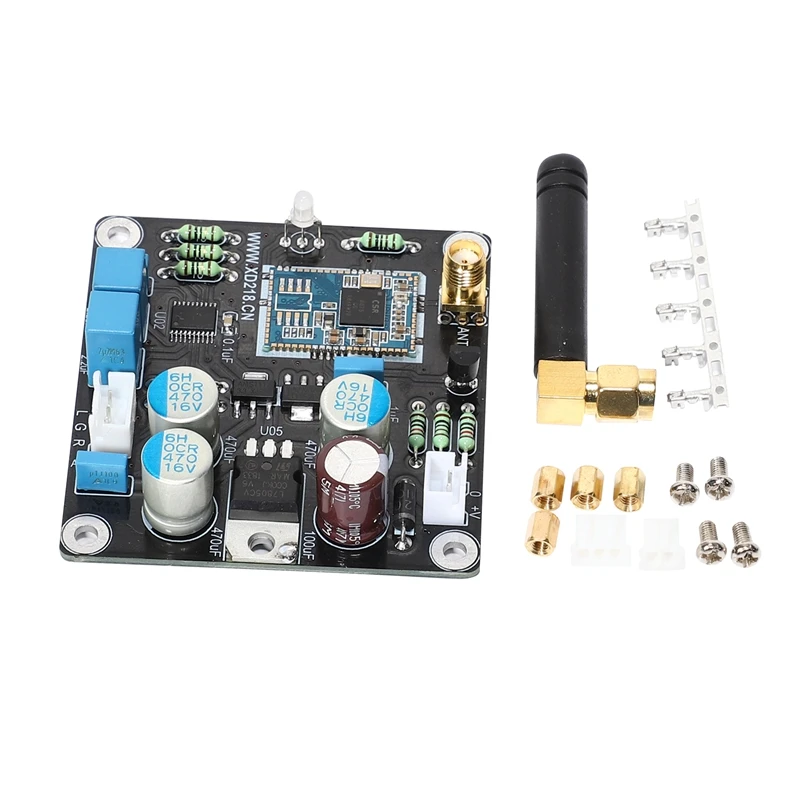

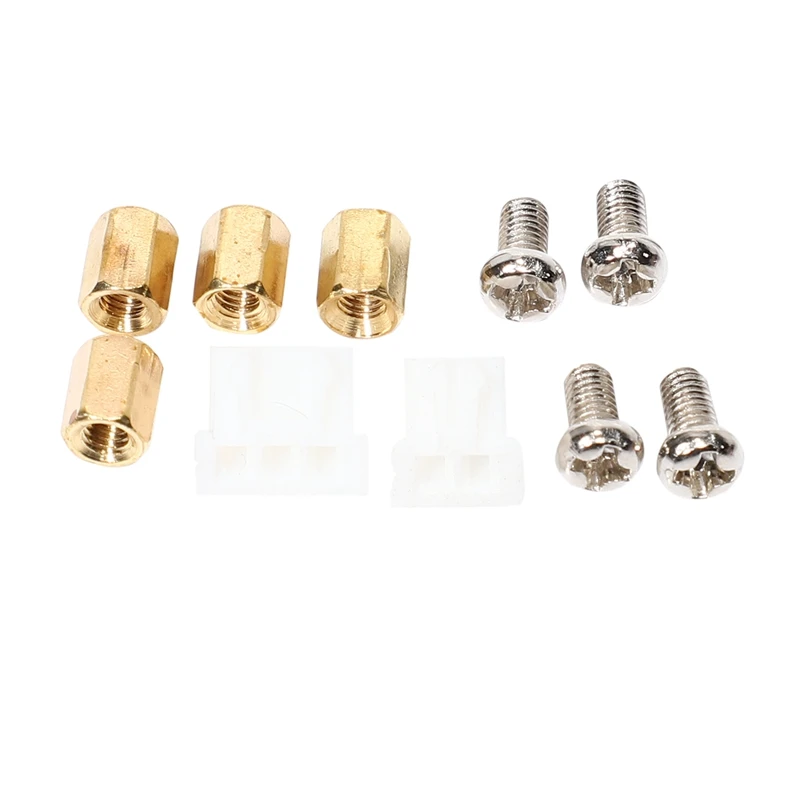

Package Contents:
1 x module

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
