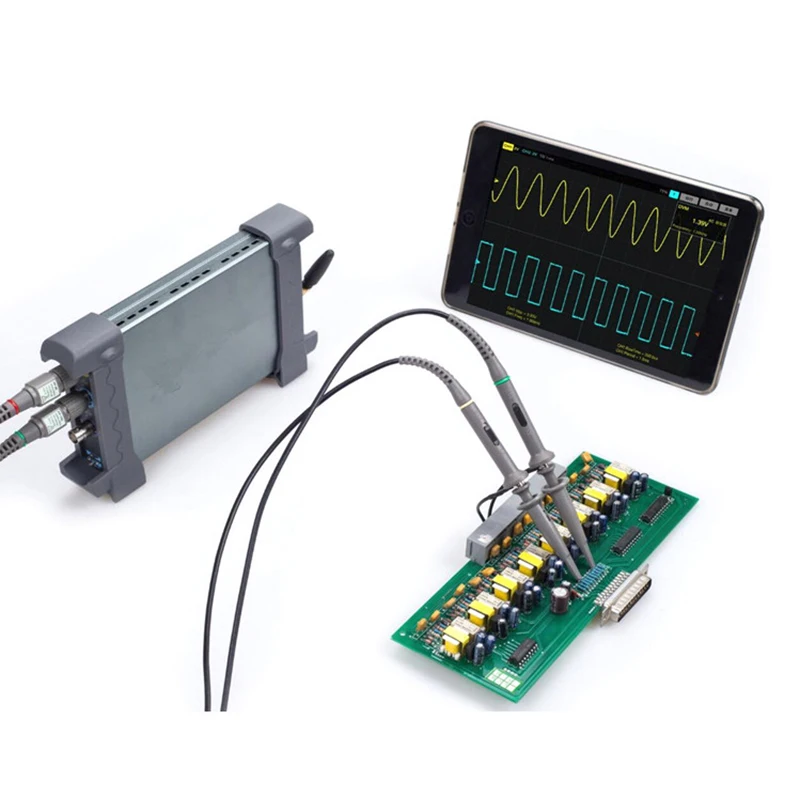

Hantek IDS1070A Virtual Oscilloscope 2 Channel 70MHz 250MSa/s 8Bits Wireless WIFI Suitable For IOS Andrioid PC System

Overview of features:

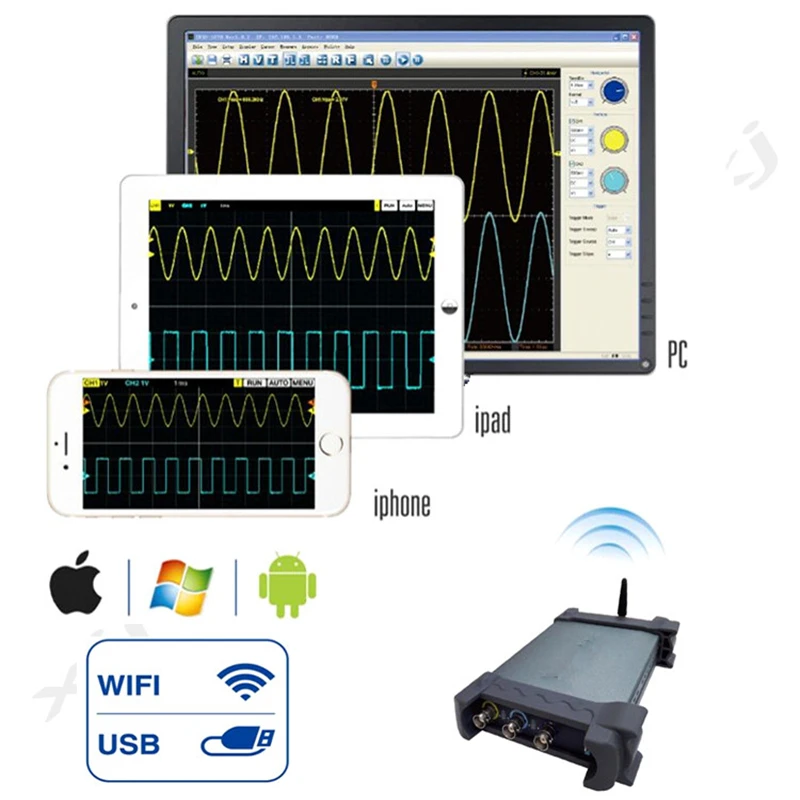

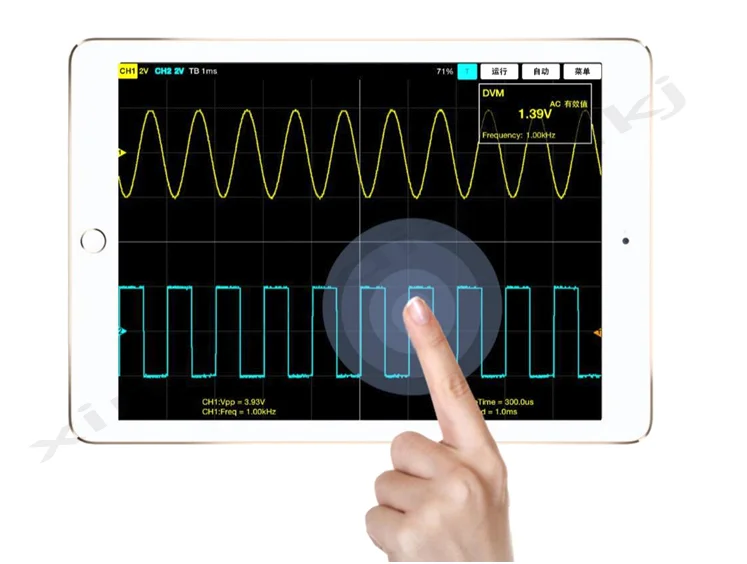

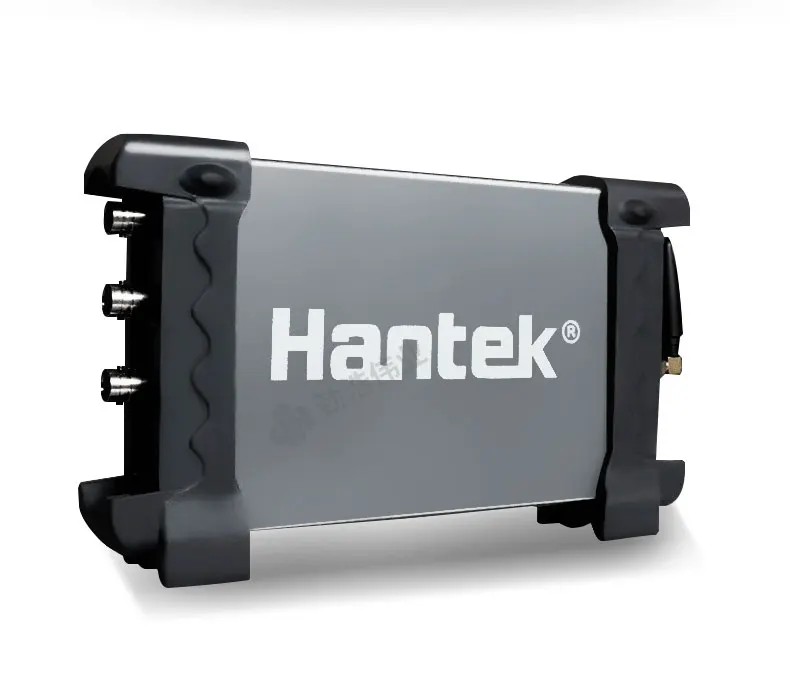

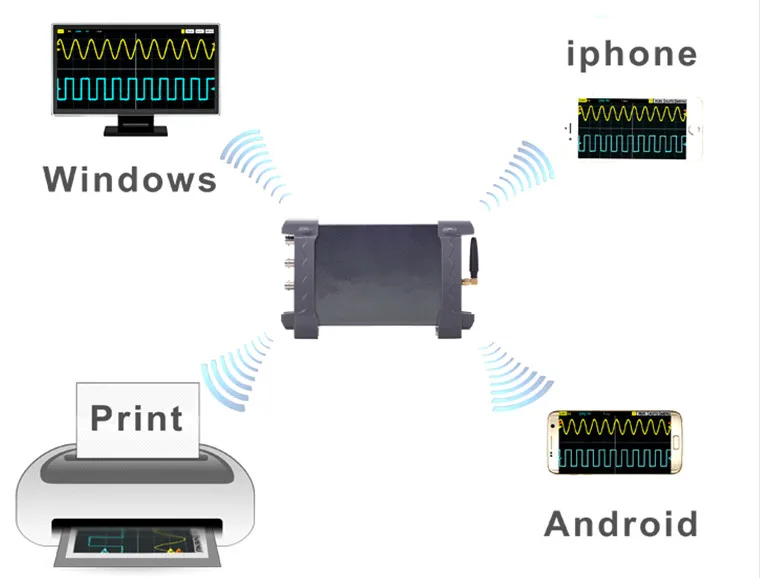

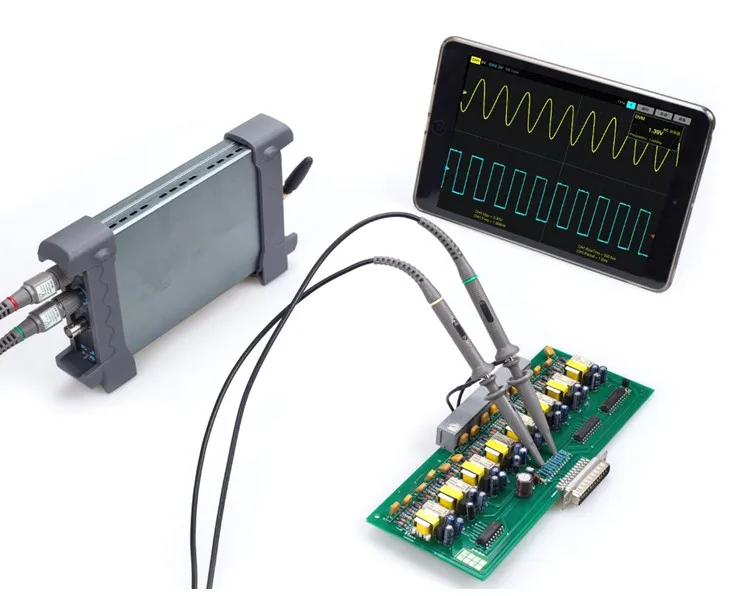

Phone / iPad Windows oscilloscope, multi-touch operation Wireless WIFI communication (also USB communication), WIFI Direct directly / through router Built-in lithium battery, endurance time up to 4 hours, no external power supply, floating measurement, safe and convenient 70MHz bandwidth, real-time sampling rate up to 250MSa / s Can be connected with iPad and iPhone at the same time, when iPad is operated, it can be observed on iPhone Excellent industrial design, the shell adopts the same anodized aluminum as iPad, not only beautiful and elegant And greatly improve the surface hardness of aluminum alloy, has good heat resistance and wear resistance Small size, easy to carry, easy to use on business Software support: IOS, Win10, Win8, Win7, Windows NT, VISTA, etc. More than 20 kinds of automatic measurement functions, PASS / FAIL Check function, suitable for engineering applications FFT spectrum analysis Waveform average, afterglow, brightness adjustment, reverse, add, subtract, multiply, divide, X-Y display Waveform data can be output to EXCEL, BMP, JPG according to time and voltage

parameter：

Model IDSO1070A Analog bandwidth 70MHz Number of channels 2 channels Real time sampling rate 250MSa / s (single channel), 125MSa / s (dual channel) Acquisition mode Sampling, peak-to-peak, average Average sampling Average waveform, times: 4, 8, 16, 32, 64, 128 Storage depth 6K Rise time ≤5ns Time base accuracy ± 50ppm Time base range 5ns / div-500s / div (step by 1-2-5) Input coupling DC, AC, GND Input impedance Resistance: 1MΩ; capacitance: 25pF Probe attenuation coefficient setting 1 ×, 10 ×, 100 ×, 1000 × Maximum input voltage 35Vpk (DC + peak) Waveform interpolation Step, Linear, Sin (x) / x Input sensitivity range 10mV / div ～ 5V / div Vertical resolution 8Bit Vertical displacement range 10mV ~ 5V / div @ x1 probe; 100mV ~ 50V / div @ x10 probe; 1V ~ 500V / div @ x100 probe; 10V ~ 5KV / div @ x1000 probe Position range ± 4division Low frequency response ≤10Hz (at input BNC) DC gain accuracy ± 3% Bandwidth limit 20MHz Trigger mode Automatic, normal, single Trigger type Edge, alternate Trigger accuracy ± 4division Trigger range ± 4V Trigger sensitivity 0.02 division Trigger source CH1, CH2, EXT Waveform calculation +,-, x, ÷, FFT, reverse Temperature Operating: 0 ℃ -40 ℃; Non-operating: -20 ℃ -60 ℃ Humidity Less than 35 ℃, ≤90% relative humidity; 35 ℃ -40 ℃, ≤60% relative humidity Cursor measurement Cross, track, vertical, horizontal Automatic measurement of maximum value, minimum value, peak-to-peak value, top value, bottom value, middle value, effective value, amplitude, average value, cycle average value, preshoot, overshoot, cycle, frequency, rise time, fall time Positive duty cycle, negative duty cycle, positive pulse width, negative pulse width Dimensions Length: (190mm) Width: (100mm) Height: (35mm) Weight 0.7KG Standard probe 2 PP80 passive probes
