Product Description

EPS208 common rail diesel fuel injector test bench BCS205 piezo testing_bench equipment

Introduction

EPS208(Common Rail System EPS208)high pressure common rail injector test bench is imitation diesel engine ECU（Engine Control Unit），by the same time supply Bosch, Electric installation, Delphi, Siemens and other common rail system control signals（CP1/ CP2/ CP3/ HP3/ HP4/ DELPHI），Drive high pressure common rail pump and high pressure common rail injector to work，The driving signal parameters can be set according to the actual situation of the user，And can be saved in groups,It is convenient for maintenance personnel to judge and maintain the working condition of high-pressure common rail system. Power of EPS208High Pressure Common Rail Test-bed is 2.6KW。

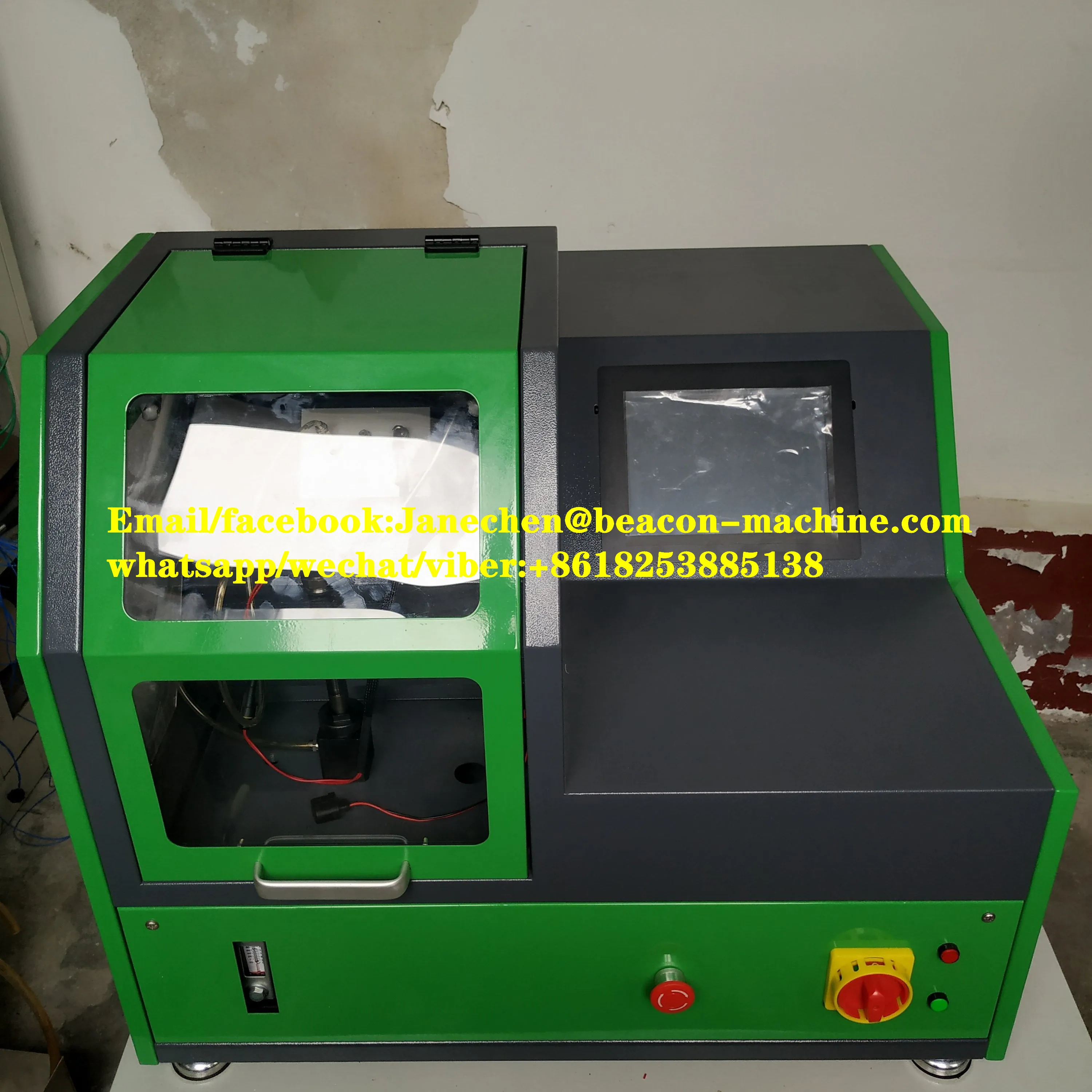

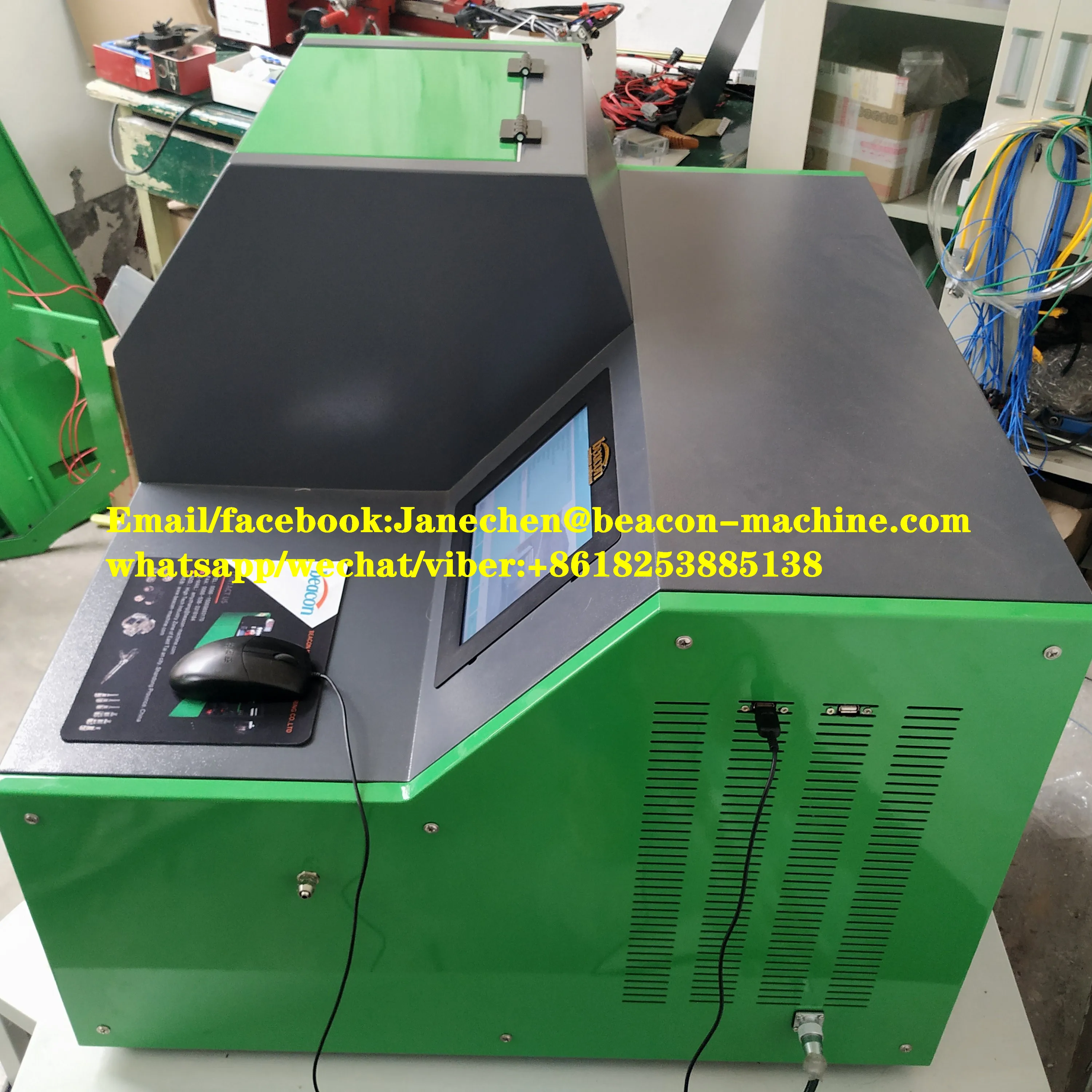

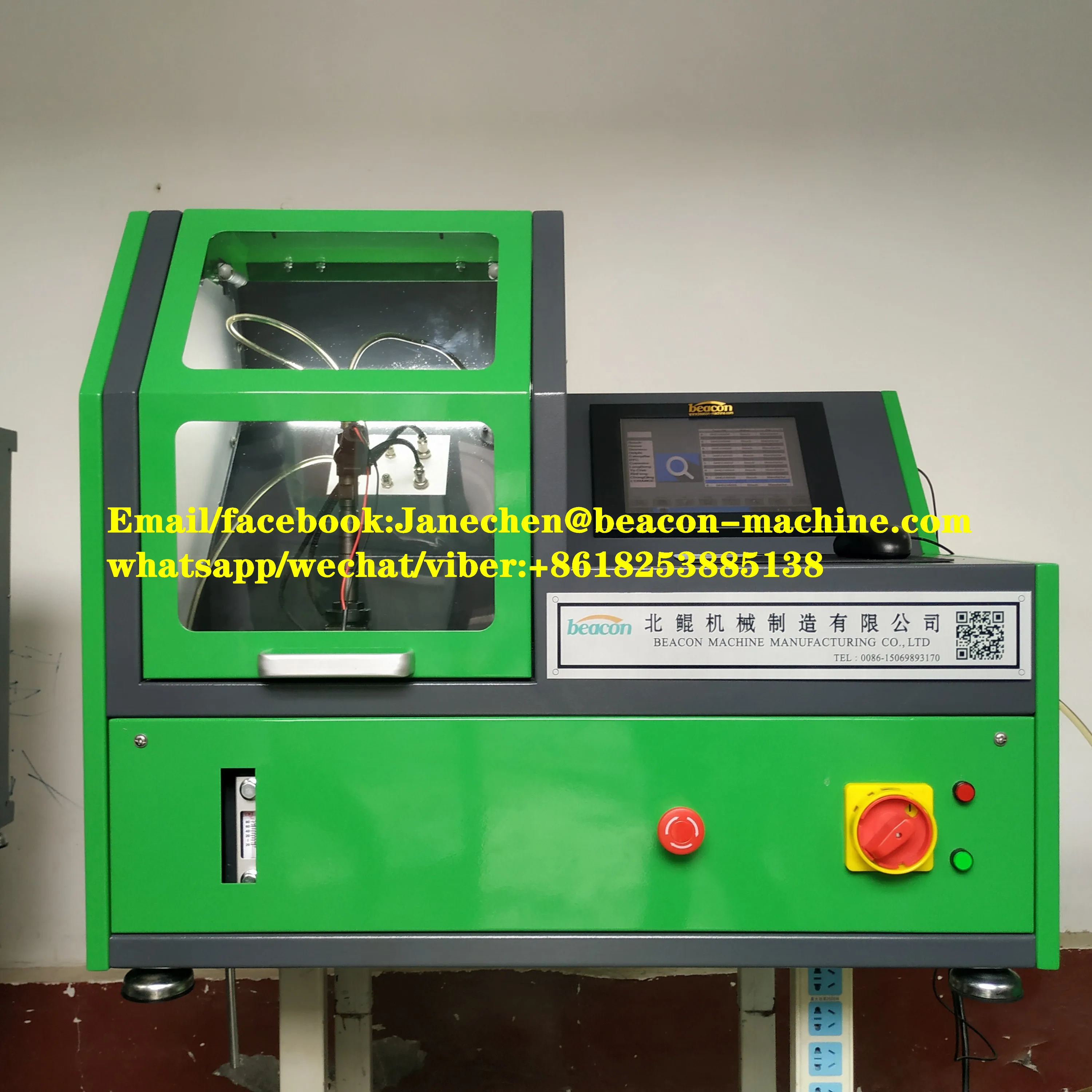

Detailed Images

characteristic

（Ⅰ）Support for high-speed solenoid valve common rail injector and third generation high pressure common rail technology of piezoelectric crystal common rail injector (optional function); （Ⅱ）Single channel common rail injector; （Ⅲ）Support for multiple rail pressure sensors（BOSCH/DEOSN/DELPHI）； （Ⅳ） Intelligent PID algorithm, pressure control more accurate; （Ⅴ） Hardware and software short circuit protection, the machine is more reliable; （Ⅵ） Multi-lingual selection, Chinese / English / Russian; （Ⅶ）Safety protection design to prevent operators from misoperation, use more secure.

Function introduction

（Ⅰ）Testing seal performance of common rail injector. （Ⅱ）Testing the full load performance of Common Rail Injector. （Ⅲ）Test the mid-load performance of common rail injector. （Ⅳ）Testing idle performance of common rail injector. （Ⅴ）Testing the pre-injection performance of Common Rail Injector

Measuring speed 0～1000rpm Working pressure 0-160MPa Fuel tank volume 10L Test oil filter precision 3μ Oil measuring mode flowmeter Tower 220V/50HZ Common rail pump type CP1H Net weigh 150Kg

TEST SYSTEM:(can choose) Test system 1:

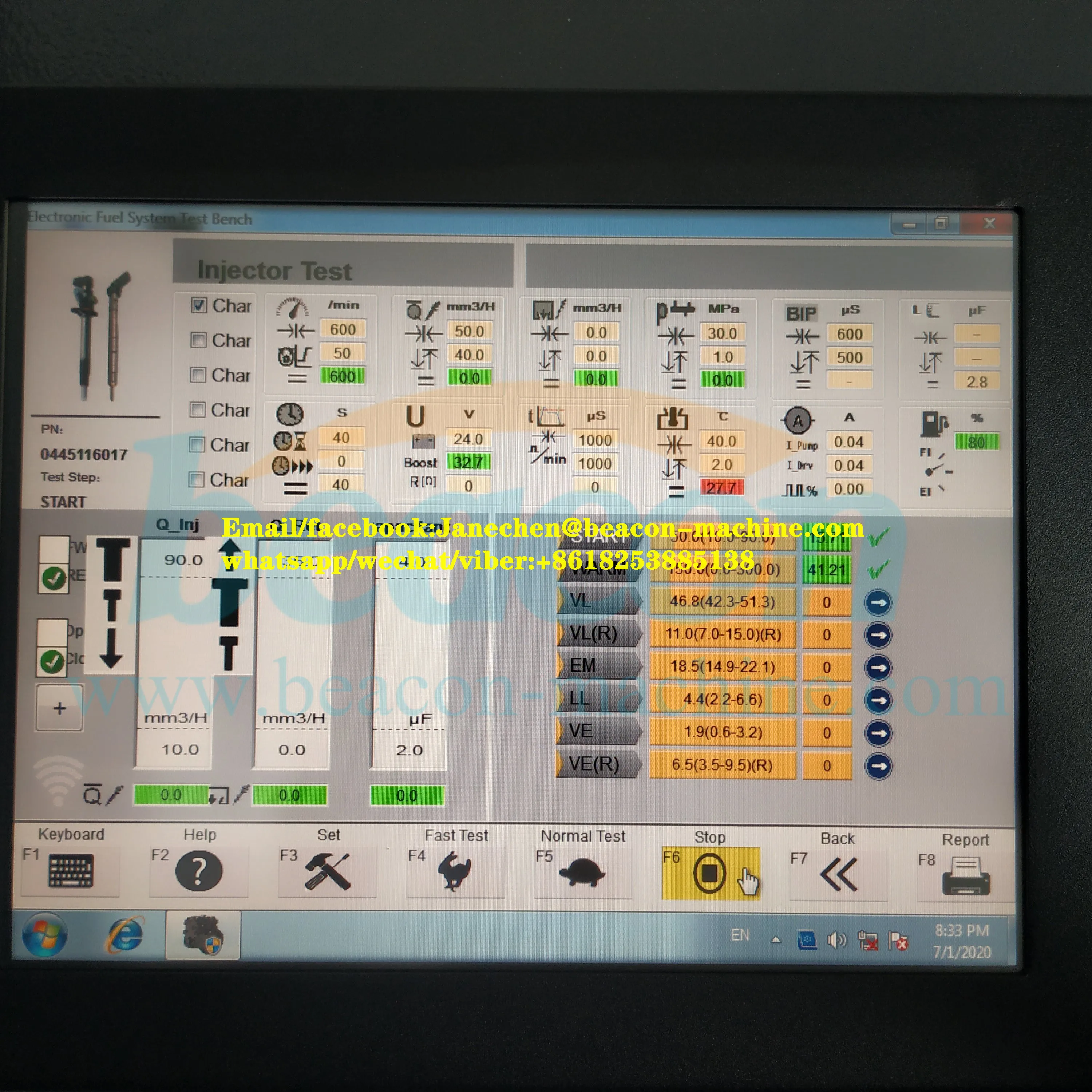

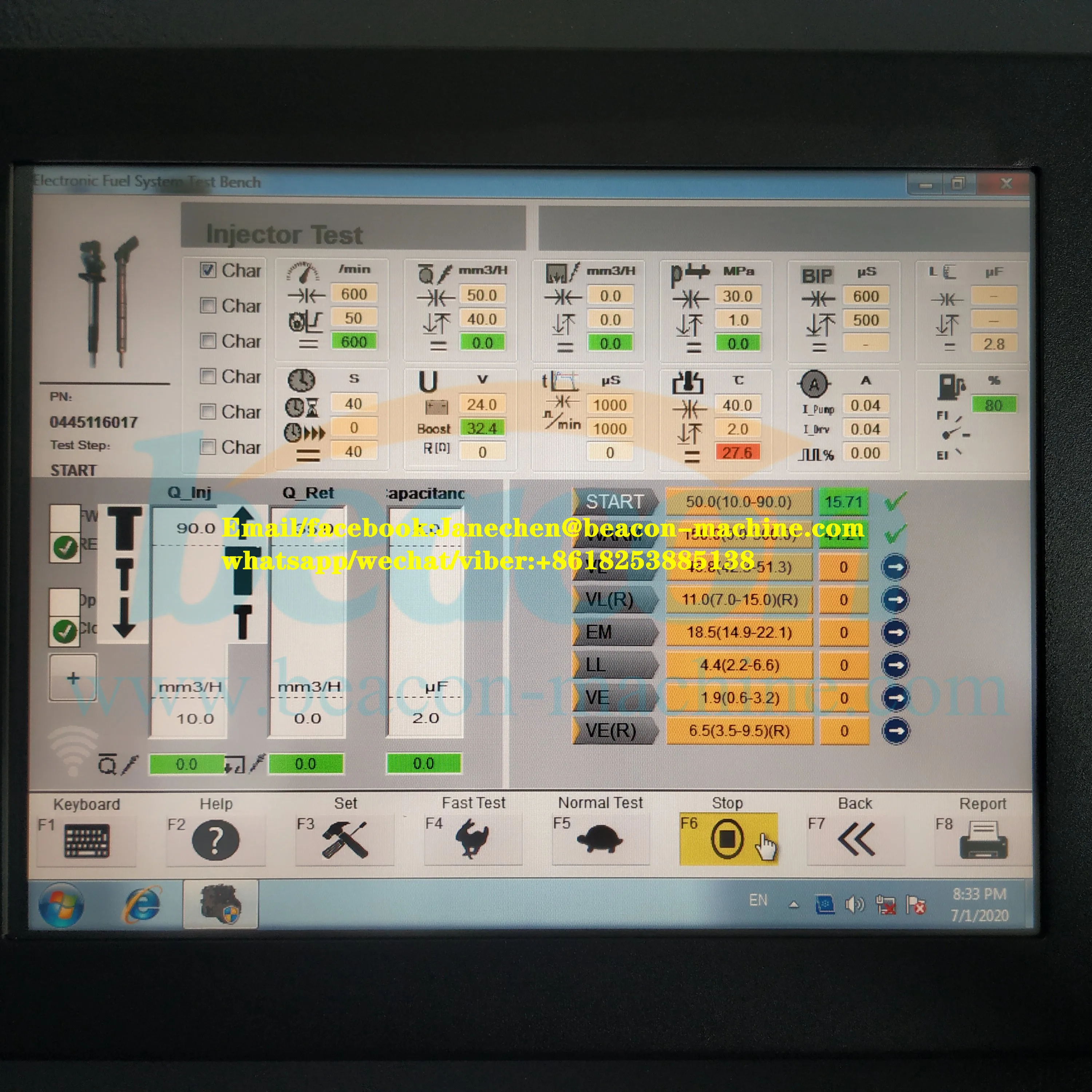

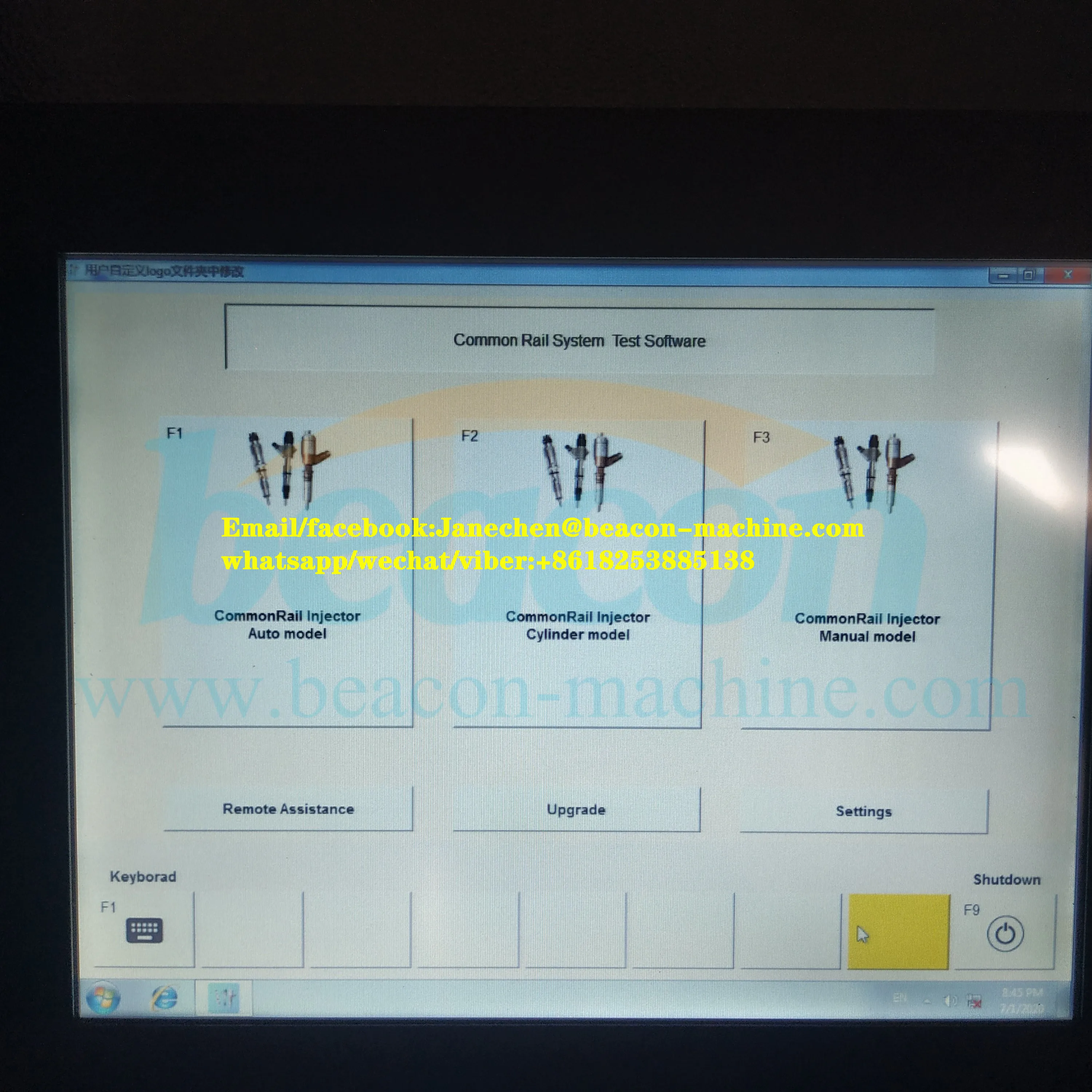

Newest BJ common rail test system

Test system 2:

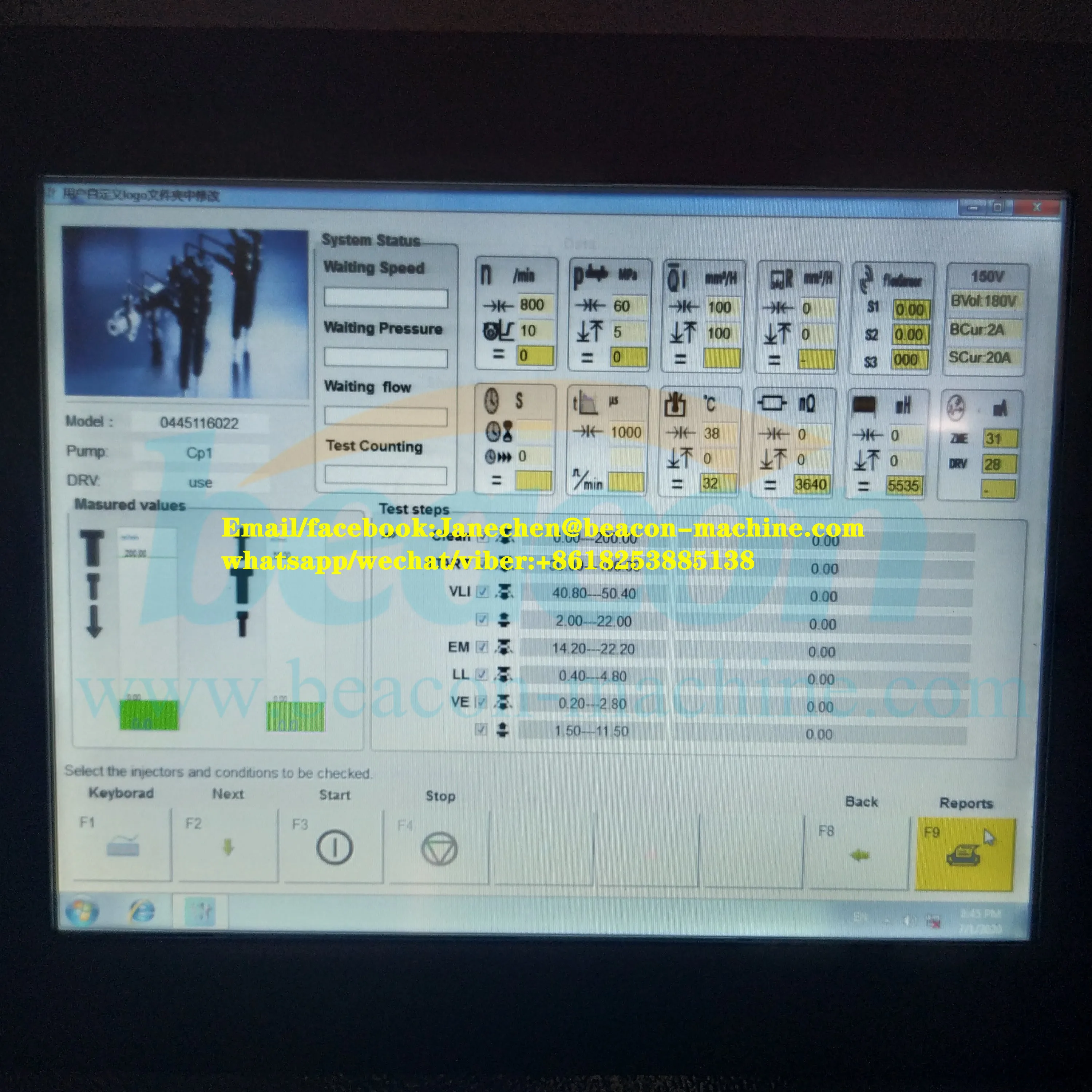

With CRS990 new common rail test system.

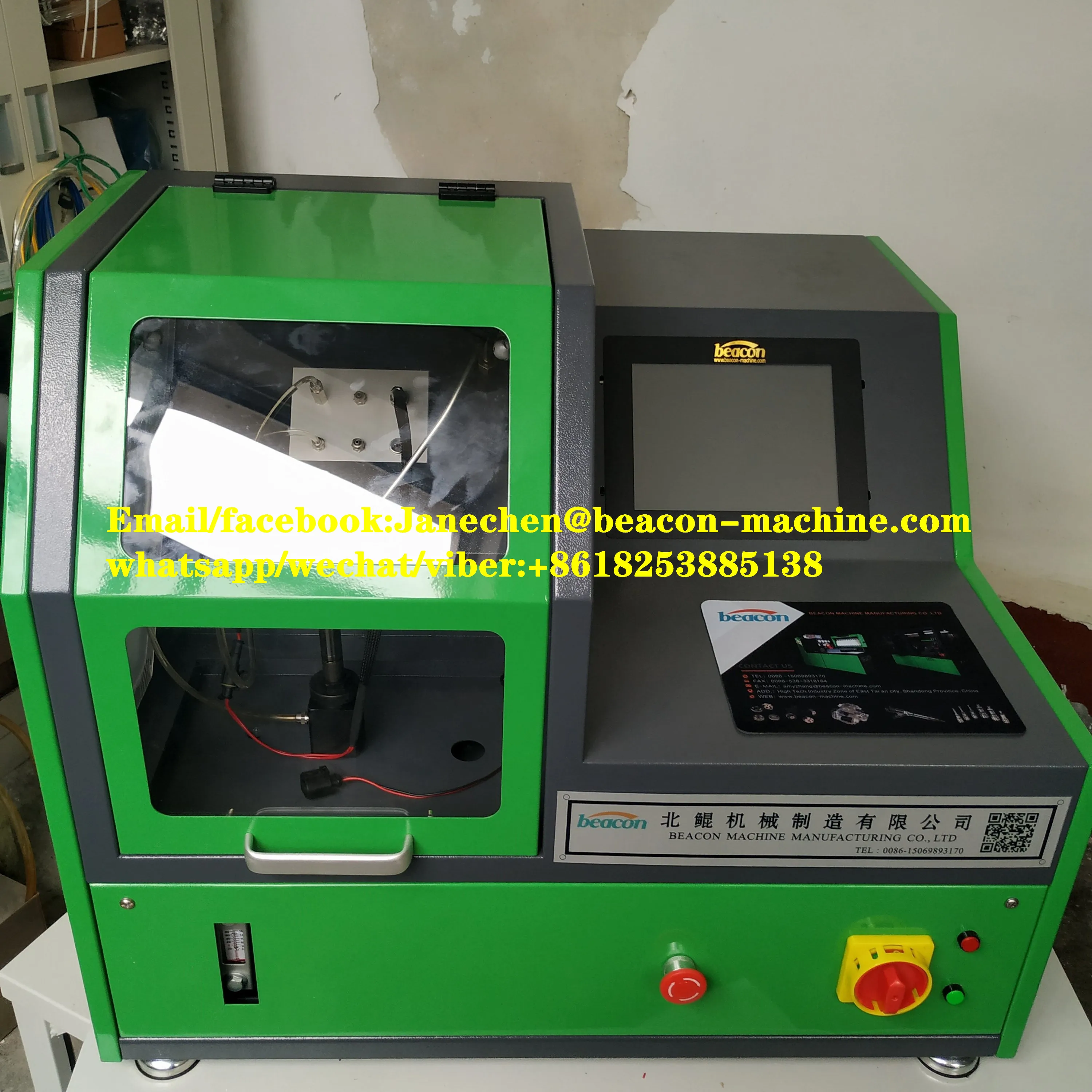

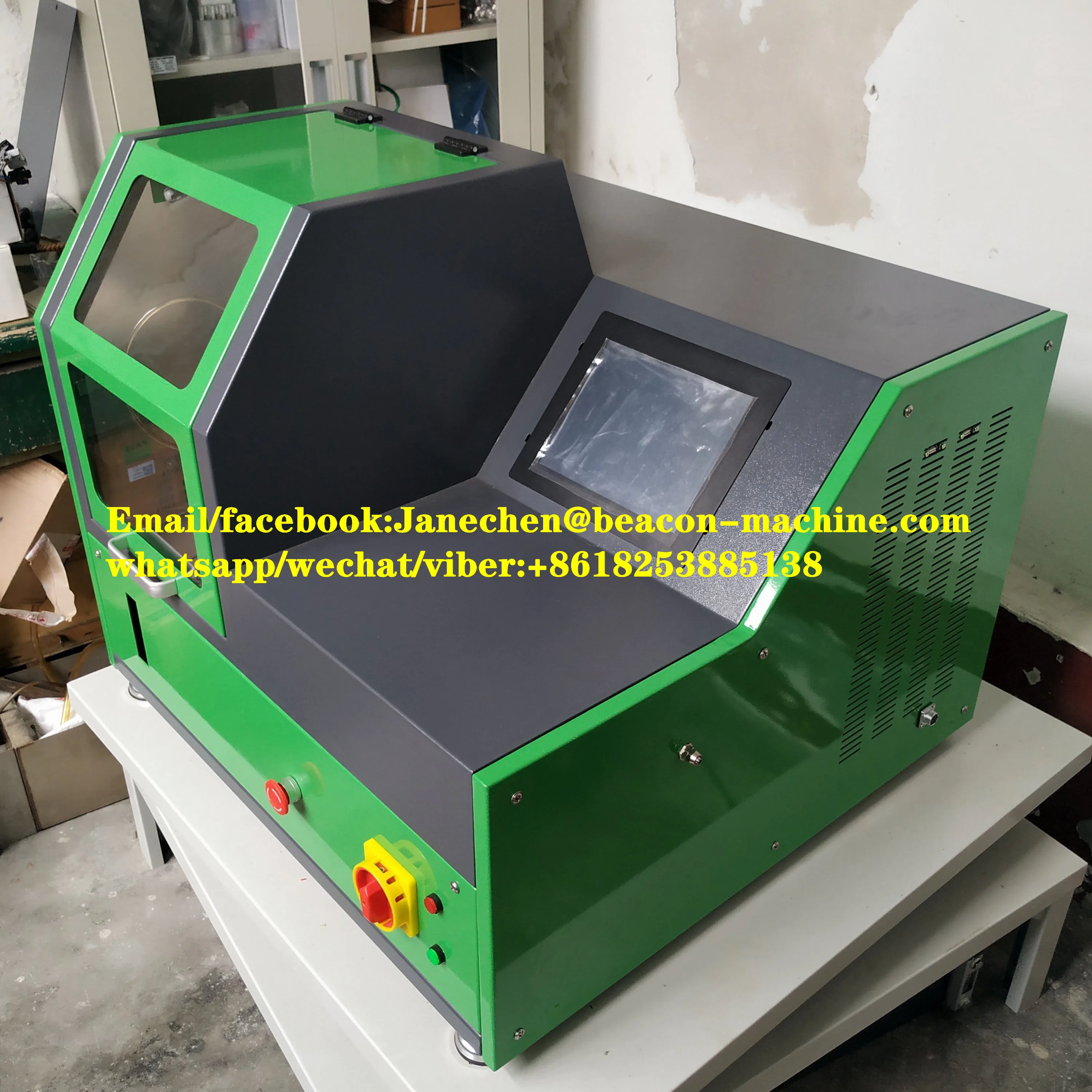

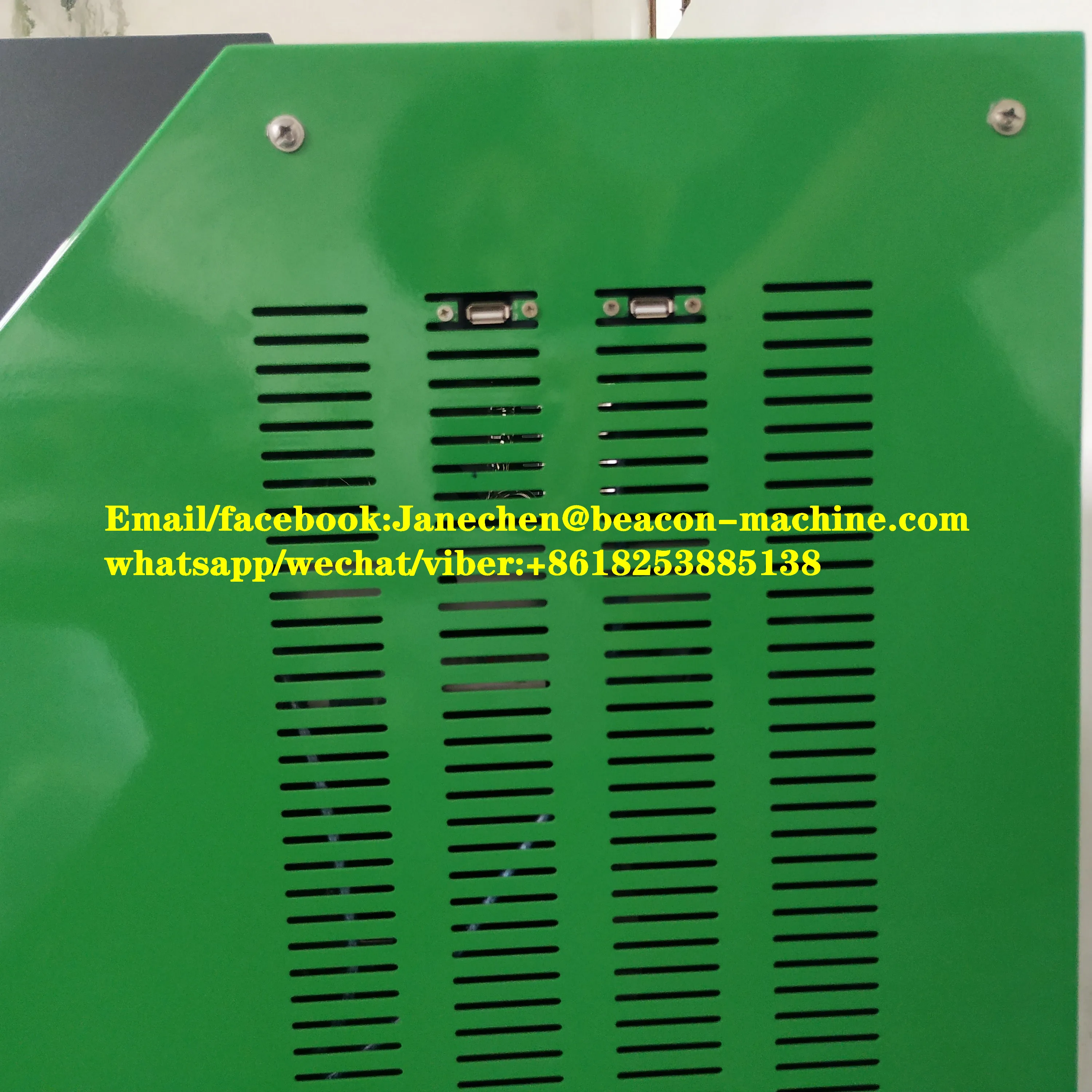

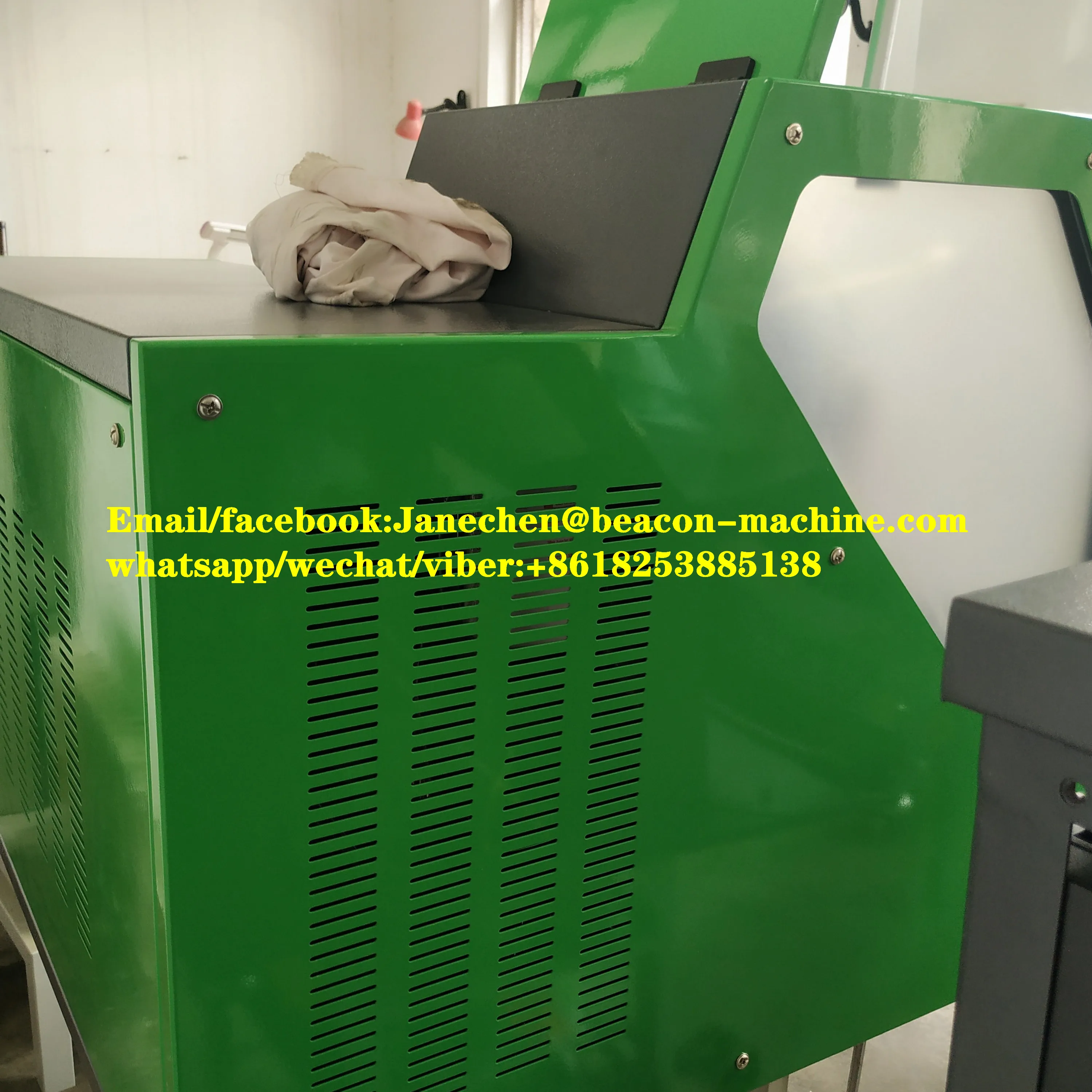

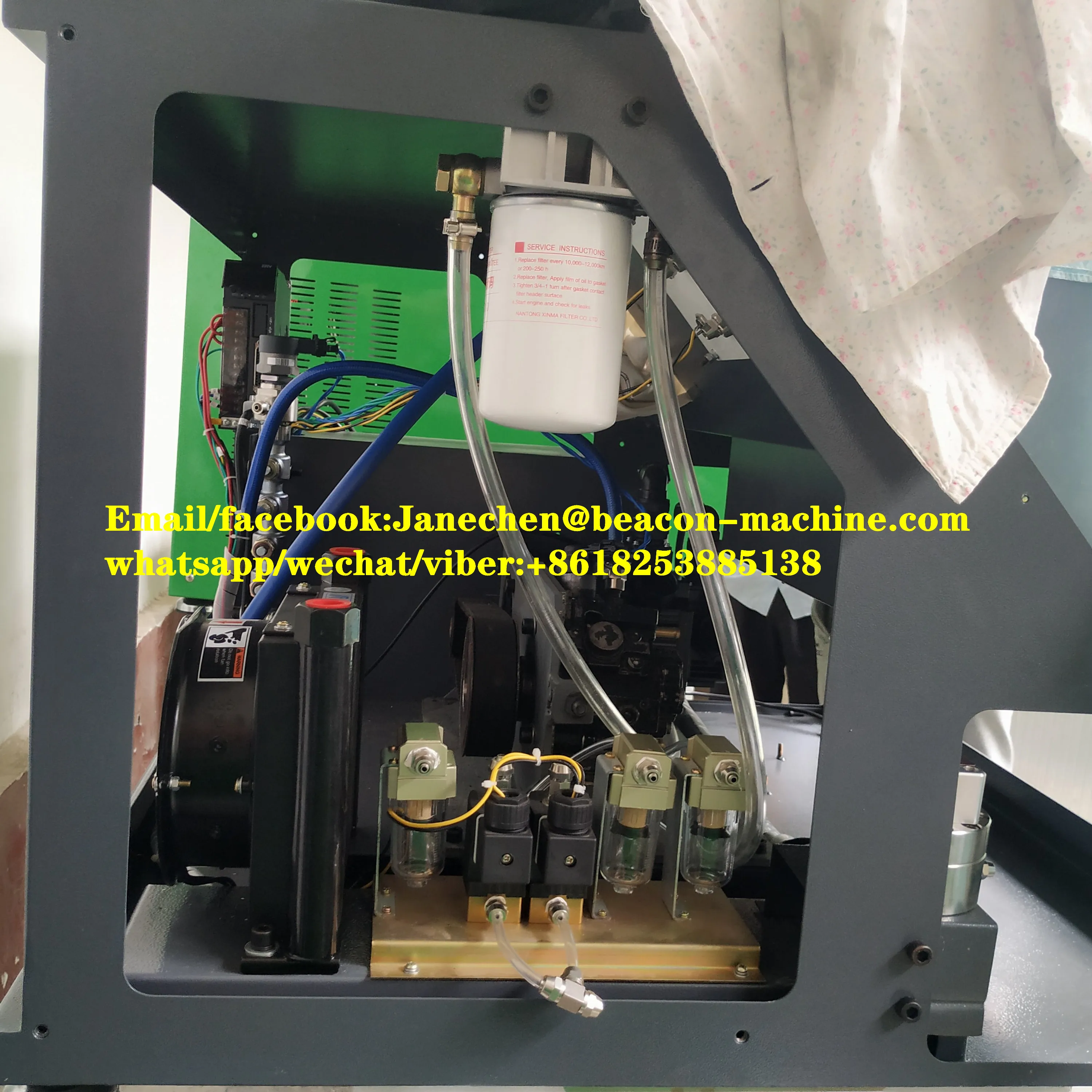

More detail photos

Introduction for structure

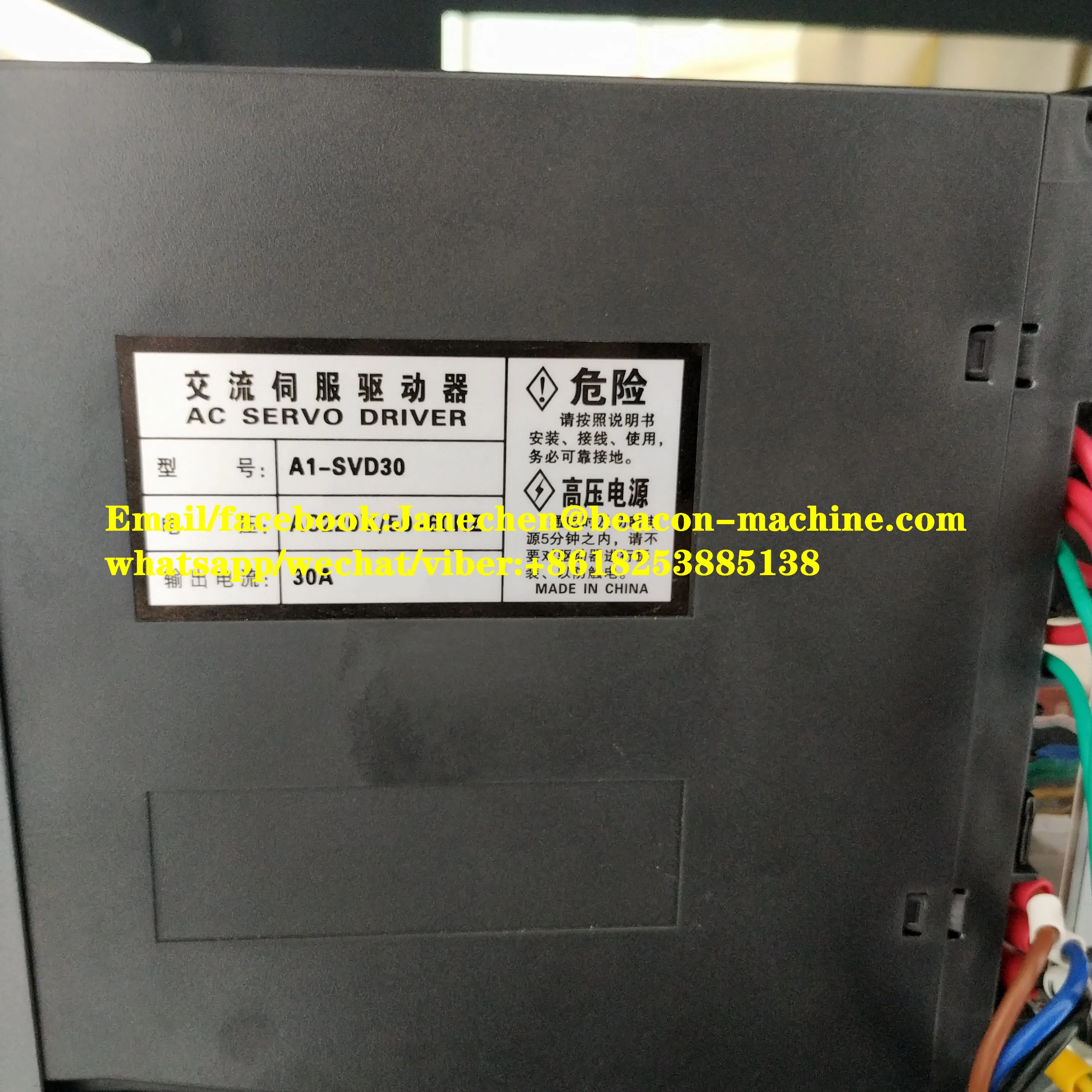

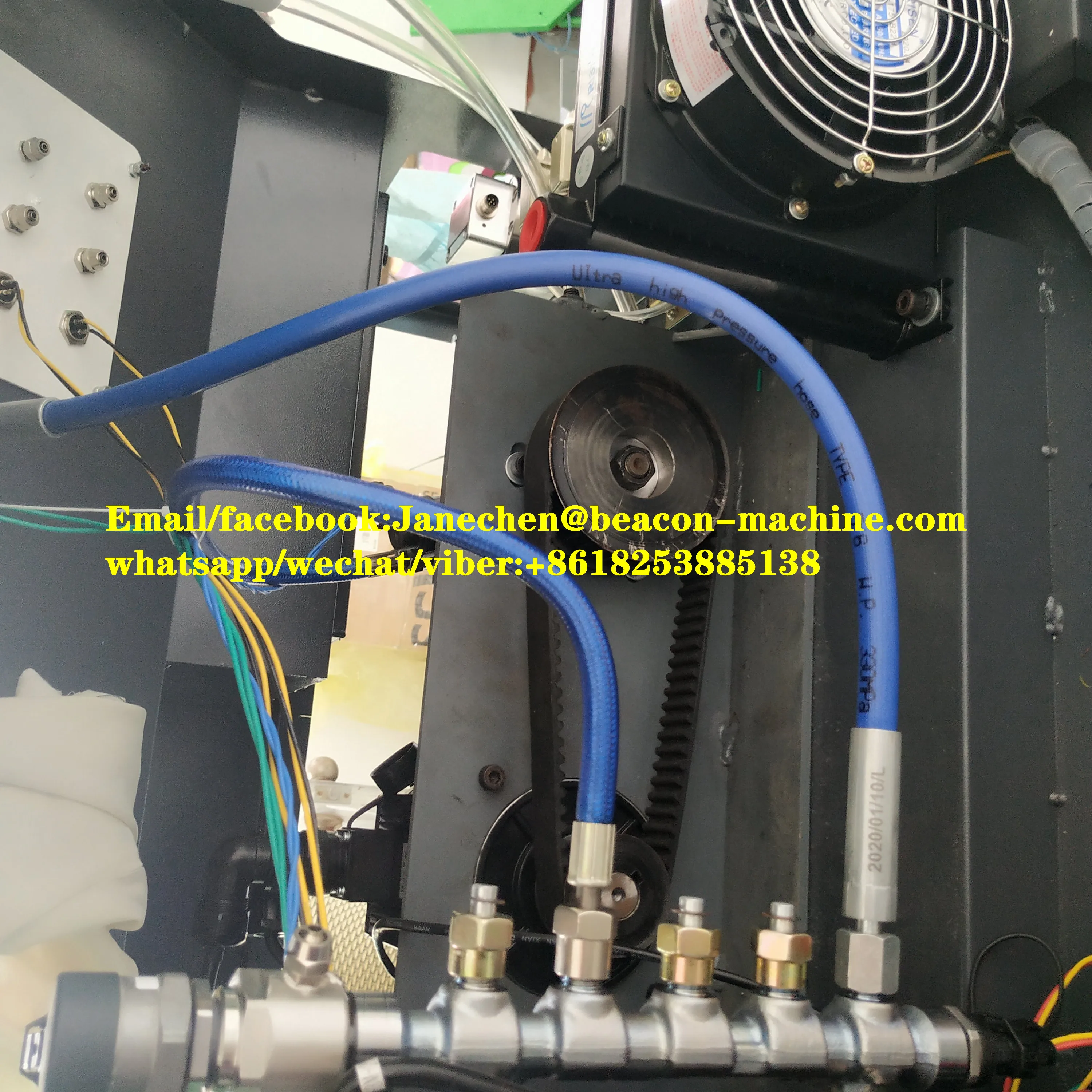

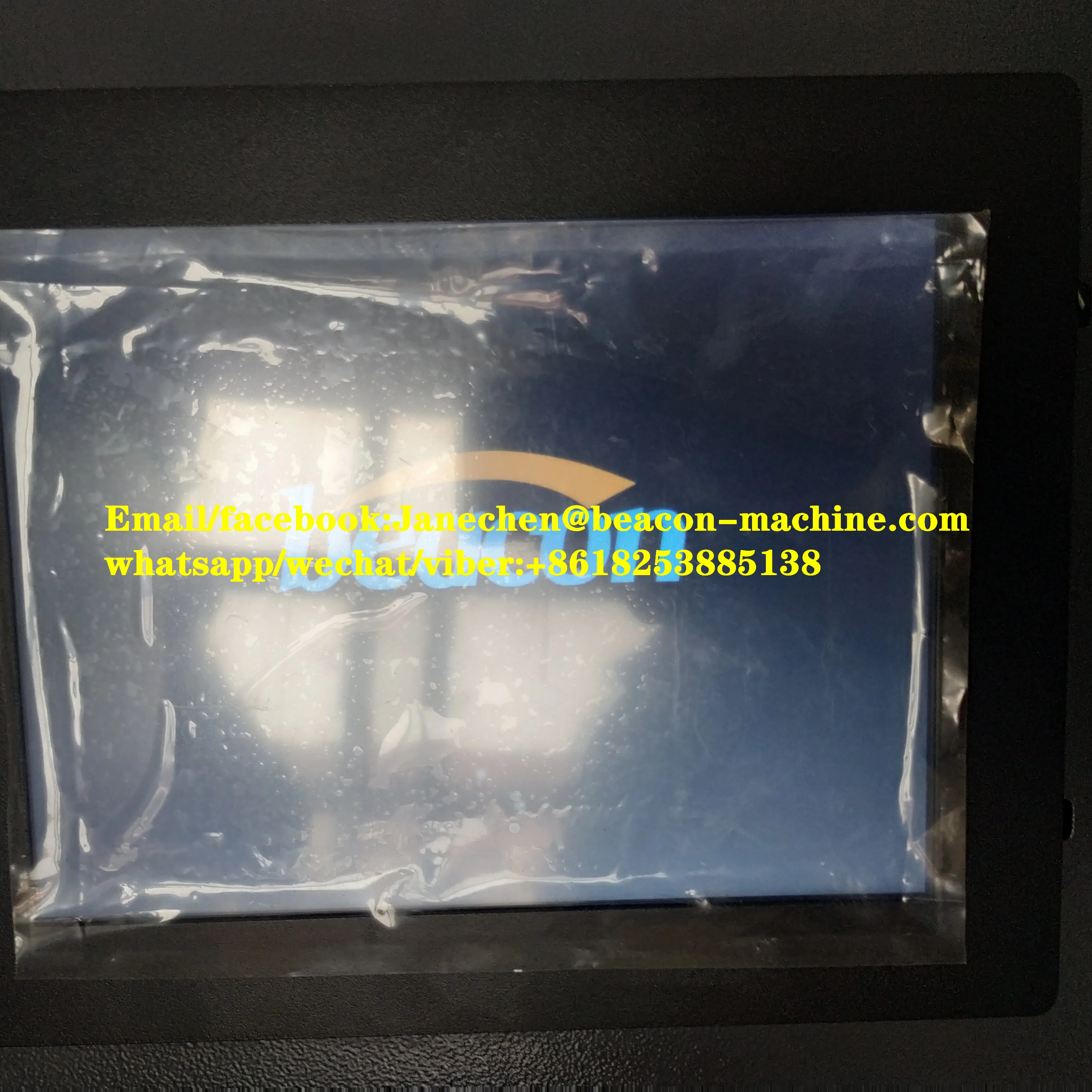

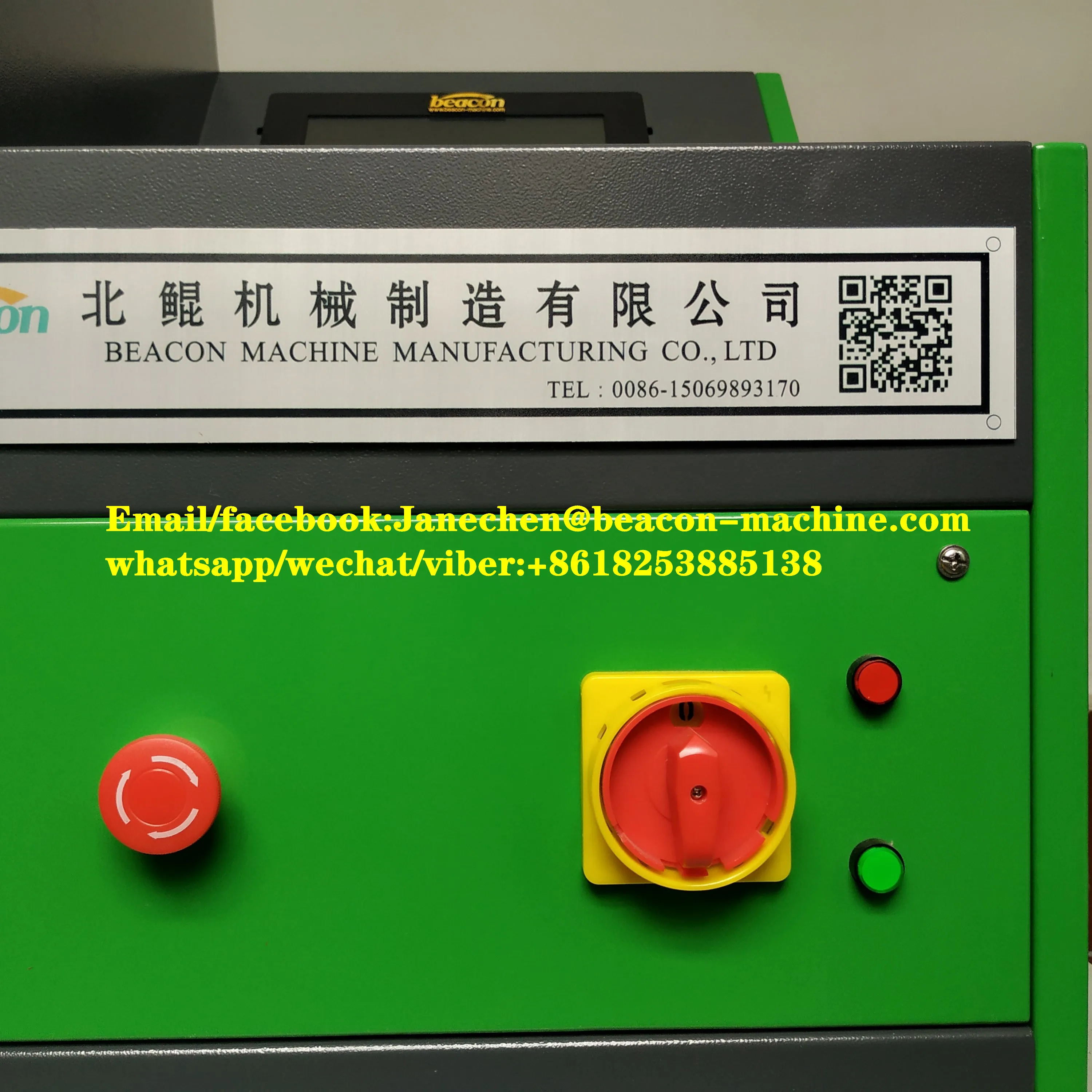

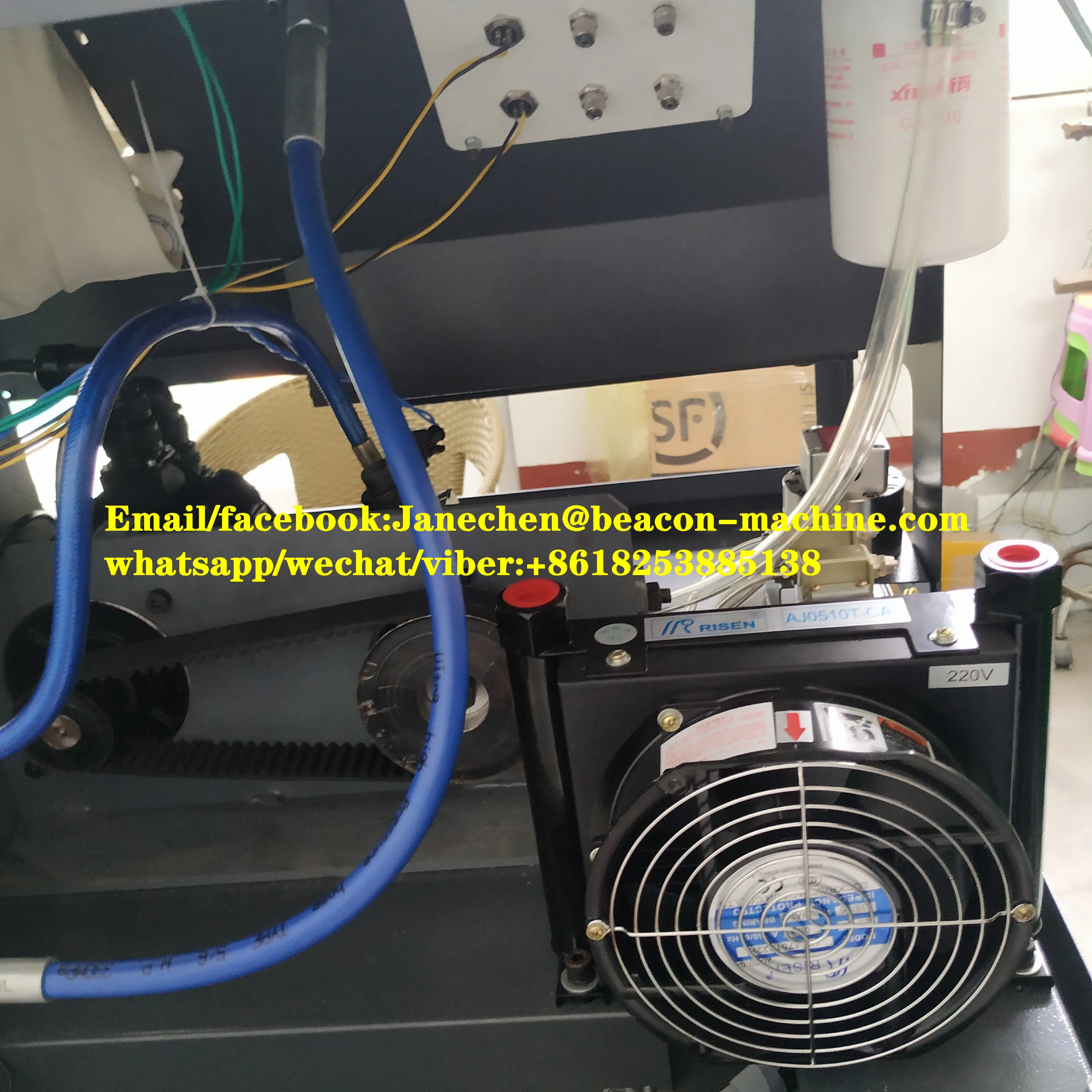

1）The product is made of steel plate welded and assembled, the whole structure iscompact, and the shock resistance is strong.。 （2）The shell adopts high-voltage electrostatic spraying, has the characteristics of anti-scratch, wear-resisting, beautiful shell. （3）Servo motor and common rail pump, using synchronous belt transmission connection, high accuracy output power. （4）The test bed is equipped with test tank, drive synchronous pulley, servo motor, servo driver, LCD touch screen display, mouse, keyboard, Flowmeter, temperature sensor, etc. （5）The test-bed is equipped with power control switch, power socket and power cord. （6）The operating part of the test-bed is controlled by the industrial computer, and the operating interface is very convenient.

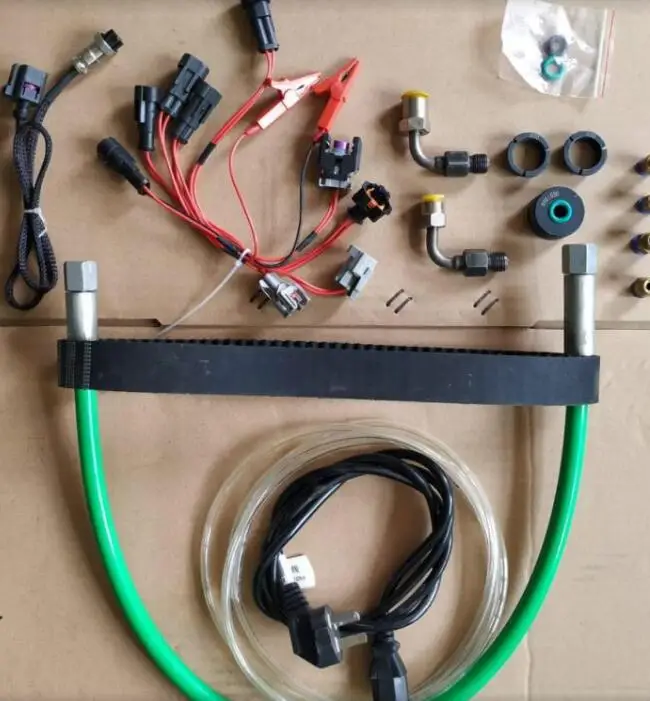

Accessories:
