Product description

Hand-held stable light source can provide 1 to 4 wavelength stable output according to user needs, providing 650 visible light, or providing dual-wavelength output of 1310nm and 1550nm to single-mode fiber measurement, or providing 850/1300/1310/1550nm four at the same time. Wavelength laser output is the ideal test instrument for fiber engineering.

Product Features

1. High stability multi-wavelength single (multi) mode laser output, CW mode or modulation method 2. Hit the LCD to display the working wavelength status 3. Continuous working time up to 45 hours 4. One-button switching of working wavelength, flexible operation 5. Can set automatic shutdown

Specifictions:

1. Product Name: Stable light source 2. The light emitting device: FP-LD 3. Output optical power (dBm): -7~-8 4. Working Wavelength: 1310/1550nm 5. PON light special: 1310/1550NM 6. Modulation: CW / 270 / 1K / 2K 7. Fiber Type: SM, MM 8. Connectors: FC / PC 9. Working temperature: -10~+60 10. Storage temperature: -20~+70 11. Auto Off Time: 10 minutes 12. Battery operating time: 45 hours 13. Power supply: 3 AA batteries or 3 AA Rechargeable battery 14. Size: 190X100X48MM 15. Weight: 400G

Function Description

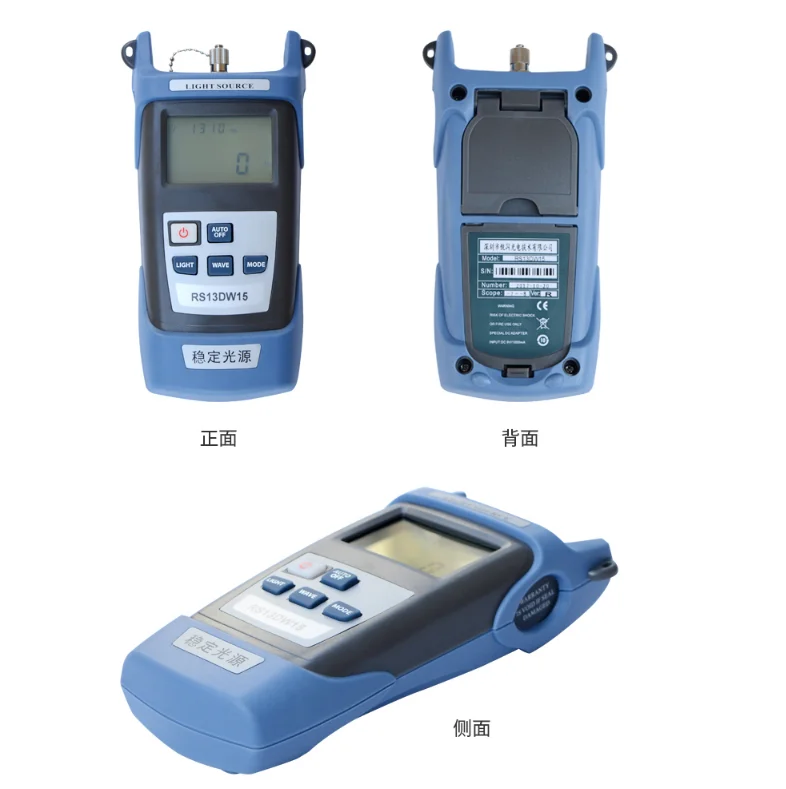

1. Light output: can be connected to the signal receiving end of the device under test by FC type fiber connector 2. LCD display: LCD display output wavelength value 3. ON/OFF button: Press this button to turn it on when it is off; press and hold (higher or equal to 3 seconds) to turn off the light source when it is turned on. 4. AUTO OFF: In order to save power, the auto power off function is turned on by default in the power on state (automatic shutdown after 10 minutes); turn off the auto power off function and press AUTO OFF (less than or equal to 3 seconds). 5. WAVE button: This button is used for cyclic switching of various wavelength outputs. 6. MODE button: This button can adjust the different output power of the light source. Switching between CW, 270Hz, 1000Hz, 2000Hz 7. LIGHT button: This button is used to turn the backlight on or off.

Instructions for use:

1. Connect the fiber connector to the optical output port 2. Press the ON/OFF button to turn it on and the work indicator lights up. 3. Adjust the output wavelength of the light source by pressing the WAVE button 4. Adjust the output power of the light source by pressing the MODE button. 5. The various working states of the handheld stable light source will be displayed on the LCD screen of the meter. When the battery is low, the low battery indicator flashes once every second. After 10 flashes, the battery is turned off. At this time, the battery needs to be replaced or charged. 6. Shutdown: Press ON\OFF button, the indicator will be off, LCD will not display, shut down.

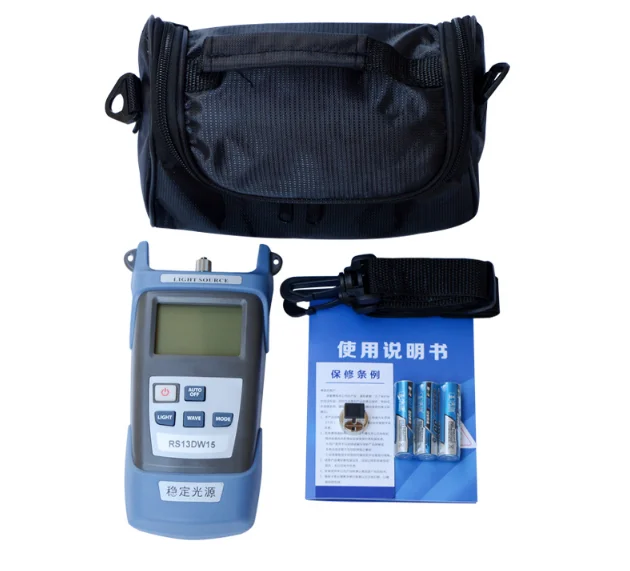

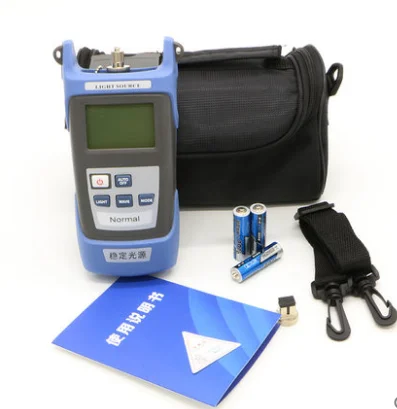

Package include:

1 X Stable light source 1 X Carrying case 1 X Strap 1 X Instruction manual Send SC interface *1
