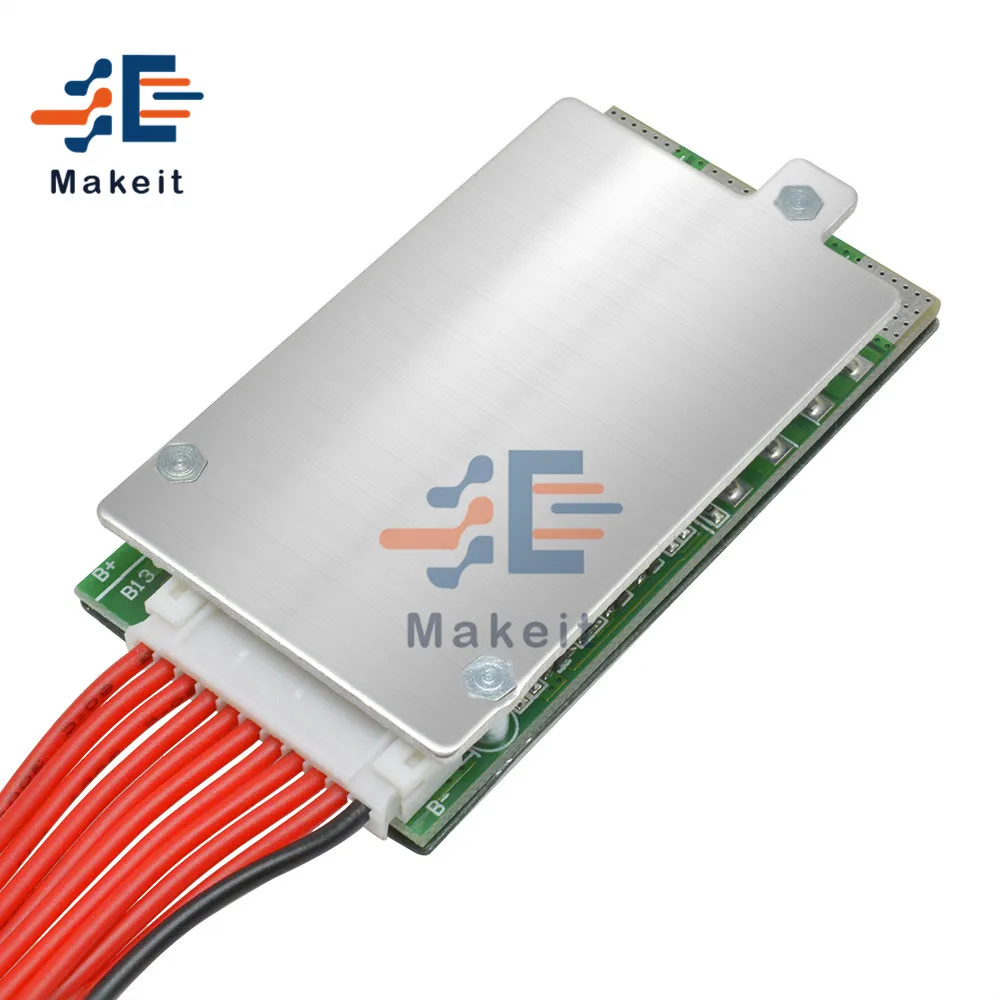

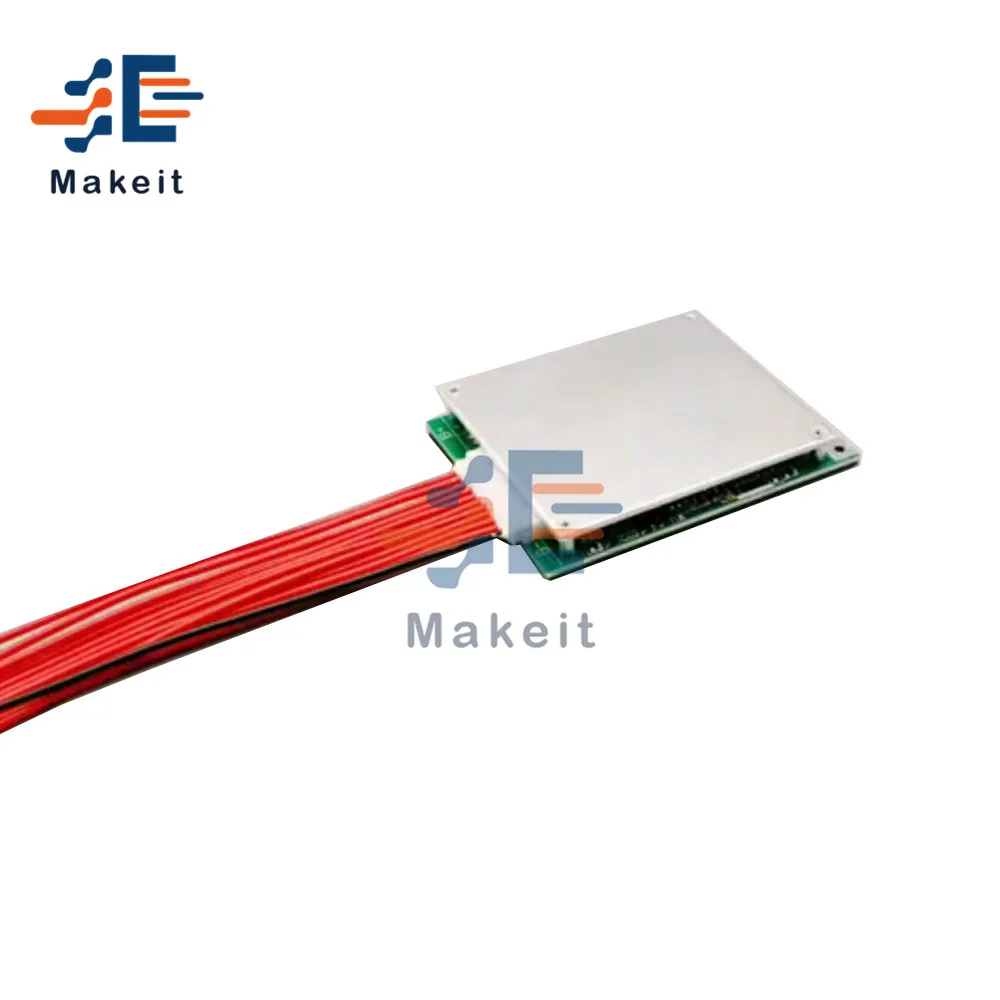

10S 36V 15A

Specification:

10 string 36V 37V 42V lithium battery power protection board
Overcharge, over discharge, over current and short circuit protection
Same port 16A discharge current
With heat sink and 300mm cable
Size: approx. 63 x 32 x 10mm

Note:

Due to different producing batches, product details might be a little different. If you minding the difference,
please buy it carefully.
Please allow 1-5mm deviation due to manual measurement.
Due to light and screen difference, the item's color may be slightly different from the pictures.

10S 36V 20A

Specification:
Internal resistance: ≤15mR
Charging current: Common Port 20A
Discharge current: Common Port 20A
Charging voltage: 42V
Size: 69*51.5*10mm

Balance voltage
Detection voltage: 4.2±0.025V
Balance current: 45±5mA

Overcharge protection
Detection voltage: 4.25±0.025V
Detection delay: 100ms
Release voltage: 4.15±0.015V

Over discharge voltage protection
Detection voltage: 2.8±0.08V
Detection delay: 50ms
Release voltage: 3.0±0.1V

Over discharge current protection
Detection delay: 15ms
Release condition: disconnect the load
Protection current: 120V±20A

Short circuit protection
Trigger condition: short circuit of external load
Detection delay: 200ms
Release condition: disconnect the load

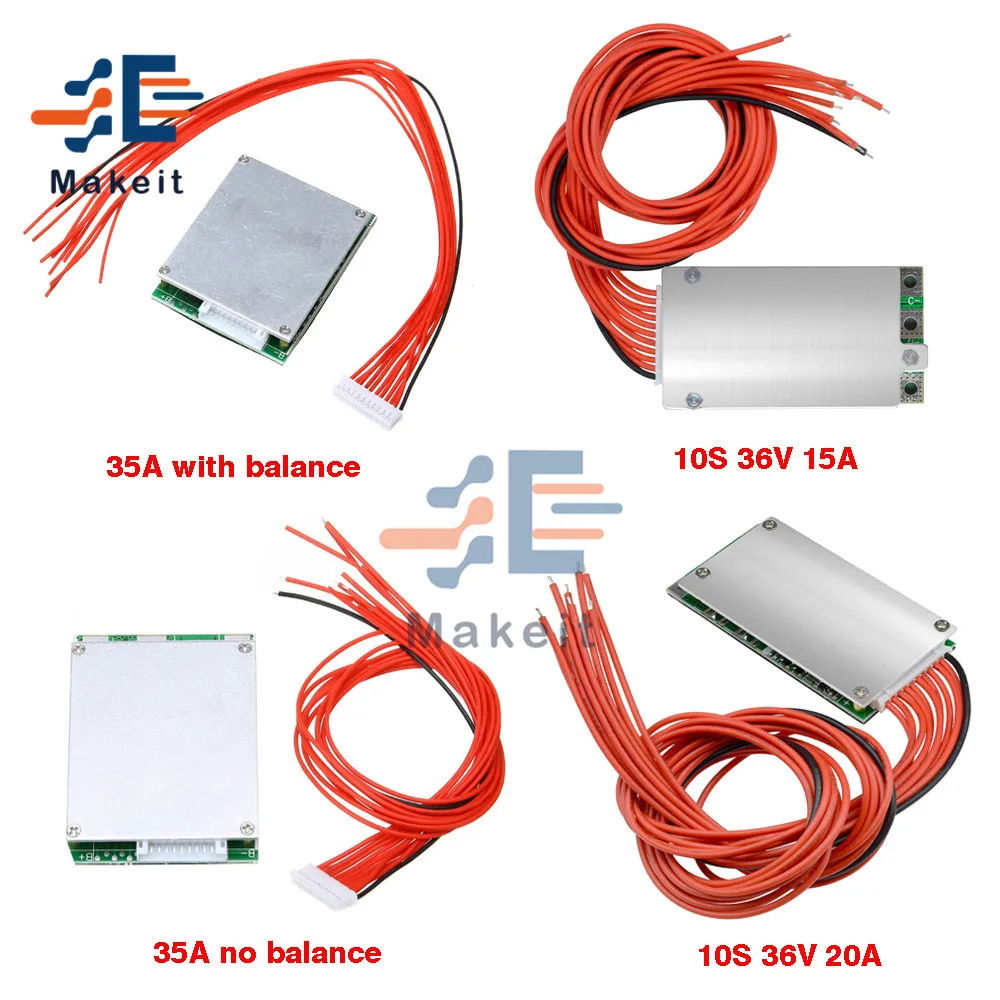

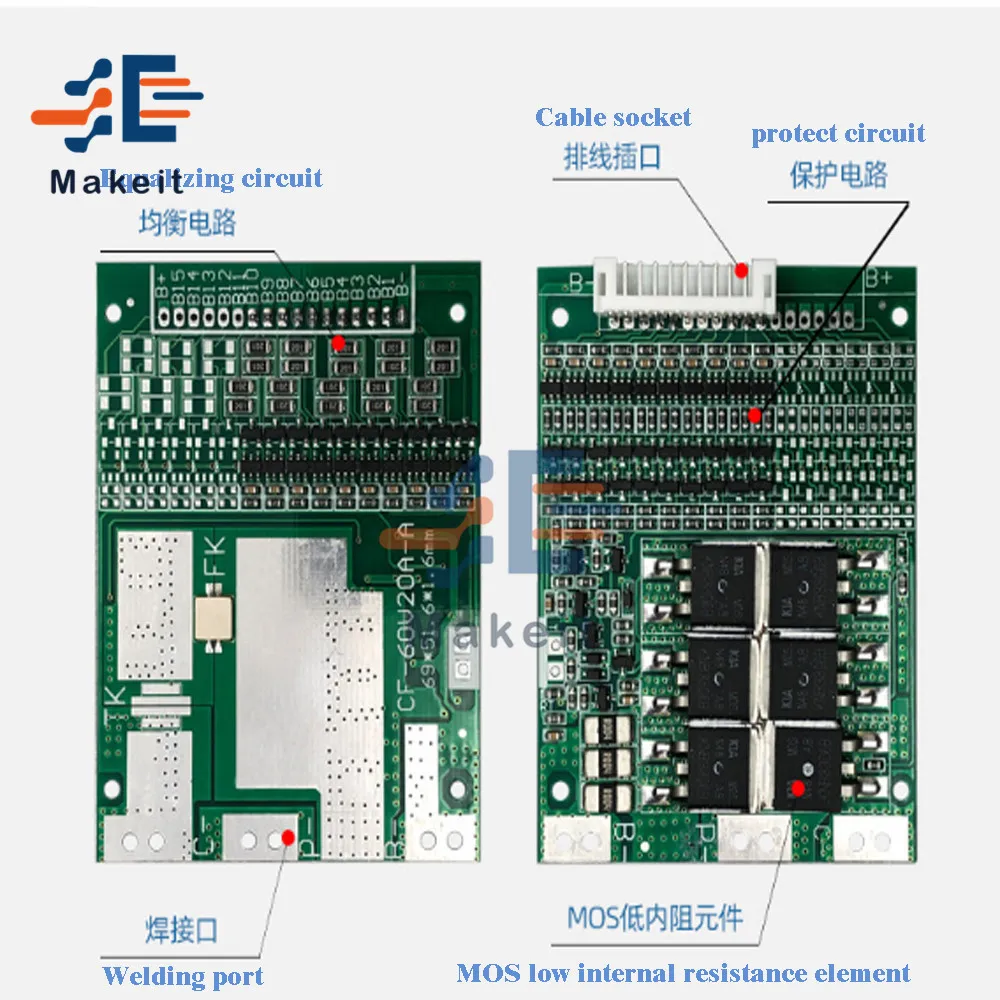

10S 36V 35A with balance/no balance

Description:

10 series 36V lithium battery power protection board
Split port 35A with equalization circuit, can do 20A with same port
With heat sink, size 69*51.5*10mm
4-10 strings are common, no need to change the line can be directly downgraded to use

Parameter:

Specifications: 10 strings of 36V-port 35A ternary lithium battery protection board
Discharge current: 35A
Product model: CF-60V20A
Internal resistance: ≤ 15mR
Charging current (split port): ≤ 5A
Charging voltage: ternary : 42V
Self-consumption power: ≤ 50uA
Working temperature: -30℃/+80℃

Overcharge protection:

Detection voltage: ternary : 4.28 ± 0.025V
Detection delay: 100ms
Release voltage: ternary : 4.08 ± 0.05V

Balanced voltage:

Detection voltage: ternary : 4.2 ± 0.025V
Balance current: 45 ± 5mA

Overvoltage protection:

Detection voltage: ternary : 2.55 ± 0.08V
Detection delay: 50ms
Release voltage: ternary : 3.0 ± 0.1V

Overcurrent protection:

Detection delay: 15ms
Release condition: disconnect the load
Current protection: 120 ± 20A

Short circuit protection:

Trigger condition: short circuit of external load
Detection delay: 200us
Release condition: disconnect the load

Product application range:

Electric vehicles, tricycles, low-speed vehicles, energy storage, UPS, solar inverters, 18V-120V equipment, etc.

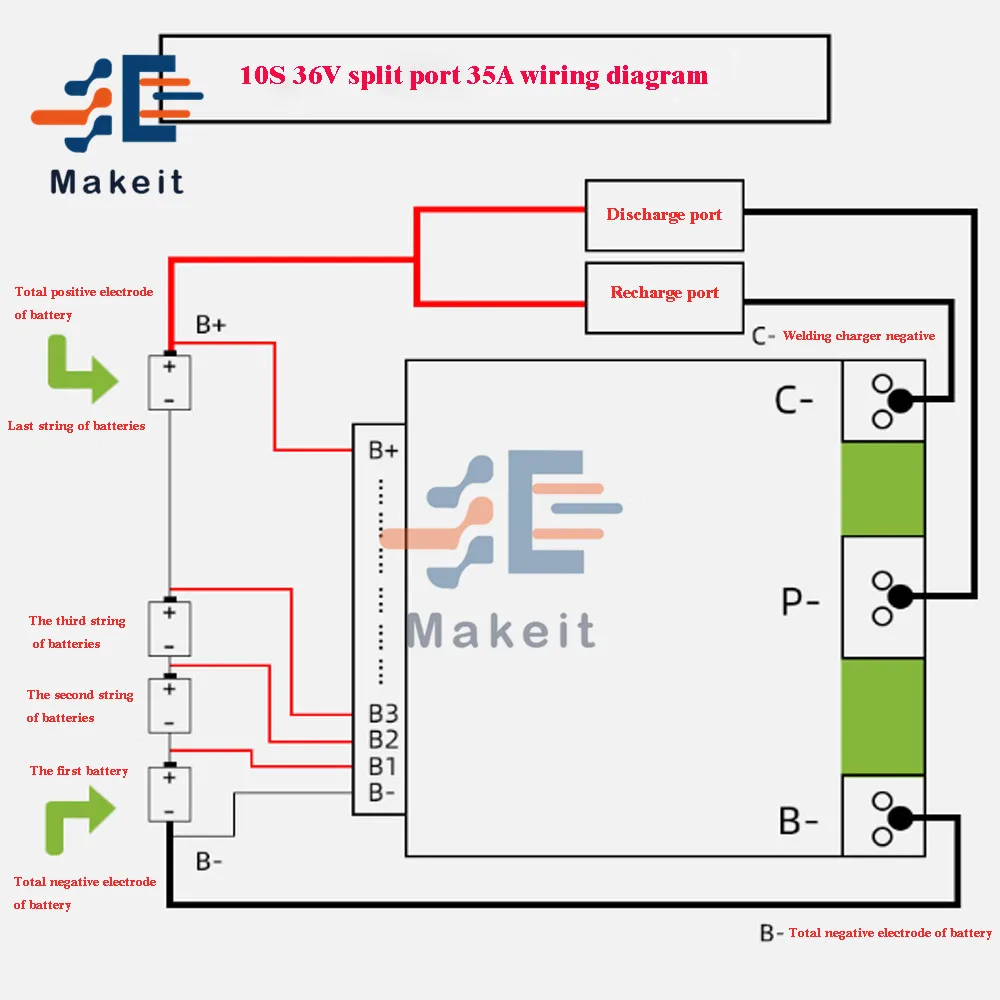

Wiring method:

1. First connect the B-line to the total negative electrode of the battery (the B-line-a short wire must be welded), and then connect the flat line (connect
Before wiring,-be sure to unplug the wiring from the board)
2. Start wiring from B-, connect B- to the total negative electrode of the battery, and connect the second cable B-1 to the first string
Battery anode, the third cable B-2 connects to the second battery anode, the fourth cable B-3 connects to the third
The positive electrode of the string battery... analogy.
3. Finally, measure whether the total battery voltage is equal to the output voltage of the protection board, equal protection
The board is working properly.

Package included:

1 × 10S 36V 15A / 20A / 35A Lithium Battery Protection Board Module
