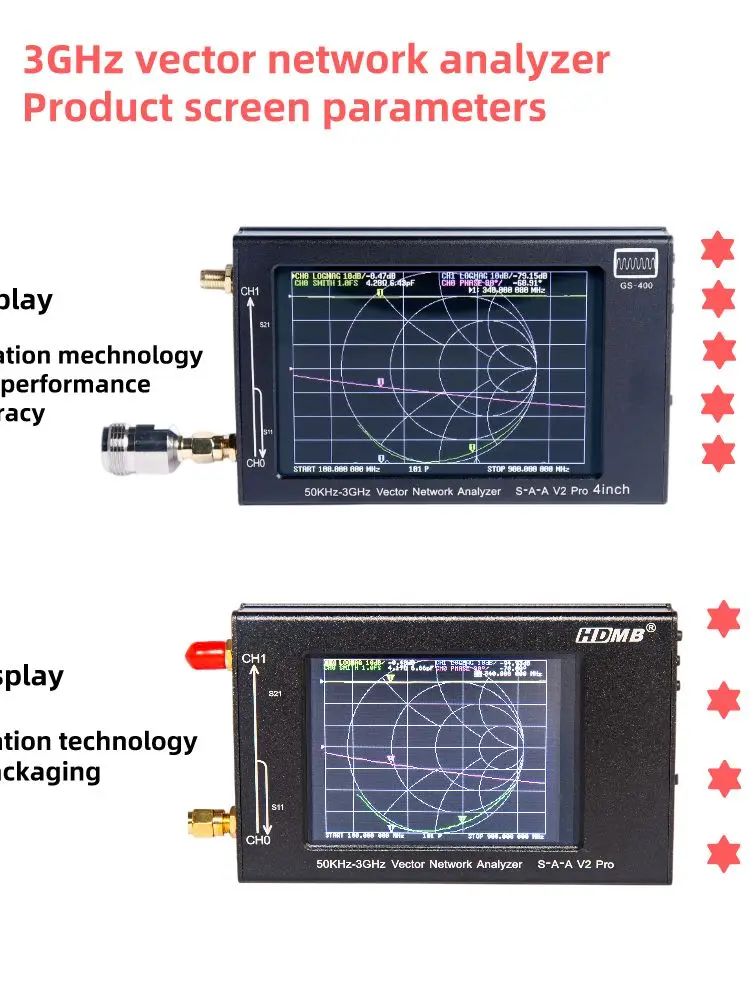

S-A-A-2 NanoVNA V2 3GHZ Vector Network Analyzer Digital Nano VNA Tester MF HF VHF UHF USB Radio Antenna Standing Wave |

S-A-A-2 NanoVNA V2 3GHZ Vector Network Analyzer Digital Nano VNA Tester MF HF VHF UHF USB Radio Antenna Standing Wave |

We have a more detailed electronic manual, if you need it, please leave your information, email address, we will send you the product manual

1. Use 0.5ppm TCXO: To ensure the frequency accuracy of high frequency measurement with the 0.5ppm TCXO network analyzer.

2. Metal Shell: The metal shell can fully protect the internal precision circuit, and fully consider the protection of the external interface.
3. High-performance Calibration Kit: The network analyzer is equipped with high-performance calibration kit to ensure that the calibration SWR is less than 1.03 when reaching 3GHz.
4. Good Amplitude and Phase Stability: The 2 customized high-performance SS405 SMA RF cables provide good amplitude and phase stability.

5.5. Easy to carry: equipped with high-grade plastic outer packaging, the network analyzer is easier to carry and store.

The vector network analyzer for *HDMB V2 Pro
NanoVNA V2 3GHz is based on the license agreement for LGPL, based on the design for OwOComm, developed and produced a vector network analyzer that is more convenient to carry and use.
The vector network analyzer for *SAA-2/NanoVNA uses a user interface similar to interface for NanoVNA, but uses a different technical architecture. The network analyzer for SAA-2/NanoVNA V2 does not load initial calibration data at startup, and does not automatically insert calibration data after the user changes the frequency. The calibration data must be recalibrated or recalled after each start and frequency change. Please read the instruction manual carefully before use to avoid damage to the device.

Model: HDMB V2 Pro iron case

Frequency range: 50kHz-3GHz

System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)

S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)

Scanning speed: 100 points/second

Display: about 3.2inch, (320 * 480)

Power supply: USB, maximum charging current 1A

Battery: 1500mAh lithium ion

Battery connector: JST-XH 2.0mmMaximum sweep points (on device): 201

Maximum sweep points (USB): 1024

Port 2 return loss (1.5GHz): 20dB typ

Port 2 return loss (3GHz): 13dB MINItem size: 142 x 75x 23mm /(5.1 x2.9x0.9in)

Item weight: 208g / (7.4oz.av)

Package size: 245 x142 x 50mm /(9.7 * 5.6 * 2in)

Package weight: 428g ( 15.1 oz.av)

>>>>Package list<<<<3GHZ V2 nanovna

1*HDMB V2 Pro Vectory Network Analyzer (Built-in 1500mAh battery)Host
1*Type-C USB Data Cable
2*200mm SMA male to male RF black cable
1*SMA Simple Calibration Set Open
1*SMA Simple Calibration Set Short
1*SMA Simple Calibration Kit Load
1*SMA Female to Female Connector

>>>>Package list<<<<3G V2 RF DEMO KIT3

1*HDMB V2 Pro Vectory Network Analyzer (Built-in 1500mAh battery)Host
1*Type-C USB Data Cable
2*200mm SMA male to male RF black cable
1*SMA Simple Calibration Set Open
1*SMA Simple Calibration Set Short
1*SMA Simple Calibration Kit Load
1*SMA Female to Female Connector

1 x PCB RF Tester Board
2 x 20cm Adapter Cables

Note:
VNA-QT software compatible system: Linux, Windows (7+), Mac OS planned

1. Software download: //github.com/nanovna/NanoVNA-QT/releases

2. User guide: //github.com/nanovna/NanoVNA-QT/raw/master/ug1101.pdf
