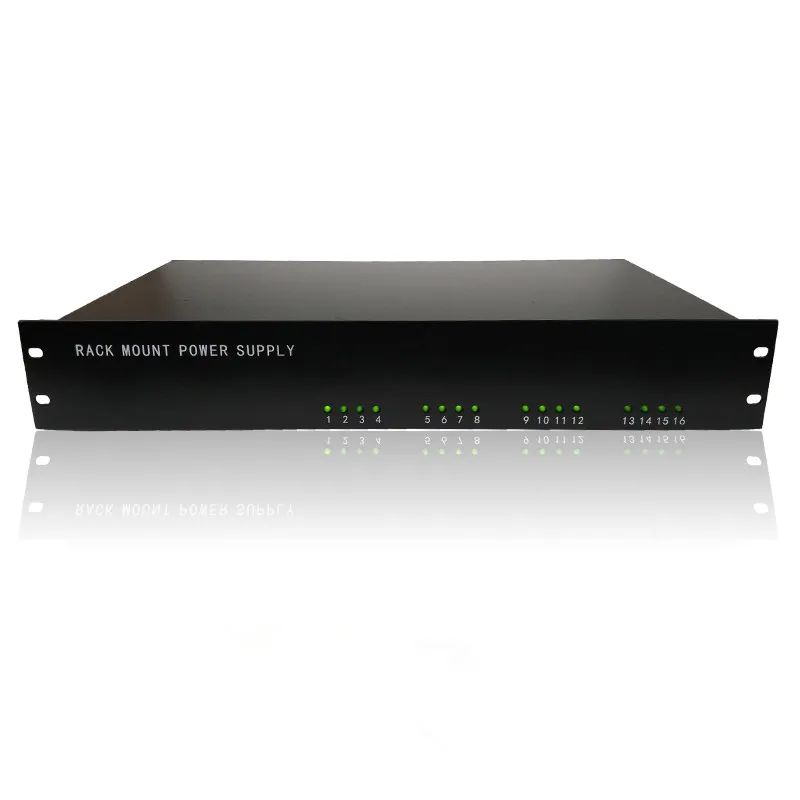

CCTV Distributed Rack Mount Power Supply 16 Channel 12V DC 20Amps output PTC Resettable Fuse |

CCTV Distributed Rack Mount Power Supply 16 Channel 12V DC 20Amps output PTC Resettable Fuse |

CCTV分布式机架安装电源16通道12V DC CCTV 20Amps输出,PTC可复位保险丝

特点:

特点:

软启动电流,有效减少交流输入的影响,具有独立的短路保护和电涌保护,故障排除后自动恢复,EMI滤波器,最小纹波,100％负载测试,质量保证,高效率,低T上升,连续值班

Input with a switch, LED indicators lighten when the power supply operates normally, and each output contains independent PTC, LED indicator, which is not interfere with each other

Convenient installation, save a lot of time and labor

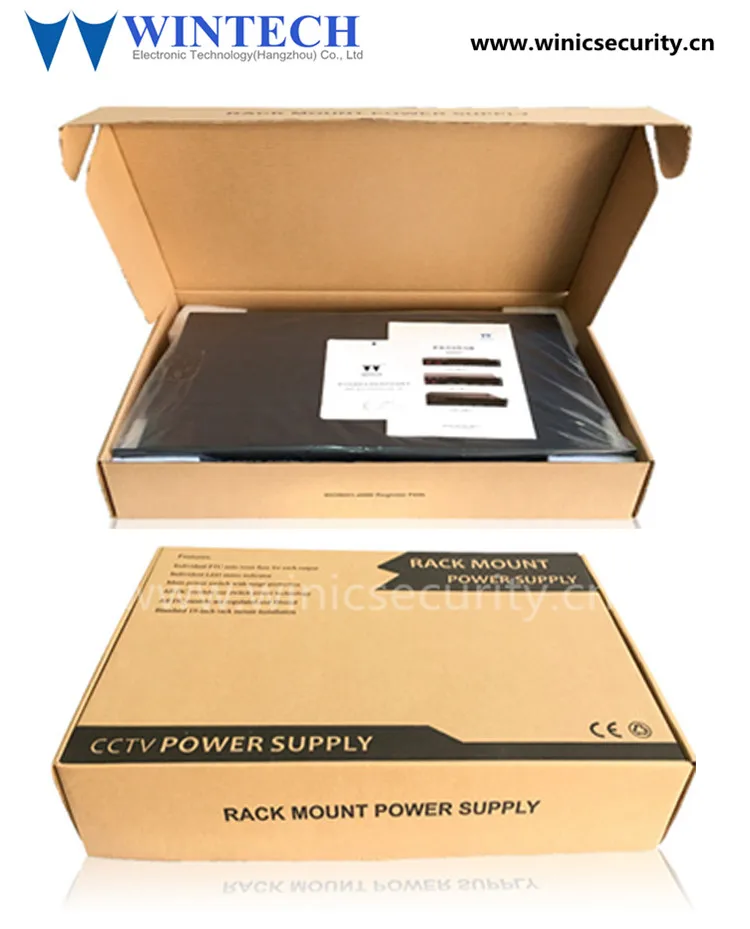

Packing with color box

Specification:

Model

W- 12VDC-16P/20A/R

Specification

240W 12V 20A 16P

Input

Input Voltage

110/220VAC

Input Voltage Frequency

50Hz~60Hz

Average Input Current

100Vac≤1.6A

Efficiency

≥80%

Output

Output Voltage

12VDC±5%

Output Current

20A, 16 channel for 1 set load

Output Ripple Noise(Vp-p)

110mVp-p@25°C/

Rated input voltage & Output rated load

reply time of starting up

≤3S  Input 100Vac,Output rated load

Protection

Over voltage protection

When over voltage occurs, it will be switch to self-protection status to protect the load.

Over current protection

When over current occurs, the corresponding channel output will automatically switch to self-protection status, and the other channels output work normally, when clearing of fault, then switch back to normal.

short-circuit protection

When short-circuit occurs, individual PTC fuse will break the circuit, when clearing of fault, it switch back to normal automatically.

Circumstances

Working Temperature

0°C~+50°C

Storage temperature

-20°C~+80°C

RH

20%~90%

Heat release

Natural heat dissipation

Connection

Input

三针插座
