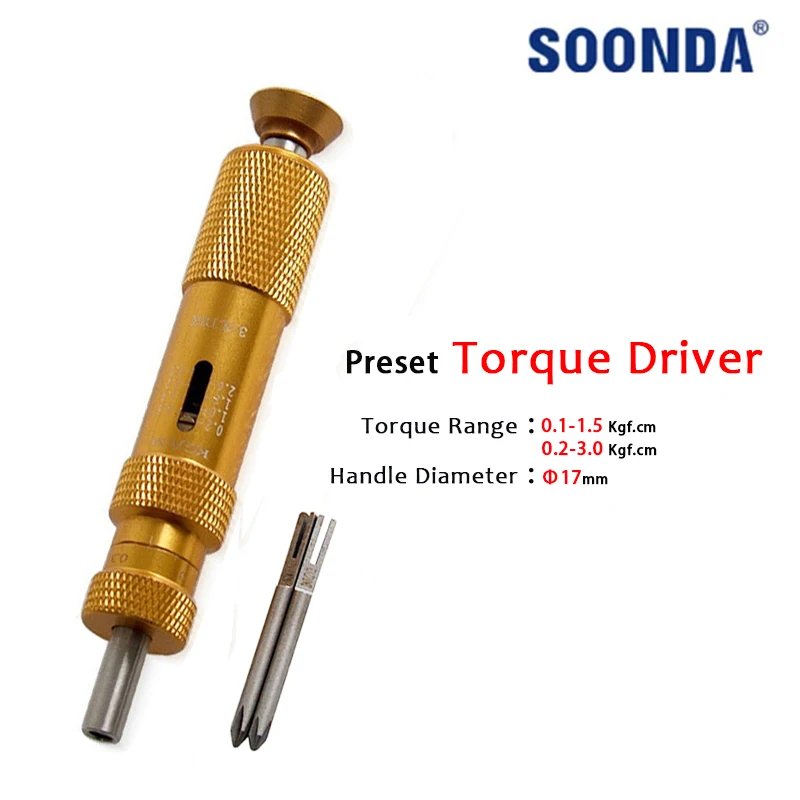

Model : ETDK-1.5

1. range : 0.1-1.5(Kgf·cm)
2. Division value : 0.01Kgf·cm
3. Accuracy : ±5%
4. Dimensions : 99mm
5. Handle outer diameter : Φ17mm
6. Net weight : about 0.1Kg

Mpdel :ETDK-3

1. range : 0.2-3.0(Kgf·cm)
2. Division value : 0.02Kgf·cm
3. Accuracy : ±5%
4. Dimensions : 99mm
5. Handle outer diameter : Φ17mm
6. Net weight : about 0.1Kg

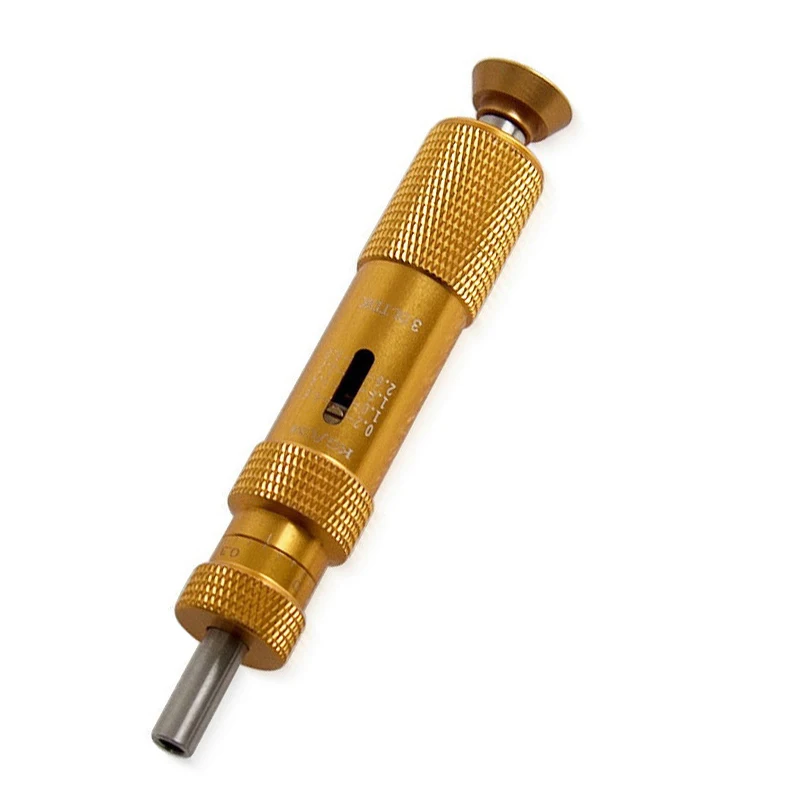

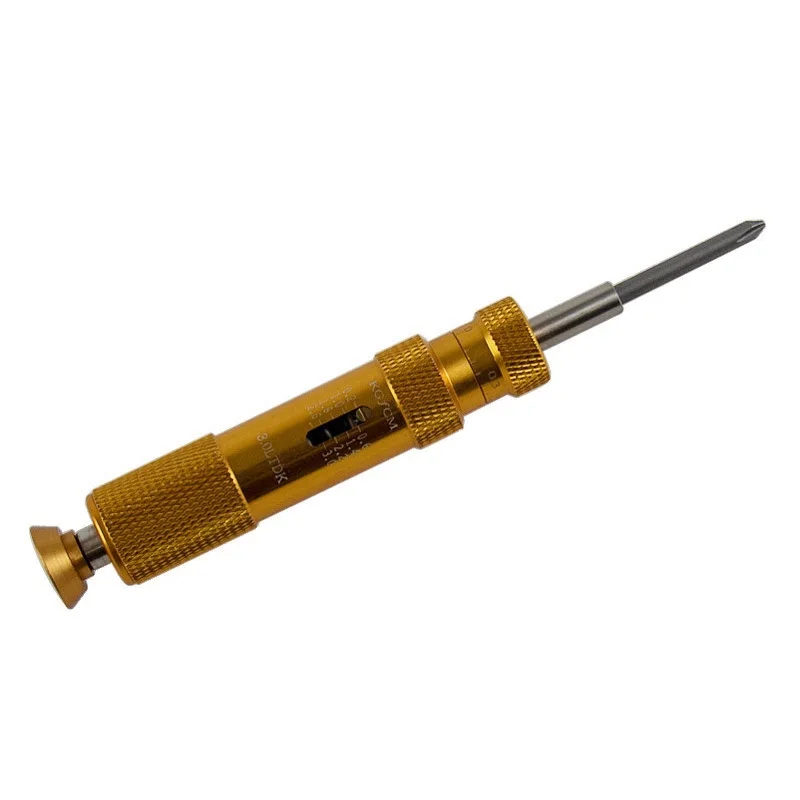

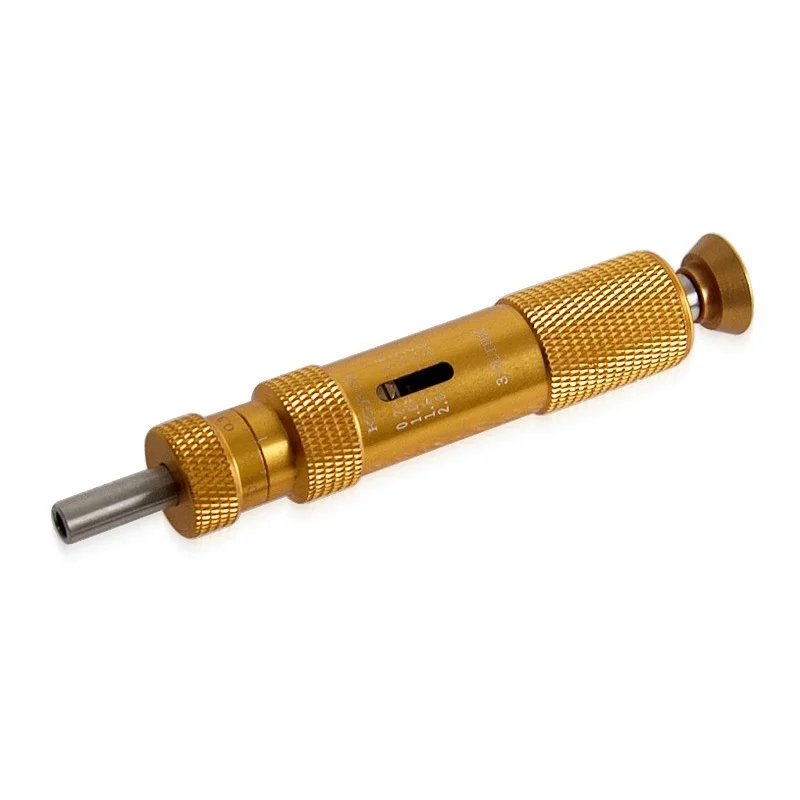

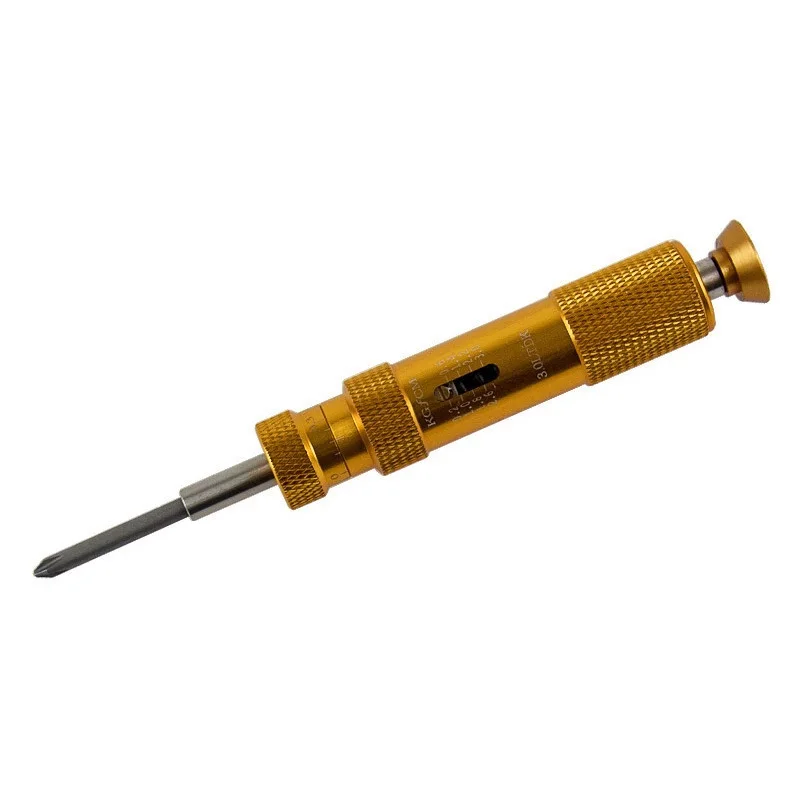

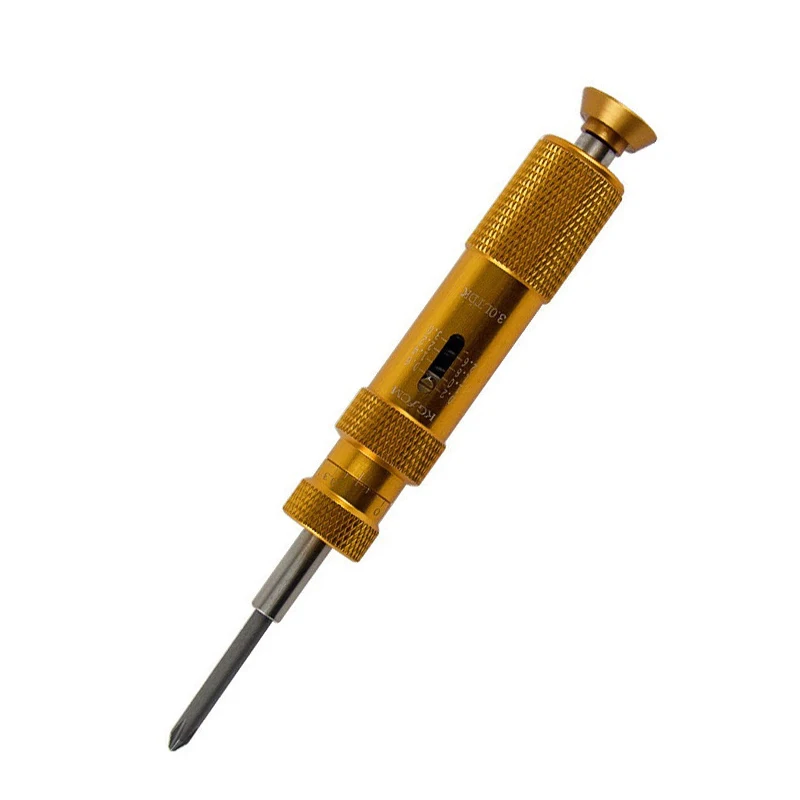

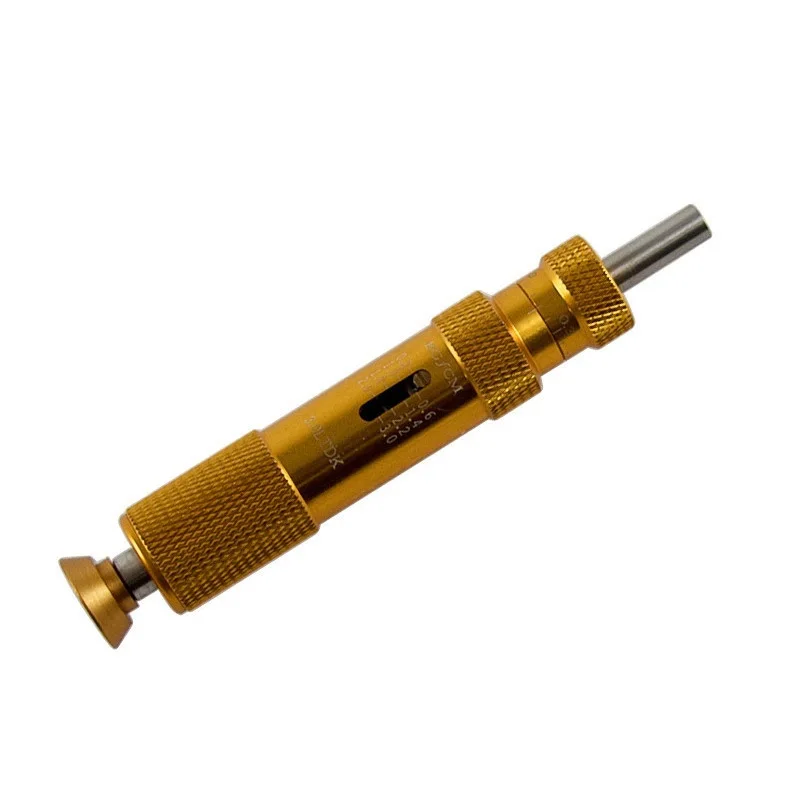

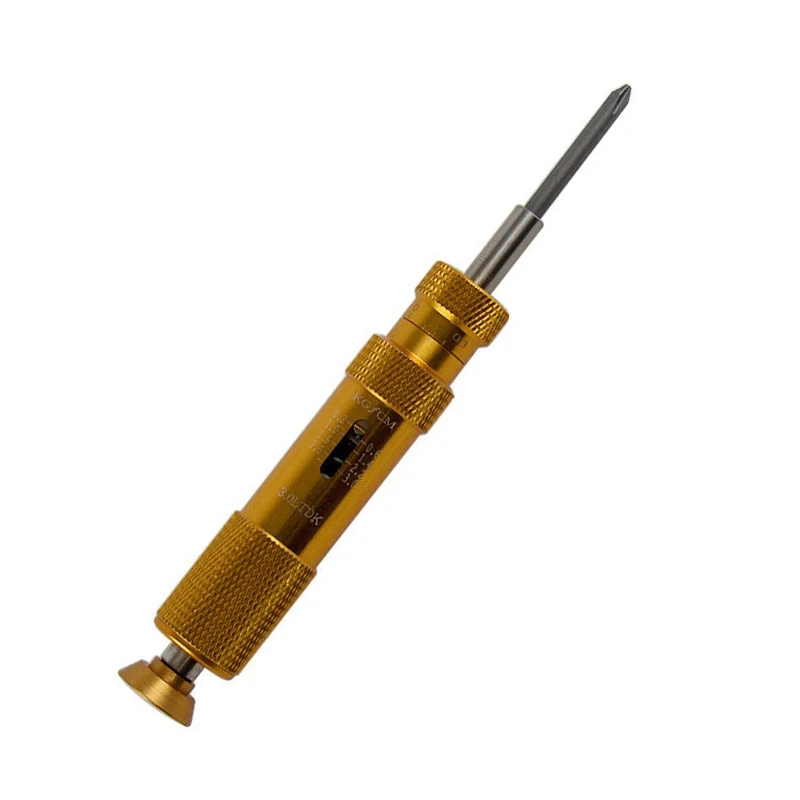

ETDK Preset Torque Driver

1. It is used to tighten the workpiece with the screw thread that requires torque.
2. The product operates clockwise and counterclockwise, and the torque value can be preset.
3. If the screwdriver runs idly beyond the set value, the screw tightening can be controlled first.
4. It is suitable for screw locking of precision instruments, circuit board fixing, etc., which have high requirements for screw locking and high requirements for locking accuracy.
5. It is widely used in various electrical, light industry, machinery manufacturing, scientific research structures and other industries.

Preset Torque Driver

1. The torque value can be preset, and there is an audible alarm prompt. When the tightening torque of the fastener reaches the preset torque value, it can automatically send out a signal "click", accompanied by obvious hand-feel vibration, prompting the work to be completed. After the force is released, all relevant parts are automatically reset.

2. Automatic switching between forward and reverse directions, easy to use in both directions.

3. Adopting scale circle and scale wheel, the reading of scale line is clear and accurate.

4. Forging of aluminum alloy material, strong and durable, long life.

5. This torque driver implements the relevant regulations of GB/T 15729——2008.

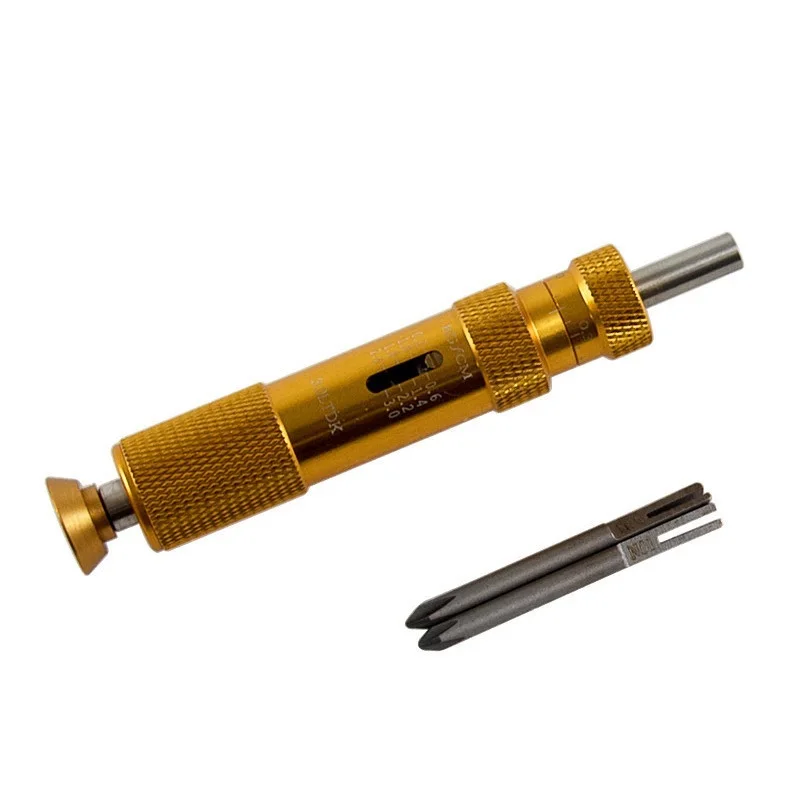

6. There are two Phillips screwdriver heads inside, allowing customers to replace the screwdriver heads according to the items they want to measure.
