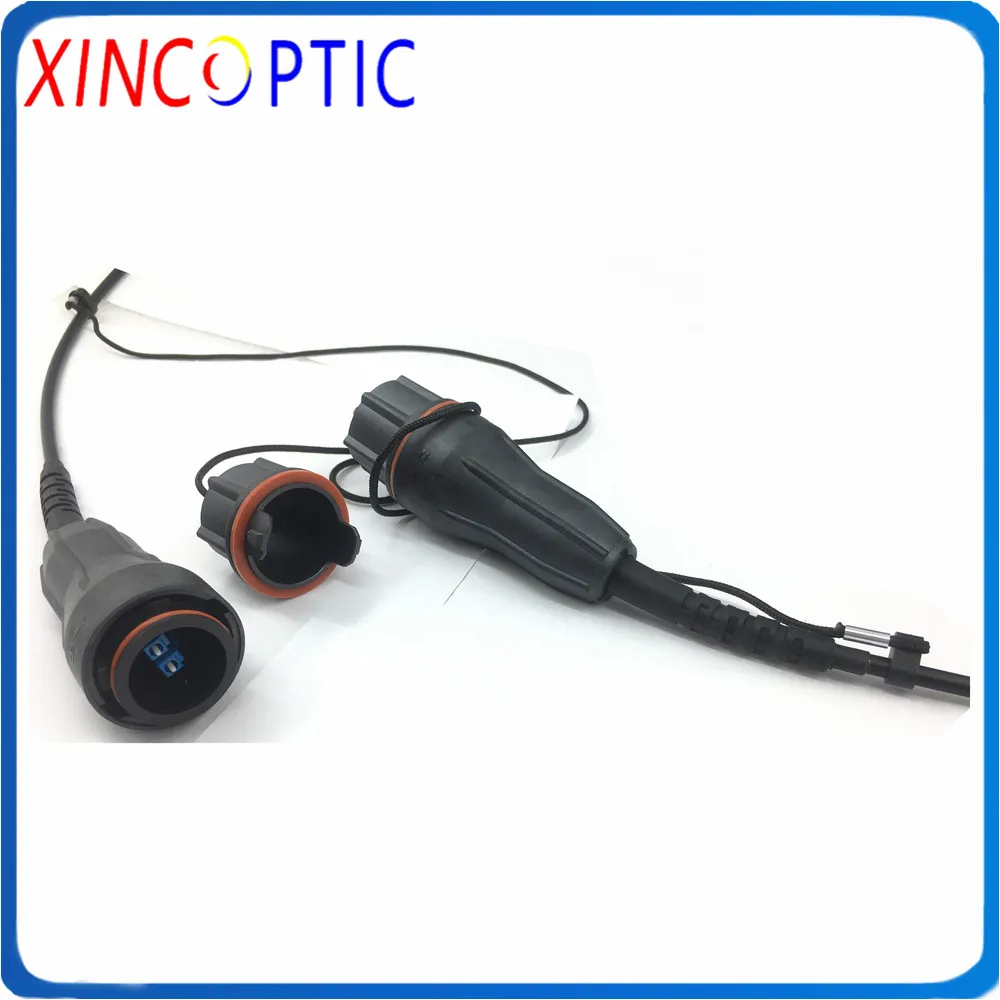

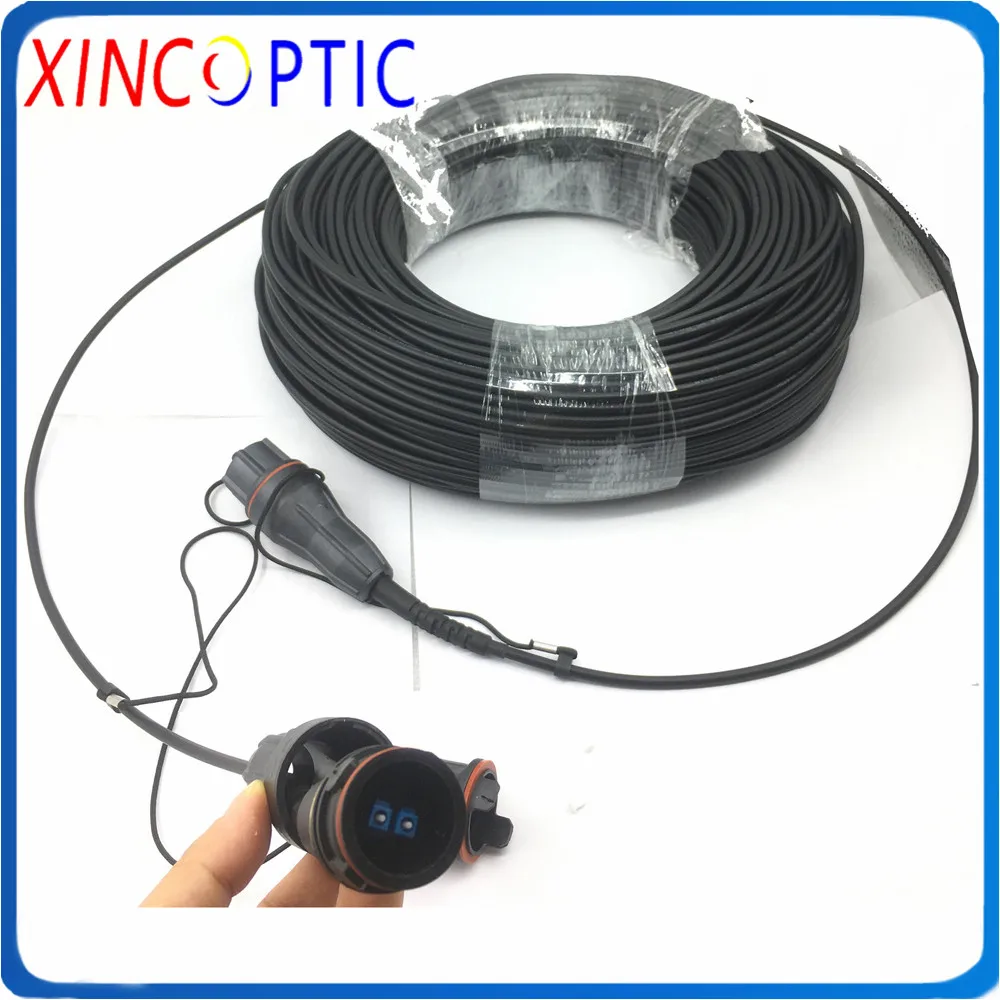

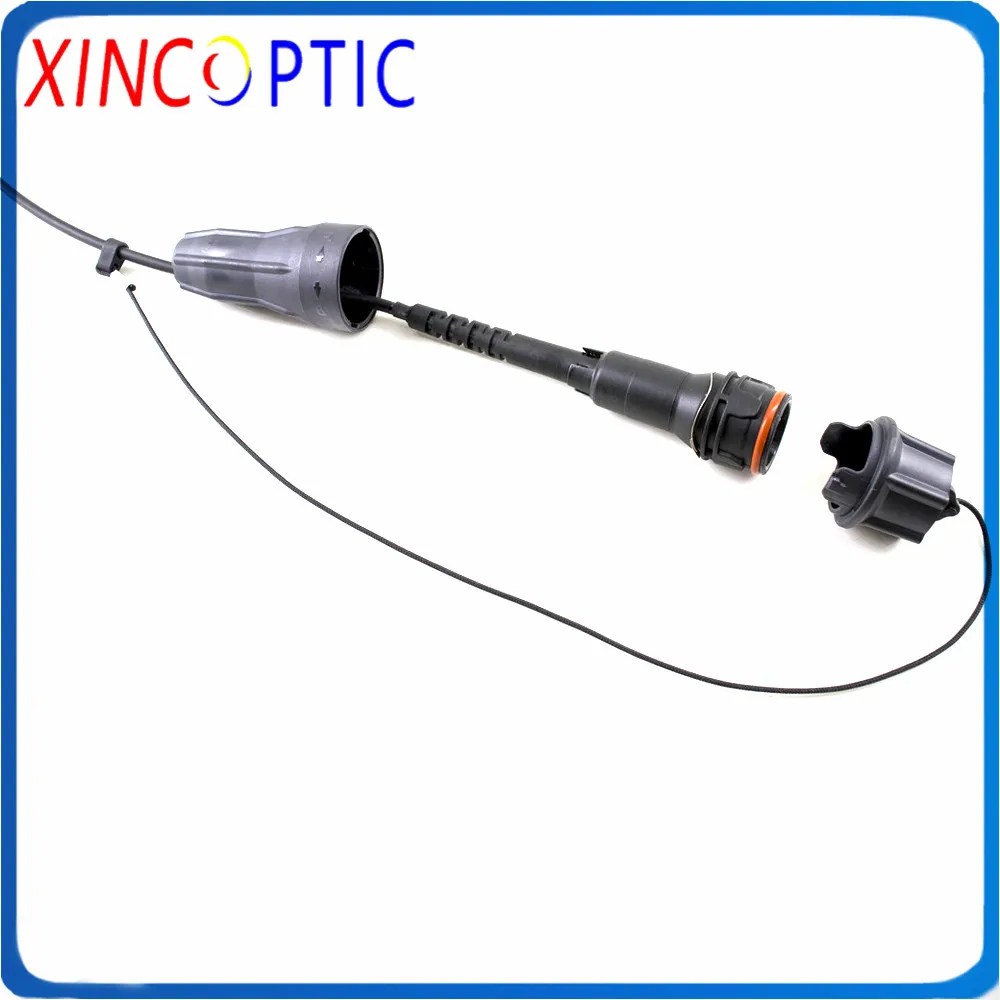

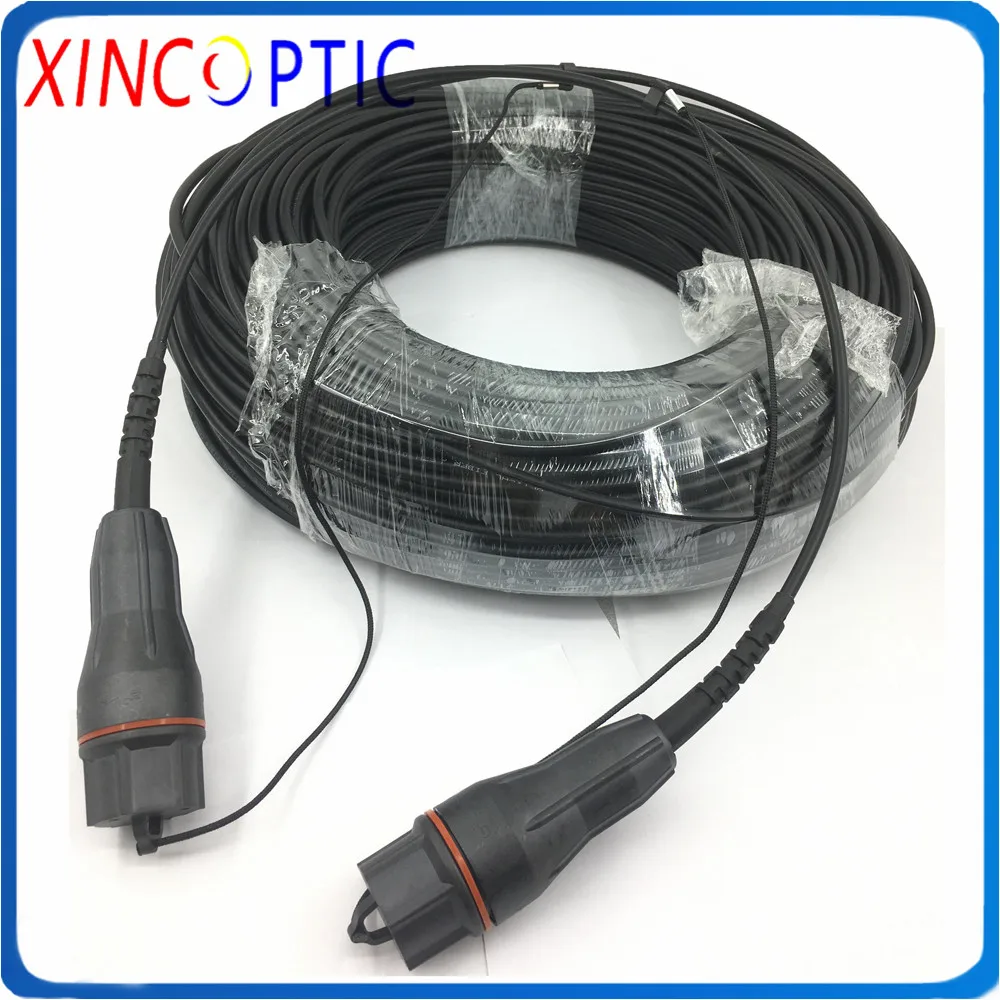

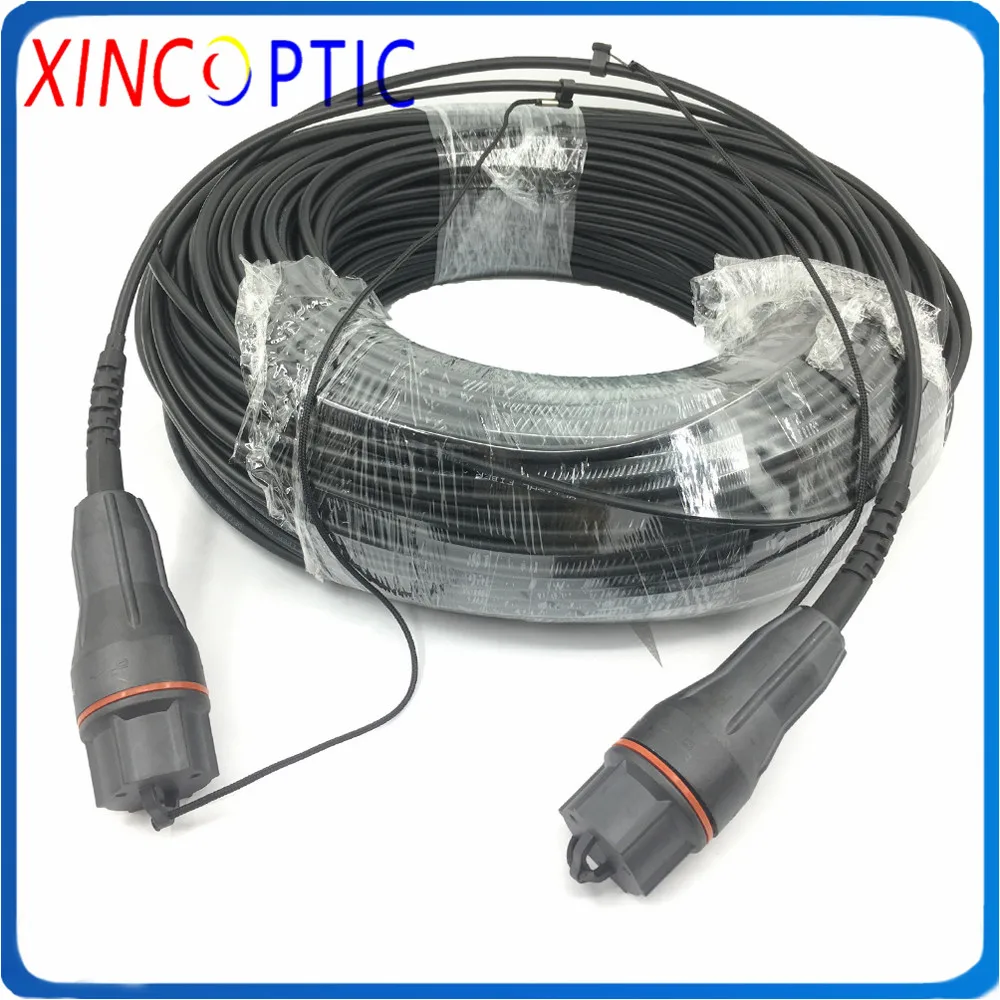

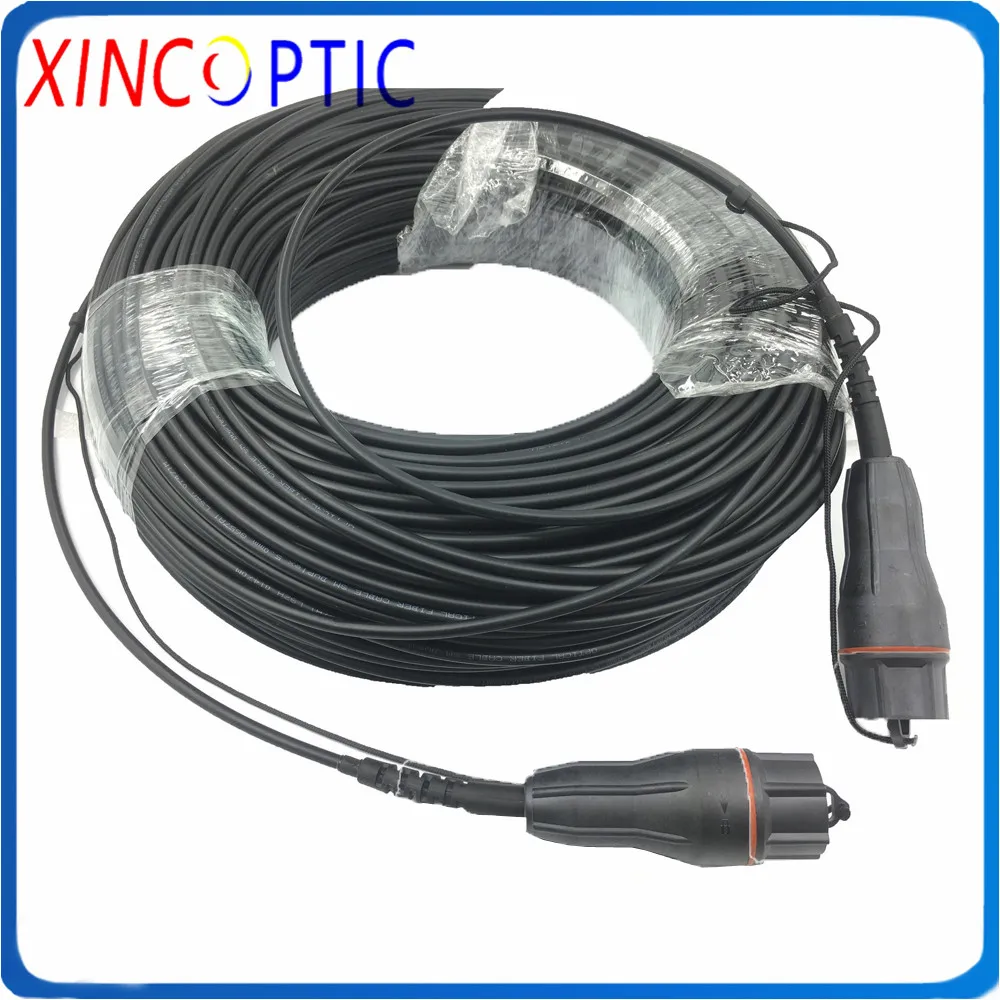

SMF,2Fibers FULLAXS Duplex LC to 2C Fullaxs 200M 4.8mm LSZH/TPU Black Jacket Non-Armored Fiber Optic Patch Cord Jumper Cable

Welcome to XINC Optic Offical Shop

With the continuous development of optical fiber communication technology, 3G commercial trial network, high-speed local area networks and optical access network such as the market that is a sustained manner. Especially in the 3G, 4G, and WIMAX base stations and fiber-optic distributed zoom technology, FULLAXS fiber optic cable connector assemblies are rapidly becoming the standard connector interface.

FULLAXS fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WIMAX/GSM) tailored products that can be meet the FTTA(fiber to the Antenna) program requirements for outdoor environment conditions and adverse weather conditions.

Features:
.IP68 rated to ensure protection from dust and water immersion
.LC connector qualified to Telcordia GR-326 and TIA/EIA 568B.3
.Temperature range of -40°C to +85°C
.Bayonet-style mechanical lock
.Flame retardant materials per UL 94 V-0
Applications:
.Harsh environments where chemicals, corrosive gases and liquids are
commonplace
.Inside and outside industrial plant and equipment that interface with industrial Ethernet networks
.Remote interface applications such as towers and antennae as well as FTTX in PON and at the home applications
.Mobile routers and internet hardware

Specifications:

Model

SM

MM

Connector A:FULLAXS

Connector B:LC ,SC,ST,FC

Connector fiber count

2Core

Polish

PC,APC

PC

color

PC(Blue), APC(Green)

MM(Beige),OM3(Aqua)

Inserting loss

≤0.2dB

≤0.2dB

Return loss

PC≥50dB，APC≥60dB

≥35dB

Durability(500 Mating)

≤0.2dB

Test wavelength

1310/1550nm

850/1310nm
