Product information

1. product name ： led back light house number
2.Stainless Steel Color ：
Black titanium stainless steel (not painted)
Silver stainless steel
3.Emission color ：White / Warm White（you can note the lighting color when you place the order）
4.Size ： height 12.5cm , 16cm, 20cm, 25cm , 30cm
5.Transformer ： input 110-240V , output 12V

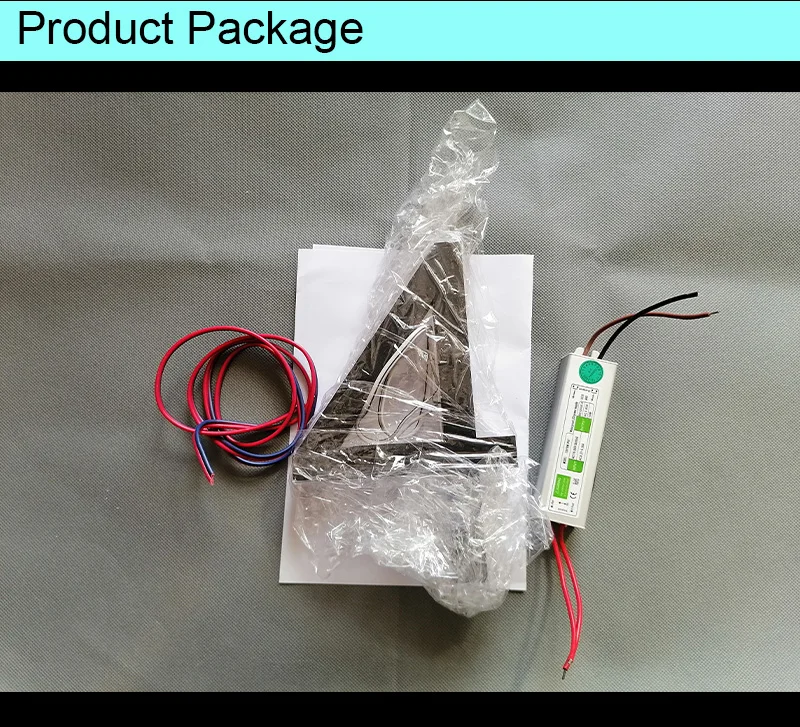

6.Provided ：
power supply , installation tools ,screw , Installation drawings. 1000mm extend wire （if you think it is short , please measure your wall and note the wire length）
7.Waterproof Led ligth source with CE/Rohs cetification
Color temperature: 10000K / 3000k-4000k
8.life Span ：100000 hours

Note:
1.Once an order is placed for customized services, refunds are not supported.
2.if you choose time controller option ,
You need to adjust the time when you receive the time controller. After that, the house number will automatically turn on and off at regular intervals
3.Regarding installation issues,
because everyone's installation environment is different. So if you encounter problems with installation, please feel free to contact customer service. We will solve the problem for you.

Recommend:
Stainless steel black and warm white light are the best match

Note：

1. The seller recommends font 1 (in stock)
2. When you place an order, please mark the font you like. Otherwise, it is the default font 3

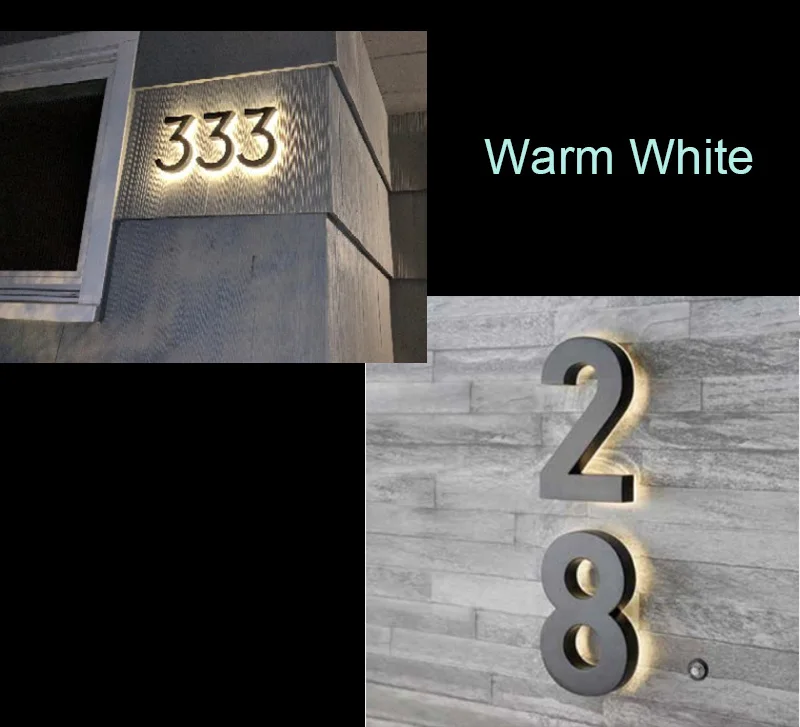

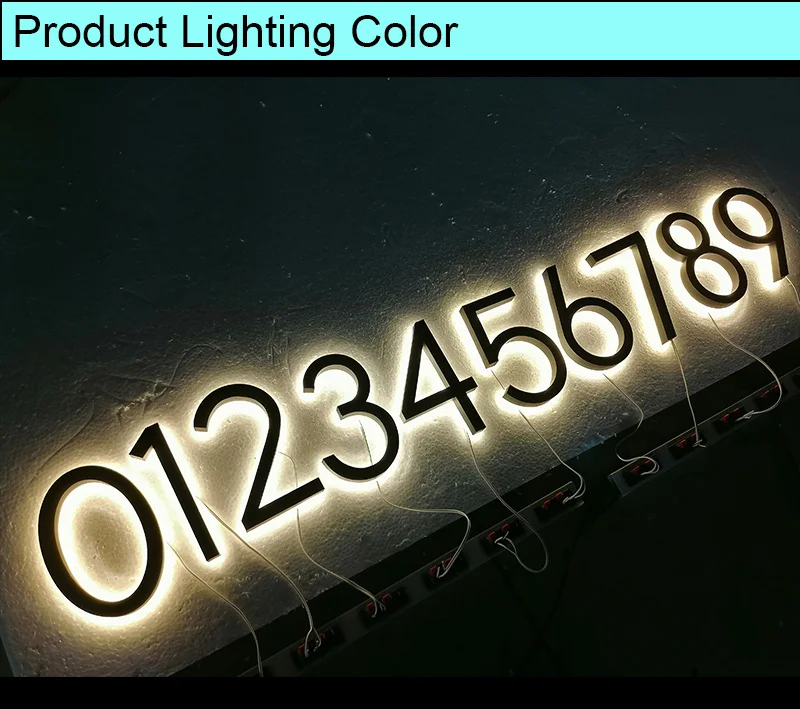

Lighting Warm White

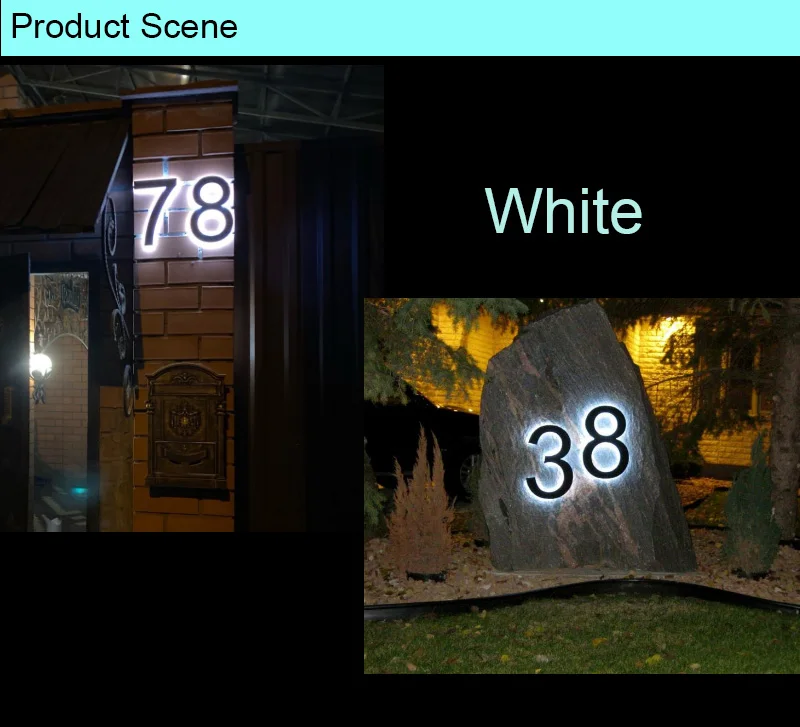

Lighting White

Step 1 : Paste the drawing on the wall

Step 2 :Drilling

Step 3 :Fix the white nut on the number

Step 4 : Wire Function

Red / white / brown is postive electrode .
Black / white&black wire is negative electrode.
Positive connect to positive
Negative connect to negative

Step 5 : Connect the wire

Tangle wires of the same color together

Step 6 : Connect the power supply

White wire connect brown
Whire&black wire connect black

Installation note:

1. The power supply is best placed behind the wall or behind the board
2. If you have too many letters, please extend the wire. The specific operation is as follows
3. A general principle:
Connect wires of the same color
Black is negative
Red is positive
