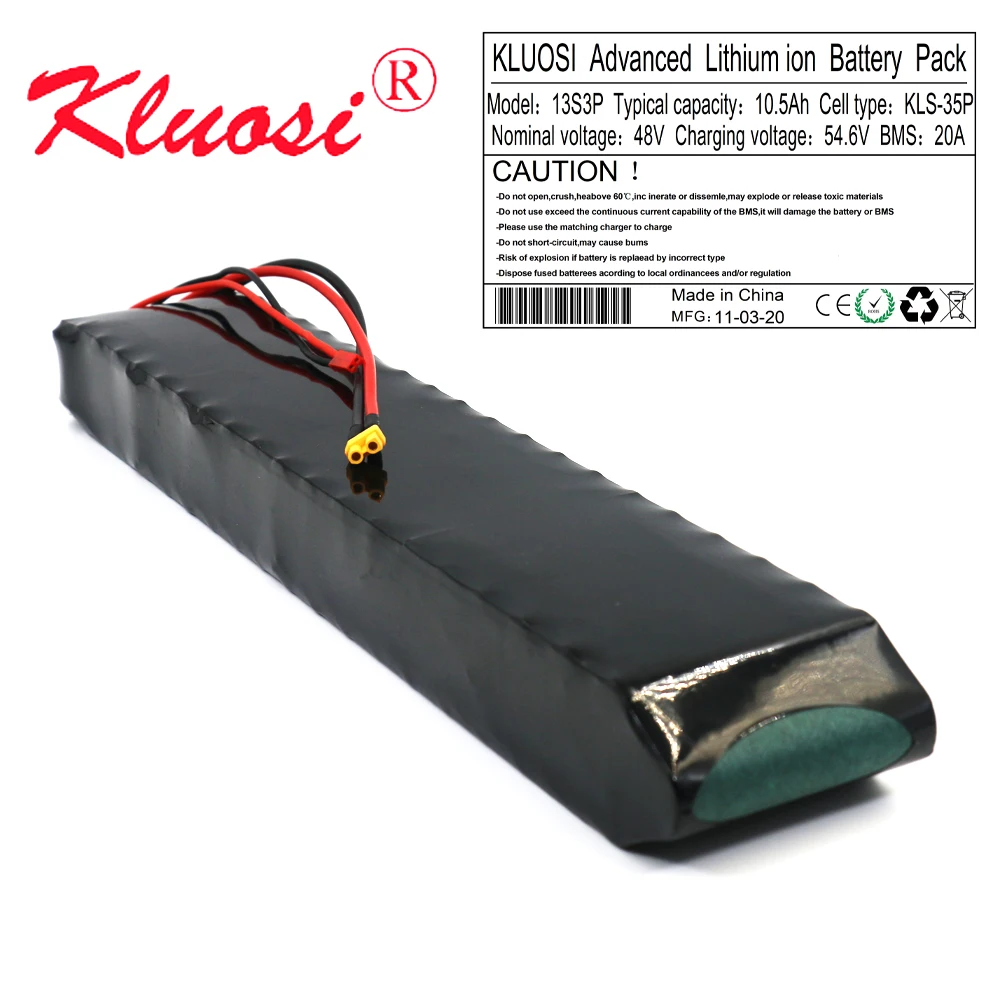

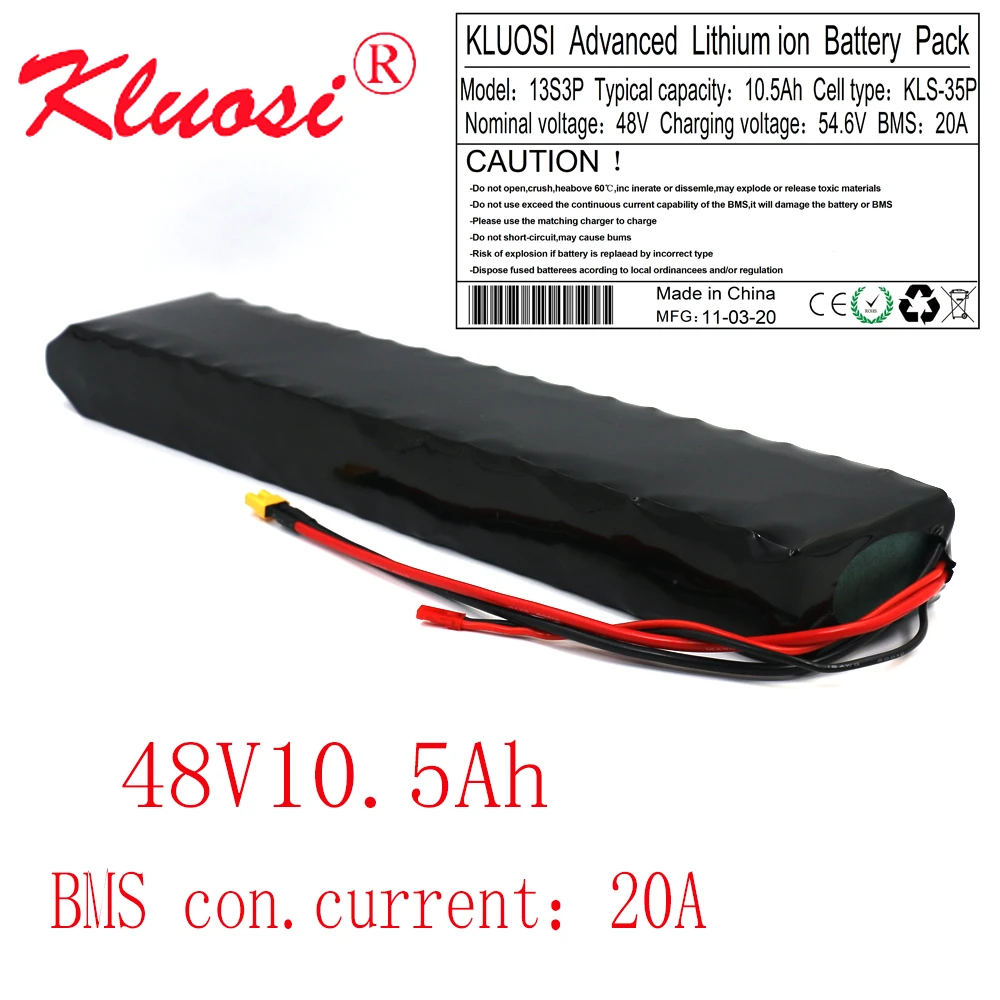

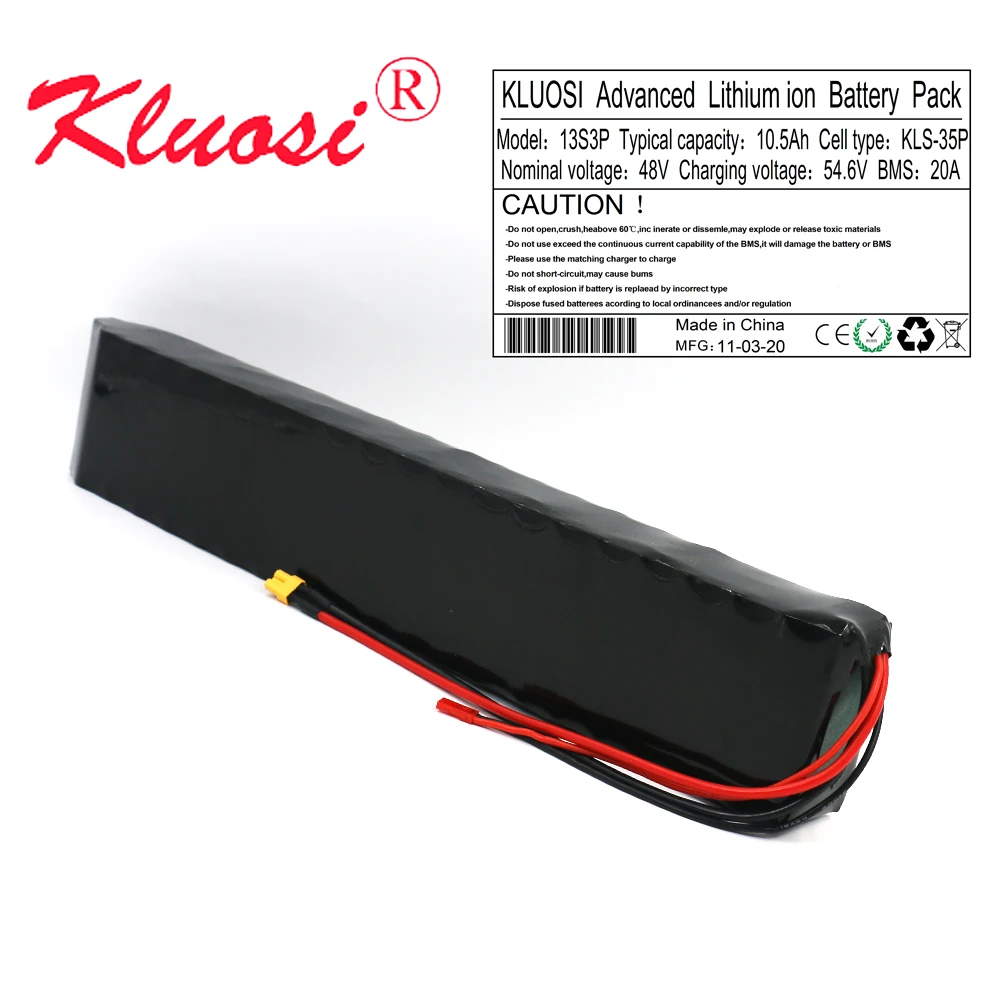

KLUOSI 48В 10,5Ач 11Ач 13S3P 10Ач 54,6В литий-ионный аккумуляторный блок с встроенной 20А BMS для 250Вт 450Вт 750Вт скутера Ebike Motor on.

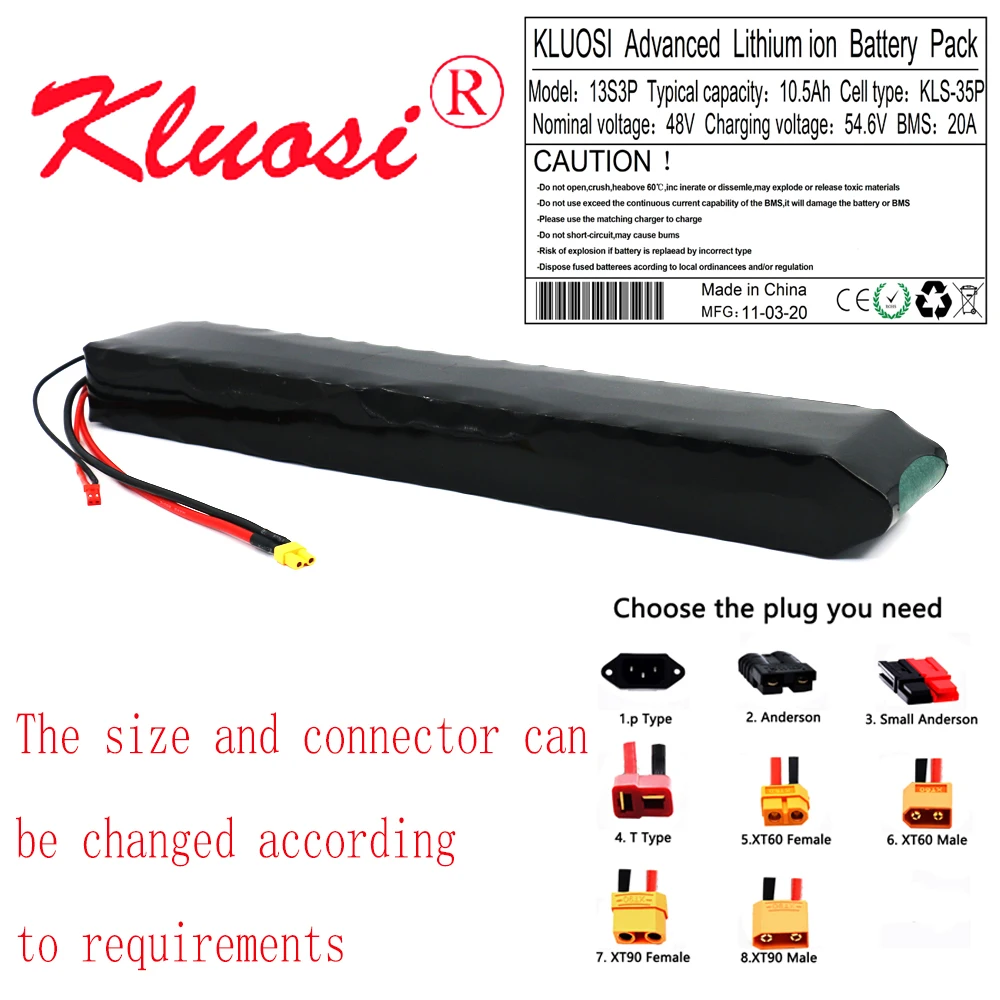

Brand NameKluosiModel NumberKLS48105AJSTXT30OriginMainland ChinaTypeLi-IonSize375*70*40mmWeight1900gCertificationNONEApplicationebikeVoltage48VNominal Capacity10.5AhMeasurement unitpiece/piecesEach pack111 407,09 ₽11 407,09 ₽Add to CartBuy now11 407,09 ₽loaderDescriptionThe battery pack can be customized according to customer requirements, please contact the store customer service.

Specifications
Model: KLS481050AJSTXT30
Cell type: KLS-35P(3.5Ah)
Cell count: 39 pieces(13S3P)
Nominal voltage: 48V
Charge voltage: 54.6V
Typical capacity: 10.5Ah/504Wh
Minimum capacity: 9.4Ah/451Wh
Rated power: 750Watt
BMS rated current: 20A discharge and 5A charge
BMS function:Overcharge, overdischarge, overcurrent, short circuit protection.

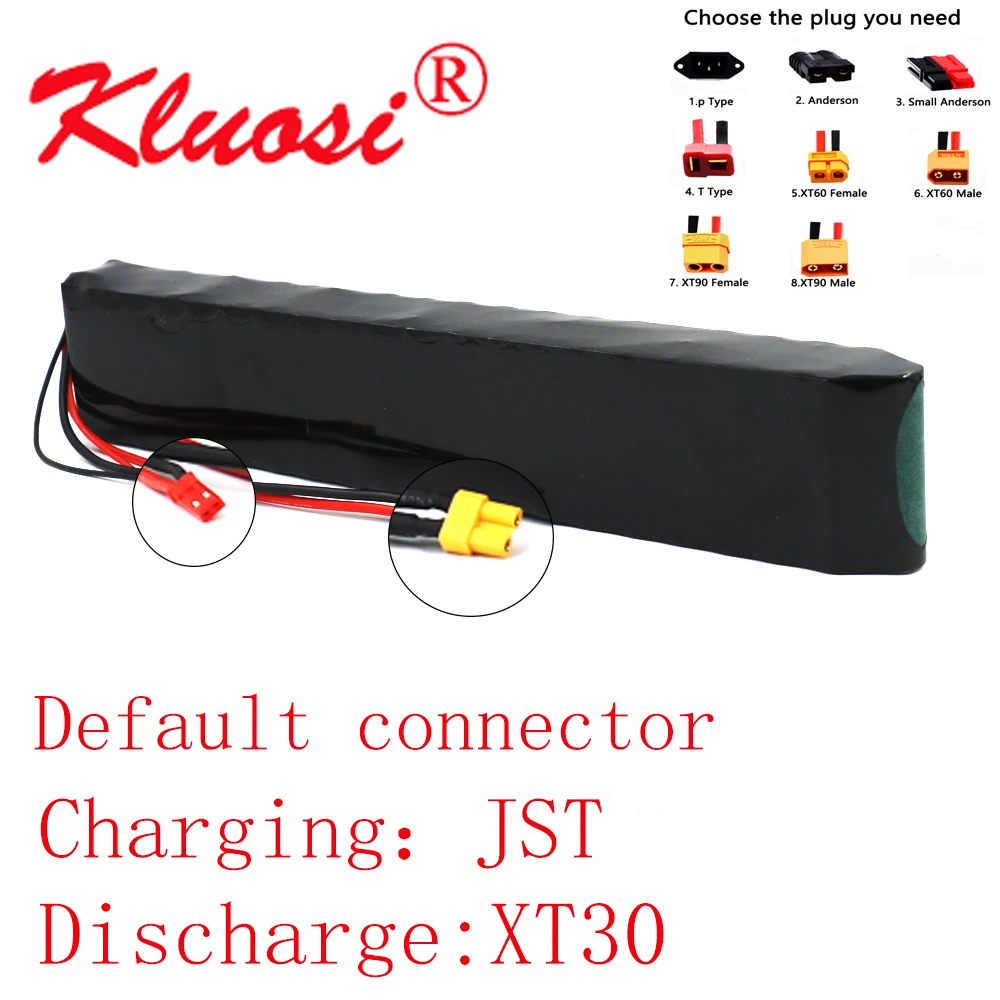

Connector: XT30 for discharge and JST for Charge
Package: heat shrinkable PVC, random color,with holder
Output voltage range: 36V-54.6V
Discharge cut-off voltage: 36V
Charge cut-off voltage: 54.6V
Charge method: CC-CV
Max. Charge current: 5A
Charge temperature: 0-45 ° C
Discharge temperature: -10-60 ℃
Storage temperature: -20-45 ° C (3 months)
Cycle life: 80% DOD after 500 cycles

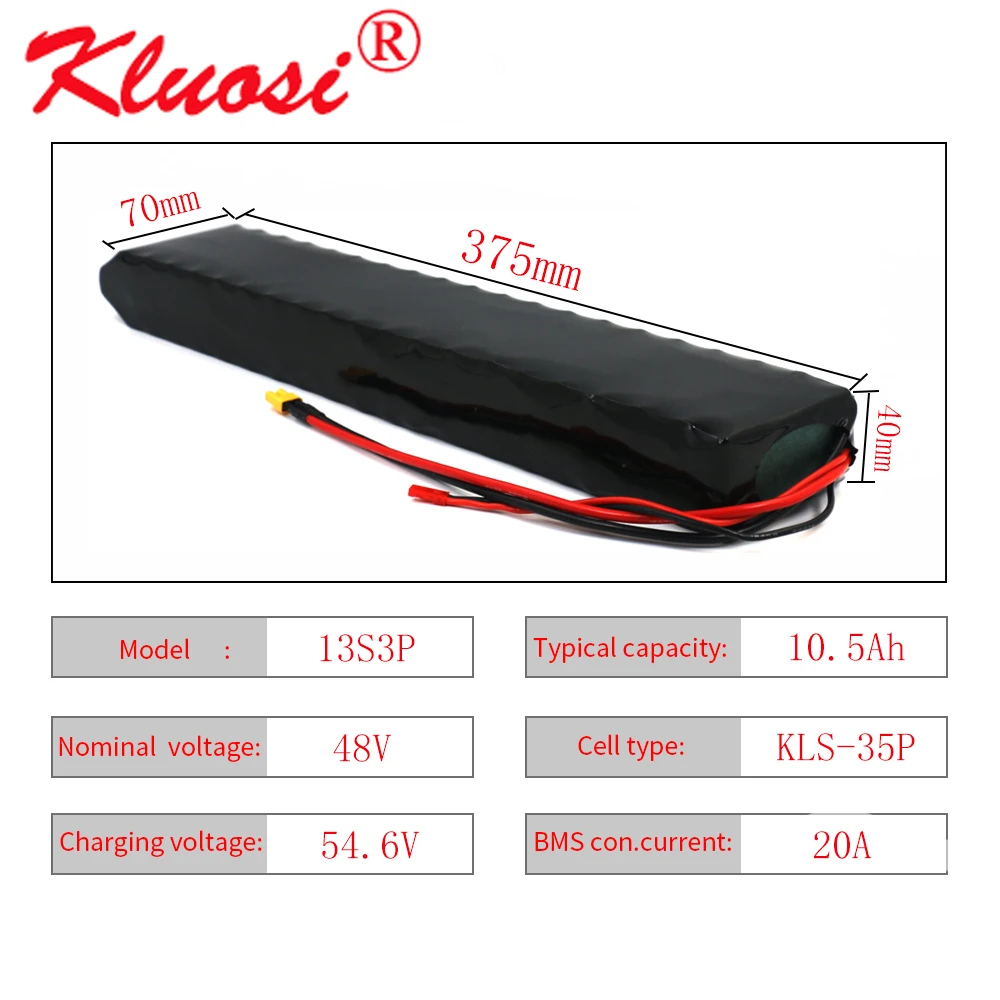

Size: 375*70*40 mm(±3mm)
Weight: 1900g(±50g)

Warranty
- Period: 1year
- Coverage: Cells, other part are not covered by the warranty.
- Ingress of water, disassembly, modification, No use Match charger,Short circuit, failure due to personal reasons, etc., are not covered by the warranty.
- Treatment method: Send the replacement part to the buyer for replacement,Or communicate the appropriate solution with the seller.

Application
Suitable for less than 750W all 48V DC equipment. E-bike, scooters, etc.

About shipping
The default product is sent within 72 hours and the customized product is sent within the delivery period.
Shipping reference time,
PostNL: 15-45 working days,DDU,Air transport
China Post: 30-60 working days,DDU,Train transportation
Seller's Shipping Method :The seller uses different logistics methods according to different regions. DDU or DDP. 15-60 working days. Air or Train.
UPS:7-25 working days, DDP,Air transport
FedEx:7-25 working days ,DDP,Air transport
Shipping list:
1 battery pack

Warning
Battery is a dangerous product. Before purchasing, please make sure that you understand the relevant knowledge of the lithium battery, and you can safely complete the installation of the battery pack or have a professional person assist in the installation. Improper operation may cause safety accidents, such as fire, explosion or equipment damage etc.. Please take all necessary precautions when using the battery.

Note:
*The default price does not include duty and tax,Except for special instructions.
* The weight of postal packages is limited to 2 kg. If you buy multiple products and the total weight exceeds 2 kg, it will be sent in multiple packages
* The weight and size data are obtained by manual measurement and may be subject to deviation.
* The performance parameter data comes from the KLUOSI laboratory. The actual test results will be affected by the test conditions (such as temperature, wire loss, test equipment accuracy, test parameters, etc.). Please perform multiple tests and take the average of the results to reduce the deviation.
The temperature is 25 degrees Celsius, and the deviation between the pure resistance discharge test results within the performance parameters and the description data is within 10%.

---
