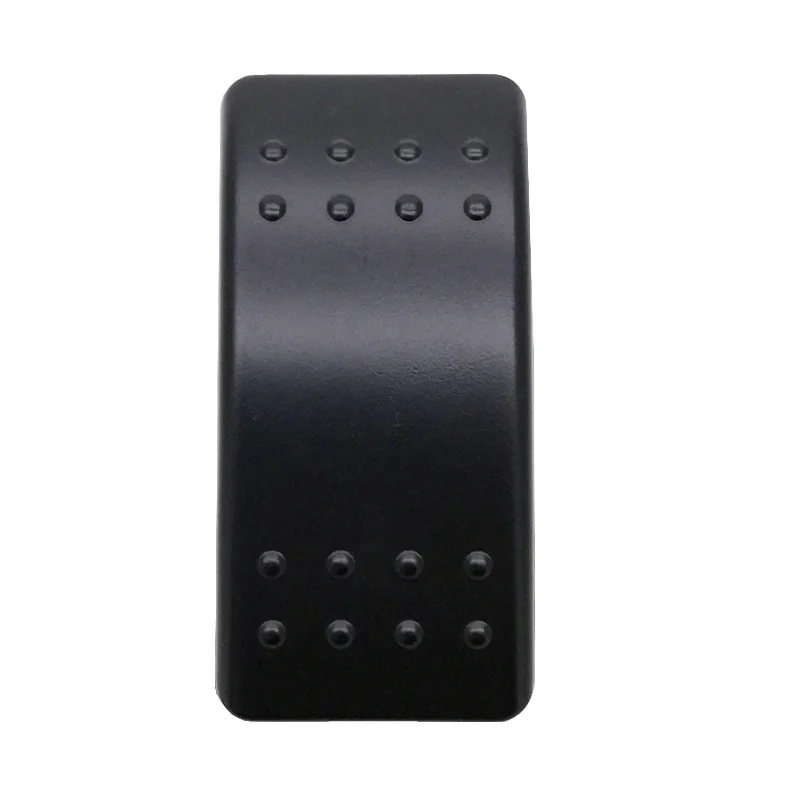

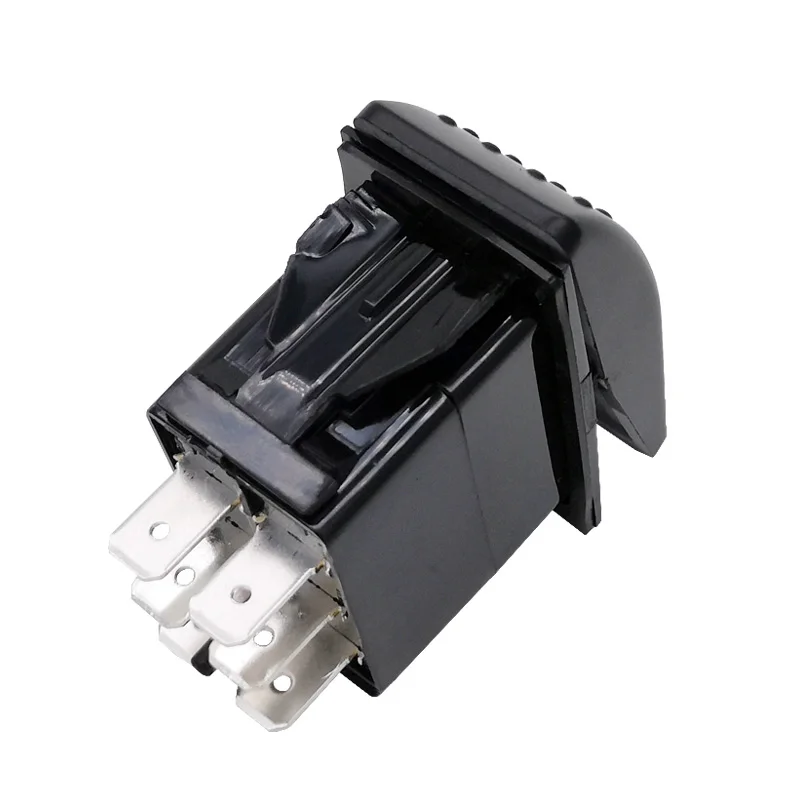

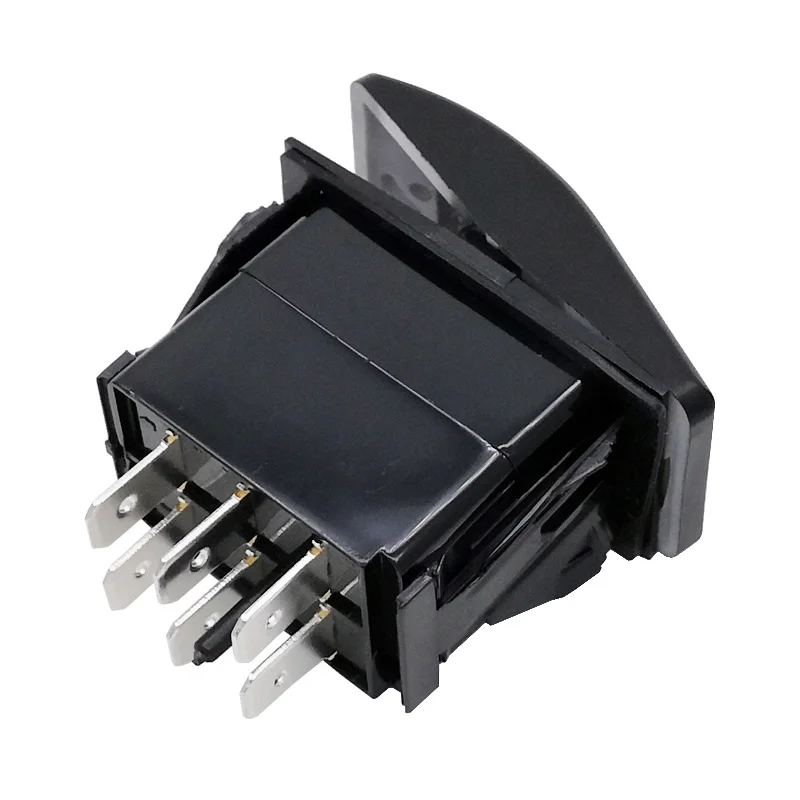

Newly 3 Position Momentary No Light 6PIN Car Truck 12 Volt Rocker Switch

Description

• Product Number: 19100905-2

• LED Color: NO LED

• LED Quantity: 0 lamp

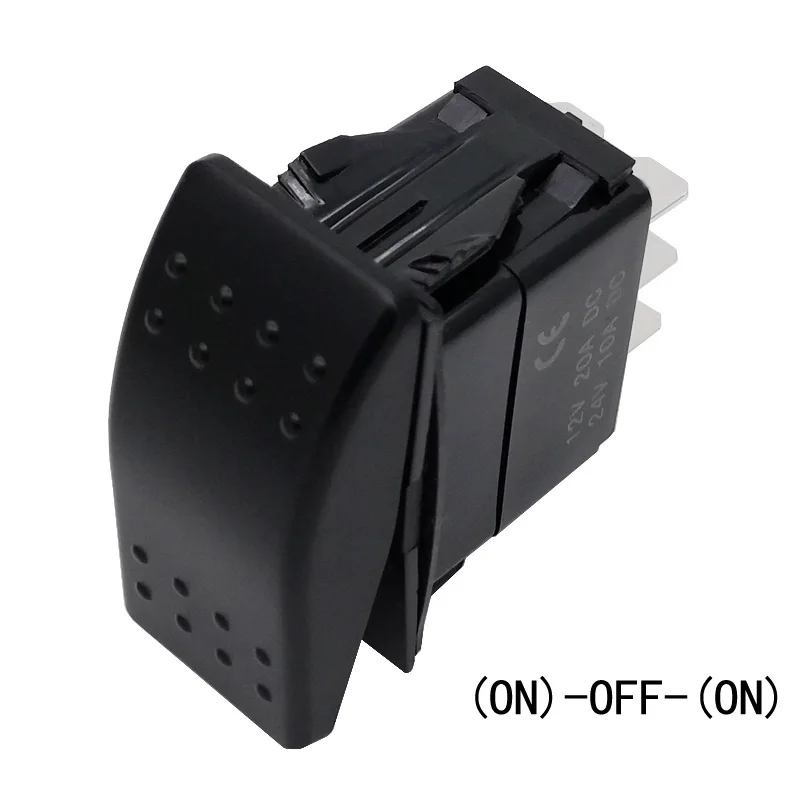

• Operation Type: (ON) OFF (ON)

• Pin: 6 PIN

• Housing Color: Black

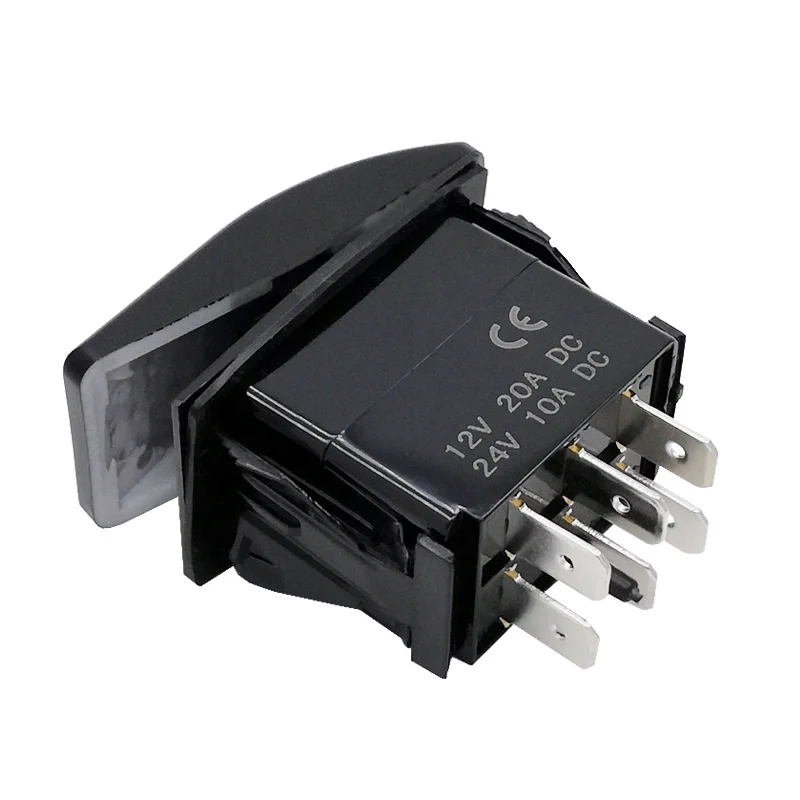

• Rating: DC 12V/20A and DC 24V/10A

• Terminal size: 6.3mm

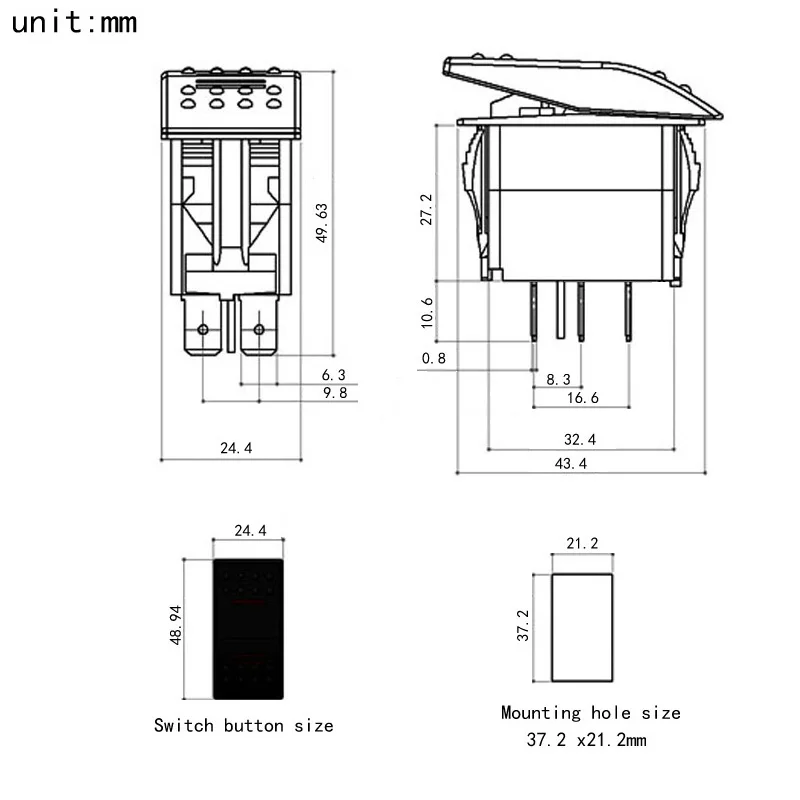

• Mounting Hole Size: 37.2mmX 21.2mm

• Waterproof Degree: IP67

• Certificate: CE

• Symbol Customized: Accept

• What You Got: 1x Rocker Switch,(ON)-OFF-(ON), 6 PIN, 0 Lamp

How to choose switch functions?

Momentary/self-reset: when press the button, switch on; when release the button, the

actuator return.

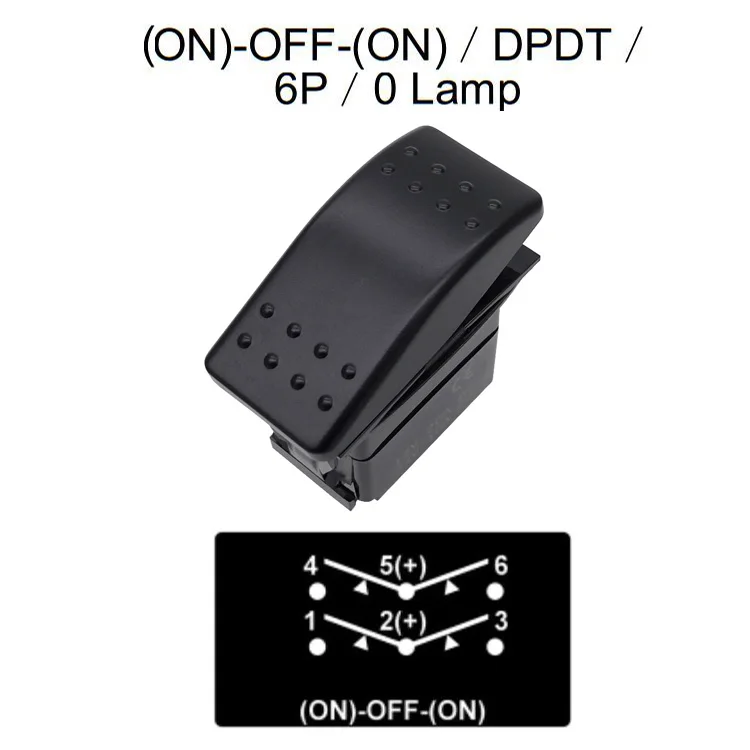

Mom-Off-Mom Momentary spring loaded 2-way rocker switch. Use the DP switch wiring when using the momentary switch as an electric window control. Use the SP switch wiring when using the momentary switch as a winch control.

Features:

Operate Easily:

Big button, very convenient when you drive

Product Quality Protection:

CE certified quality, Output short protection, overload protection, multiple protection

Long Use Time:

Made of well-conductive pins, environmentally friendly and flame retardant material.

High Waterproof Degrees:

It effectively protects the switch against sudden splashes.

Widely Use:

Special 6 Pin switch, rated at 20amp/12v and 10amp/24v

Special Service:

Our pattern is accept the customized service.We have many designs to show you.
