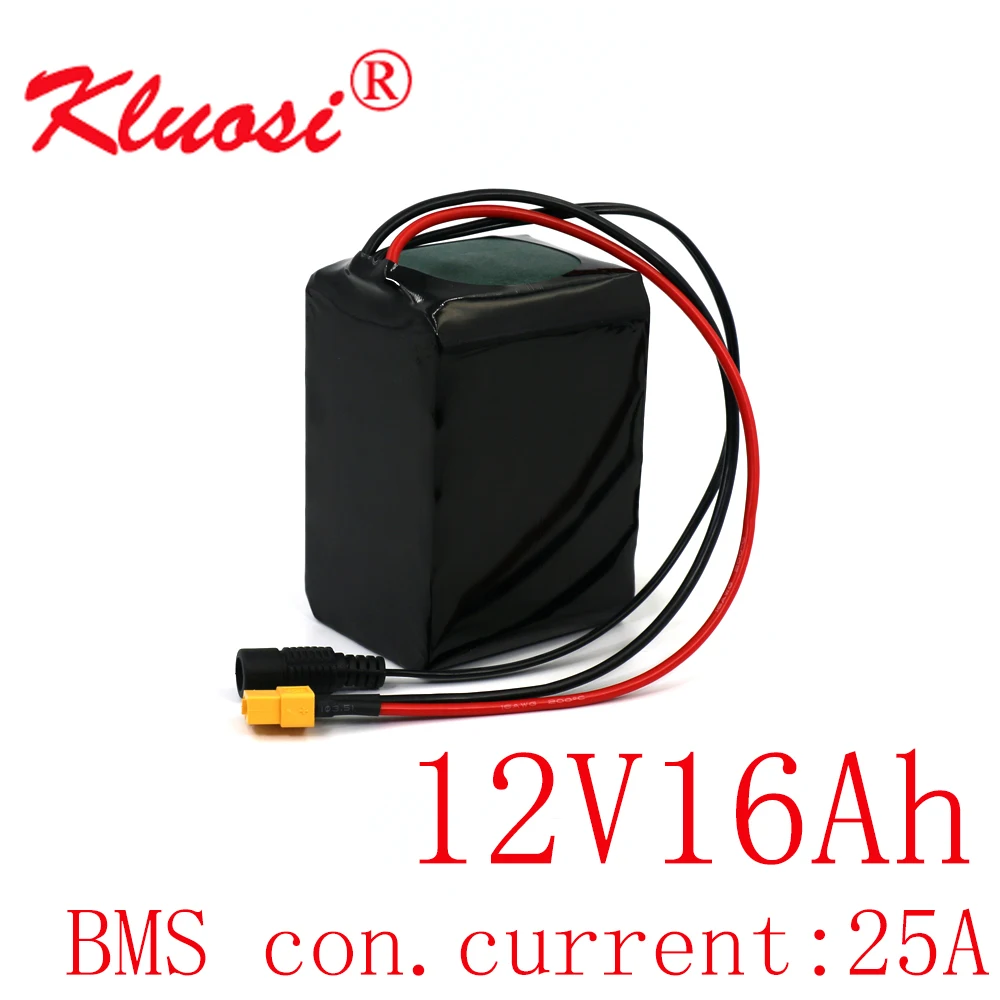

KLUOSI 3S5P 12V 16Ач 10,8V 12,6V Литиевый аккумуляторный блок с 25A BMS 250W высокой емкостью для моторных скутеров, солнечной энергии, освещения и т.д.

Brand NameKluosiModel NumberKLS126160AD25AOriginMainland ChinaTypeLi-IonSize100*55*70mmWeight750gCertificationNONEApplicationmotorVoltage12.6VNominal Capacity16AhMeasurement unitpiece/piecesEach pack14 010,87 ₽4 010,87 ₽Add to CartBuy now4 010,87 ₽loaderReviews

4,0

2 reviews10100Top reviewsWith photosFrom Russia

All stars

All starsAdditionalTanguy P.29 December 2021

Nice package, but received without XT-60 connector. 11V to 12.6V required 7Ah, far from 16 on the description. Blue protection, not black. I suppose the batteries are around 2200mAh each. Also the secondary DC female connector is dangerous, do not fit well with mines and made a shortcut on plug

Show more1Tanguy P.17 February 2022

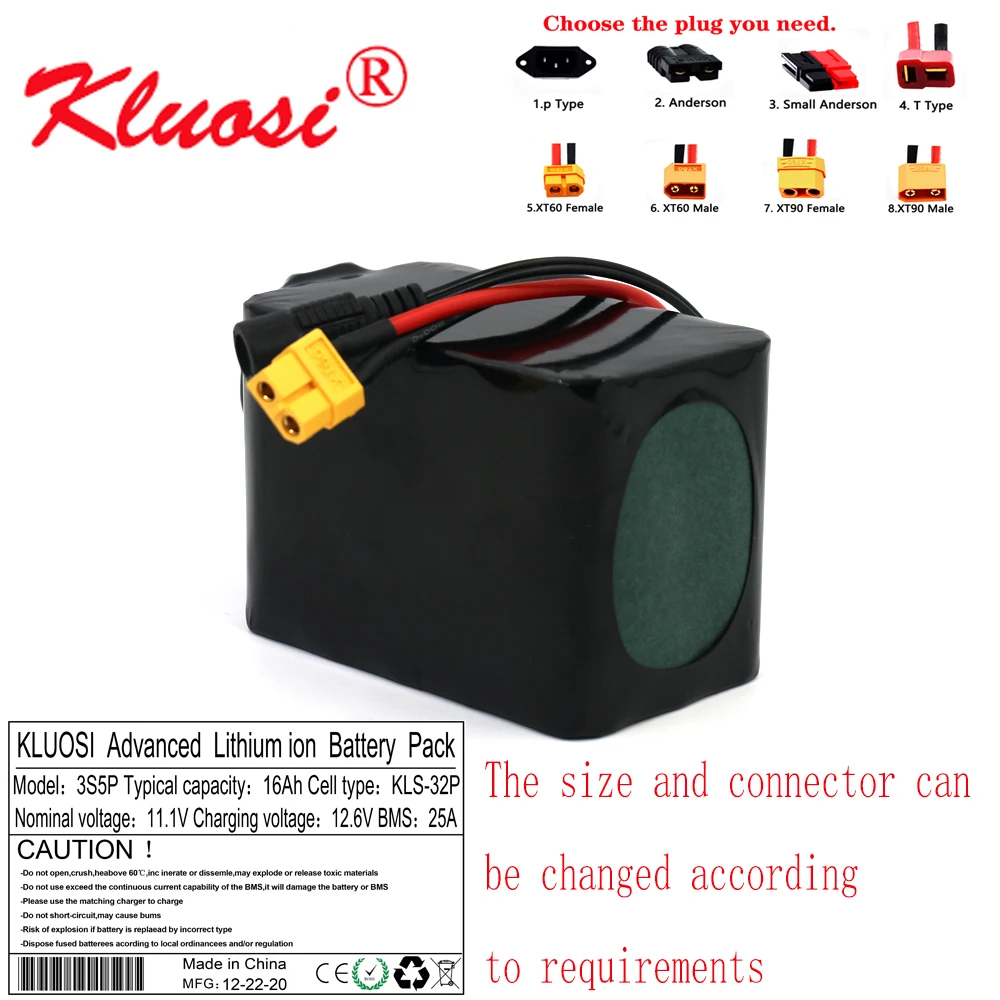

Show moreOpen 2 reviewsDescriptionThe battery pack can be customized according to customer requirements, please contact the store customer service.

Specifications

Model: KLS126160AD25A

Cell type: KLS-32P(3.2Ah)

Cell count: 15 pieces(3S5P)

Nominal voltage: 11.1V

Charge voltage: 12.6V

Typical capacity: 16Ah/177Wh

Minimum capacity: 14.4Ah/159Wh

Rated power: 250Watt

BMS rated current: 25A discharge and 5A charge

BMS function:Overcharge, overdischarge, overcurrent, short circuit protection.

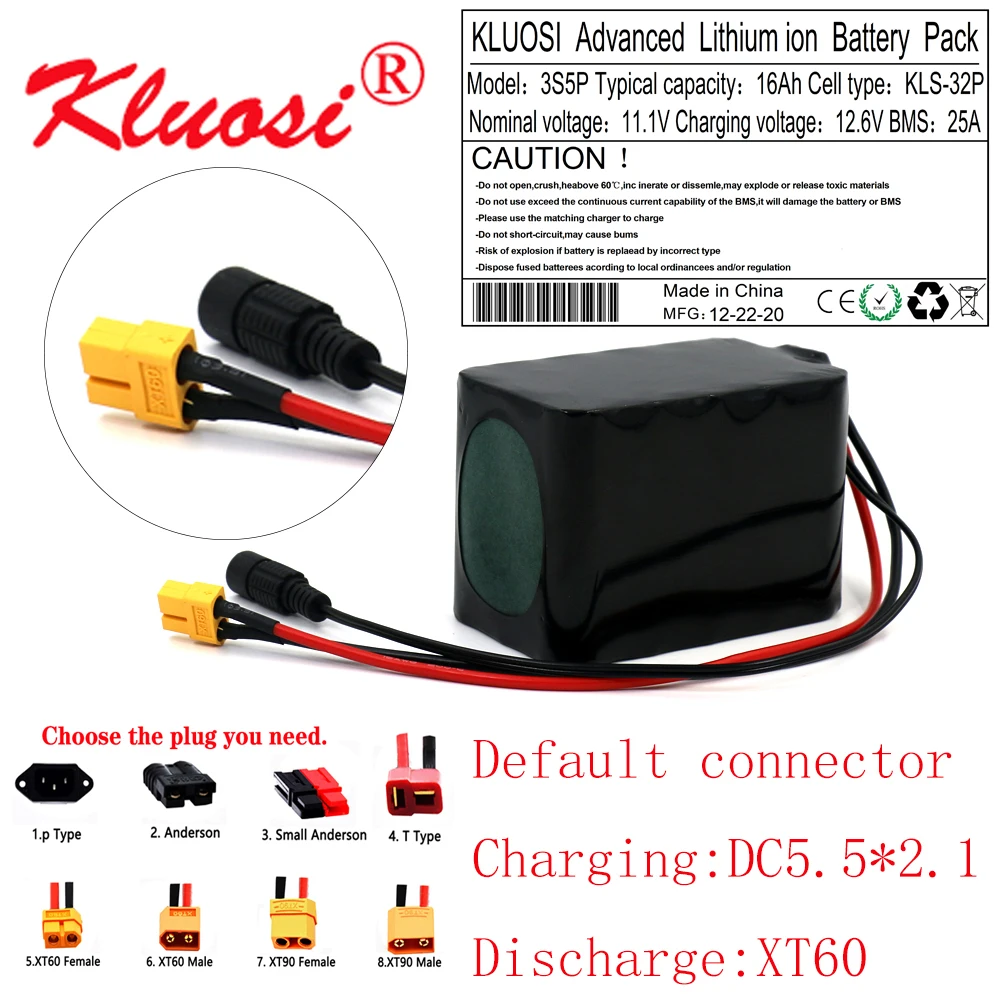

Connector: XT60 for discharge and DC5521 for charge

Package: heat shrinkable PVC, random color

Output voltage range: 7.5V-12.6V

Discharge cut-off voltage: 7.5V

Charge cut-off voltage: 12.6V

Charge method: CC-CV

Max. Charge current: 5A

Charge temperature: 0-45 ° C

Discharge temperature: -10-60 ℃

Storage temperature: -20-45 ° C (3 months)

Cycle life: 80% DOD after 500 cycles

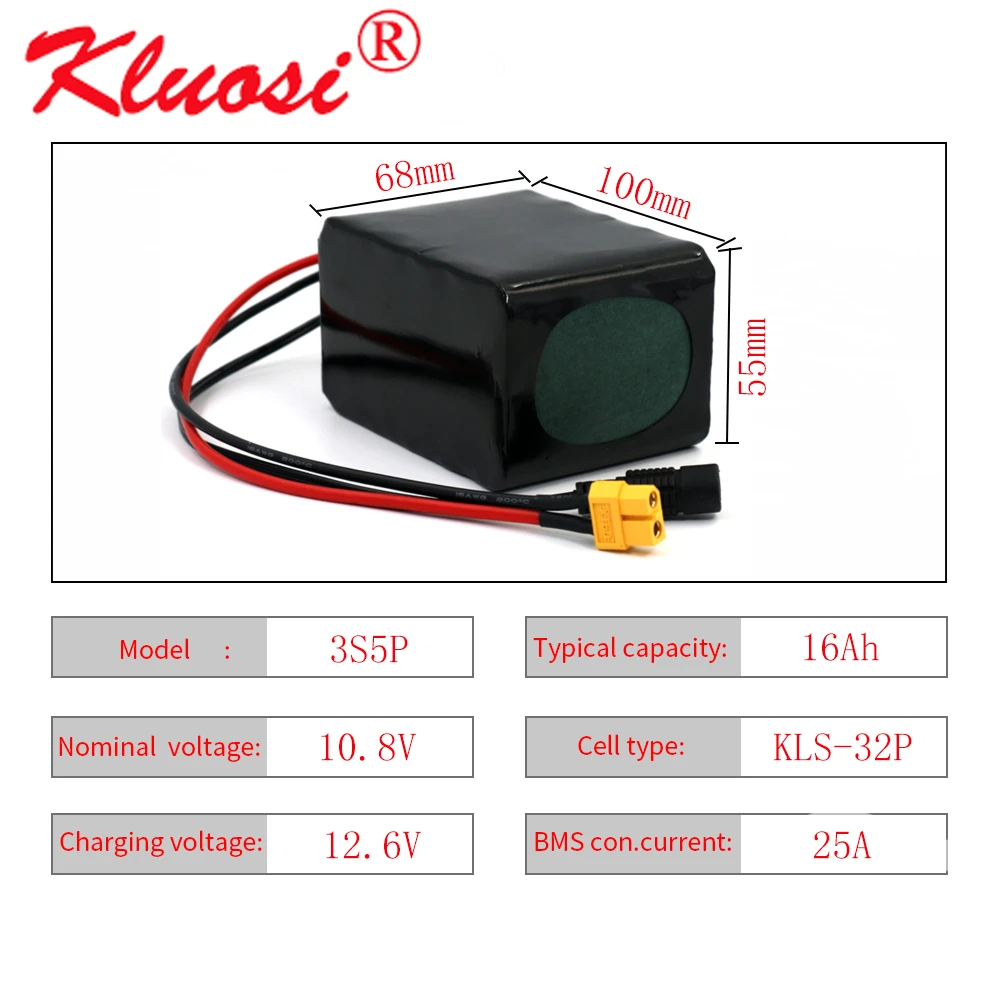

Size: 100 * 55 * 70 mm(±3mm)

Weight: 750g(±50g)



Warranty

- Period: 1year

- Coverage: Cells, other part are not covered by the warranty.

- Ingress of water, disassembly, modification, No use Match charger,Short circuit, failure due to personal reasons, etc., are not covered by the warranty.

- Treatment method: Send the replacement part to the buyer for replacement,Or communicate the appropriate solution with the seller.



Application

Suitable for less than 250W all 12V DC equipment. E-bike, scooters, etc.



About shipping

The default product is sent within 72 hours and the customized product is sent within the delivery period.

Shipping reference time,

PostNL: 15-45 working days,DDU,Air transport

China Post: 30-60 working days,DDU,Train transportation

Seller's Shipping Method :The seller uses different logistics methods according to different regions. DDU or DDP. 15-60 working days. Air or Train.

UPS:7-25 working days, DDP,Air transport

FedEx:7-25 working days ,DDP,Air transport

Shipping list:

1 battery pack



Warning

Battery is a dangerous product. Before purchasing, please make sure that you understand the relevant knowledge of the lithium battery, and you can safely complete the installation of the battery pack or have a professional person assist in the installation. Improper operation may cause safety accidents, such as fire, explosion or equipment damage etc.. Please take all necessary precautions when using the battery.



Note:

*The default price does not include duty and tax,Except for special instructions.

* The weight of postal packages is limited to 2 kg. If you buy multiple products and the total weight exceeds 2 kg, it will be sent in multiple packages

* The weight and size data are obtained by manual measurement and may be subject to deviation.

* The performance parameter data comes from the KLUOSI laboratory. The actual test results will be affected by the test conditions (such as temperature, wire loss, test equipment accuracy, test parameters, etc.). Please perform multiple tests and take the average of the results to reduce the deviation.

The temperature is 25 degrees Celsius, and the deviation between the pure resistance discharge test results within the performance parameters and the description data is within 10%.

---
