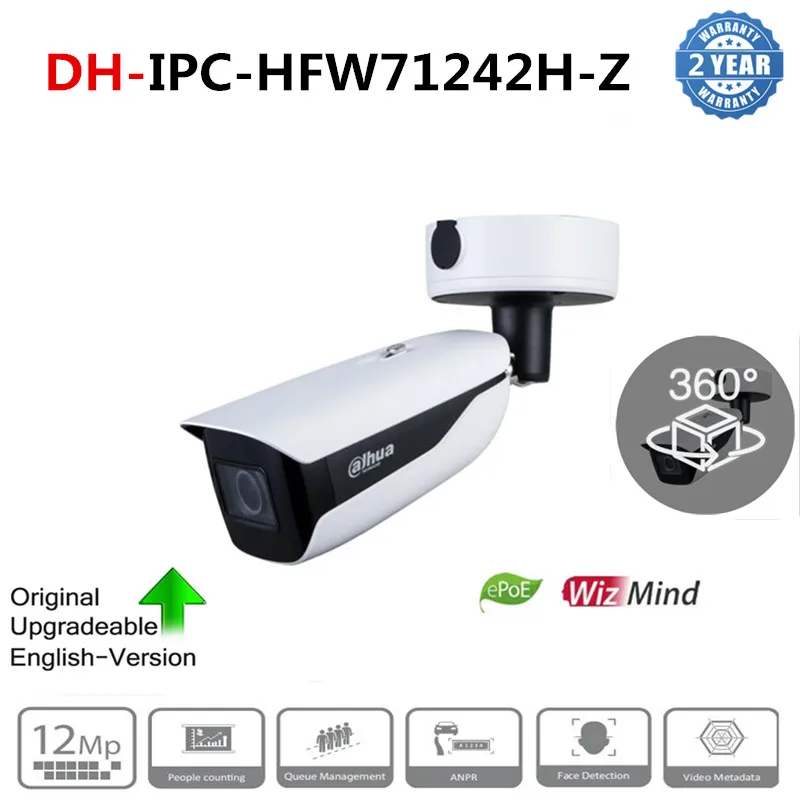

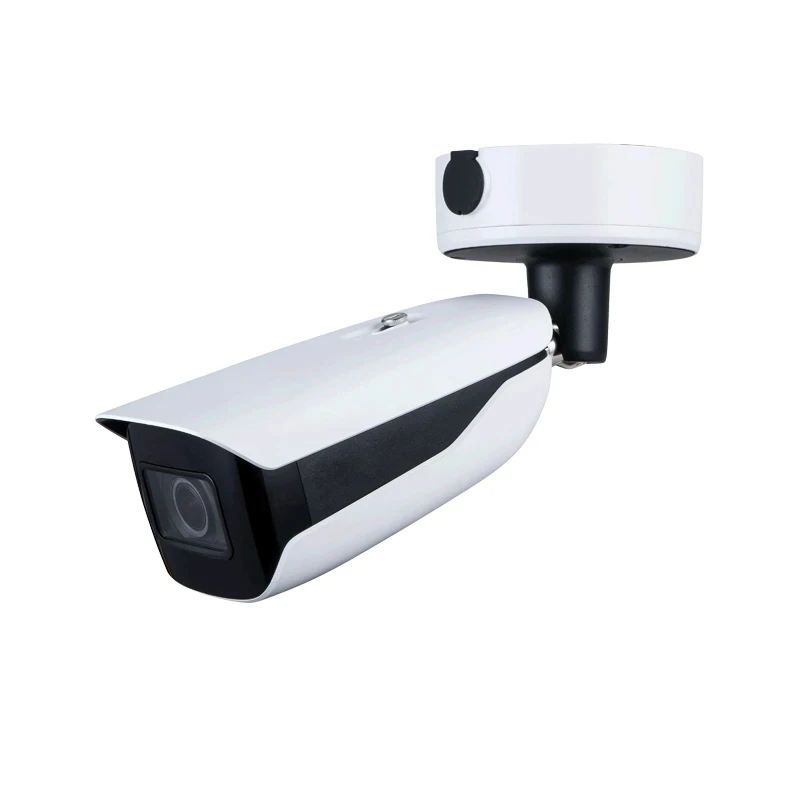

Dahua International Version IPC-HFW71242H-Z 12MP 2.7 mm-12 mm Motorized vari-focal Lens IR 60M ePOE WizMind Bullet IP Camera |

Dahua International Version IPC-HFW71242H-Z 12MP 2.7 mm-12 mm Motorized vari-focal Lens IR 60M ePOE WizMind Bullet IP Camera |

1. About camera :

This model is 100% original Dahua IP camera ,it support firmware updating !

2.About shipment :

If you can order ≥ 4pcs cameras , we will try to send items via fast shipping for free .
We will choose the best shipping method
for your order according to our experience as different countries has
different shipping rules . Besides , wish you kindly understand that we
could not remove the shipping cost for you if your shipping cost is too
high .

3.About service :

Please
contact our customer service if any doubt , We can support
Skype/WhatsApp/WeChat , please contact our customer service to get the
ID because we can't leave any contact information here as the rule of
aliexpress .

12MP IR Bullet WizMind Network Camera

> 12MP 1/1.7” CMOS image sensor, high image definition

> Outputs max. 12MP (4000 × 3000) @25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Built-in IR LED, max. IR distance: 60 m

> Rotation mode, DWDR; 3D NR, HLC, BLC, digital watermarking

> ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Perimeter Protection , Face Detection , Video Metadata , ANPR , People Counting , Queue Management

> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD card

> 24V AC/12V DC/PoE power supply (the power ports are different depending on the power supply); 12V DC power output, max. current 165mA; easy for installation.

> IP67, IK10 protection

> Five streams for three-channel HD video

Camera

Image Sensor

1/1.7”12Megapixel progressive CMOS

Max. Resolution

4000 (H) × 3000 (V)

ROM

4 GB

RAM

2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.01 Lux @F1.8

S/N Ratio

>56 dB

Illumination Distance

60m (196.9 ft) (IR LED)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Mount Type

φ14

Focal Length

2.7 mm-12 mm

Max. Aperture

F1.8

Field of View

Horizontal: 103°–44°
Vertical: 75°–33°
Diagonal: 135°–55°

Iris Type

Auto

Close Focus Distance

1.2 m (3.9 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

93 m

(305.1 ft)

37 m

(121.4 ft)

18 m

(59.1 ft)

9 m

(29.5 ft)

T

205 m (672.6 ft)

82 m

(269.0 ft)

41 m

(134.5 ft)

20 m

(65.6 ft)

Smart event

IVS

Abandoned object; missing object

Professional, intelligent

IVS (Perimeter Protection)

Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection

Face Detection

Face detection; track; optimization; snapshot; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting; Support Duration Optimal,Non-living Filtering

People Counting

Support tripwire number counting, people counting in area, and displaying and outputting yearly/monthly/daily reports.
Support queue management, and displaying and outputting monthly/daily reports.
Support 4 tripwire rules configuration, people counting in 4 areas, and 4 queue management functions.

Video Metadata

Vehicle detection, non-motor vehicle detection, face detection, human body detection, track, optimization, snapshot, report high quality picture, vehicle attributes (license plate, vehicle type, vehicle color, and vehicle brand), other attributes (sun visor, seatbelt, smoking, phoning, in-car accessories, and annual vehicle inspection mark), non-motor vehicle attributes (vehicle type, vehicle color, hat, driver number, cloth type, and cloth color), personnel attribute (cloth type, trousers type, cloth color, trousers color, knapsack, hat, gender and umbrella), face attribute (gender, age, expression, glasses, mask, and beard)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.264+
Smart H.265+

Video Frame Rate

Main stream: 4000 × 3000 @1-25/30 fps
Sub stream: 704 × 576@1-25fps, 704 × 480@1-30fps

Third stream: 1920 × 1080 @1-25/30 fps
Fourth stream: 1920 × 1080 @1-25/30 fps
Fifth stream: 704 × 576 @1-25 fps; 704 × 480 @1-30 fps

Stream Capability

5 streams

Resolution

12M (4000 × 3000); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296); 2M (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–16384 kbps
H.265: 32 kbps–14080 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

DWDR

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Audio Compression

G.711A; G.711Mu; G.726; AAC; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; video metadata; ANPR; people counting in area; stay alarm; people counting; people counting exception detection; queue management;safety exception

Network

Network

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P;RTMP

User/Host

20 (Total bandwidth: 240 M.)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS;Dahua Cloud

Browser

IE: IE9 and later
Chrome: Chrome 42 and later
Firefox: Firefox 48.0.2 and later

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

1 channel (3.5mm JACK port)

Audio Output

1 channel (3.5mm JACK port)

Alarm Input

3 channels in: 5mA 3V–5V DC

Alarm Output

2 channels out: 1,000mA 30V DC/500mA 50V DC

Power

Power Supply

12V DC/24V AC/POE+(802.3at)

Power Consumption

<19.32W

Environment

Operating Conditions

–40°C to +60°C (–40°F to +140°F) /Less than 95% RH

Storage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67; IK10

Structure

Casing

Metal + plastic

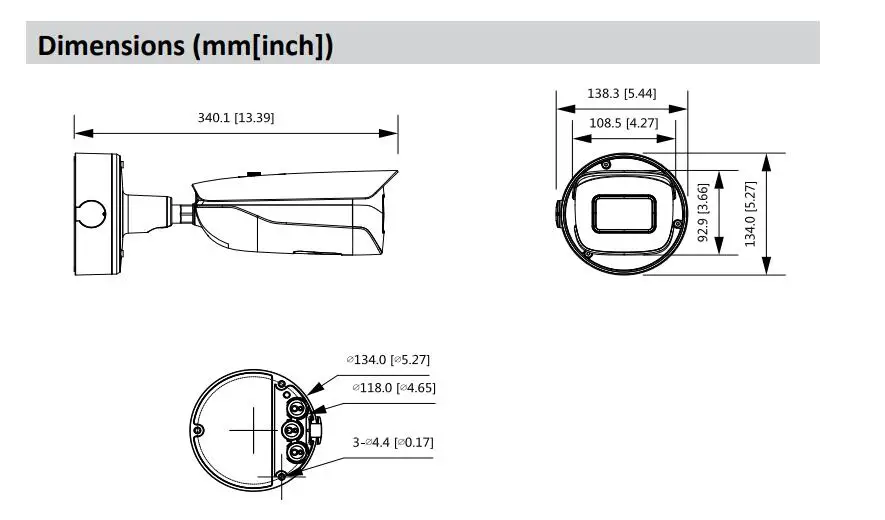

Dimensions

340.1 mm × 138.3 mm × 134 mm (13.39" × 5.44" × 5.28") (L × W × H)

Net Weight

9.11 kg (20.08 lb)

Gross Weight

11.21 kg (24.71 lb)

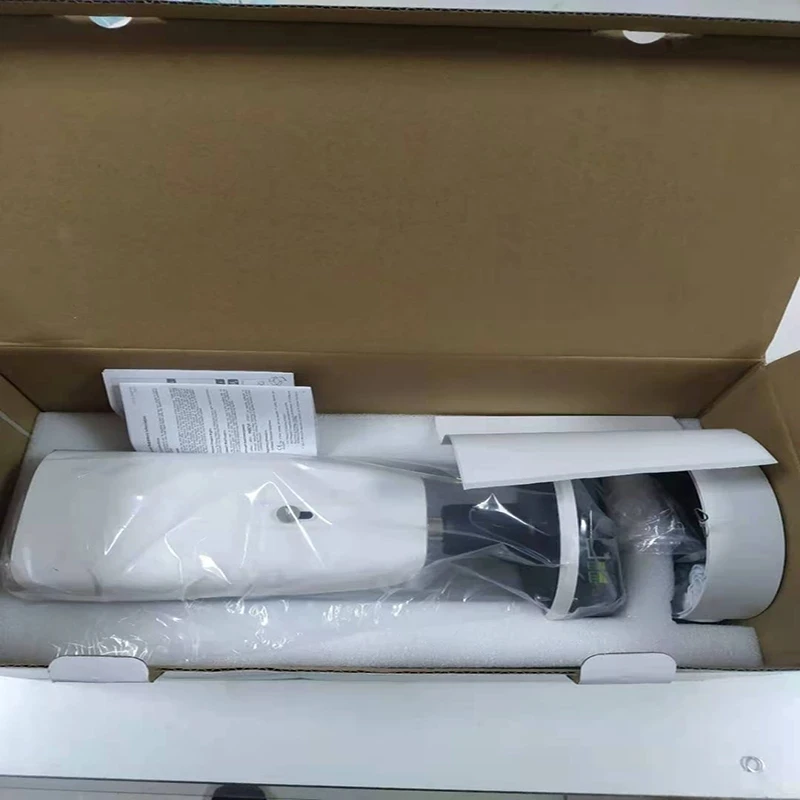

1.12MP IR Bullet WizMind Network Camera*1

2. screw bag *1

3. Waterproof accessories *1

Question: can you upgrade the firmware?
Answer: Yes. .itpportupgrade the firmware.

Question: What kind of warranty does the camera offer? What is the didtance of the IR in feet?
Answer: Ir is very good to 60 foot and fair to over 100 feet.

Question: are these night cameras?
Answer: Yes these is a day/night camera

Question: How default IP and login pass for connection to Camera
Answer: 192.168.1.108. User name is admin Password is left blank. You can set it once you're logged in.

Question:how do you factory reset?
Answer:You need to use the software that comes with the camera. There are no buttons. ask server forDahua discovery software.
