Duct Forming Production Line -U Shape AUTO Duct Line 5

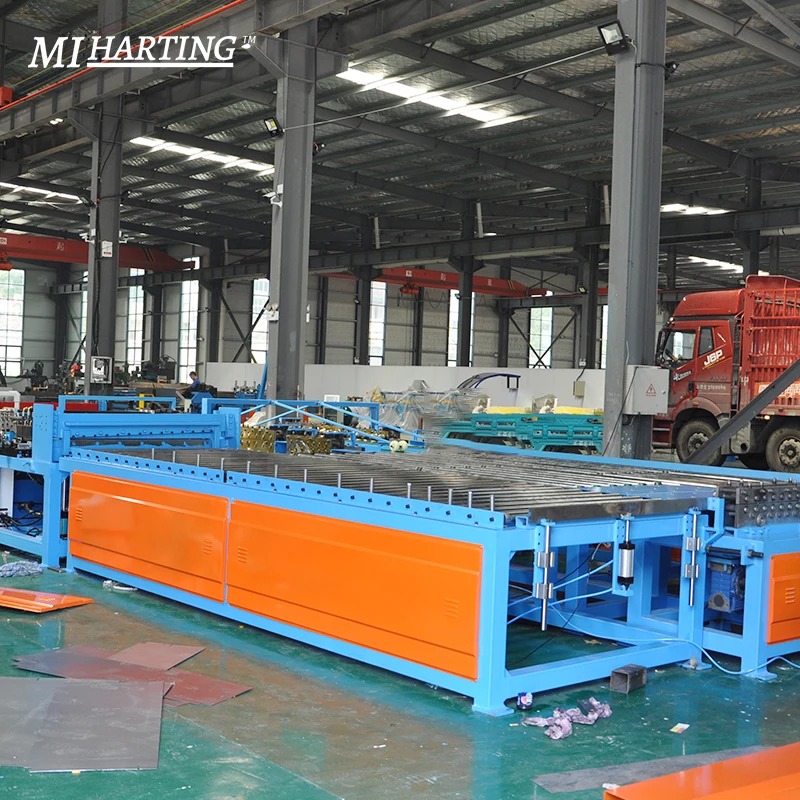

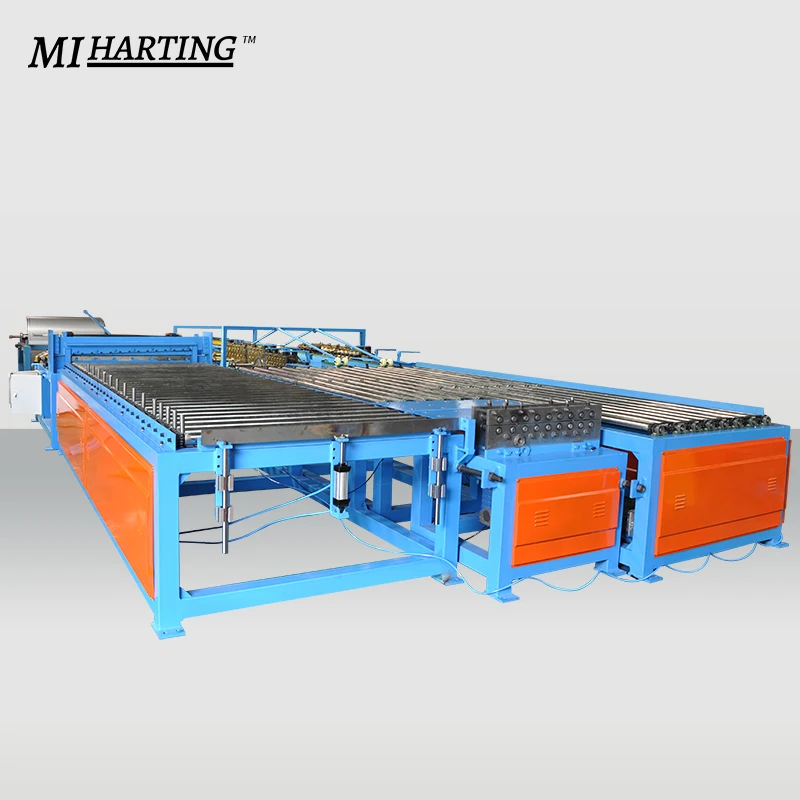

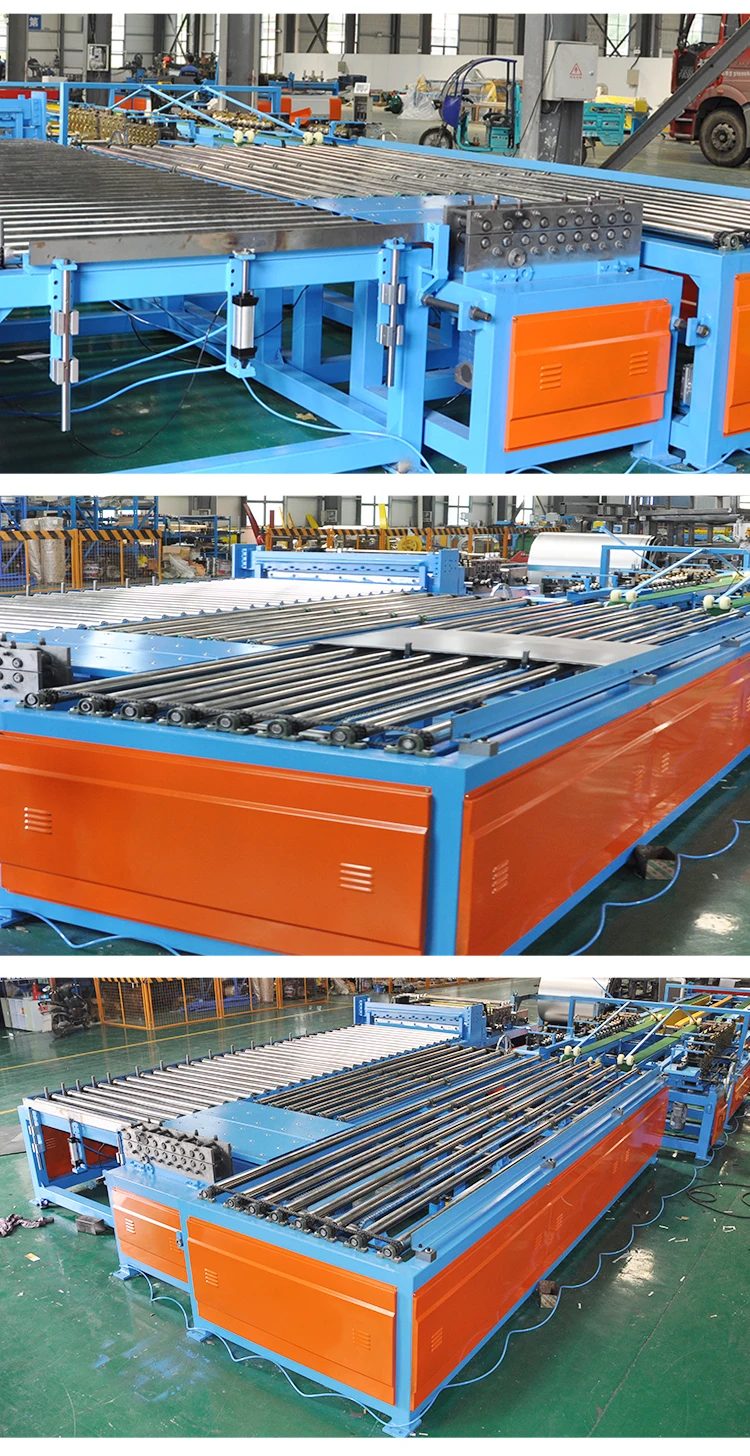

U Shape AUTO Duct Line 5 for Square Steel Ventilation Pipe

Function

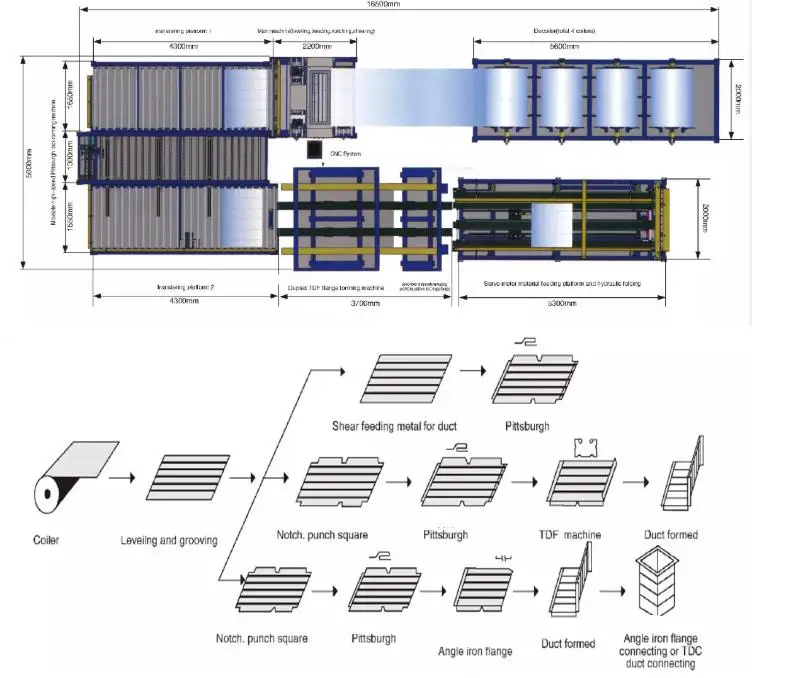

It's mainly for TDF/angle steel/C-shaped flange forming with daily processing capability of 1000-2500 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling , leveling, beading, punching,shearing, locking, forming TDF/angle steel/C- shaped flange and folding.

Advantages

1. The machine is U-shaped, easy to install and it's suitable for small-sized or mid-sized work-shops because it occupies a small piece.
2. The injection holes are used at both ends of the drive shaft, to enhance the bearing life.
3. Power bending function is used to prevent generating the waste and make sure perfect bending accuracy.
4.It only takes 20-25 seconds to make one L-shaped workpiece and the efficiency will double comparing with the linear type.
5.Without moving back and forth the fixed locking machine is able to improve the efficiency.
6.All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
7. Under the material-saving mode of CNC system, waste is less than 20mm per roll.
8.With production memory functions, the production orders can be tracked and checked.

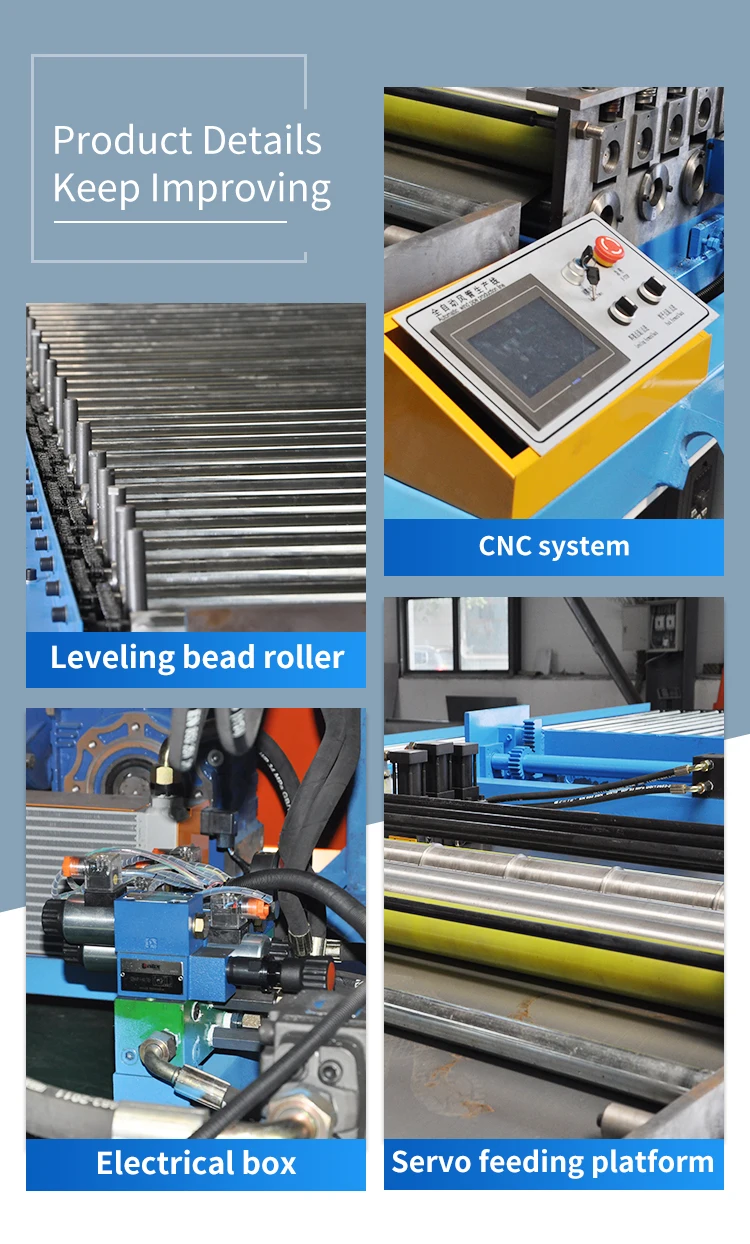

Basic Configuration

1.Two electric coil cradles, 4 material trays (5-7t each roll)
2.One rack
3.One host (line 2 host)
4.Two stainless steel roller conveyer platforms
5.One fixed joint locking machine
6.One duplex TDF flange forming machine
7.One duplex angle steel flange forming machine
8.One servo feeding platform
9. One hydraulic folding machine
10.One set of computer controlling system

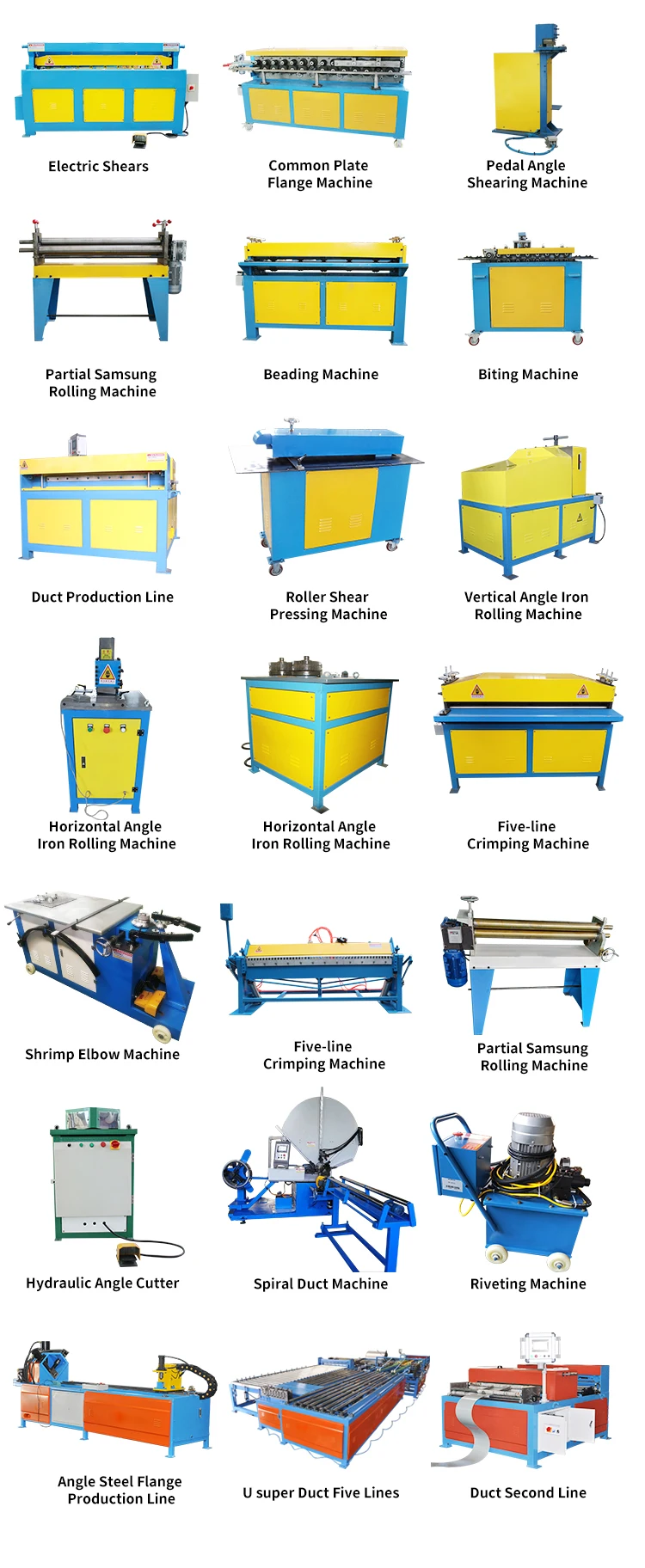

More machines for choice
