TS832 RC832 Boscam 5.8G 48CH 600mW FPV Transmitter Receiver Combo AV VTX RX Set 7.4-16V For Multicopter | Игрушки и хобби

Description:

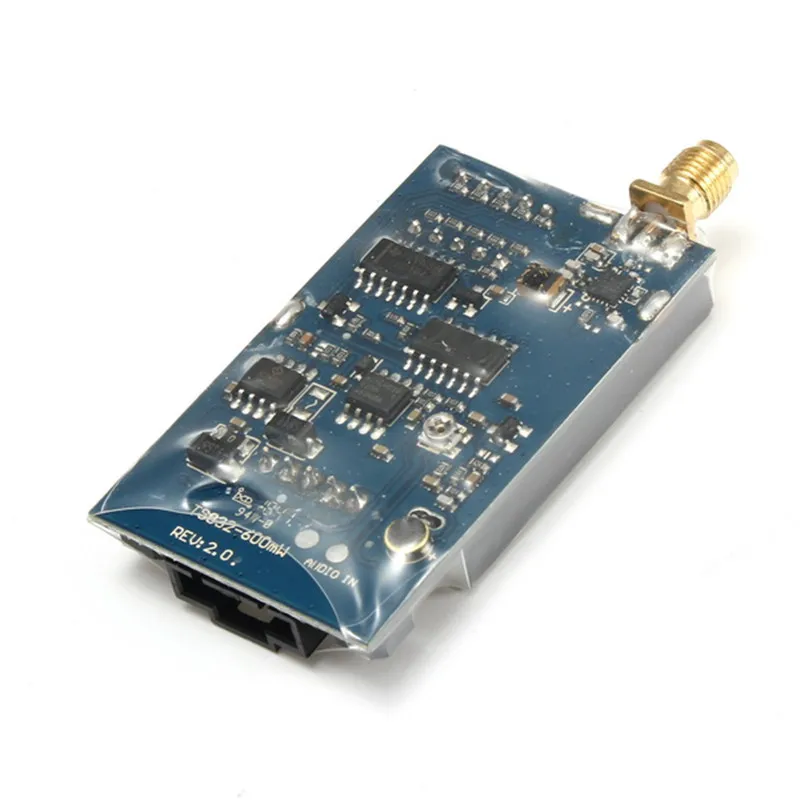

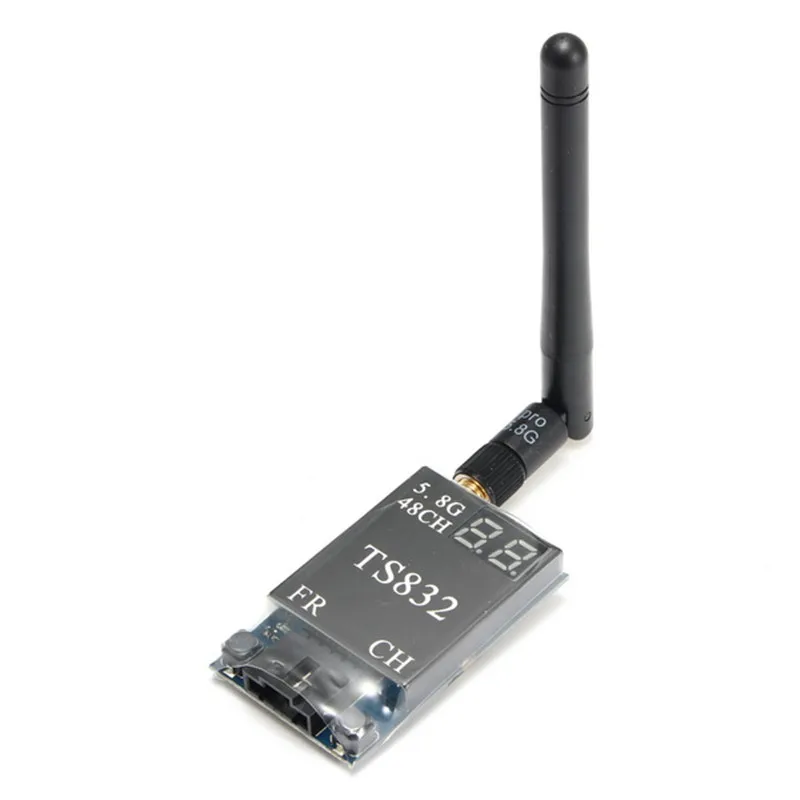

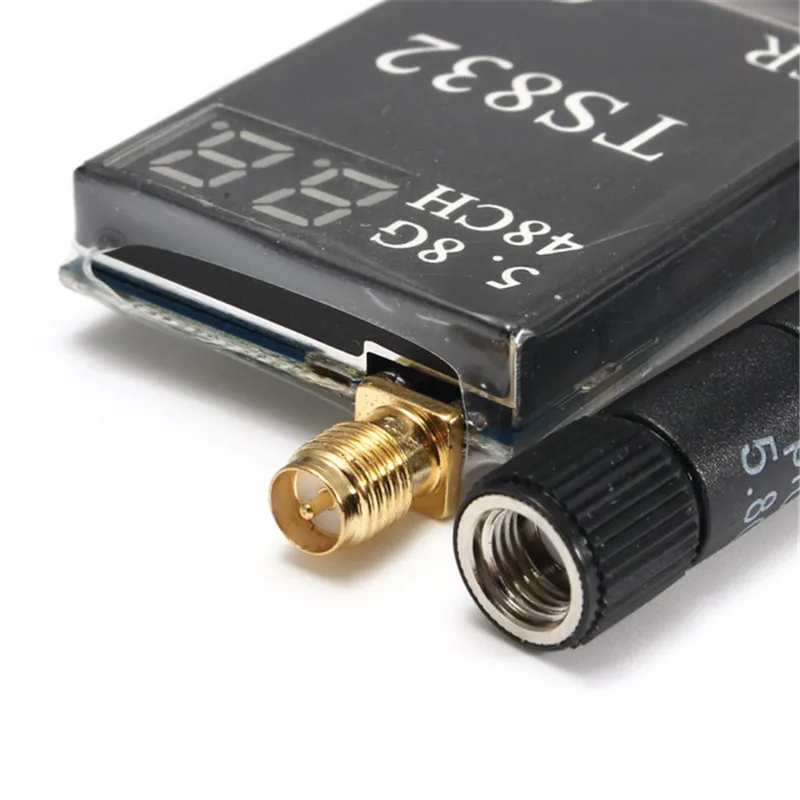

TS832 Transmitter
Item Name: TS832 transmitter
Antenna Gain: 2db
Frequency: 5.8G
Transmitting Power: 600mA
Power Input: 7.4-16V (3S Lipo suggested)
Video Format: NTSC / PAL Auto
Working Current: 220mA at 12V
Audio Bandwidth : 6.5M
Video Bandwidth: 8M
Weight: about 22g
Dimension: 54x 32x 10mm(excluding antenna)
Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug

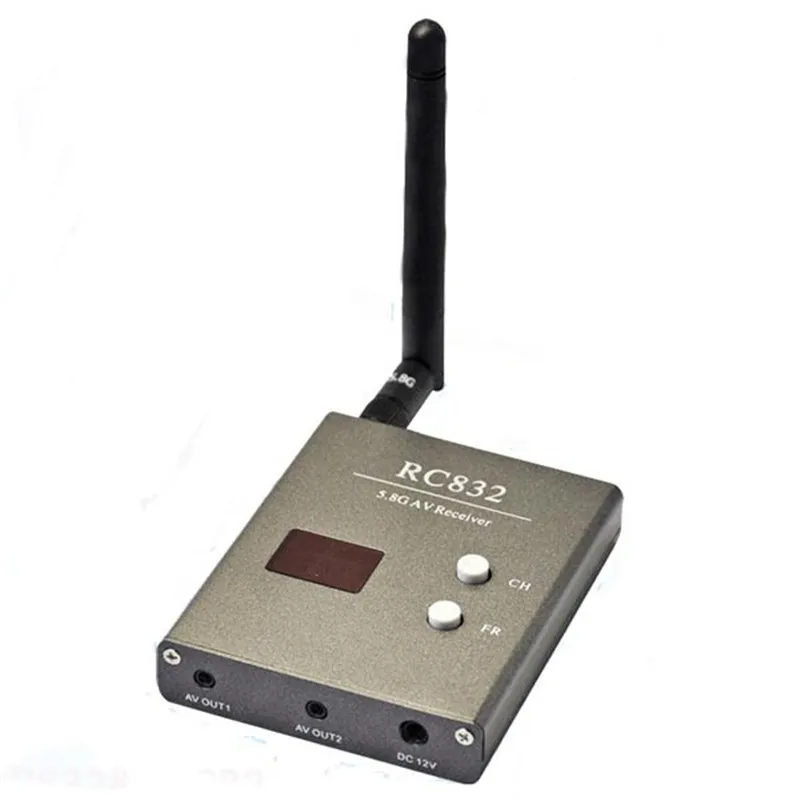

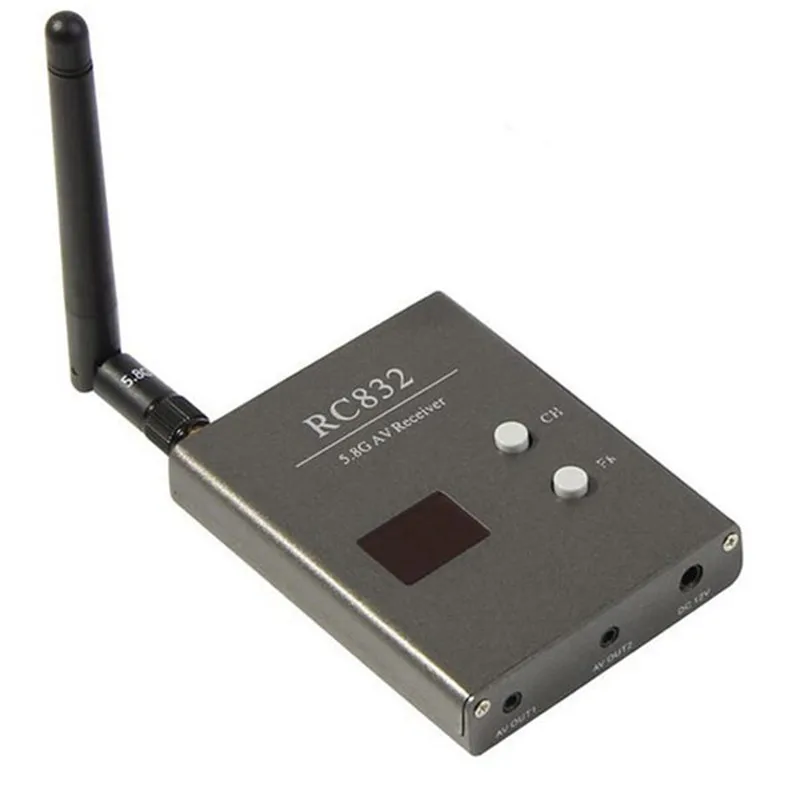

RC832 Receiver
Item Name: RC832 receiver
Antenna Gain: 2db
Antenna Impedance: 50Ω
Video Impedance: 75Ω
Video Format: NTSC/PAL auto
Power Input: 12V
Working Current: 200mA max
Dimension:  80x 65 x15mm
Weight: about 85g
Connector: receiver module side RP-SMA jack, antenna RP-SMA plug


Features:
48 channels choice to get the best transmitting quality.
Compatible with almost all 5.8G frequency
Smaller size with lighter weight.
32 CH compatible to all FPV 5.8g receivers.
5.8G 600mW 32 Channels AV wireless FPV  transmitter
Super small 200mA current for 600mW wireless transmitter power.

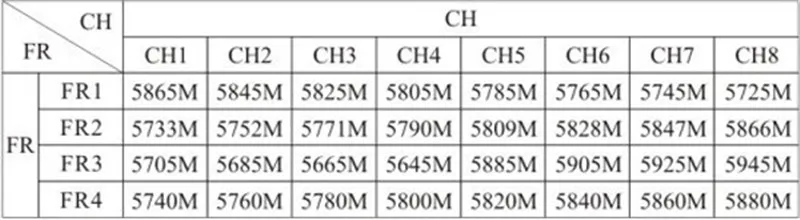

600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna.   Frequency:
    CH Band CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8 A(A) 5865MHz 5845MHz 5825MHz 5805MHz 5785MHz 5765MHz 5745MHz 5725MHz b(B) 5733MHz 5752MHz 5771MHz 5790MHz 5809MHz 5828MHz 5847MHz 5866MHz C(E) 5705MHz 5685MHz 5665MHz 5645MHz 5885MHz 5905MHz 5925MHz 5945MHz d(F) 5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 5880MHz E(R) 5658MHz 5695MHz 5732MHz 5769MHz 5806MHz 5843MHz 5880MHz 5917MHz F 5362MHz 5399MHz 5436MHz 5473MHz 5510MHz 5547MHz 5584MHz 5621MHz

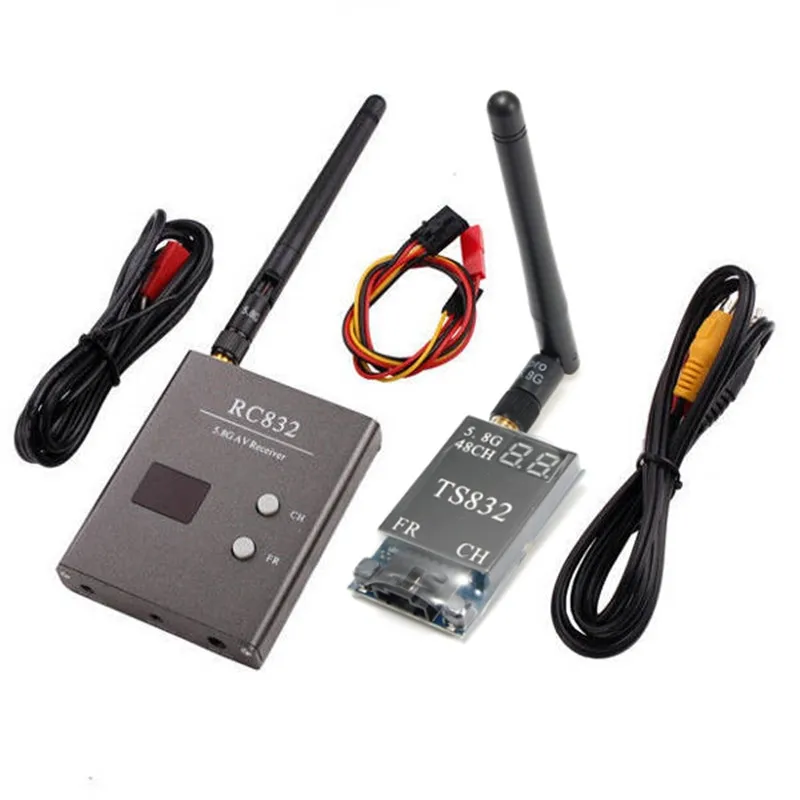

Package Included:
1 x TS832 48CH transmitter
1 x RC832 48CH receiver
3 x cable
2 x antenna

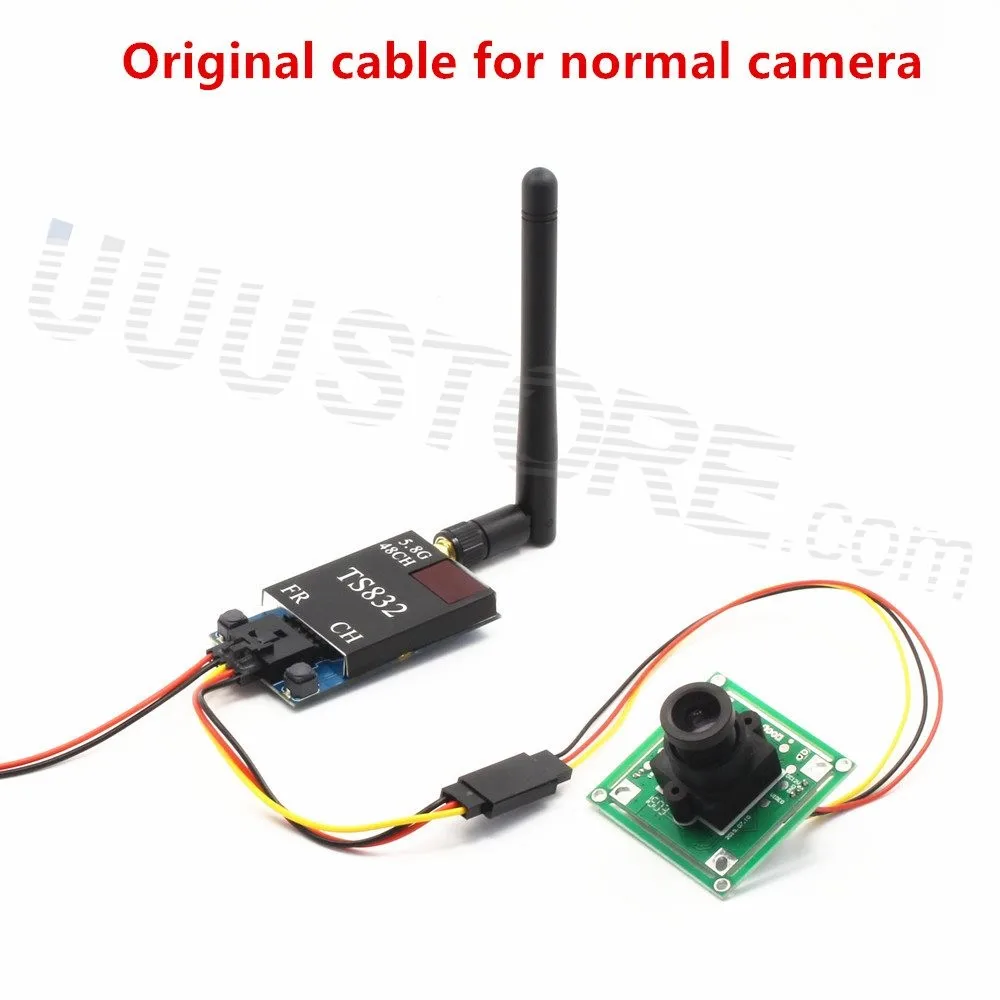

You can select to add gopro av cable(USB port camera) ,xiao yi av cable and sjcam  sj4000 av cable(Mini usb port camera),so that you can use your camera.     FOR Normal Camera





For SJ4000 camera(Mini usb port camera)

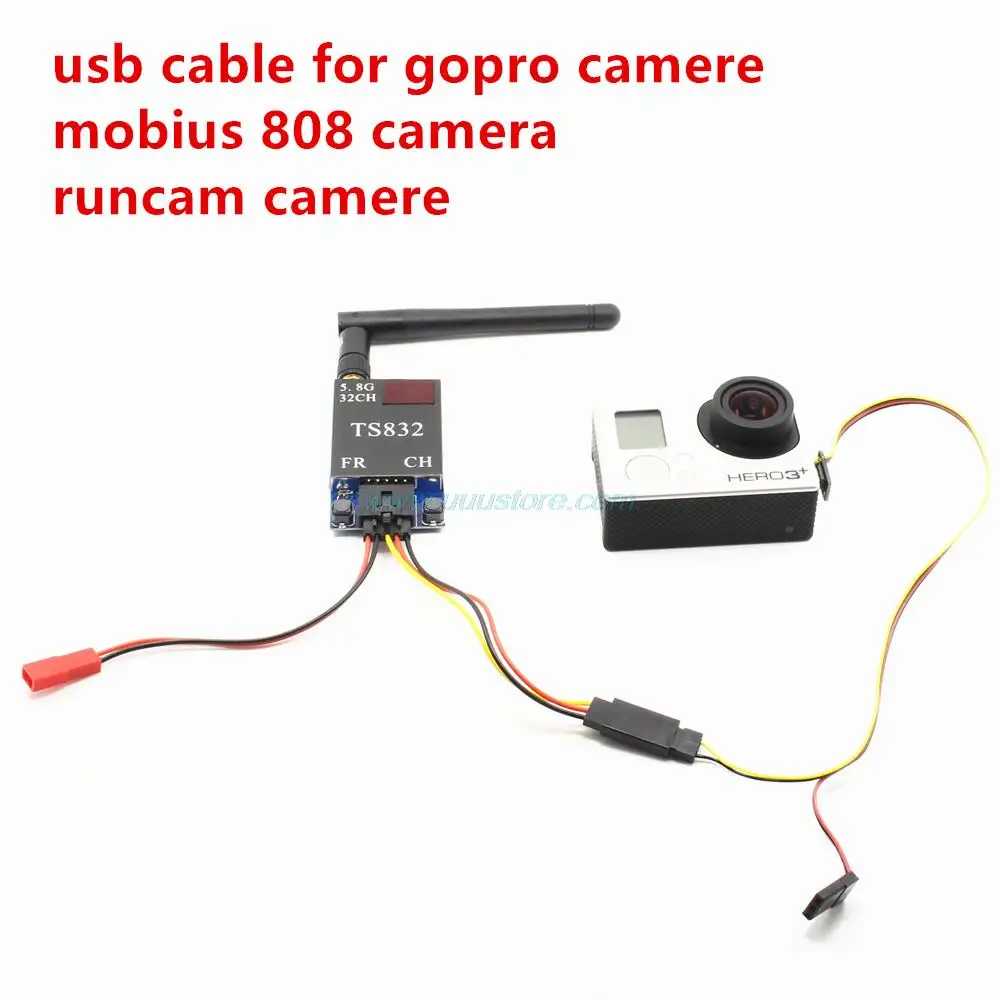

For gopro camera(usb port camera)





You can contact the cable to charge built-in Battery of camera and use power supply. If you want to use the cable,the camera must have av-out function.
