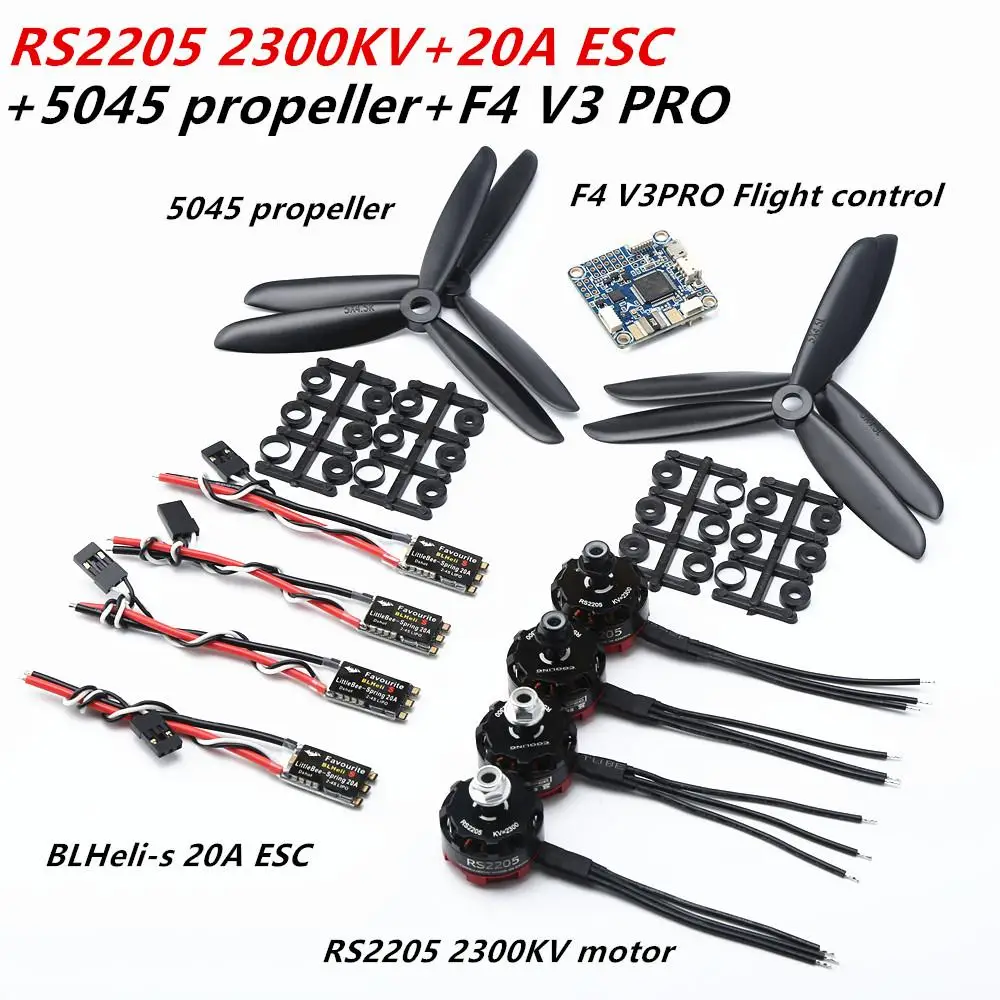

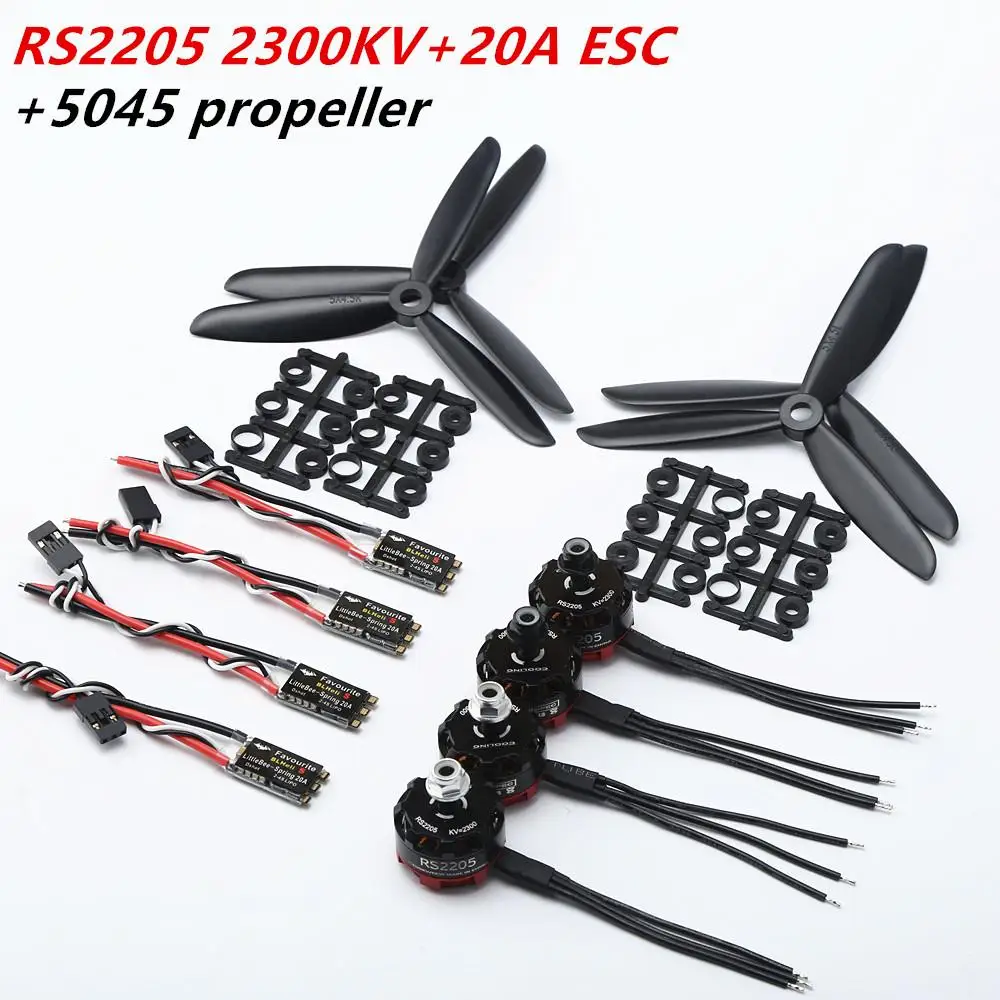

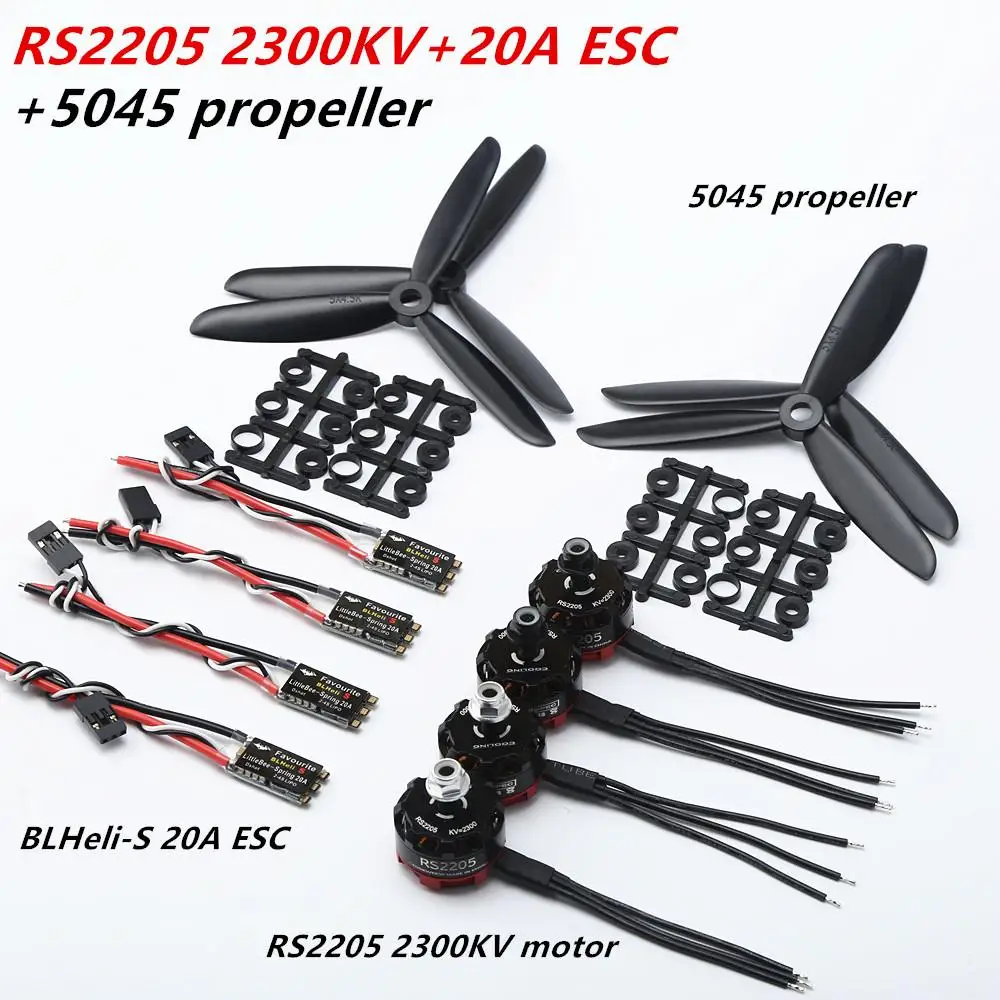

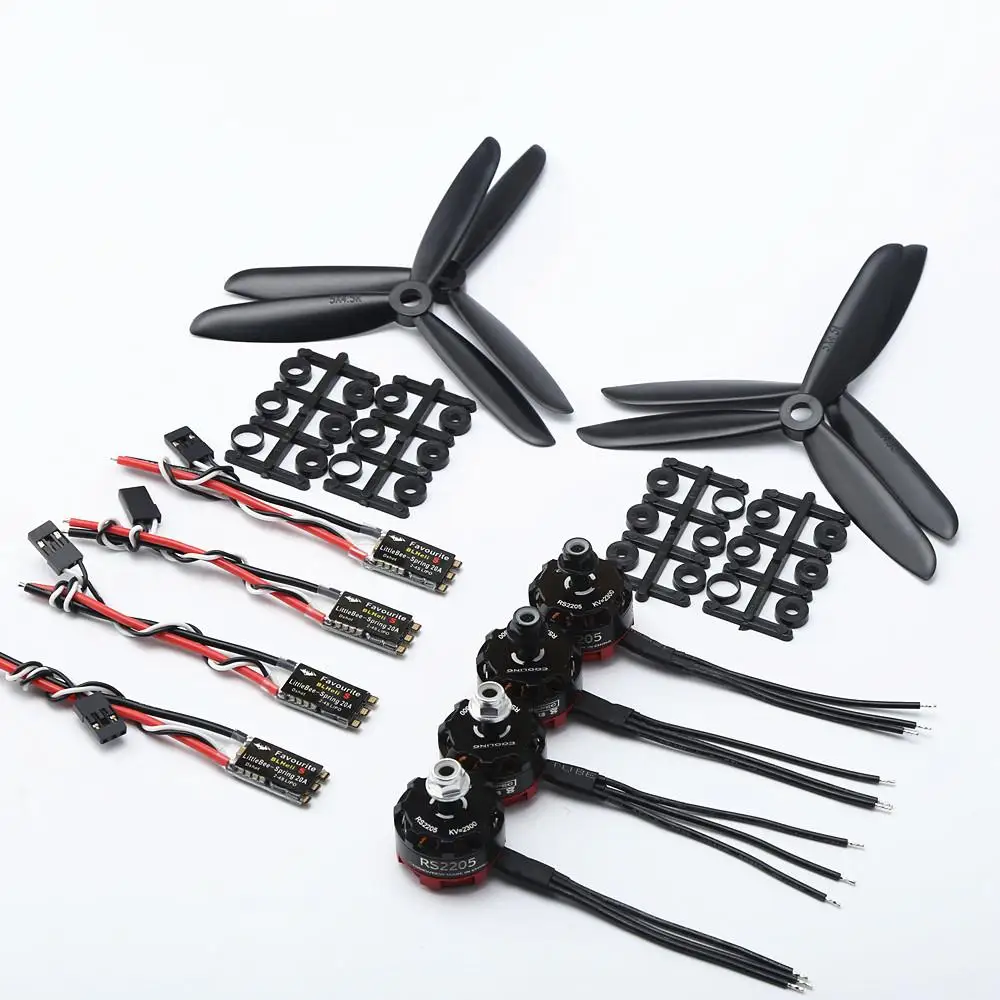

Rs2205 2205 2300kv Cw Brushless Motor With Littlebee 20a/30a Blheli Esc 5045 Propeller For Fpv Rc Qav250 X210 Racing Drone | Игрушки и

Rs2205 2205 2300kv Cw Brushless Motor With Littlebee 20a/30a Blheli Esc 5045 Propeller For Fpv Rc Qav250 X210 Racing Drone | Игрушки и

Introductions:
Product category: Brushless Motor
Product Description:
FVT LITTLEBEE Little bee BLHeli-s20A ESC:
1: initial tension: 2-4 s lipo
2: NO BEC
3: continue current: 20A, burst current: 25A up to 10S
4: size: 23.5 * 12mm.
5: weight: 4g (include power and signal wire)
6: Support Muted mode, Oneshot125, Oneshot42 and Multshot and DSHOT
7: Main IC: SILABS EFM8BB21F16, MCU run 48MHz
8: MOS: Both low and high side fets are Nfets
9: switching speed is very fast, it has dedicated driver chip
10: BLHeli S Bootloader & Firmware

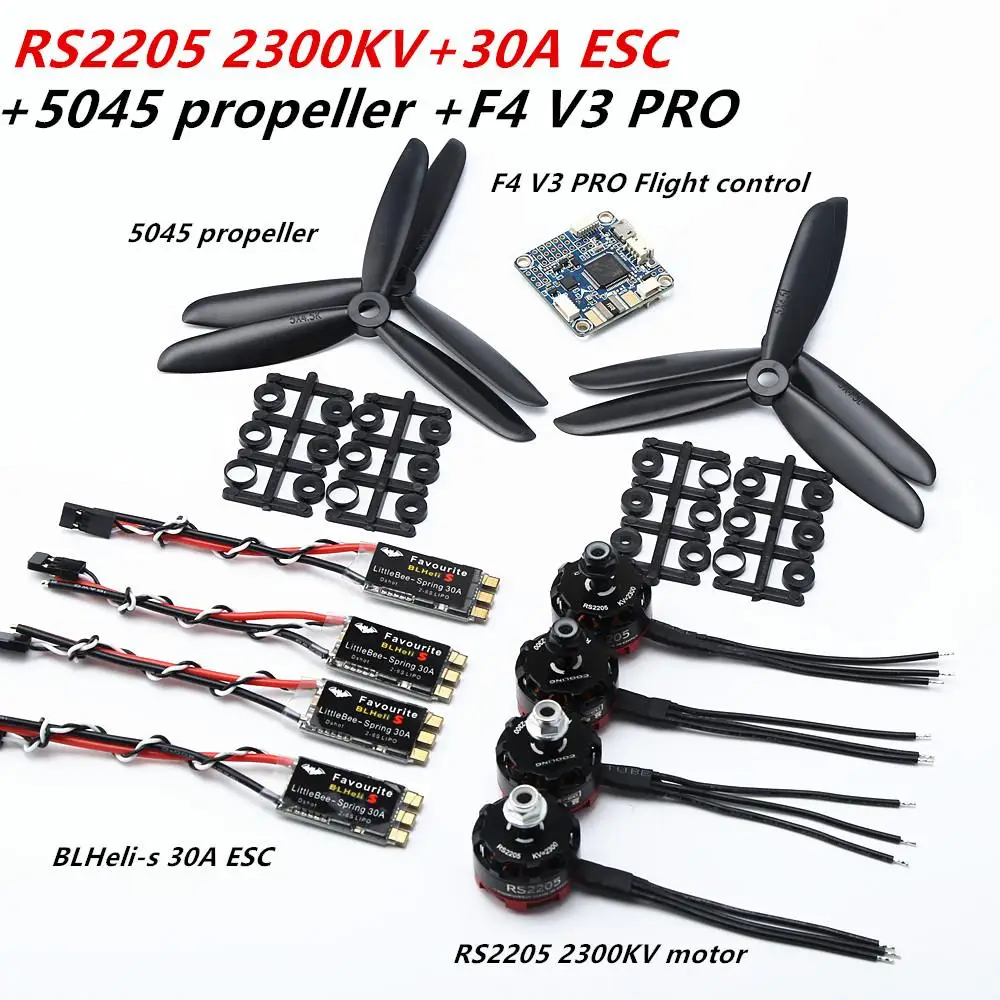

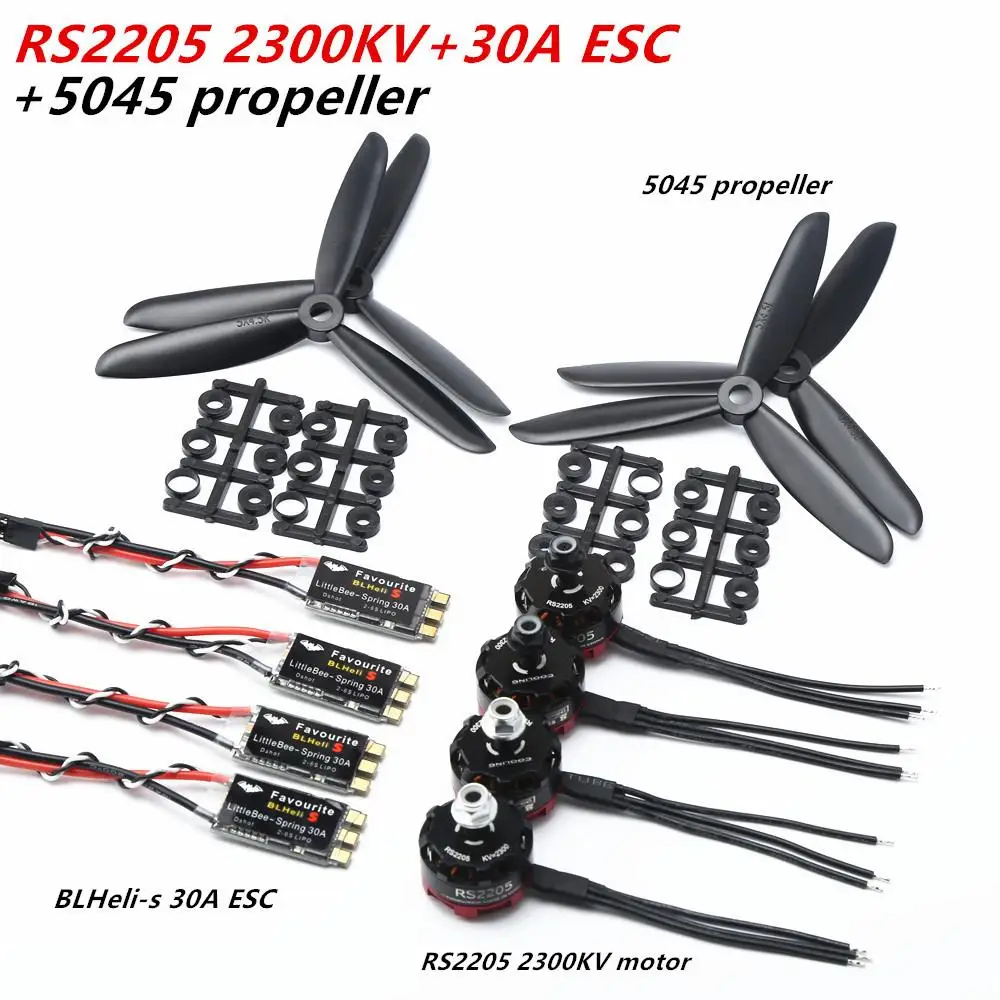

FVT LITTLEBEE Little bee BLHeli-s 30A ESC:
1: input voltage: 2-6 S Lipo
2: NO BEC
3: continue current: 30A, burst current: 35A up to 10 S.
4: size: 35 * 17mm.
5: weight: 9g (include power and signal wire)
6: Support Muted mode, Oneshot125, Oneshot42 and Multshot and DSHOT
7: Main IC: SILABS EFM8BB21F16, MCU run 48MHz
8: MOS: Both low and high side fets are Nfets
9: switching speed is very fast, it has dedicated driver chip
10: BLHeli S Bootloader & Firmware Package included: 1pcs or 2pcs / 4pcs /6pcs littlebe spring ESC (as your choice)

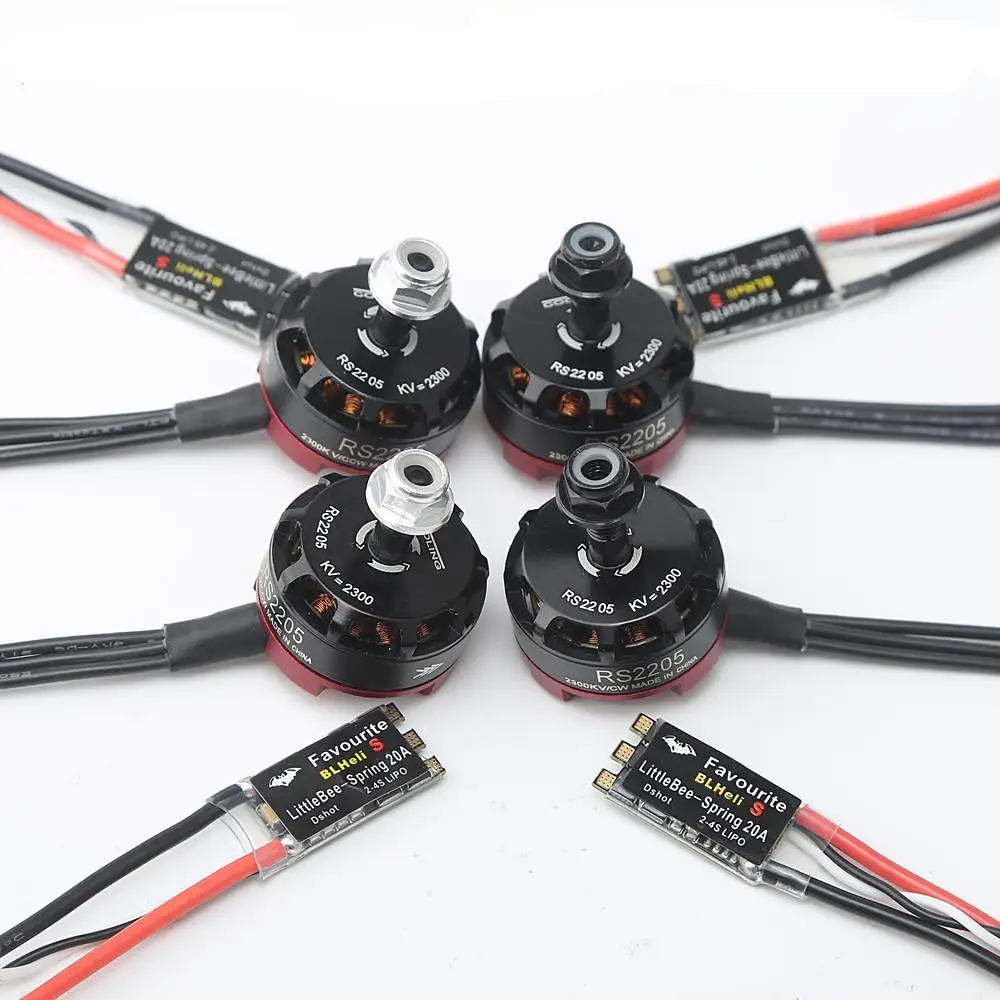

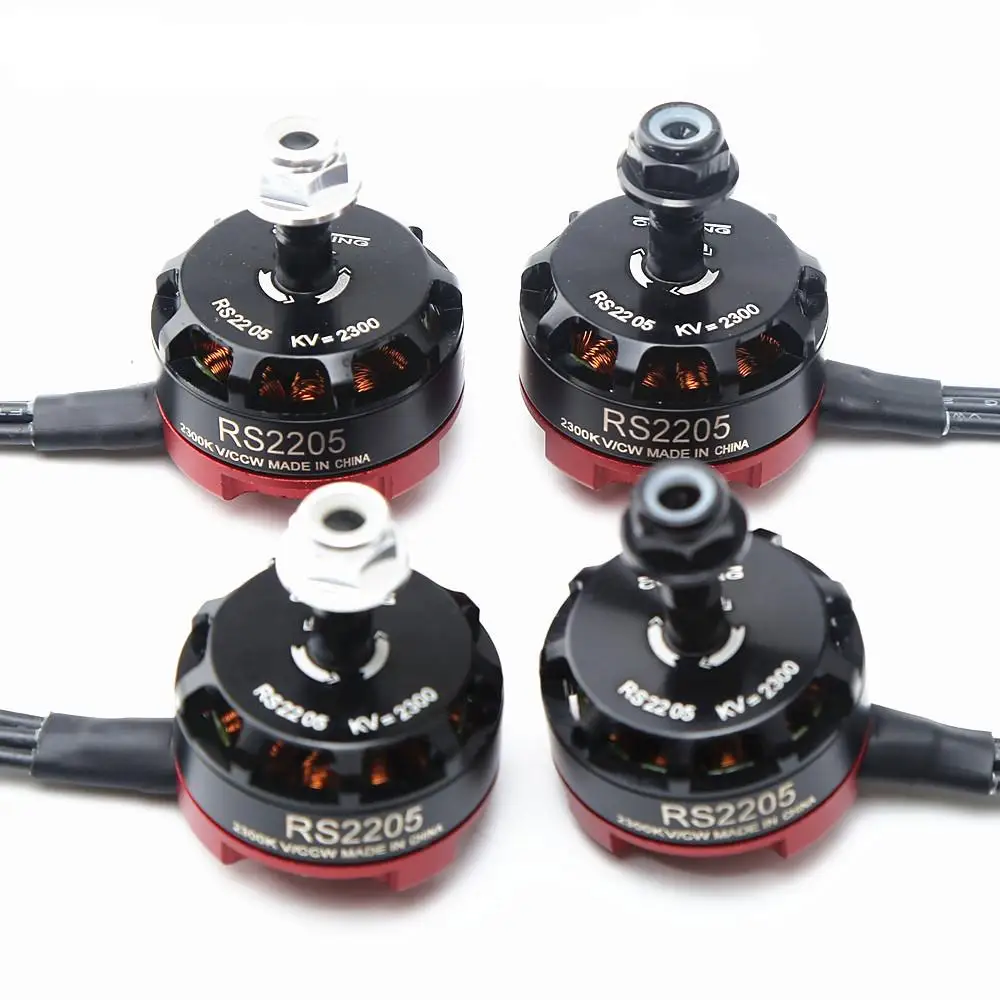

RS2205 2300kv Motor:
Model: RS2205-2300
Framework: 12N14P
No. of Cells: 3-4S
Length: 31.7mm
Shaft: M5
KV: 2300
Max Thrust: 1024g
Diameter: 27.9mm
Propeller Suggested: HQ 5045 BN
Weight: 30g
Features:
1. Race Spec Performances
2. High Strength N52 Neodyum Magnets
3. Active Cooling Fins Greatly Reduce Motor Temeratures
4. Low CG, Light Weight Design
5. Japanese Bearing For Performances
6. Enchance Anti Off U Ring For Safety & Stablility
7. Dual Lock CW / CCW Locknuts
F4 Pro V3:
Properties:
Following in the footsteps of the omnibus F3 Pro, the omnibus F4 Pro V3 can be the standard by which all other flight controllers are measured.
Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you'll be tuning pids with your transmitter and
Tear it to the track in no time!
With leaps and bounds in programming, it's now possible to connect their Smart Audio VTX location like the TBS Unify Pro 5G8 HV or TBS Unify Pro 5G8 HV Race Edition to
the J10 header with our omnibus smartaudio plugs and make VTX changes on the fly through the Betaflight OSD.
Specification:
Item name: F4 Pro V3 Flight Controller
Size: 36x36mm
Mounting holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight Configurator
Smart Audio v2 support Tune your PID's and configure the omnibus fc from their transmitter
MPU6000 6 axis SPI gyro & accelerometer
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
5v3a SBEC
On-board video filters (only 5V to VTX and camera)
SmartAudio V2 via tx6 to J10
4 × 3 pin ESC pin layout
IR pins for lap timing transponder
Package included:
1 * F4 Pro V3 Flight Controller

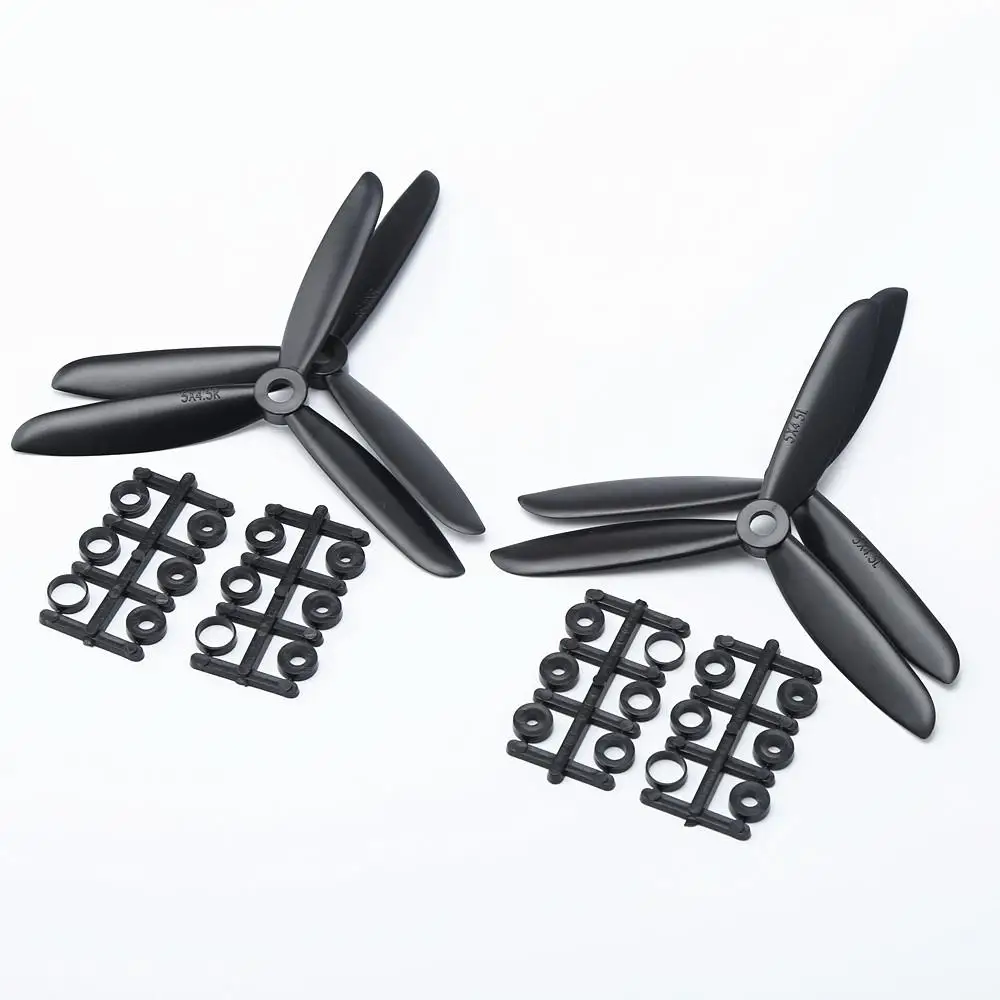

5045 Propellers
Specification:
Item Name: 5045 3-blade Propellers
Color: Black
Quantity: 2 Pairs
Mounting Hole: 5mm
Size: 140*140*65 mm
Package Included:
2x 5045 3-blade CW Propellers
2x 5045 3-blade CCW Propellers"
Package list:
as shown
Notes:
All images and descriptions are for illustrative purposes only. The color deviation is subject to actual system configuration and slight dimension difference is allowed due to manual measurement.
