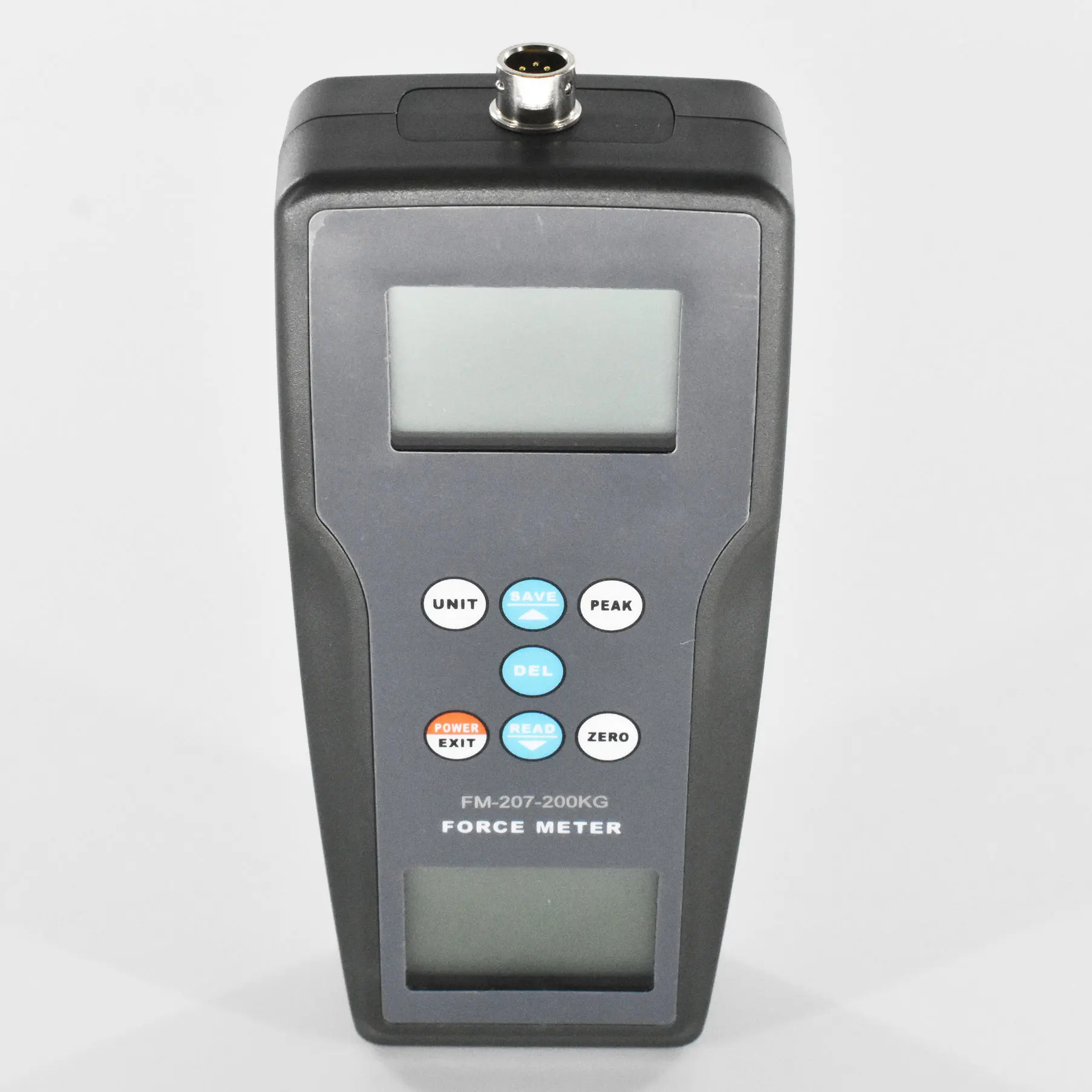

FM-207-200K Digital Force Gauge 1960N 200kgf 440Lbf Push Pull tension Meter

The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts,

Features

* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 3 measurement unit for selection and conversion, N, kg, lb.
* With peak value hold function.
* can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Either alkaline battery Power supply or 6V DC power.
* Use USB cable or Bluetooth adapter for data output.

Specifications

Force Range ±200kgf ±1960 gf ±440N Resolution 0.001 kgf( <100 kgf ) 0.1 kgf ( ≥100 kgf ) 0.1 N( <1000N ) 1 N ( ≥1000 N ) 0.1 Lbf Accuracy ±0.2% FS ±1 Digit Unit Kgf, N, Lbf Measurement State Peak Value Measurement, Real Time Measurement Display 2 Reversed 4 Digit LCD Power Off 10 Minutes Auto Power Off, Manual Power Off Backlight Blue Backlight Safe Load 150% FS ( Buzzer Alarm Over 110% FS ) Data Output USB, Bluetooth Power Supply 2 x 1.5 AA( UM-3 ) Battery or 6VDC Power Supply Operating Conditions Temperature: 0 ~ 40°C Humidity: <80% Surrounding No Vibration Source or Corrosive Medium Around Weight 1165g Case Size 175 x 80 x36 mm SenorSize 181x54x 30mm

Accessories

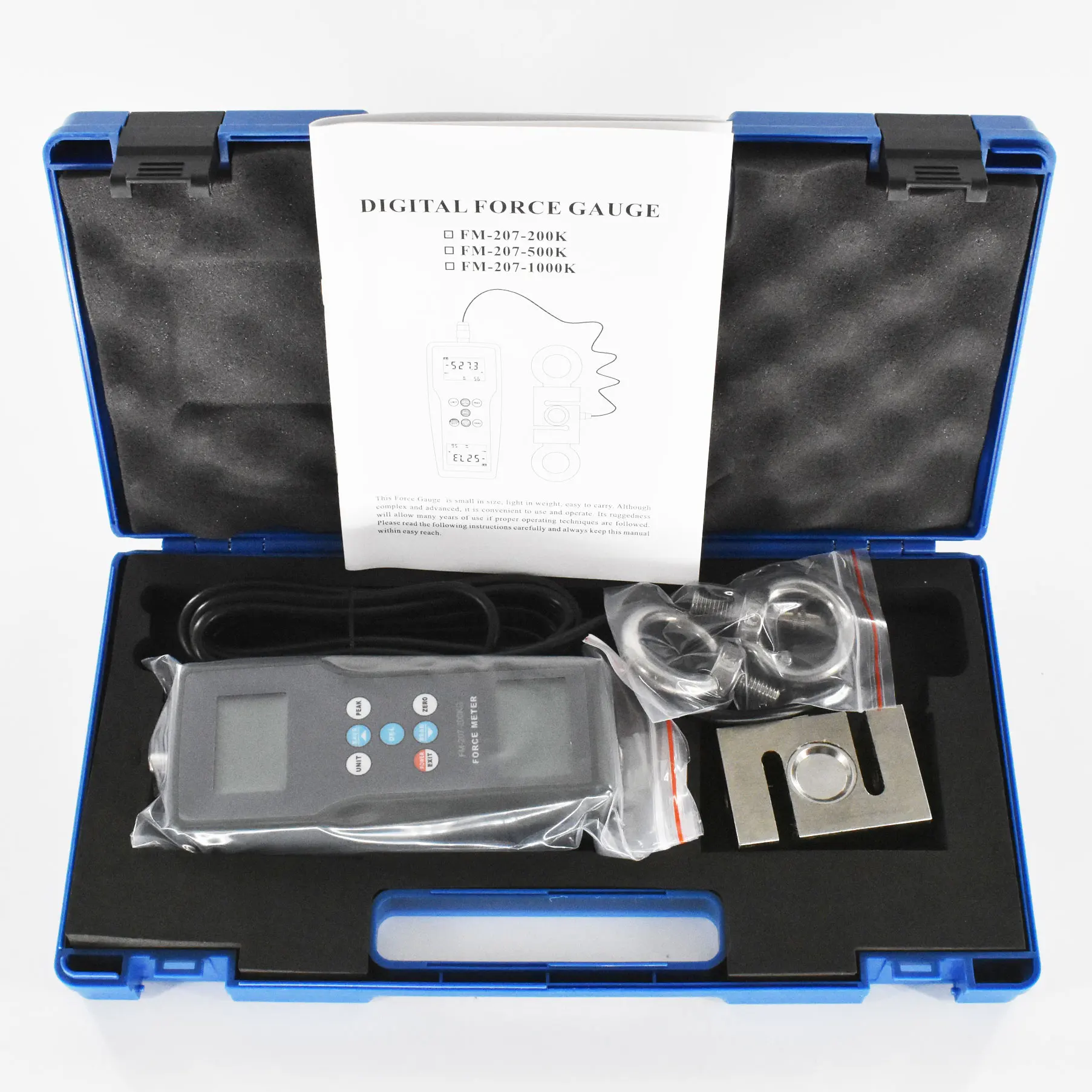

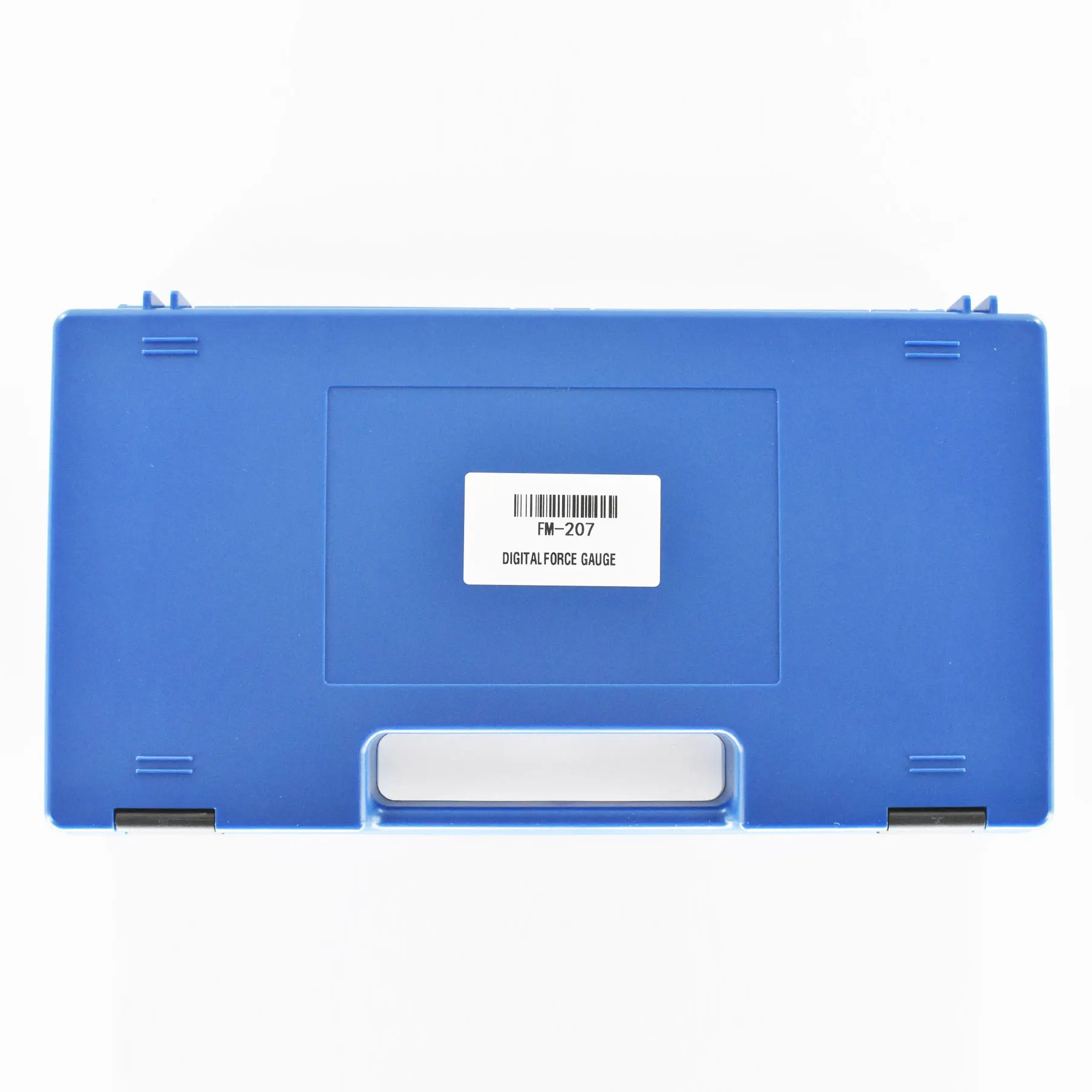

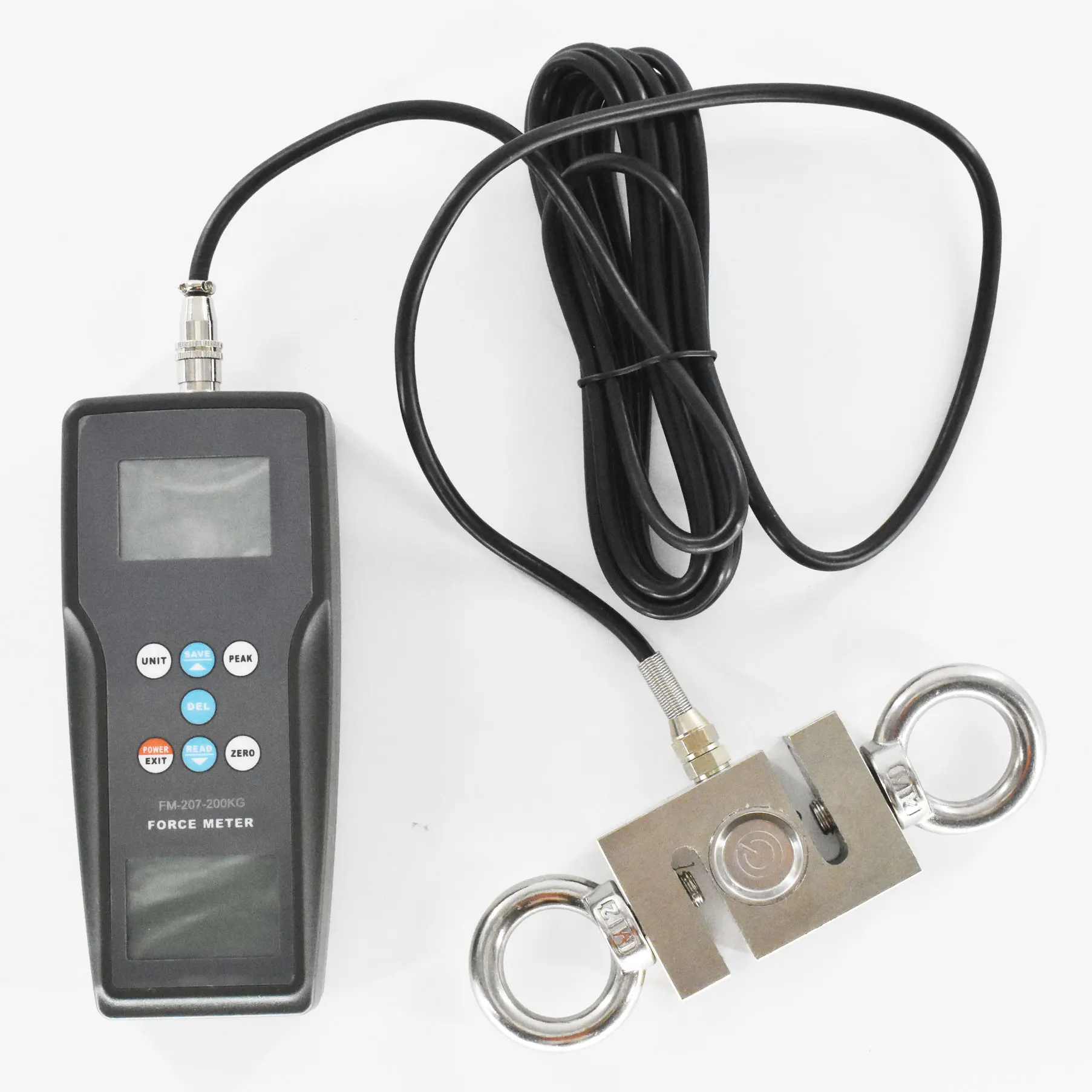

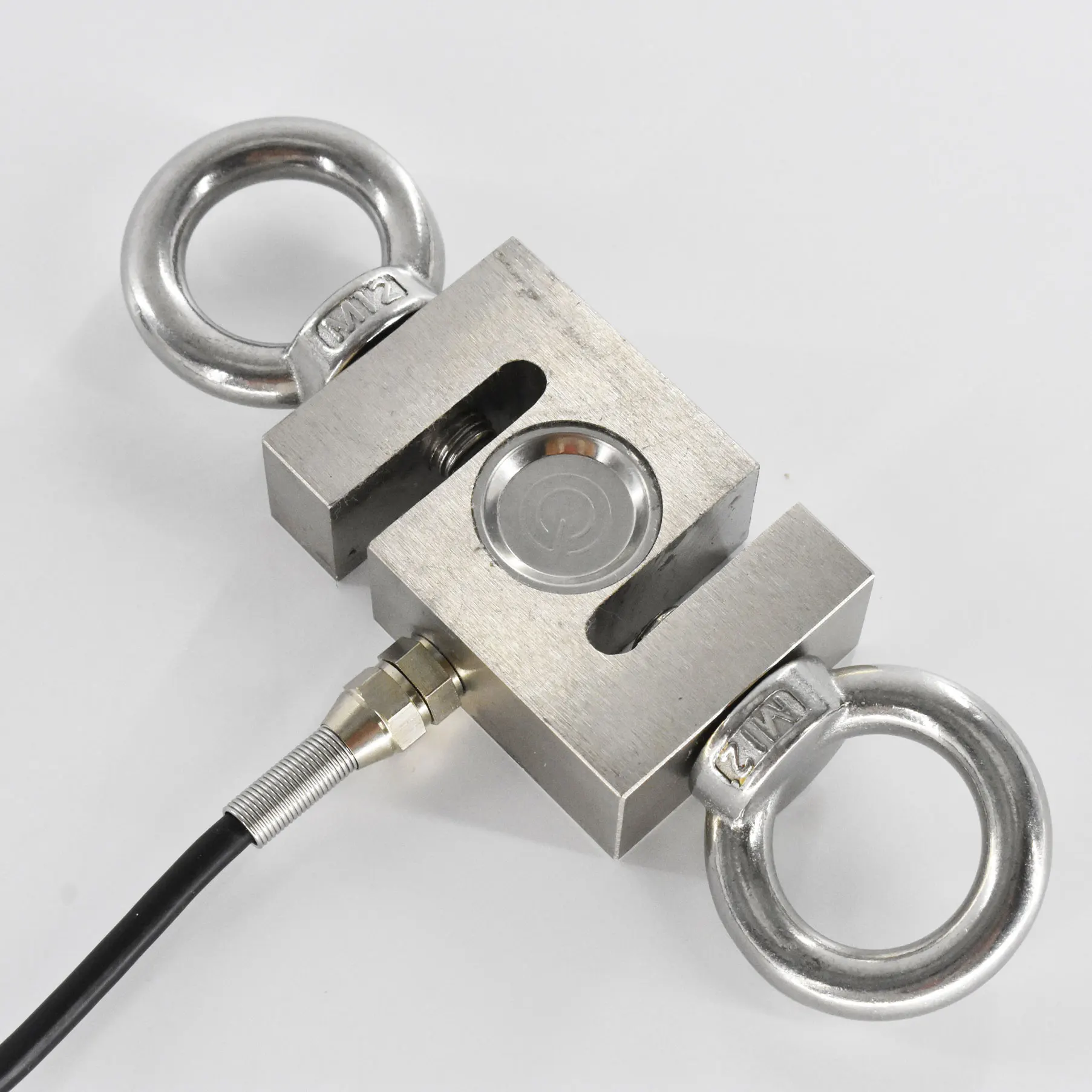

Standard Accessories Digital Force Gauge Sensor ( M12 Screw Hole ) 2 Suspension Links Manual Carrying Case Optional Accessories CD USB Data Cable Bluetooth Adapter Power Adapter
