AC110-220V White PIR Infrared Motion Sensor Light Switch Occupancy Modes Motion Automatic Vacancy Activated Wall Switch Neutral Wire Required Single Pole For CFL/LED/Incandescent Bulb Indoor Wall Plate Included

Specifications:

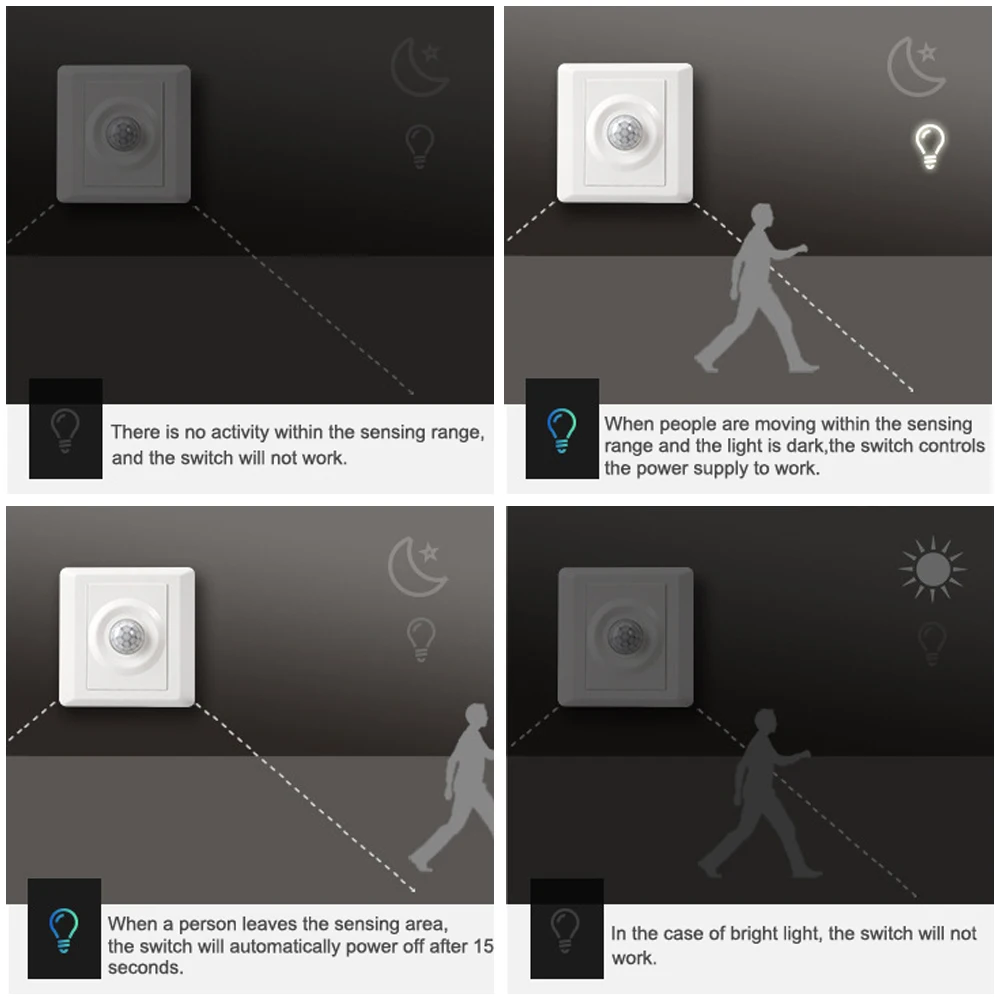

PIR motion sensor light switch adopts the premium sensor and circuit item, features super occupancy sensor. Automatic smart controlling the light ON or OFF, according to the sensing range whether pedestrians into or leave.
The motion sensor light switch support adjusting the soft and stable light, features no flickering.With light sensing control, as long as the detection light is dark, the sensor will make the light bright.
Time delay range 15sec-5min adjustable, 15 senconds by defaul. Time-Delay is added continually, when the occupancy sensor receives the second induction time signals after the first induction, it will count time once more on the basic of the first time-delay rest.

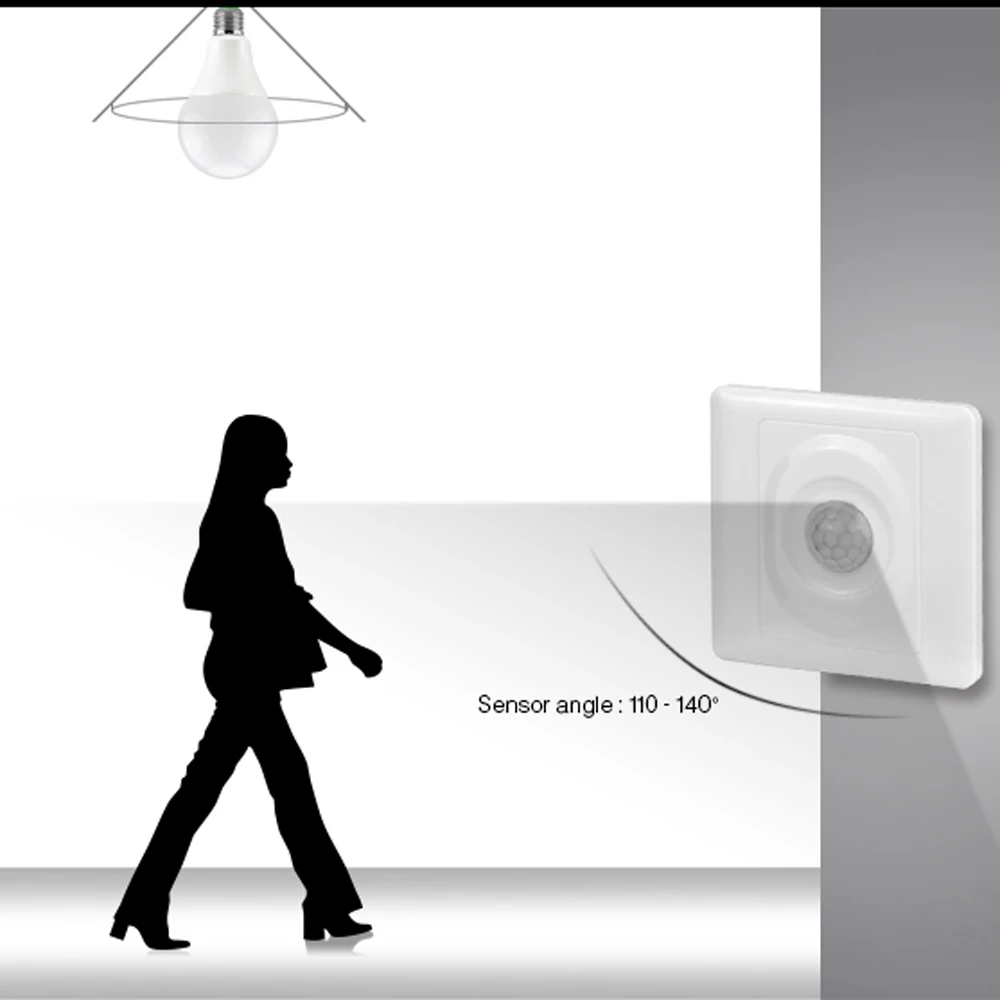

The motion sensor sufficient induction range is 3-5m. 140°sensor angle ensures its extensive range,item fits for large room.
Applicable light sources: incandescent lamps, energy-saving lamps, LED lamps, fluorescent lamps, ring lamps and other lamps.

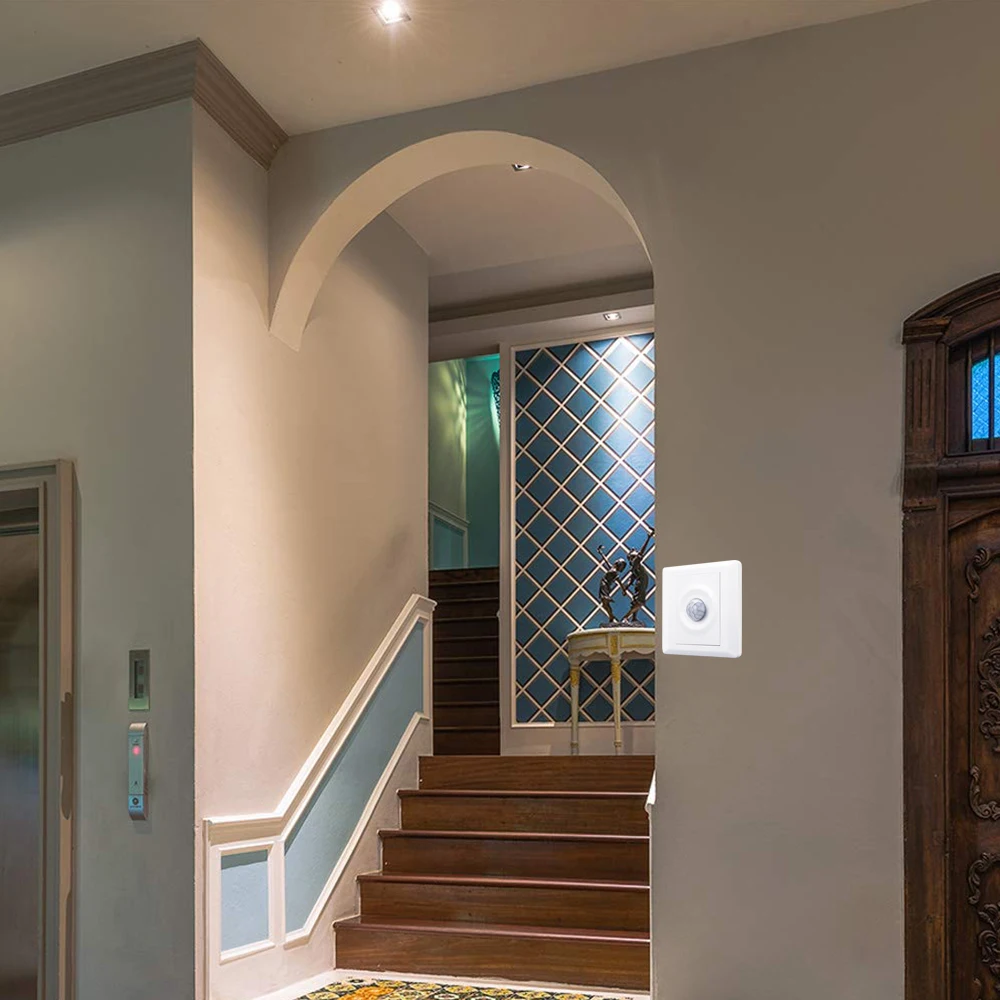

PIR motion sensor light switch, automatic lighting on-off, widely used for light in corridors, bathrooms, basements, warehouses, garages, etc., and an automatic ventilation of exhaust fans, and automatic control of other electrical appliances, etc.

Instructions for use:
1. Please install the switch according to the wiring diagram on the shell. One minute after the power is turned on is the initialization time. During the initialization time, the switch is in an indeterminate state. It will flash three times continuously and enter the normal working state after one minute. If you check whether the switch is normal during the day, you can cover it with your hand or block the switch with a black object to dim the light, and then the light can be turned on.
2. The delay and sensitivity are based on the delay time and luminosity set at the factory (see technical parameters for details). The delay time and luminosity cannot be adjusted by this switch.
3.When installing this switch, please do not install the switch in a position where strong light is directly exposed to the hot and cold air inlet and outlet, otherwise the light will be on due to false alarms, and the energy saving effect will not be achieved.
4. This switch is allowed to be connected in parallel, but you must pay attention to the power problem, and it should not be greater than the specified load of the product. This switch has tested the standard load power normally, and the service life of the switch can be prolonged if the power is lower than the standard load power.

Specifications:
Material: PC
Input voltage: AC110V-220V
Load Power: 200W
Light Sensor: Yes
Output Mode: relay

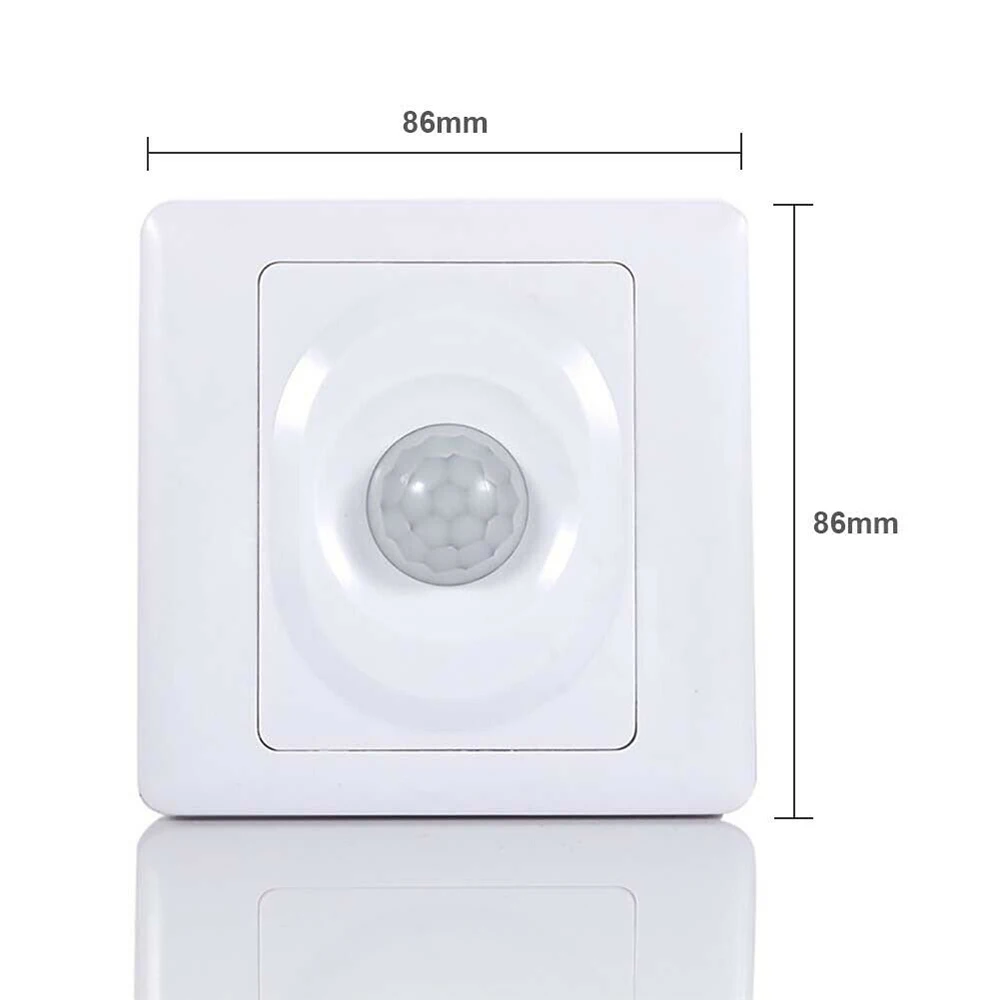

Product Size: 86*86*25mm
Sensing Distance: 3 meters - 5 meters
Sensing Angle: 120 degrees
Delay time: 20-40 seconds
Time-Delay: 15-300sec
Start-up brightness: L<5Lux (equivalent to the sky brightness when the sky is just bright on a sunny day)

Package includes:
1*Motion Sensor Light Switch
