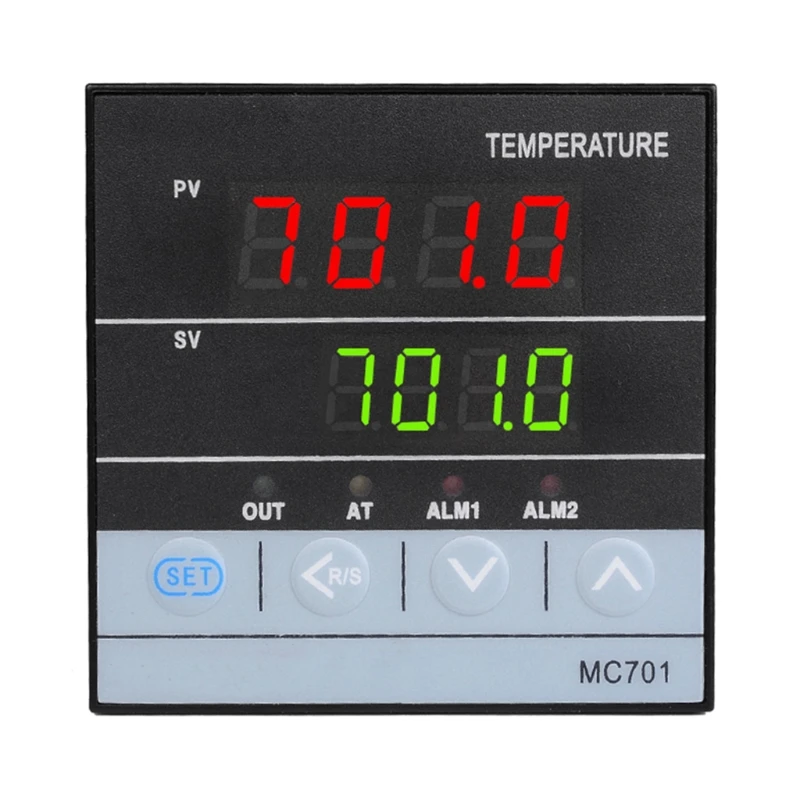

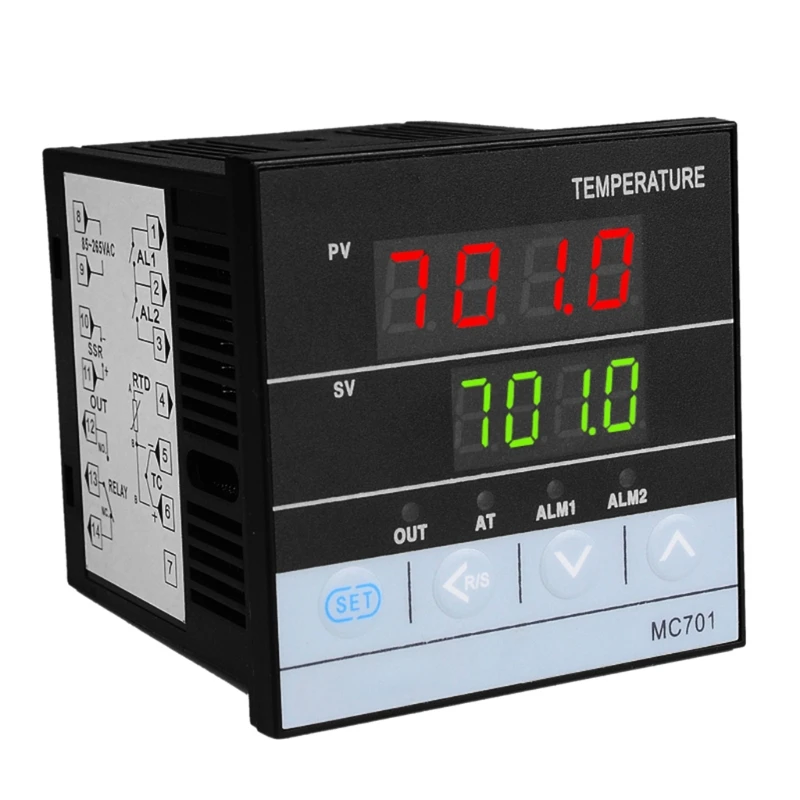

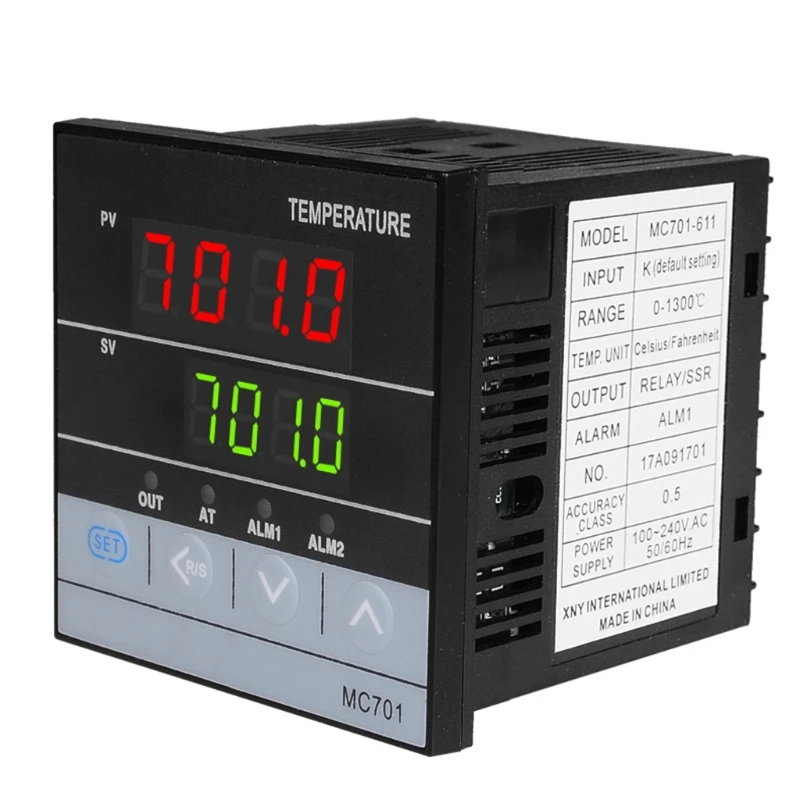

MC701 Digital PID Temperature Controller Relay/SSR Output 72mm*72mm 85-265VAC
Features:
1. Built-in high precision chip for high sensitivity and accurate temperature control.
2. Support ℃/℉ temperature display.
3. When the thermocouple signal is input, the resolution of digital display can reach 0.1 ℃/0.1℉.
4. Relay and SSR integration, users can freely use relay output or SSR output.
5. Short shell design, only 85mm depth, easy to carry and mount.
6. Robust flame-retardant housing, waterproof, dustproof and anti-shock.

Specification:

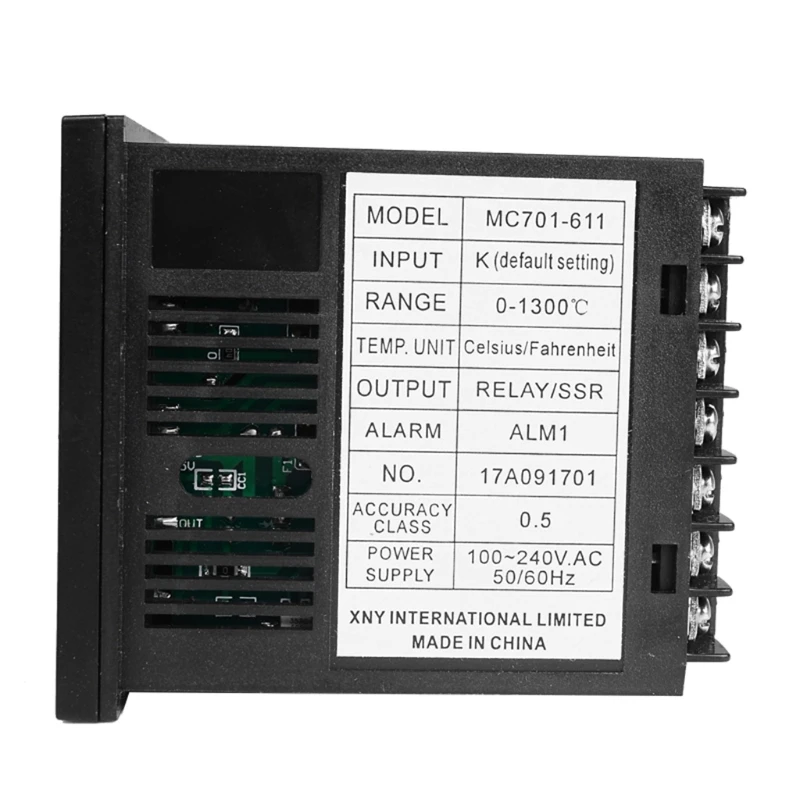

Model: MC701
Control type: temperature
Control mode: PID control and self-tuning control
Power consumption: <>
Measurement object: temperature
Temperature range: -199~1300°C
Temperature measurement error: ±1°C
Measurement accuracy: ±0.5%FS
Working voltage: 85~265V
Output signal: Relay/SSR output
Display: °F or °C

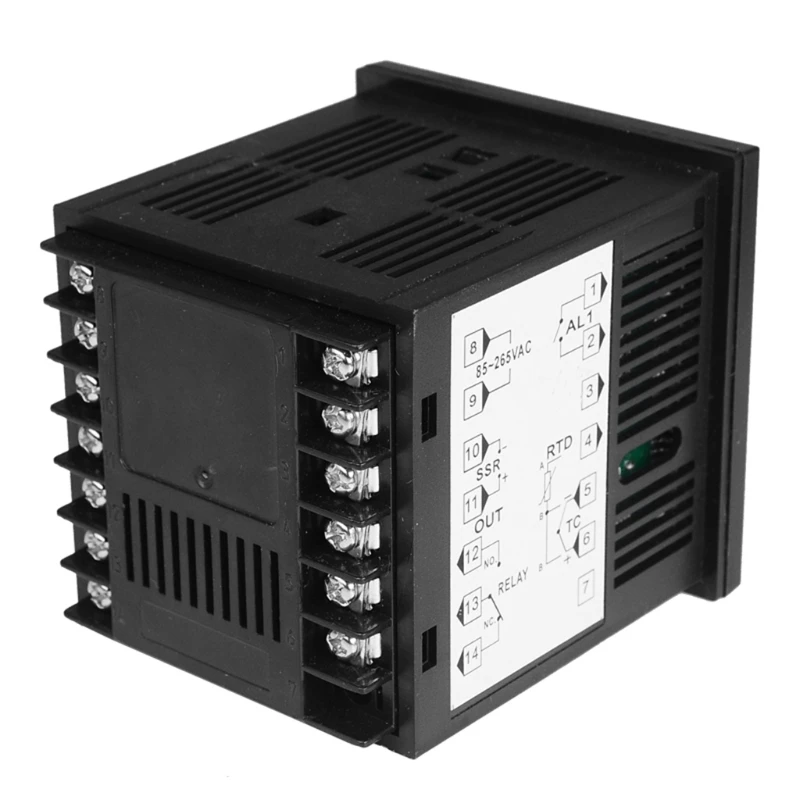

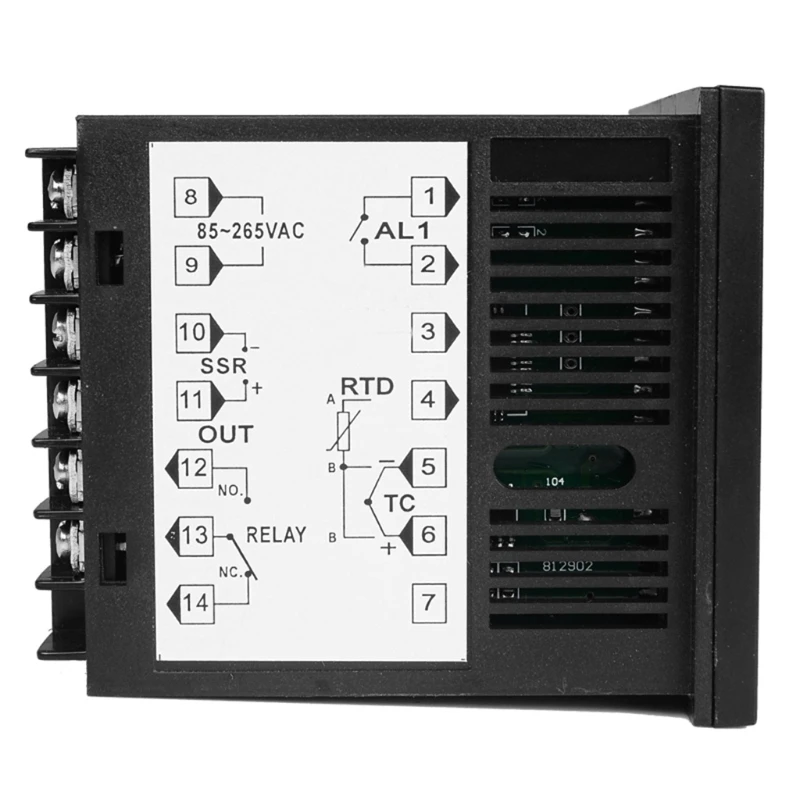

Input: Universal input (K, E, J, N, S, T, R, B, Pt100, etc., can be changed by yourself)
Minimum resolution: 0.1°C / 0.1°F

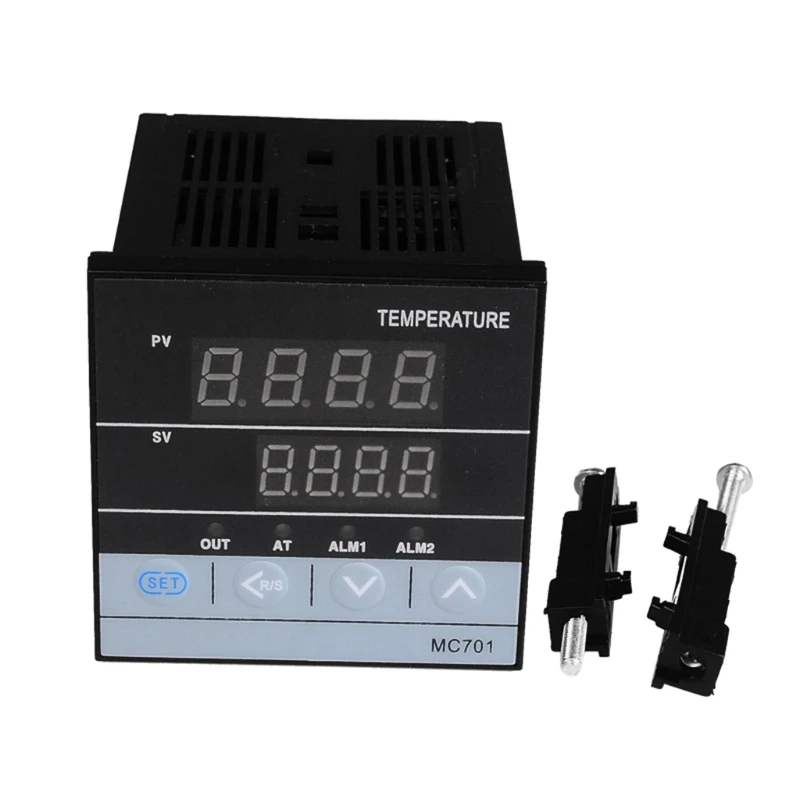

Mounting type: embedded panel

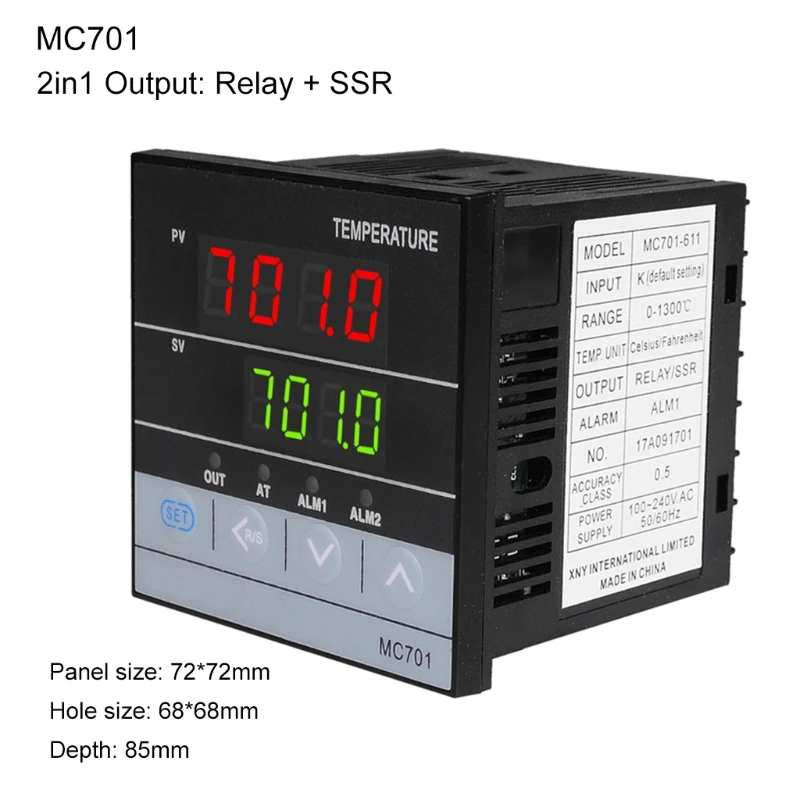

Mounting size: 68*68mm / 2.7*2.7in

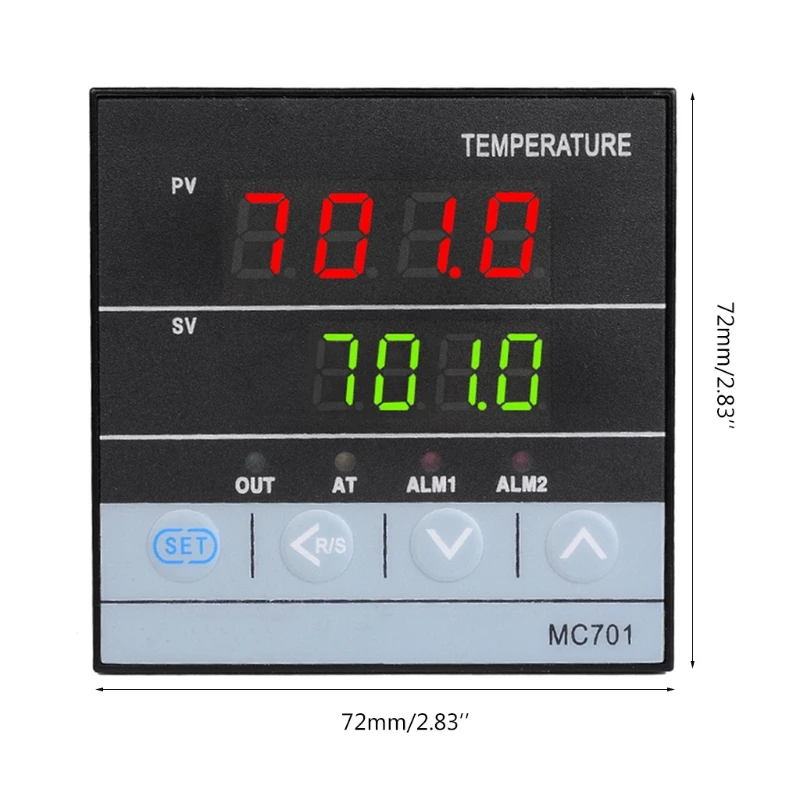

Dimensions: 72*72*85mm / 2.8*2.8*3.3in
Weight: Approx. 204g

Package List:
1 * Digital PID Temperature Controller
