XY-CD60 Solar Battery Charger Controller Module DC6-60V Charging Discharge Control Low Voltage Current Protection Board | Инструменты
Описание товара
100% brand new and high quality
OOTDTY
Features:
Made of high quality material, sturdy, durable and practical to use.
Great for fixing overload and low voltage, protects the battery from undervoltage, protects the battery from overcharging, and protects the load control, prolong battery life.
When the battery voltage is insufficient, disconnect the load and connect the charger. When the battery voltage is too high, disconnect the charger and connect the load.

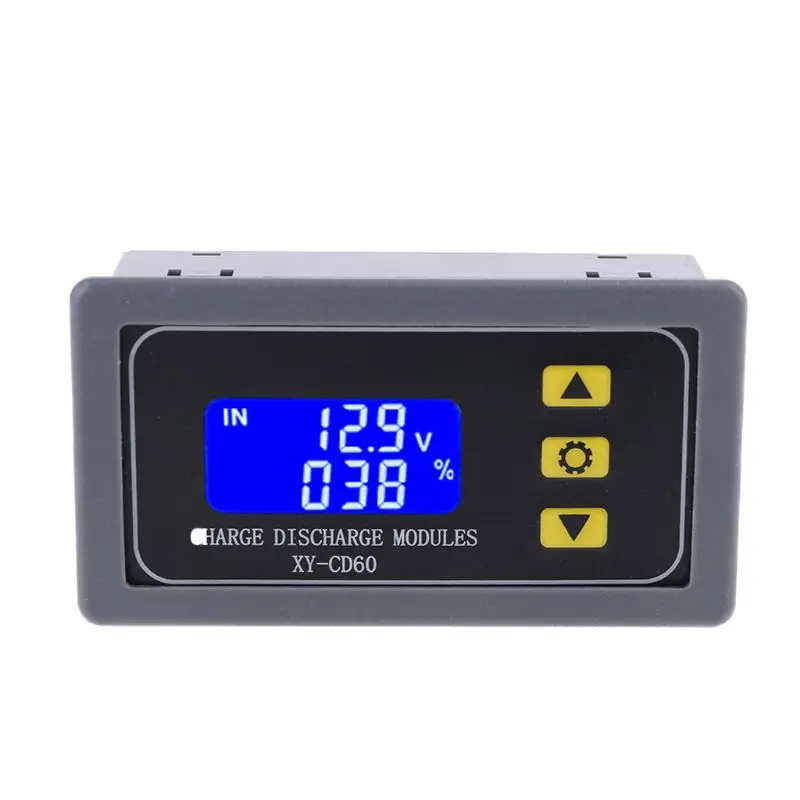

Adjustable parameters and LCD screen, show you the parameters clearly, easy to use.
With a control voltage 6-60V, it is suitable for batteries, lithium batteries, etc..
Specification:
Material: Plastic
Model: XY-CD60

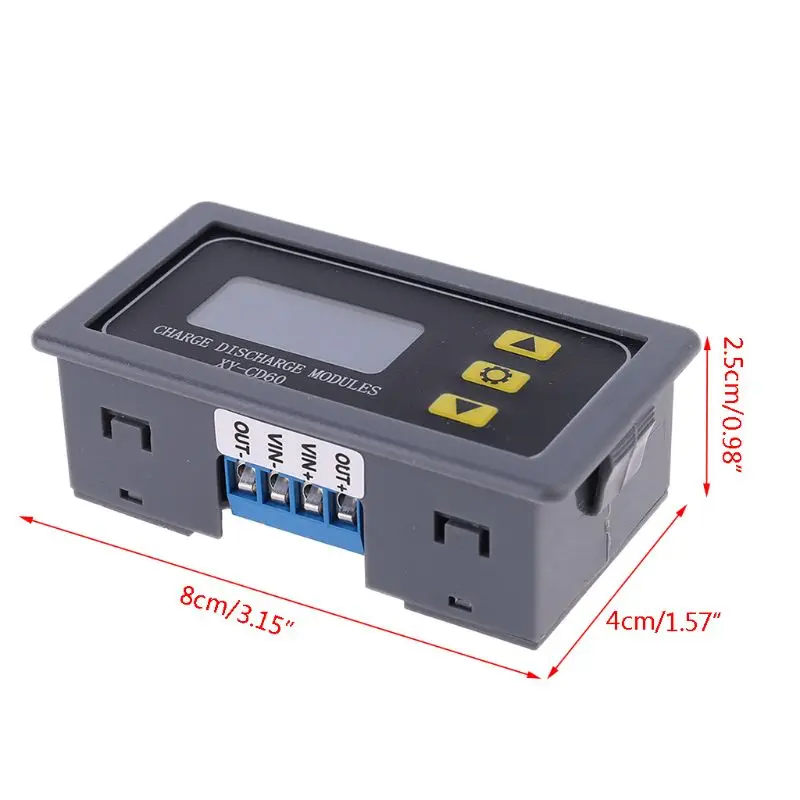

Size: app.79 x 43 x 38mm/3.11 x 1.69 x 1.50in
Control voltage: 6-60V
Modes: Charging Mode; Discharging Mode
Color: As picture shown
Quantity: 1 Pc

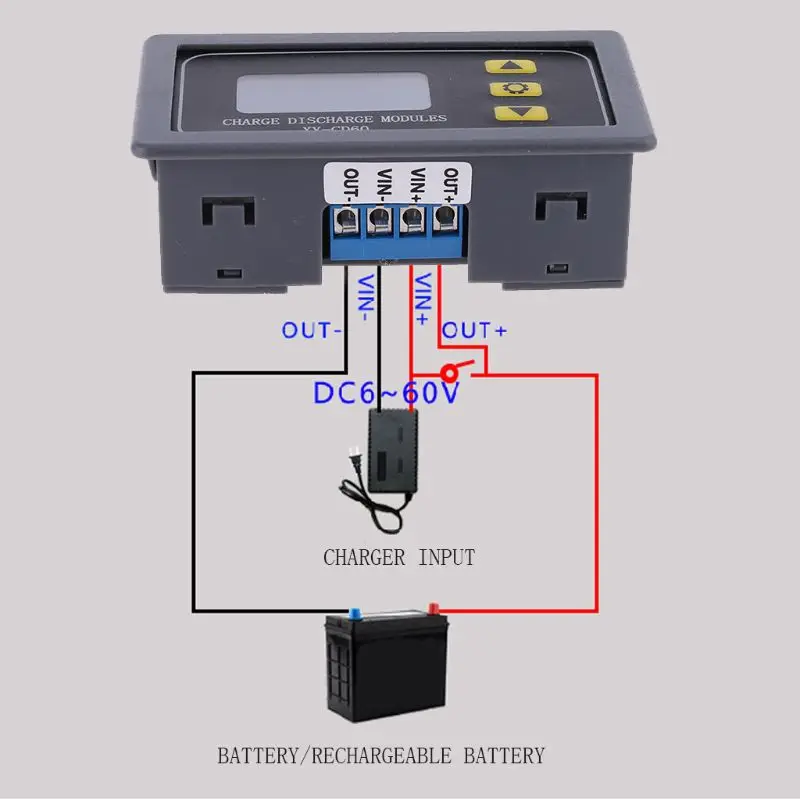

Charging mode IN:
By setting the upper limit voltage UP and the lower limit voltage dn; when the battery voltage is less than or equal to the lower limit voltage dn, the relay turns on and the charger starts charging the battery; when the battery voltage is more than or equal to the upper limit voltage UP, the relay disconnects to complete an automatic charging; when the relay turns on, IN flickers, indicating that it is charging.
Discharging mode OUT:
By setting the upper limit voltage UP and the lower limit voltage dn; when the battery voltage is greater than or equal to the upper limit voltage UP, the relay turns on and starts discharging; when the battery voltage is less than or equal to the lower limit voltage dn, the relay turns off and completes an automatic discharging function; when the relay turns on, the OUT flickers, indicating that it is discharging.
Tip:
This product is a simple voltage controller. It can turn on and off the output by relay. It only plays the role of switching, and can not change the voltage.
Functional instruction:
1. Calculation of Voltage Percentage: Battery Voltage/(Upper Voltage-Lower Voltage)
2. Key function:
UP: Short press display % and time, long press 5 seconds to switch mode; charging mode: IN, discharge mode: OUT.
SET: Short press to check the parameters currently set; long press to enter the parameter setting interface, set UP: voltage upper limit, dn: voltage
lower limit, OP: turn-on time, dOP: delay turn-on time (0-999 seconds), FOP: forced turn-on time (0-10 seconds) in discharge mode.
DOWN: Turn off/on electric relay enable (emergency stop function) turn off, LCD display OFF, relay disconnect: long press to set the status of LCD
backlight, L-P: OFF backlight constant brightness, ON: Backlight automatically extinguishes after 5-10 minutes; after extinguishing, press
any keys to wake up.
3. Parameter Settings
a. Enter the parameter setting interface by pressing the SET;
b. After entering the parameter setting interface, switch the setting parameters by short pressing SET;
c. After choosing parameters, it can be set by UP/DOWN key, supporting short press or long press.
d. If you want to set other parameters, repeat steps b and c;
e. After all parameters are set, long press SET to exit and save;
3.1 Charging/Discharging Time Control Function
1) When the time parameter OP is non-zero, start charging/discharging time control.
2) When the relay turns on a charge/discharge, the countdown begins; when it is completed, the relay is automatically disconnected to complete a
charge/discharge process; if the time is completed, under the charging mode, the detection voltage is less than the lower limit voltage dn or in
the discharge mode, the detection voltage is larger than the upper limit voltage UP, and the charging time control function is automatically turned
off and flashes. Indicate H: ER reminds users that time parameter setting is unreasonable; press any key to stop flickering;
3) When the charging/discharging time control is not turned on, the product will record a complete time. When entering the time display interface,
flashing shows the charging time, then exiting the time display interface or clearing the next time the charging is turned on (relay is turned on).
3.2 Automatic parameter detection:
When the parameters are set and exit, if the lower voltage limit DN is larger than the upper voltage up, the system will flicker to display "ERR" as a reminder.
3.3 Delayed turn-on function (0-999 seconds):
Completion of a charge/discharge, the interval between re-opening;
3.4 Discharge Conduction Forced Start Time (0-10S):
After satisfying the relay conduction condition, the relay is forced to turn on (0-10S) to detect the battery voltage again. This function is mainly aimed at discharging function. Some test loads will pull down the lower limit voltage instantaneously at the moment of conduction, which will lead to the disconnection of the relay and the failure of normal discharge process.
Analysis of Common Faults:
Question 1: How many V levels are suitable for use? How many V voltage does this module fit?
Answer 1: This model is suitable for use in the range of minimum 6V, maximum 60V voltage and maximum expenditure level 48V, because 48V battery is full of electricity at about 60V, and then burns at a higher level. If your battery is higher than 48V, please choose another one.
Q2: The relay clicks after power-on! Does the light flicker?
A2: This is because your charging current is too large or the battery capacity is too small. Once the battery is powered up, it immediately reaches the upper voltage limit. The relay is disconnected. After disconnection, the voltage quickly drops to the lower voltage limit and starts charging again. At this time, you need to reduce the charging current. Usually, the charging current is 10% of the battery capacity. From 1 to 1.5, the charging current of 20AH batteries is generally about 2-3A. Note that high current charging can cause battery heating, accelerated aging, bulging and even explosion!
Q3: What control method? Can it be recharged automatically? Can you fill it while you use it? Can we limit the current?
A3: This is voltage control, such as setting the lower limit of voltage 12.0V, the upper limit of voltage 14.5V, when the voltage is charged to 14.5V, the power is cut off, the voltage is lowered to 12.0V and the relay is closed to start charging; while charging, the voltage control mode can only switch on and off, not limit the current, the charging current depends entirely on your charger!
Q4: Can I charge a 24V battery with 12V input, or can I charge a 12V battery with 48V input?
A4: This is a simple voltage controller. It only plays a switching role. It can't change the voltage to charge the battery. So what kind of charger should you prepare to charge the battery? Necessary!
Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 x Battery Charger Controller Module
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
