From pswpower

Bafang SWX02 48V 500W RM G020.500.DC Rear Freewheel Rear Cassette Wheel gear Motor for Electric Bicycle Conversion Kit

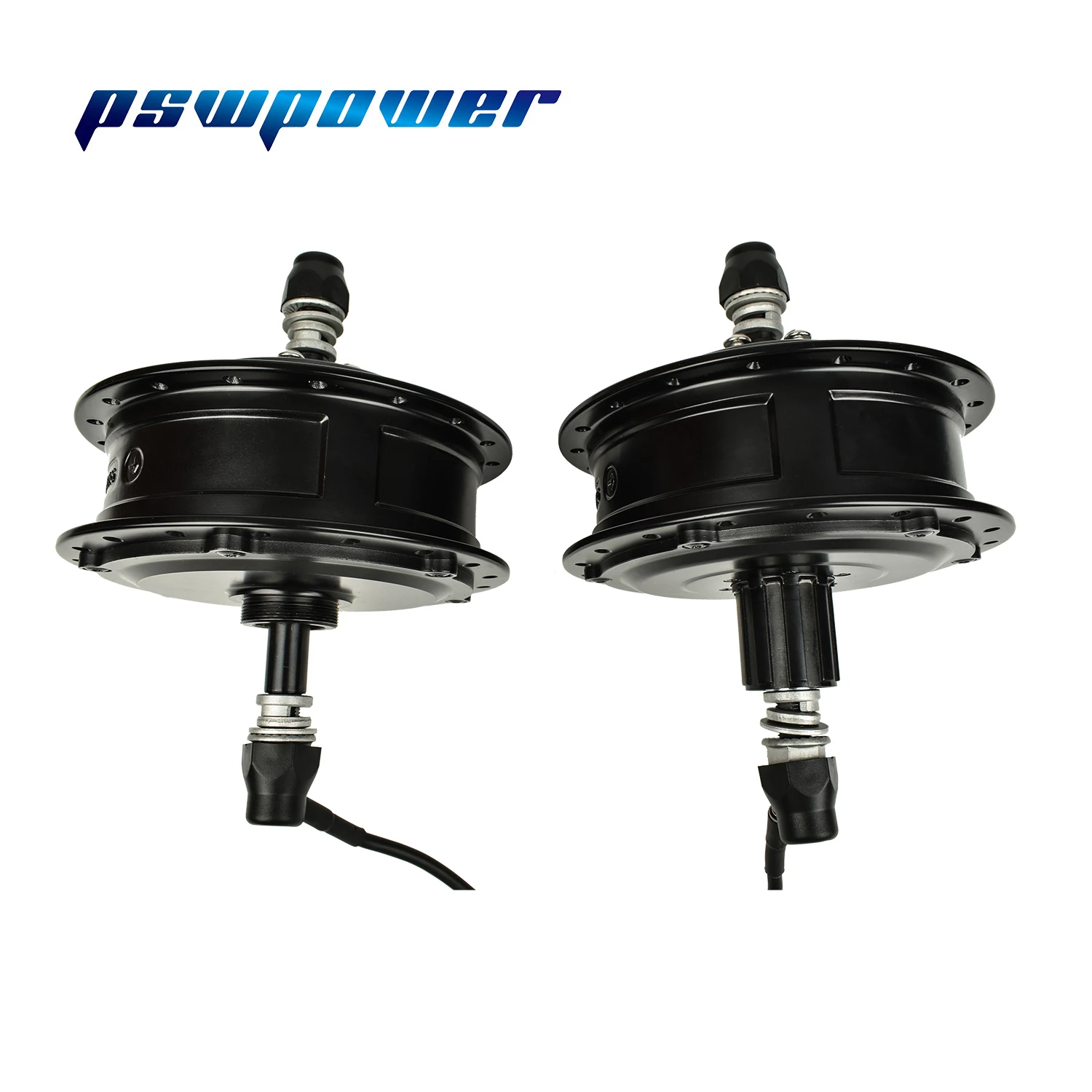

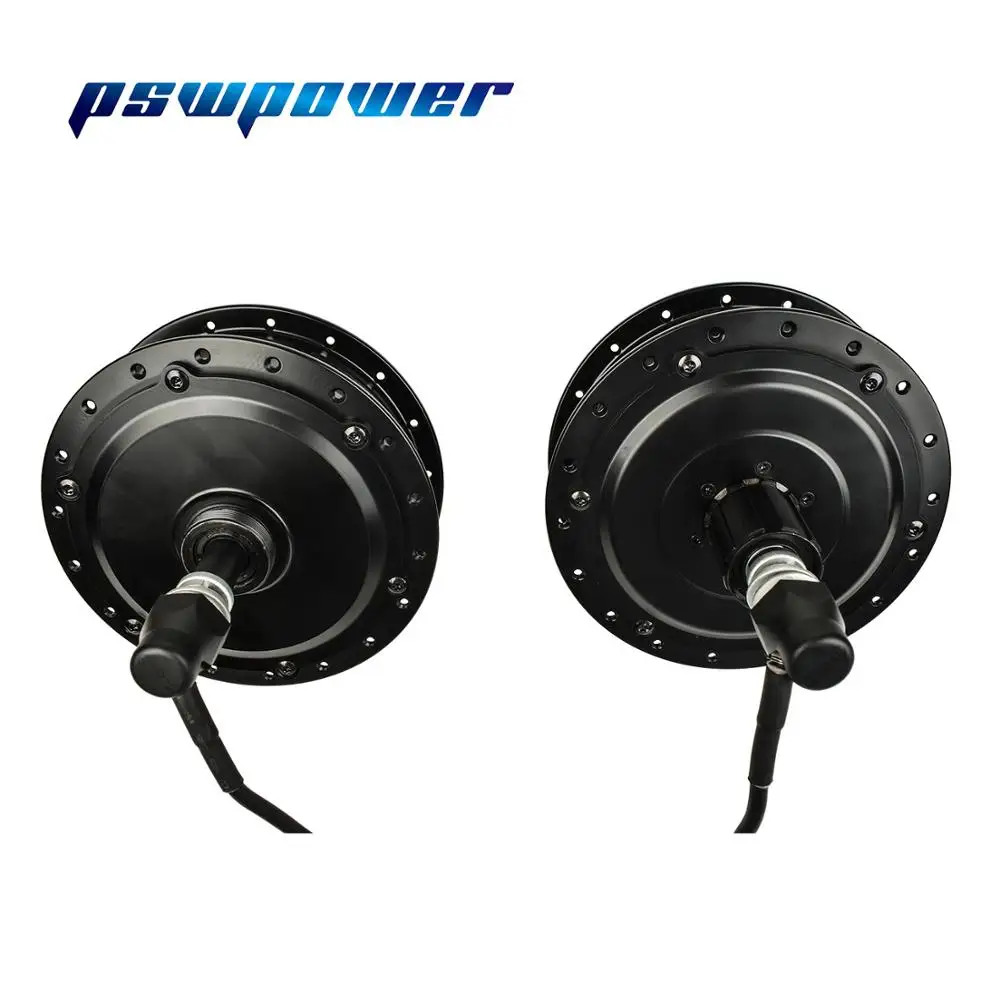

Motor: you can choose SWX02 Rear Freewheel Motor or SWX02 Rear Cassette Motor

You can buy KT36/48SVPR-EP02B 20A controller for the waterproof cable motor, KT24/36SVPR-HRD01 20A  for the Normal cable motor.

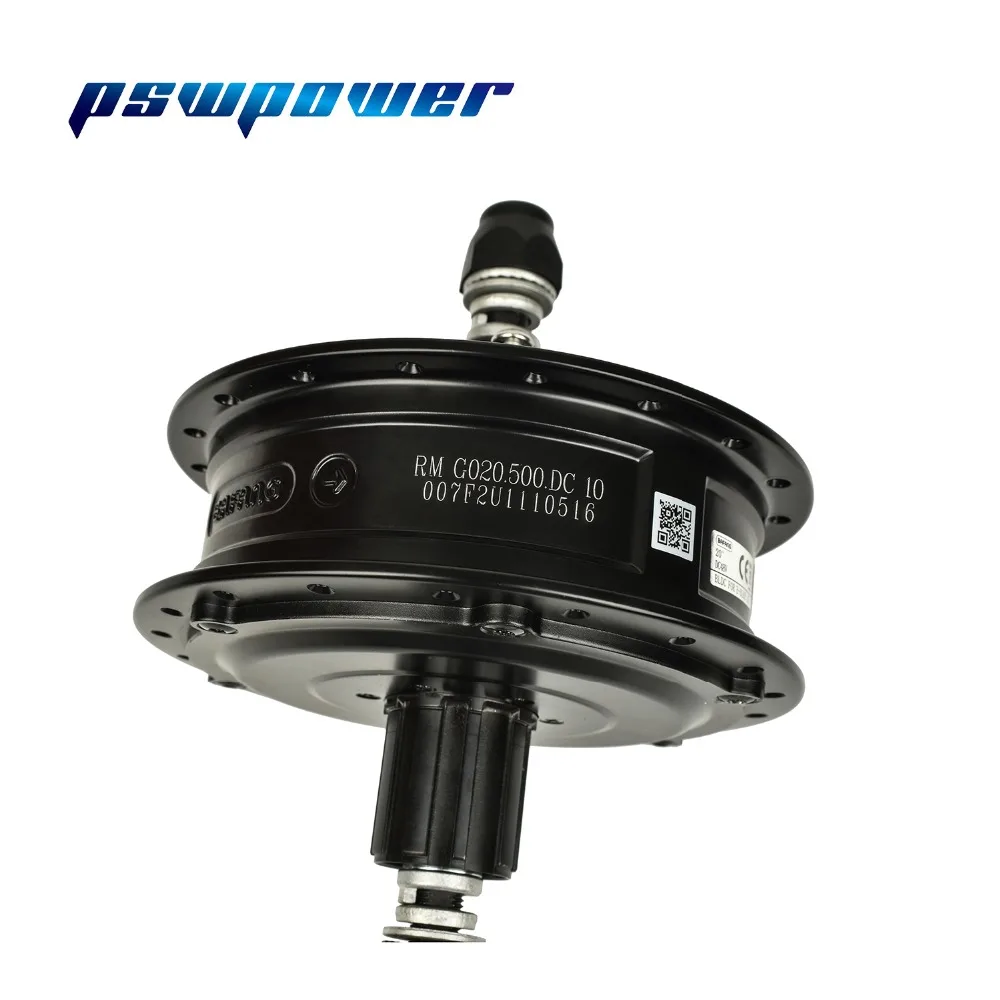

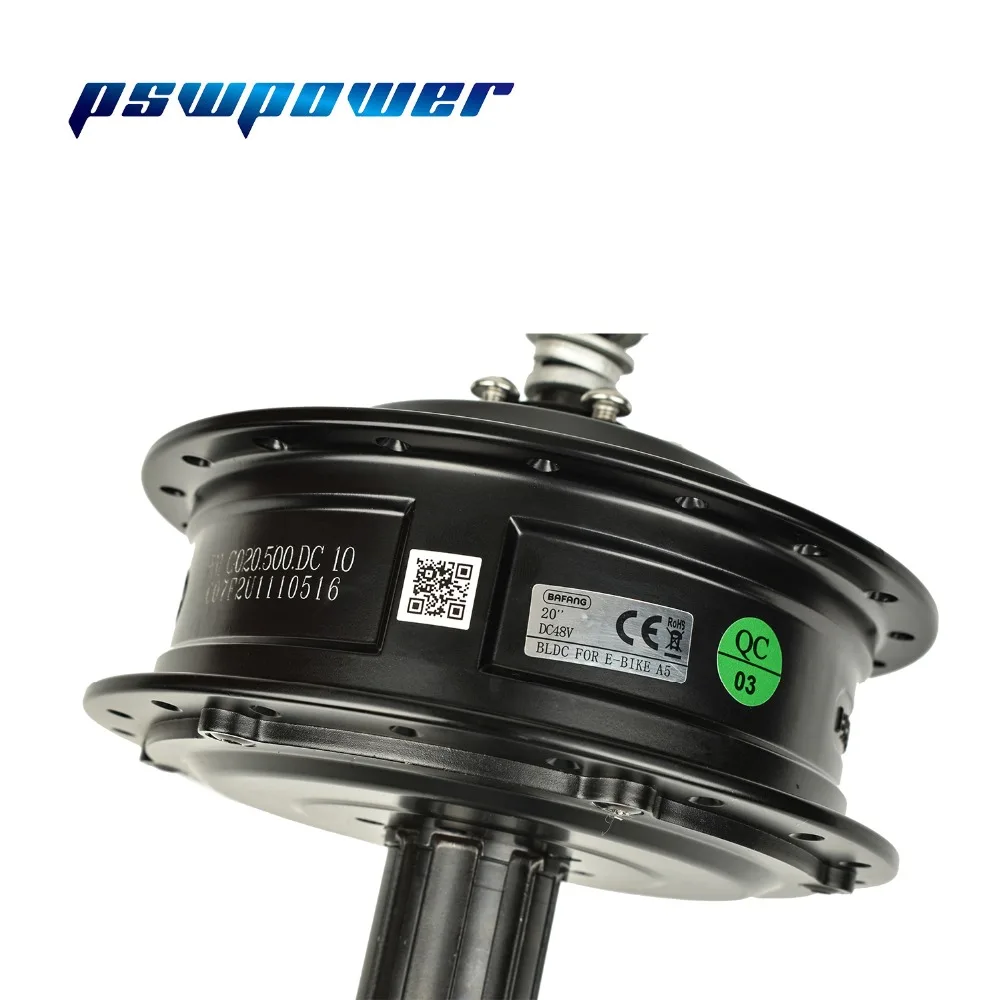

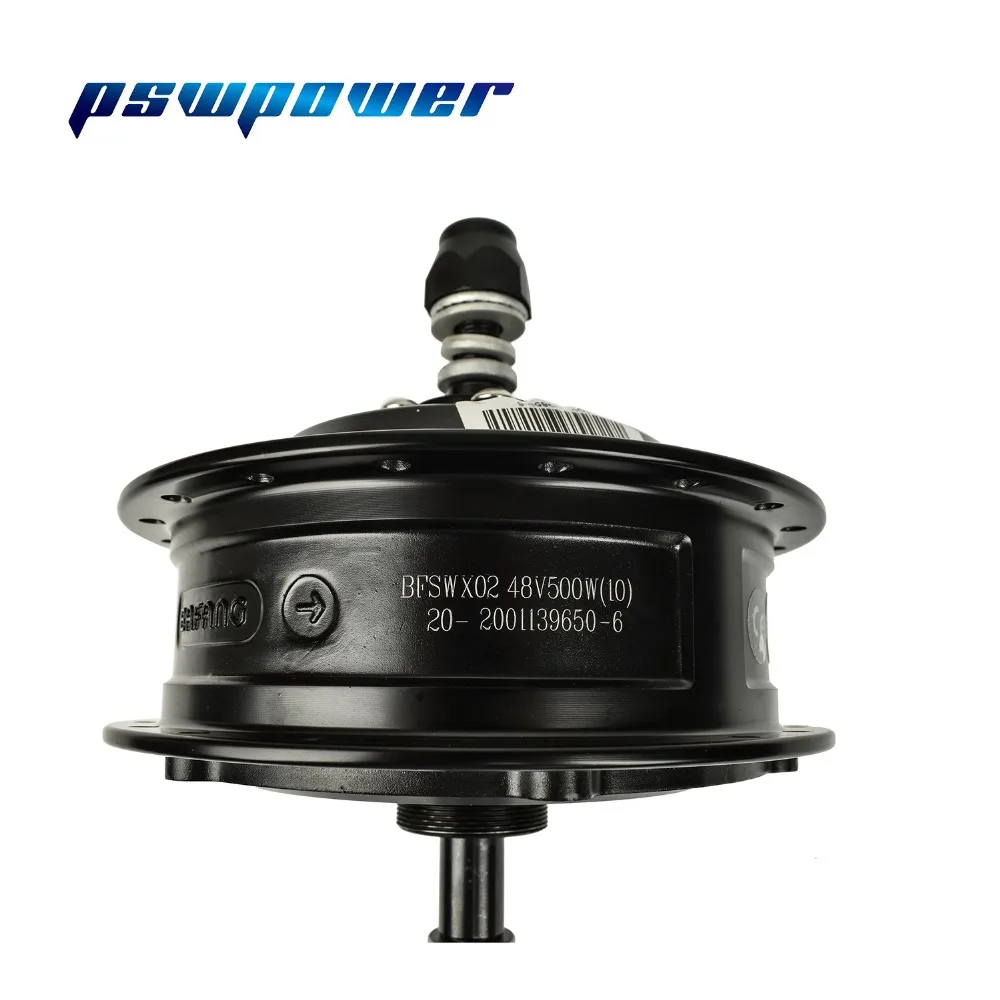

The laser Code is 48V 500W motor:

 If you want use 36V Battery for this motor,you can buy  KT36/48SVPR-EP02B 17A controller for the waterproof cable motor, KT24/36SVPR-HRD01 17A  for the Normal cable motor.

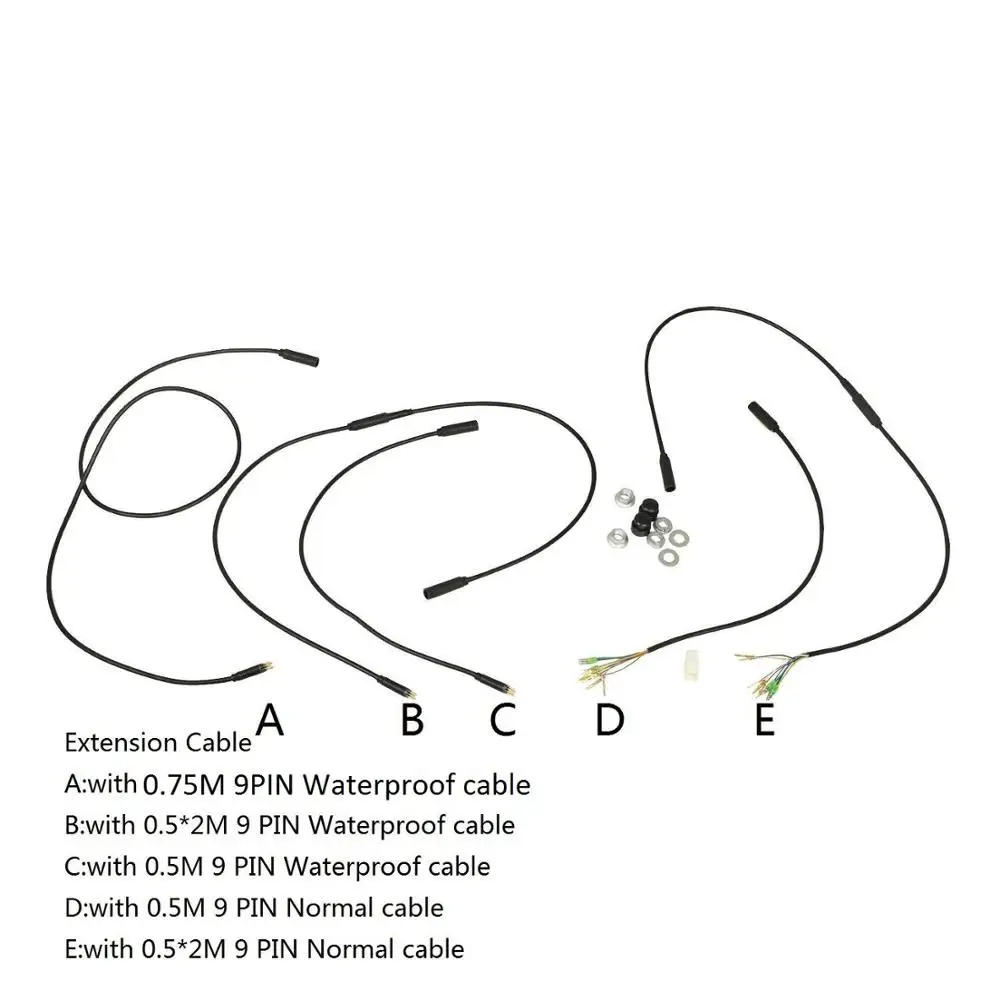

Motor Cable:you can choose 0.75M 9 PIN Waterproof cable or 0.5M 9 PIN Waterproof cable or 0.5M 9 PIN Normal cable or 0.5*2M 9 PIN Waterproof cable or 0.5*2M 9 PIN Normal cable

Please note the cable you need when placing the order

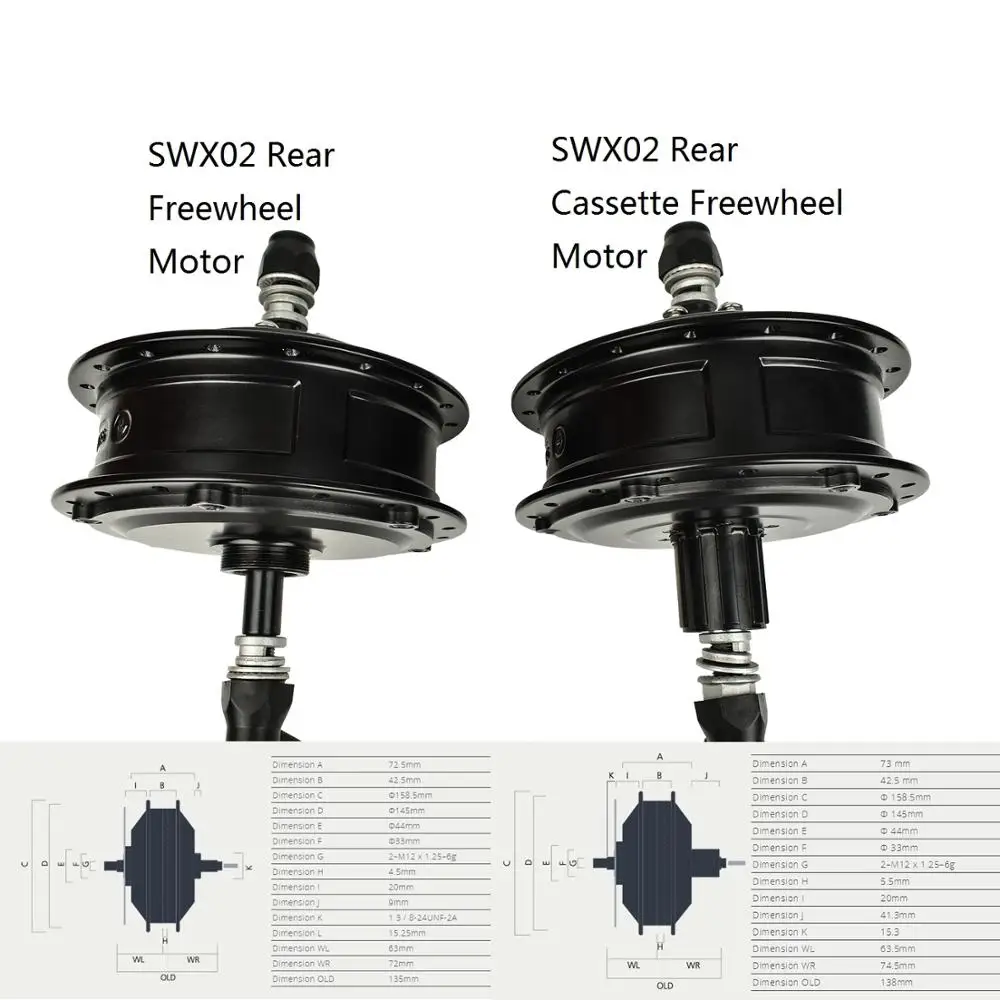

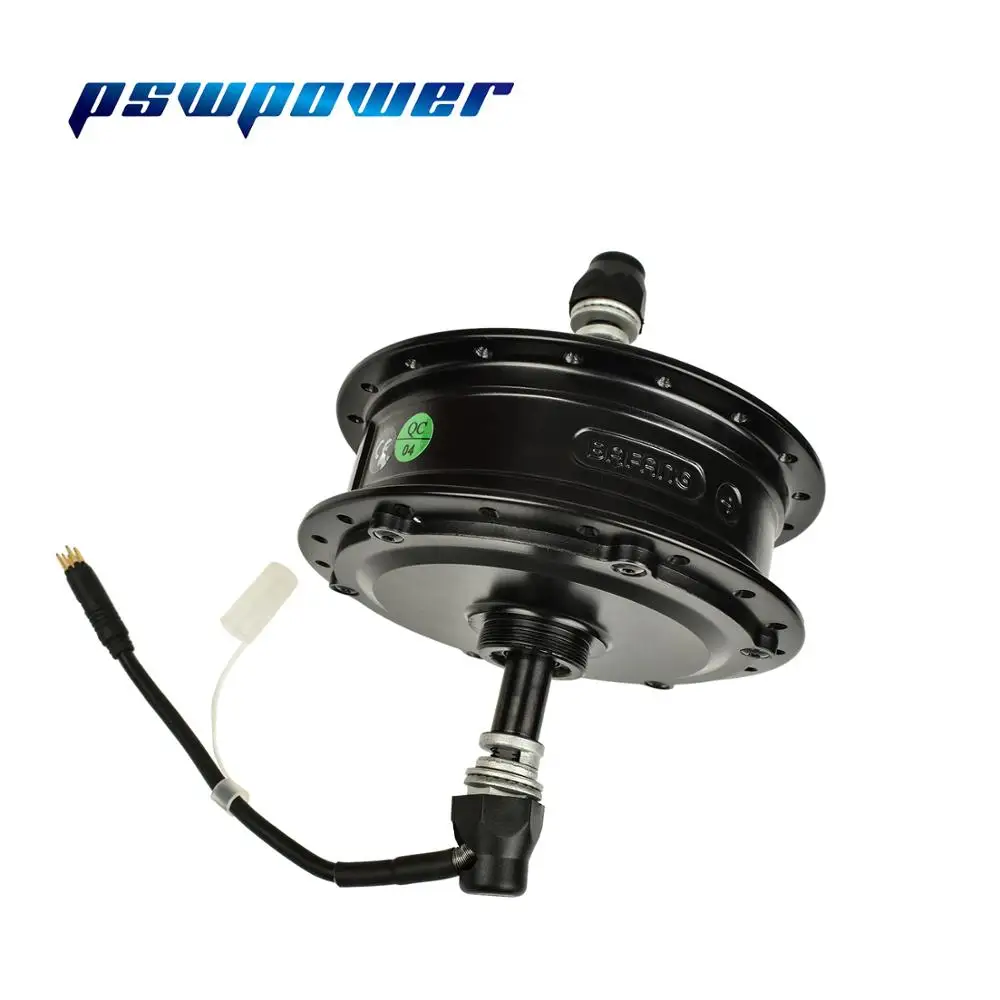

SWX02 Rear Freewheel Motor

Position      Rear Motor

Wheel Diameter (Inch)      20/26/27.5/28

Construction    Gear drive

Rated Voltage (DCV)    36V 350W/48V 500W

Rated Speed(km/h) 36V 350W RPM 195

48V 500W RPM 261

Max Torque      45 N.m

Efficiency (%)   ≥ 80

Color    Black

Weight (kg)      3.3

Noise Grade (dB)   ＜55

Operating Temperature    -20 - 45℃

Mounting Parameters

Brake   Disc Brake

Installation Widths (mm / OLD)    135

Max. Housing Diameter (mm)       158.5

Cabling Route  Through Shaft, Right

Cable Length(mm), Connection Type 250 G9.1

Gearshift    Freewheel(6S/7S/8S/9S)

Spoke Specification     36H*13G

Further Specifications

Speed Detection Signal (Pulses/Cycle)      6

Reduction Ratio     1:05

Magnet Poles (2P)       20

Tests & Certifications

IP   IP 65

Certifications   ROHS / CE

Salt Spary Test Standard(h)     96

SWX02 Rear Cassette Freewheel Motor

Position      Rear Motor

Wheel Diameter (Inch)      20/26/27.5/28

Construction    Gear drive

Rated Voltage (DCV)    36V 350W/48 500W

Rated Speed(km/h) 36V 350W RPM 195

48V 500W RPM 261

Max Torque      45 N.m

Efficiency (%)   ≥ 80

Color    Black

Weight (kg)      3.5

Noise Grade (dB)   ＜55

Operating Temperature    -20 - 45℃

Mounting Parameters

Brake   Disc Brake

Installation Widths (mm / OLD)    138

Max. Housing Diameter (mm)       158.5

Cabling Route  Through Shaft, Right

Cable Length(mm), Connection Type 250 G9.1

Freewheel 8S-10S Cassette freewheeel

Spoke Specification     36H*13G

Further Specifications

Speed Detection Signal (Pulses/Cycle)      6

Reduction Ratio     1:05

Magnet Poles (2P)       20

Tests & Certifications

IP   IP 65

Certifications   ROHS / CE

Salt Spary Test Standard(h)     96

Packing list:

1pcs SWX02 Rear Freewheel Motor or SWX02 Rear Cassette Motor

1pcs 15cm add 0.75M 9 PIN Waterproof cable or 0.5M 9 PIN Waterproof cable or 0.5M 9 PIN Normal cable or 0.5*2M 9 PIN Waterproof cable or 0.5*2M 9 PIN Normal cable

CUSTOMS TAX

If you choose paid by buyer, Usually we will declare the low value US$40 to save your customs tax, Customs tax should be paid by buyer. if you from follow EU country and choose paid by pswpower, we will send motor by air first, we will pay the customs tax in EU country, then by DHL, delivery time about 7-10 working days

 Austria,Belgium,Czech Republic ,Germany ,Denmark ,Spain ,Finland ,France,United Kingdom ,Greece ,Hungary ,Italy ,Lithuania ,Latvia ,Netherlands ,Poland,Portugal ,Romania ,Sweden,Slovenia,Slovakia

Warranty :

 1 year(based on the purchase data): Free repair,buyer pay for return postage and resend postage,buyer should return to china for repair
