Автомобильная активная GPS-антенна Eightwood с разъемом 3,5 мм для подключения мужского типа, длиной 300 см, с удлинителем для видеорегистраторов AUKEY, Papago, Thinkware и Apeman.

Автомобильная активная GPS-антенна Eightwood с разъемом 3 5 мм для подключения мужского типа длиной 300 см удлинителем видеорегистраторов AUKEY Papago Thinkware и Apeman.

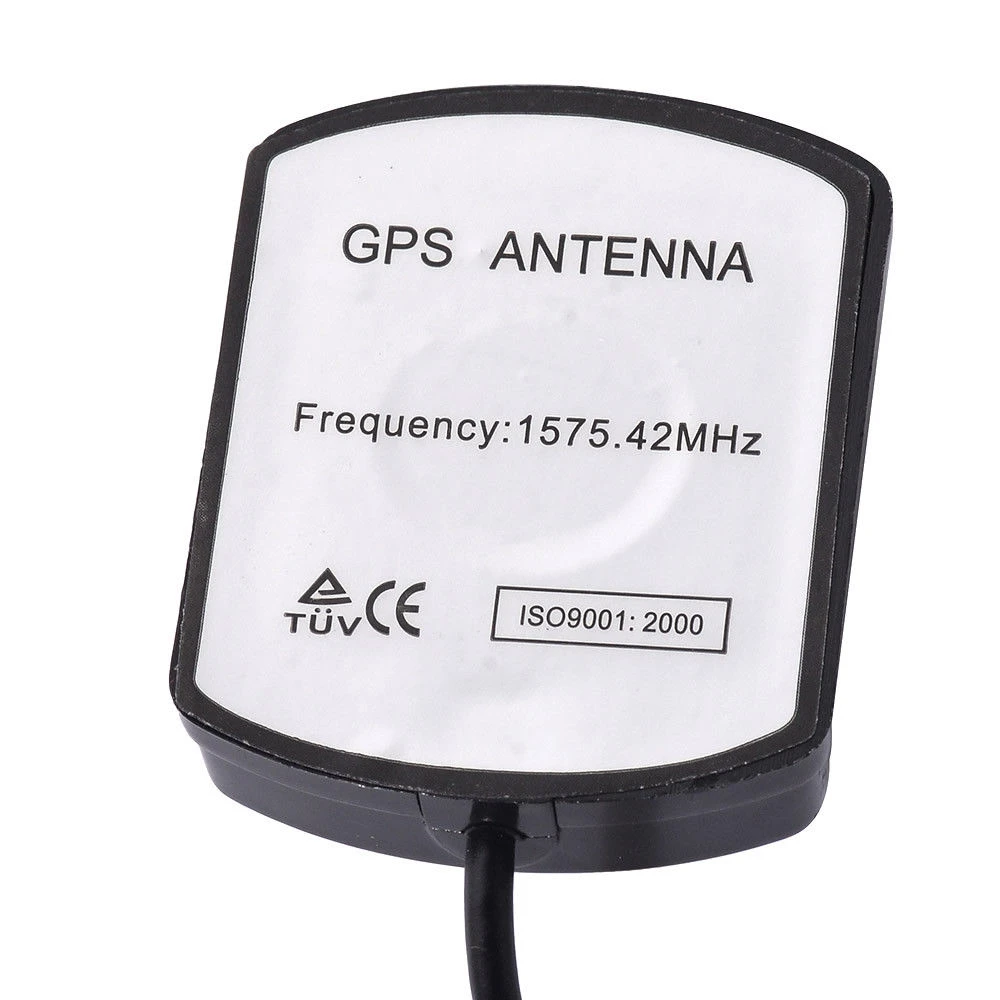

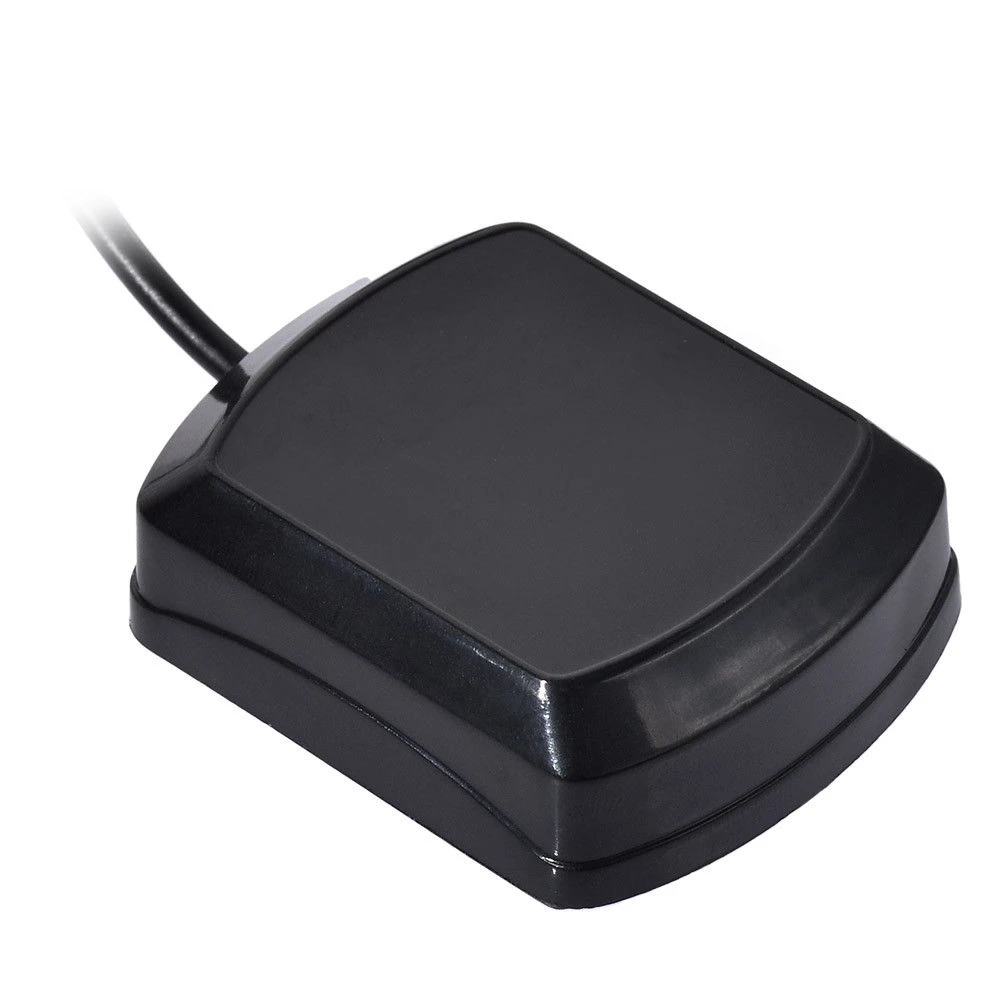

Eightwood Car GPS Antenna Digital Radio Receiver 3.5mm Male Plug Connector Aerial for Papago AUKEY Dash cams

Characteristic:

（I） Dieletric Antenna
Center Frequency: 1575.42MHz±3 MHz
V.S.W.R: 1.5:1
Band Width: ±5 MHz
Impendence: 50 ohm
Peak Gain: ＞3dBic Based on 7×7cm ground plane
Gain Coverage: ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization: RHCP

（II） LNA/Filter
LNA Gain (Without cable): 28+/-3dB
Noise Figure: 1.5dB Typ.
Filter Out Band Attenuation: (f° =1575.42MHz)
7dB Ｍin f0+/-20MHZ ;
20dB Ｍin f0+/-50MHZ;
30dB Ｍin f0+/-100MHZ
V.S.W.R: ＜2.0
DC Voltage: 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current: 5mA /11mA/15mA Max
（iii）Mechanical
Weight: ＜100gram
Size :48x39x16mm

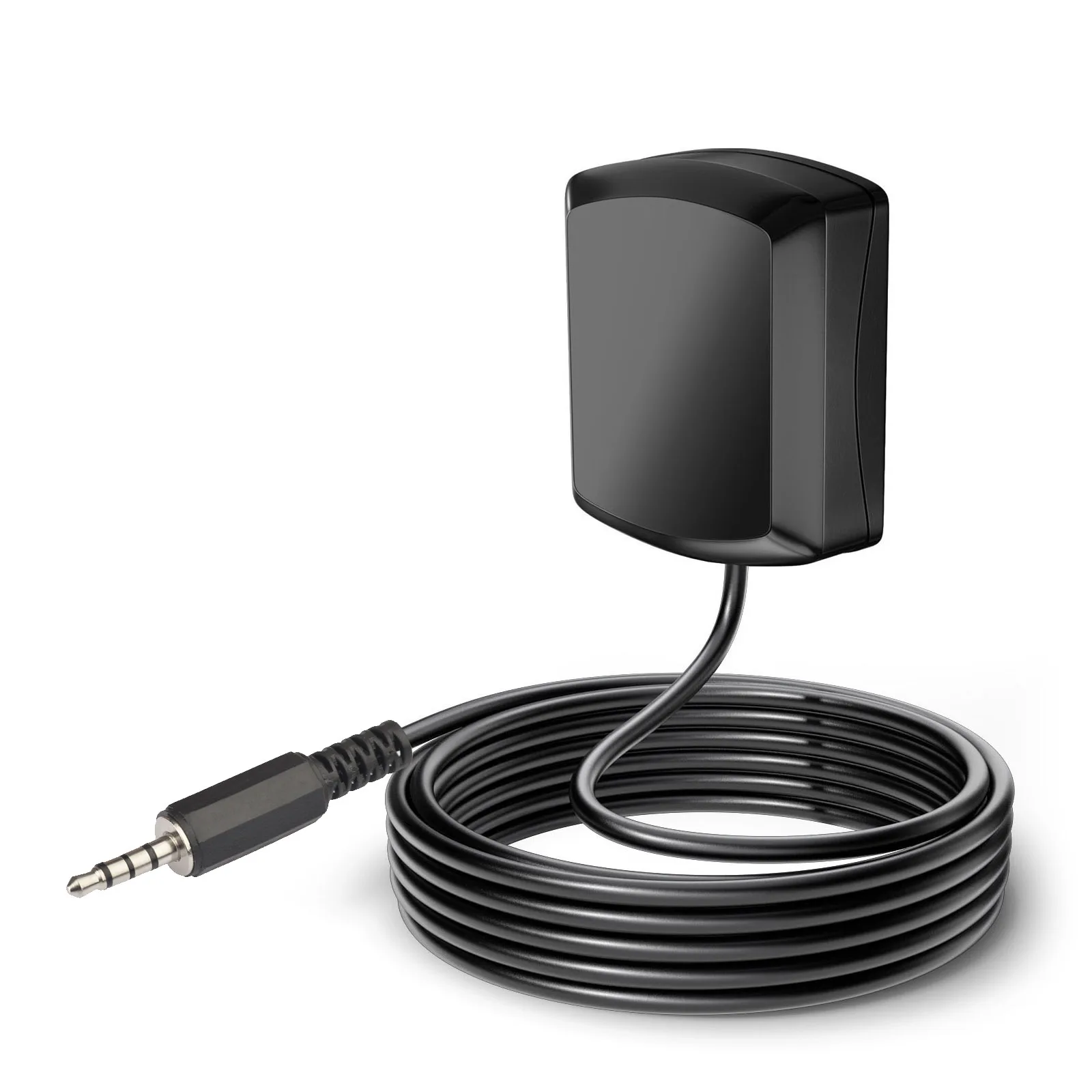

Cable :RG174 3 meter/ Contact us for other length

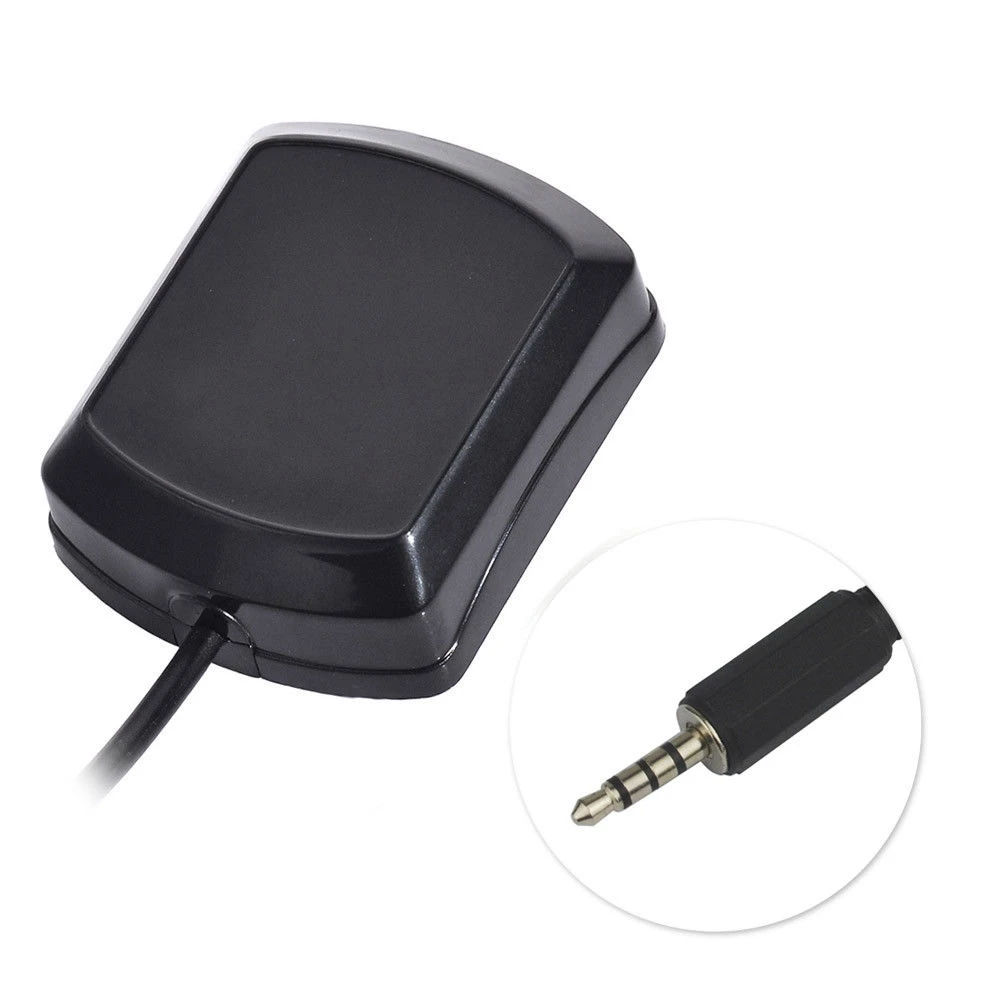

Connector:3.5mm Plug straight
Mounting: Magnetic base
Housing: Black
（IV）Environmental
Working Temp: -40℃~+85℃
Storage Temp: -45℃~+100℃
Vibration Sine sweep: 1g(0-p)10~50~10Hz each axis
Relative Humidity: 95% non-condensing
Weatherproof: 100% Waterproof
(V) Features:

Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity

Apeman Dash Cams:C550
