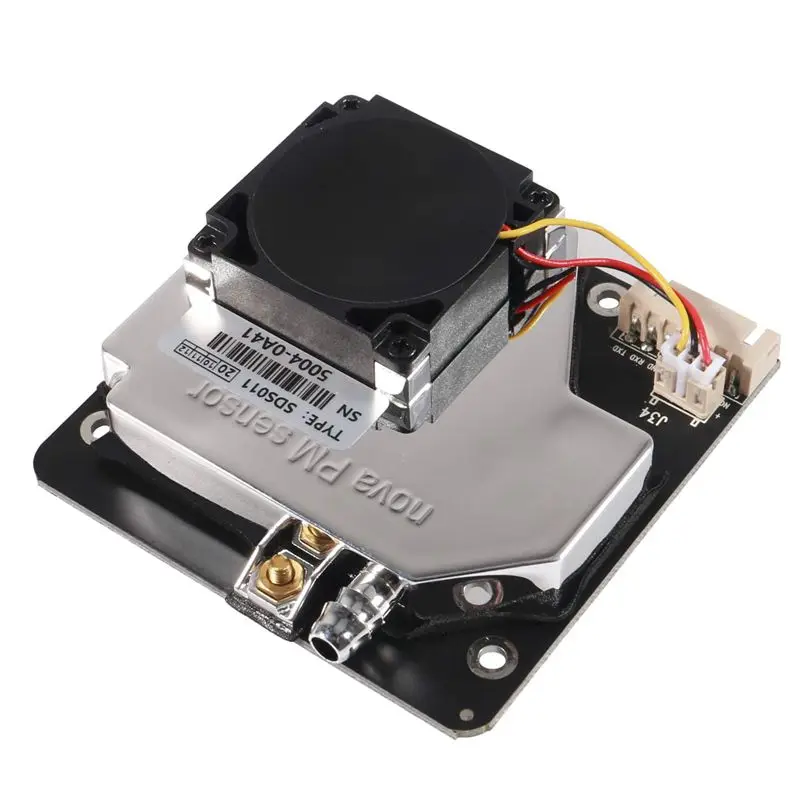

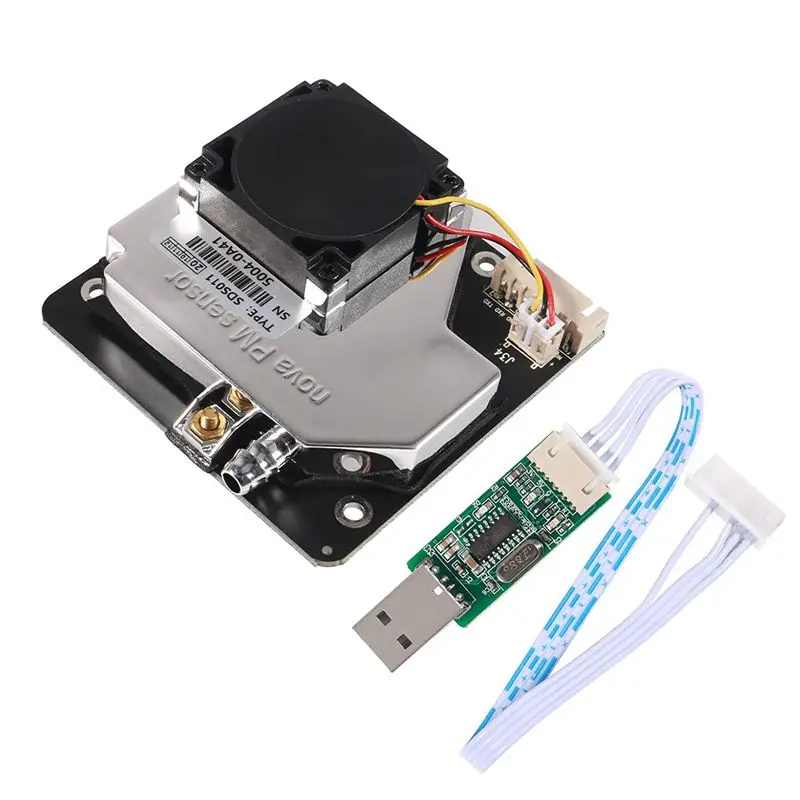

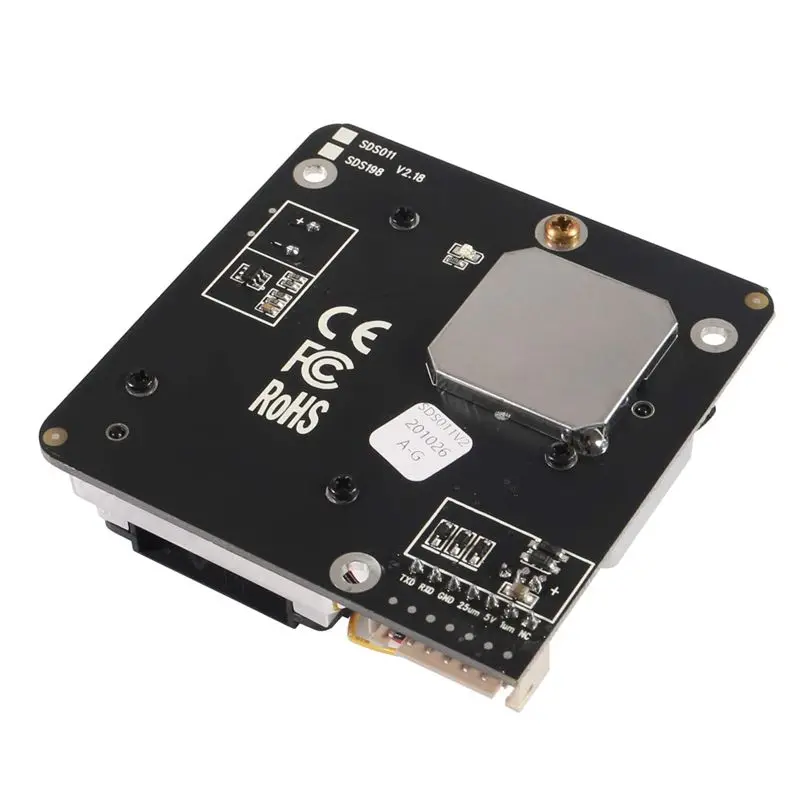

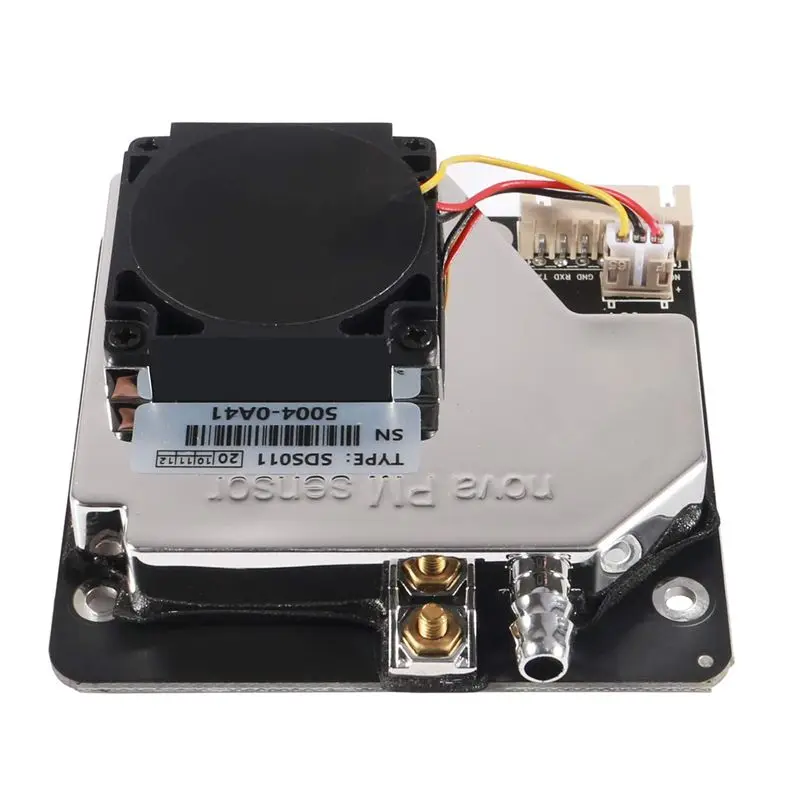

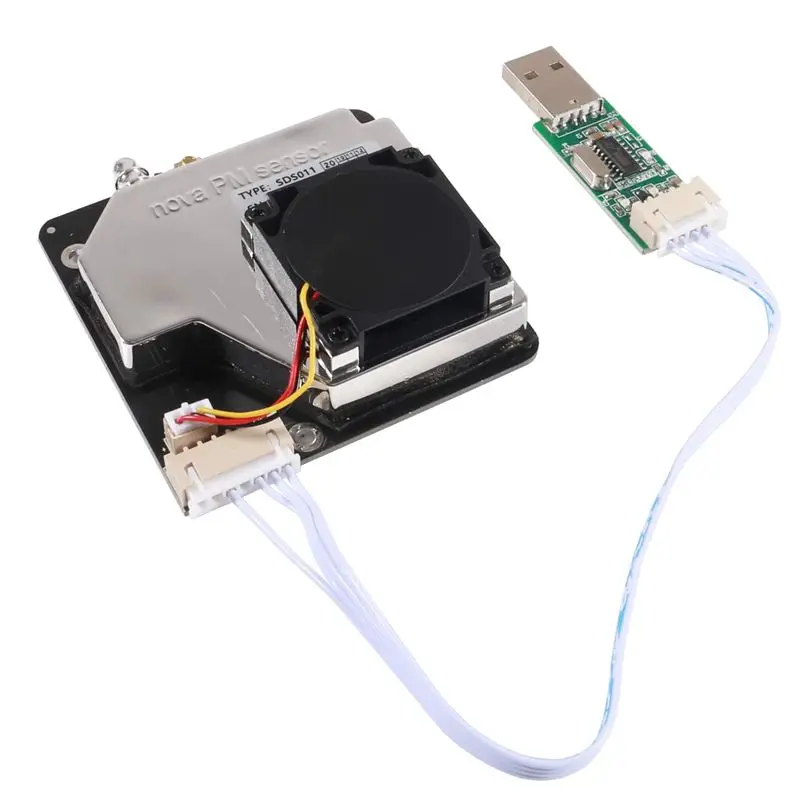

Product description Communication protocol: Serial communication protocol: 9600 8N1. (Rate of 9600, data bits 8, parity none, stop bits 1) Serial report communication cycle: 1+0.5 seconds Data frame (10 bytes): message header + order+ data(6 bytes) + checksum + message trailer The number of bytes:Name:Content 0:message header:AA order:C0 data 1:PM2.5 low byte data 2:PM2.5 high byte data 3:PM10 low byte data 4:PM10 high byte data 5:0(reserved) data 6:0(reserved) checksum:checksum message trailer:AB Checksum: data 1 + data 2 + ...+ data 6 PM2.5 data content: PM2.5 (ug/m3) = ((PM2.5 high byte*256 ) + PM2.5 low byte)/10 PM10 data content: PM10 (ug/m3) = ((PM10 high byte*256 ) + PM10 low byte)/10 Interface specification: CTL:Control pin, reserved 1um:>0.3 Micron particle concentration, PWM Output 5V:5V power input 25um:>2.5 Micron particle concentration, PWM Output GND:GND R:Serial port receiver RX T:Serial port transmission TXPS: The pitch of Interface is 2.54mm Package included: 1 x PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module
