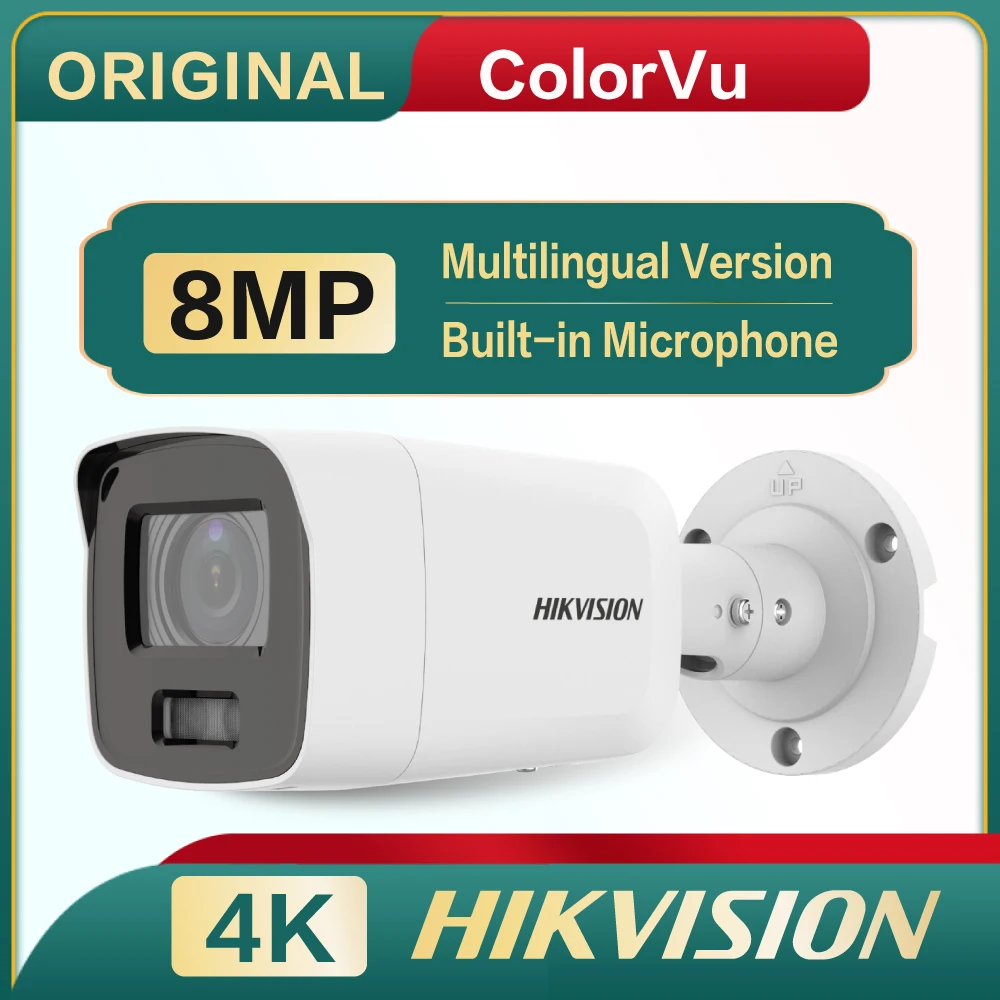

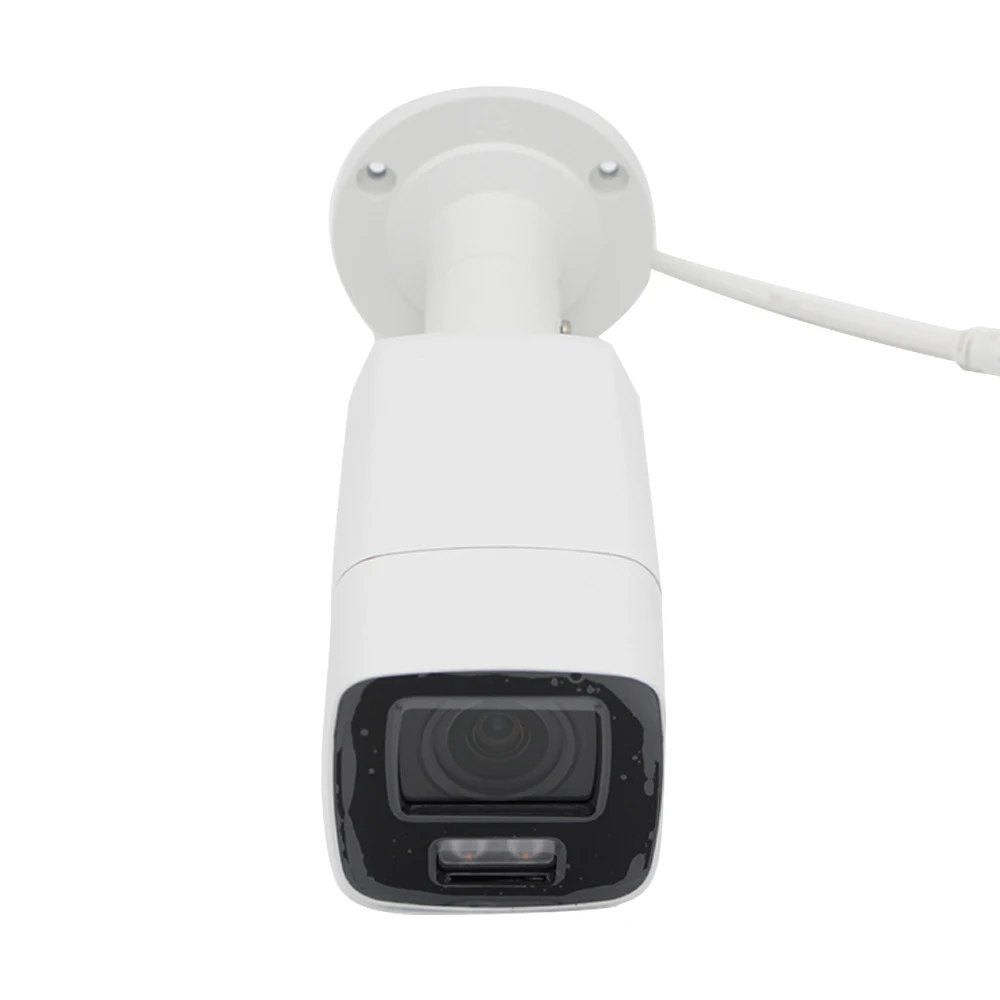

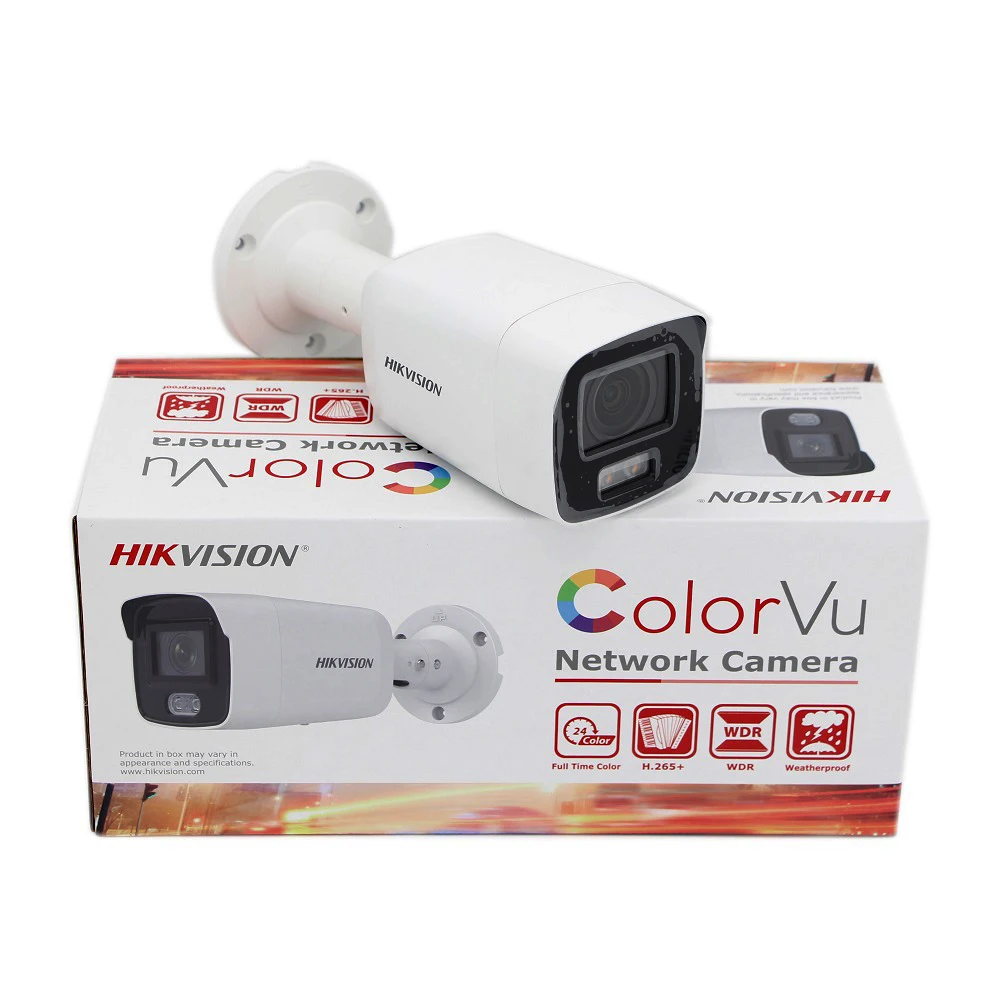

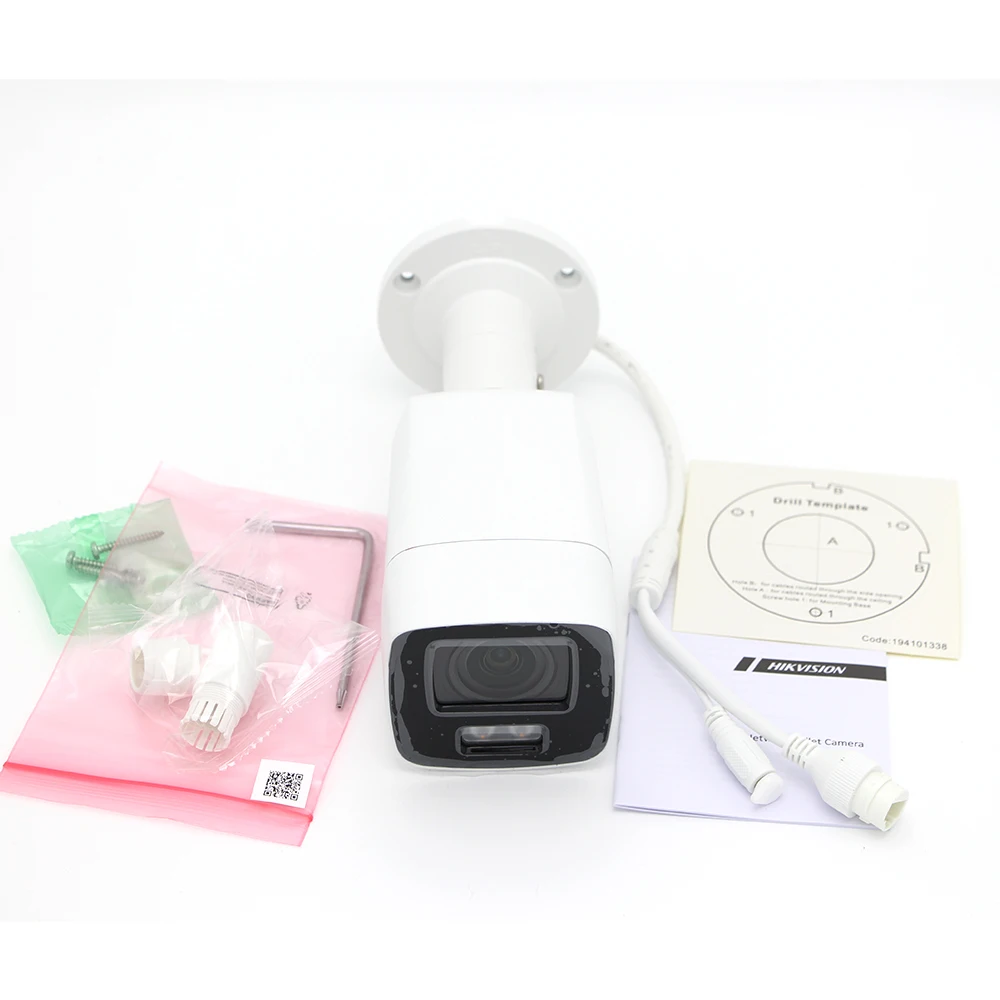

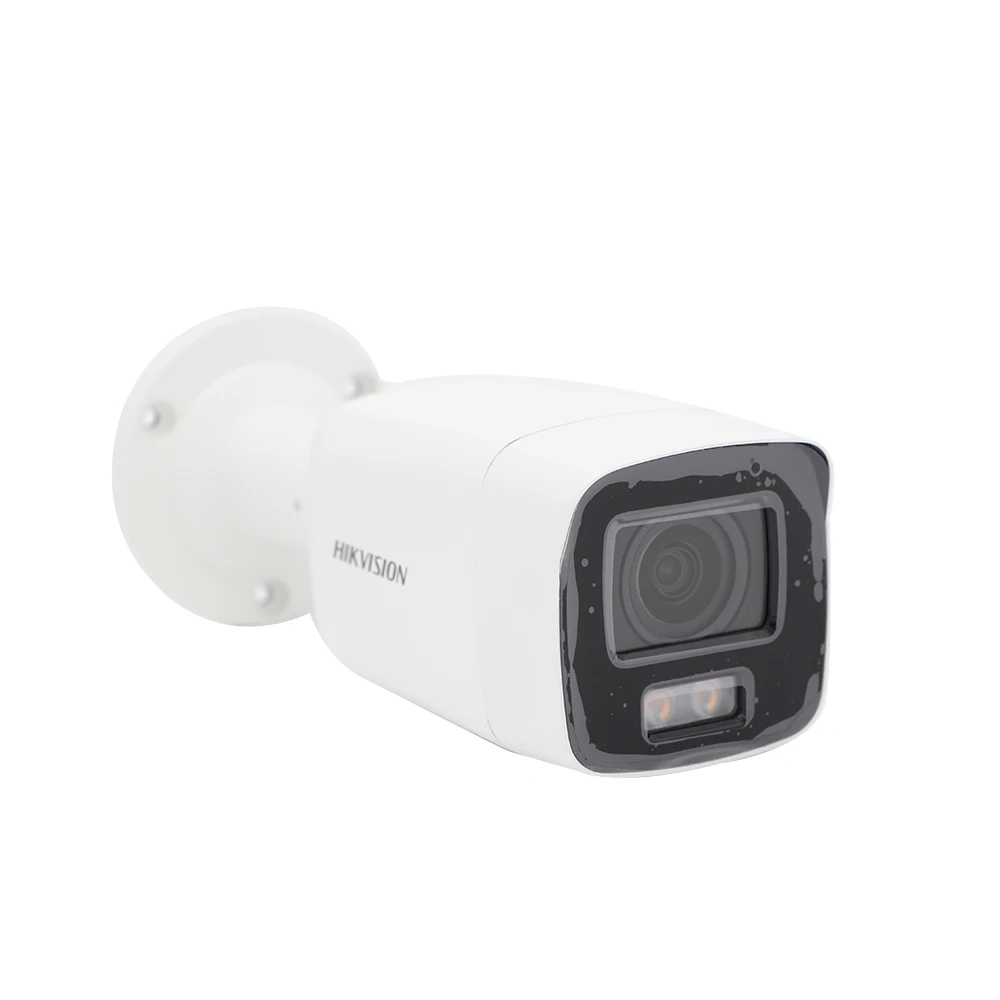

Hikvision 4 K ColorVu Fixed Bullet Network Camera DS-2CD2087G2-LU High Quality Imaging With 8 MP Resolution Built-in Microphone |

Hikvision 4 K ColorVu Fixed Bullet Network Camera DS-2CD2087G2-LU High Quality Imaging With 8 MP Resolution Built-in Microphone |

· Camera

· Image Sensor

· 1/1.2" Progressive Scan CMOS

· Max. Resolution

· 3840 × 2160

· Min. Illumination

· Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light

· Shutter Time

· 1/3 s to 1/100,000 s

· Angle Adjustment

· Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

· Lens

·

· Lens Type

· Fixed focal lens, 2.8, 4, and 6 mm optional

· Focal Length & FOV

·

·

· 2.8 mm: horizontal FOV102°, vertical FOV 52°, diagonal FOV 124°

·

· 4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°

·

· 6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°

· Iris Type

· Fixed

· Aperture

· F1.0

· Depth Of Field

·

·

· 2.8 mm: 4.5 m to ∞

·

· 4 mm: 7 m to ∞

·

· 6 mm: 13 m to ∞

· DORI

·

· DORI

·

·

· 2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m

·

· 4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m

·

· 6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m

· Illuminator

·

· Supplement Light Type

· White light

· Supplement Light Range

· 40 m

· Smart Supplement Light

· Yes

· Video

·

· Main Stream

·

·

· 50 Hz:

·

· 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

·

· 60 Hz:

·

· 24 fps (3840 × 2160)

·

· 30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

· Sub-Stream

·

·

· 50 Hz: 25 fps (640 × 480, 640 × 360)

·

· 60 Hz: 30 fps (640 × 480, 640 × 360)

· Third Stream

·

·

· 50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)

·

· 60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)

· Video Compression

·

·

· Main stream: H.265/H.264/H.264+/H.265+

·

· Sub-stream: H.265/H.264/MJPEG

·

· Third stream: H.265/H.264

· Video Bit Rate

· 32 Kbps to 16 Mbps

· H.264 Type

· Baseline Profile/Main Profile/High Profile

· H.265 Type

· Main Profile

· Bit Rate Control

· CBR/VBR

· Scalable Video Coding (SVC)

· H.264 and H.265 encoding

· Region Of Interest (ROI)

· 1 fixed region for main stream and sub-stream

· Audio

·

· Audio Compression

· -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

· Audio Bit Rate

· -U: 64 Kbps (G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64Kbps(AAC)

· Audio Sampling Rate

· -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

· Environment Noise Filtering

· -U: Yes

· Network

·

· Protocols

· TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

· Simultaneous Live View

· Up to 6 channels

· API

· Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK

· User/Host

· Up to 32 users. 3 user levels: administrator, operator and user

· Security

· Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

· Network Storage

· NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

· Client

· iVMS-4200, Hik-Connect, Hik-Central

· Web Browser

·

·

· Plug-in required live view: IE 10, IE 11

·

· Plug-in free live view : Chrome 57.0+, Firefox 52.0+

·

· Local service: Chrome 57.0+, Firefox 52.0+

· Image

·

· Image Parameters Switch

· Yes

· Image Settings

· Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

· Day/Night Switch

· Day, Night, Auto, Schedule

· Wide Dynamic Range (WDR)

· 130 dB

· SNR

· ≥ 52 dB

· Image Enhancement

· BLC, HLC, 3D DNR

· Interface

·

· Ethernet Interface

· 1 RJ45 10 M/100 M self-adaptive Ethernet port

· On-Board Storage

· Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB

· Built-In Microphone

· -U: Yes

· Reset Key

· Yes

· Event

·

· Basic Event

· Motion detection (human and vehicle targets classification), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

· Smart Event

·

·

· Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))

·

·

·

· Scene change detection

·

·

· Linkage

· Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email

· Deep Learning Function

·

· Face Capture

· Yes

· General

·

· Power

·

·

· 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection

·

· PoE: (802.3af, Class 3, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W

· Dimension

· 78.8 × 78.6 × 215.2 mm (3.1" × 3.1" × 8.5")

· Package Dimension

· 315 × 137 × 141 mm (12.4" × 5.4" × 5.6")

·

· Approx. 850 g (1.9 lb.)

· With Package Weight

· Approx. 1270 g (2.8 lb.)

· Storage Conditions

· -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

· Startup And Operating Conditions

· -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

· Language

·

·

· 33 languages

·

· English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

· General Function

· Anti-flicker, heartbeat, password reset via e-mail, pixel counter

· Approval

·

· EMC

·

·

· FCC (47 CFR Part 15, Subpart B);

·

· CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

·

· RCM (AS/NZS CISPR 32: 2015);

·

· IC (ICES-003: Issue 7)

· Safety

·

·

· UL (UL 62368-1);

·

· CB (IEC 62368-1:2014+A11)

·

· CE-LVD (EN 62368-1:2014/A11:2017)

· Environment

·

·

· CE-RoHS (2011/65/EU);

·

· WEEE (2012/19/EU);

·

· Reach (Regulation (EC) No 1907/2006)

· Protection

· IP67 (IEC 60529-2013)
