AC/DC 12v-380v DH48S-S Programmable Time Relay Cycle control Delay w Socket Base | Обустройство дома

P31E AC/DC 12v-380v DH48S-S Programmable Time Relay Cycle control Delay w Socket Base
OOTDTY

AC/DC 12V 24V 220V 380V DH48S-S Programmable Digital time relay cycle control Double Time Delay Relay Socket with Base

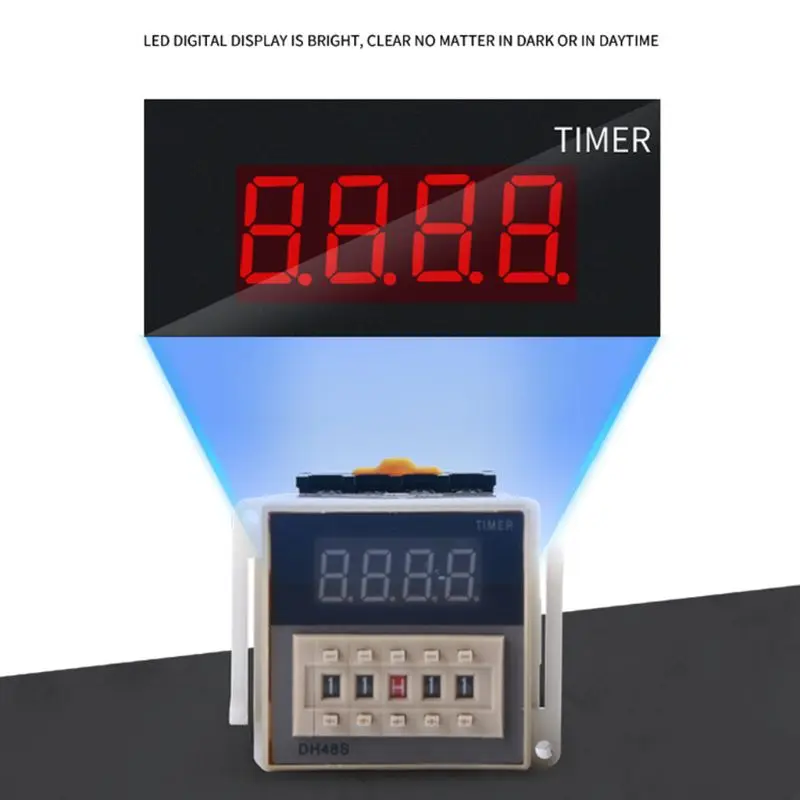

The use of advanced large-scale integration and LED digital tube display, beautiful appearance, wide range of time delay, high precision, low power consumption, long life, high contact capacity, etc., suitable for automatic control system.

Funciton:

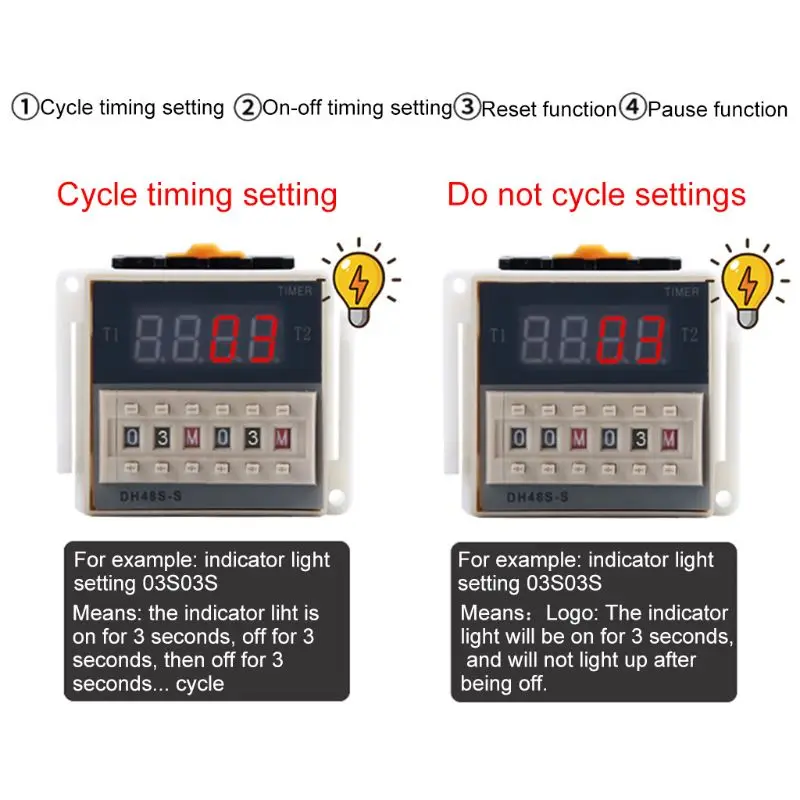

1. Cycle timing setting
2. On-off timing setting
3. Reset function
4. Pause function

1 group infinite loop
1 group of normally open normally closed
With clear and pause

Specifications:
Model:DH48S-S
Power supply: 85-110% rated voltage

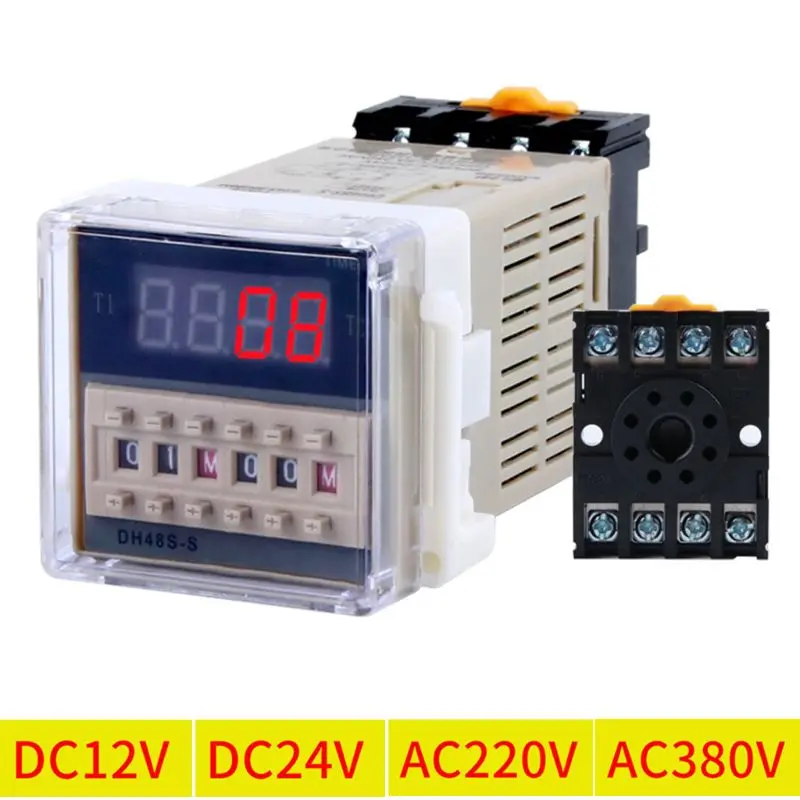

AC: 220V, 380V
DC: 12V, 24V
Delay control accuracy: Less than equal 0.3% 0.05s.
Ambient temperature: -10-50 Celsius
Power consumption: ≤ 3W
Delay range: 0.1s ~ 99 hours
Altitude: Less than 2000m
Contact capacity: 5A AC220V (resistance)

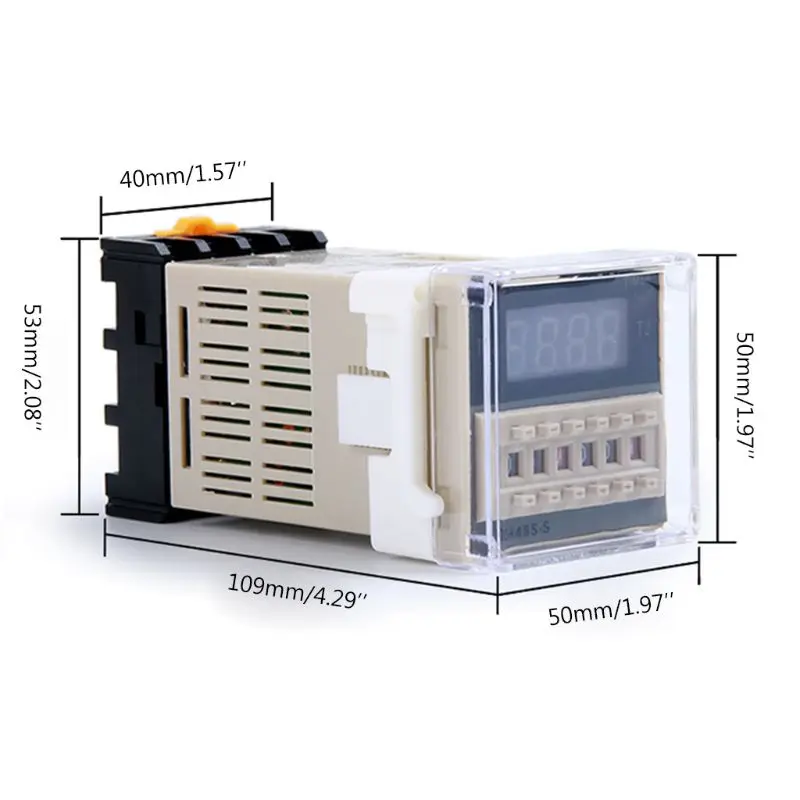

Size:11 x 5.5 x 5cm
Material: Plastic / Metal

Package included:
1 * DH48S-S Programmable Time Relay
1 * Socket Base
