1Mw With 5Km Visual Fault Locator 3in1 Optical Power Meter Visual Fault Locator Network Cable Test Lighting Optical Fiber Tester

1.Buyer is responsible for the customs duty and local import taxes etc. The price here not includes the destination fee in buyer's side.

2.Important: Dear Brazil customer, please leave your CPF or CNPJ number after placing the order

3.For some special countries, like Brazil, Mexico, E-packet and China Post delivery time may be around 20-90 days

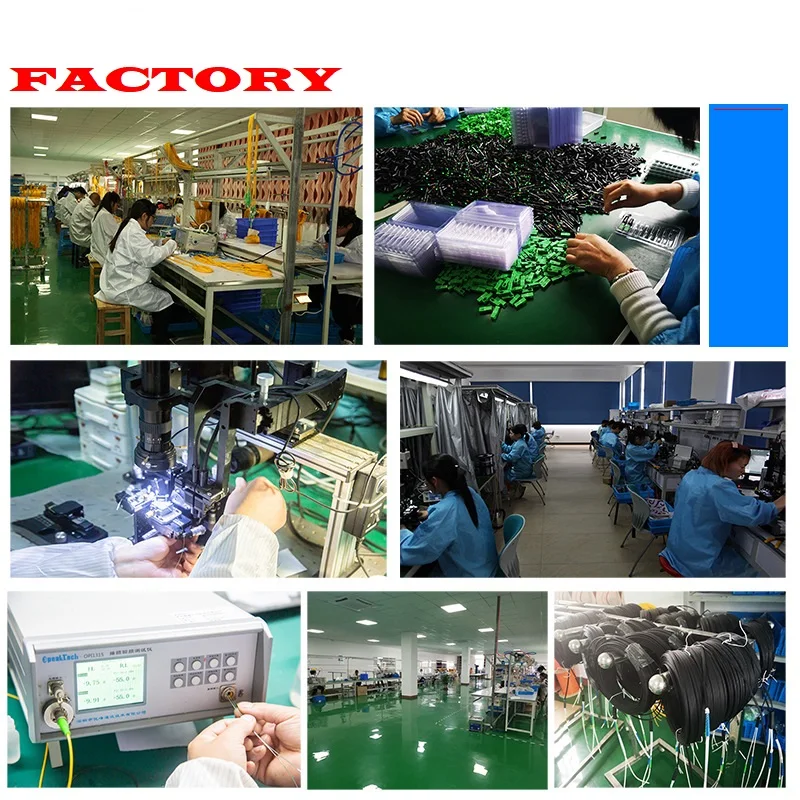

Bulk purchases please contact with us,we are factory have the best price for you.

Item Description：

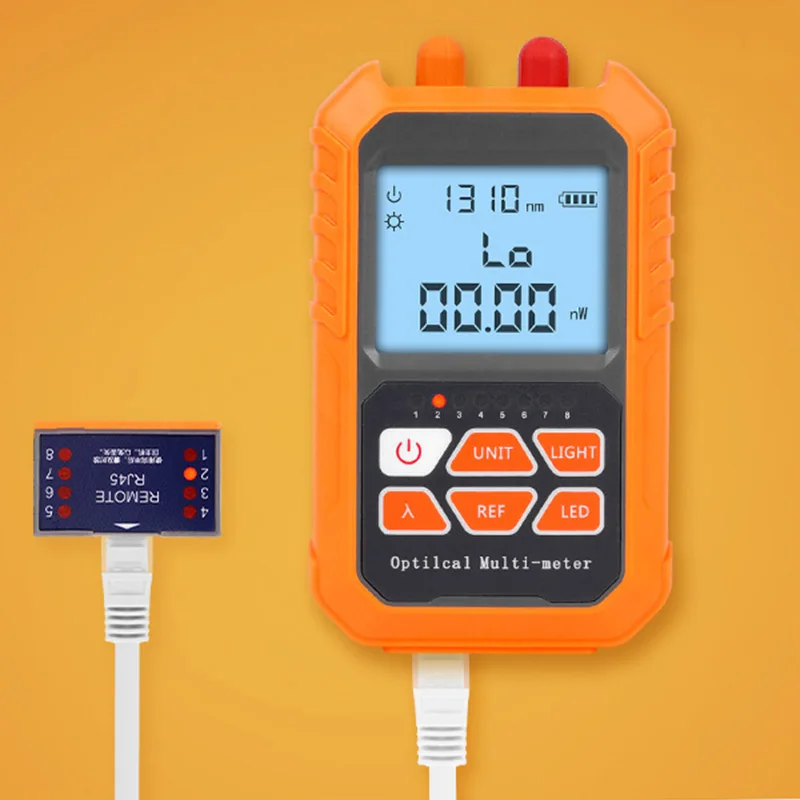

Cable test function

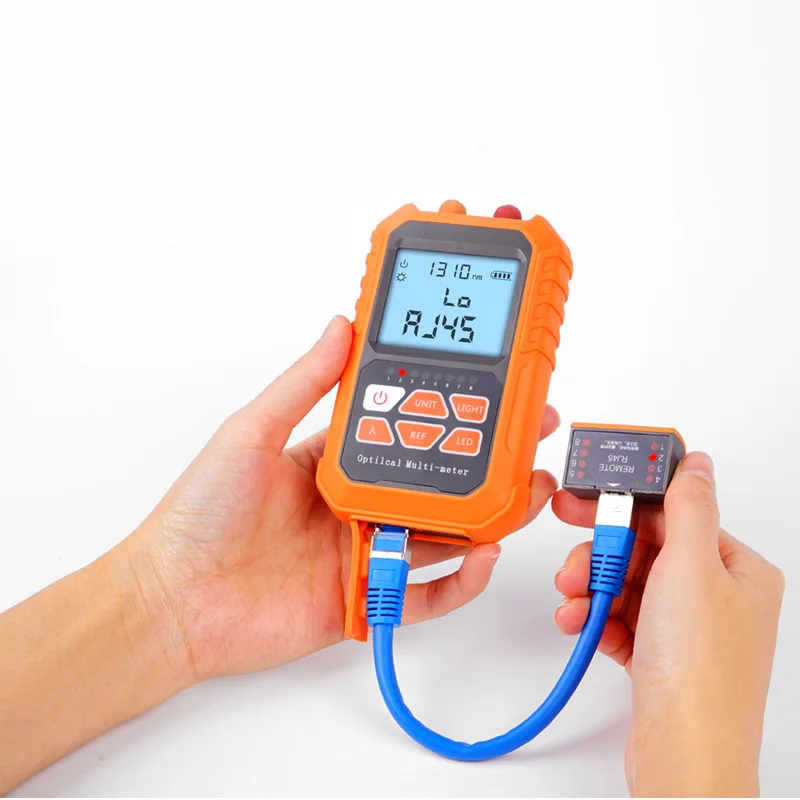

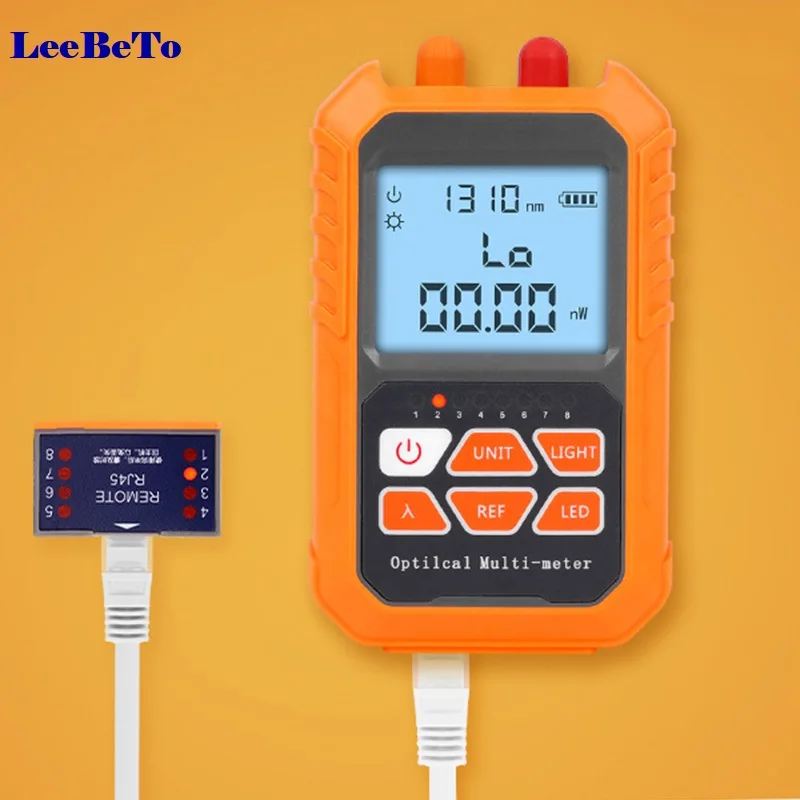

Operation method: Long press UNIT key for 3 seconds to open RJ45 test mode, then press to close RJ45 test mode
High quality imported head
Penetrating farther, longer life.

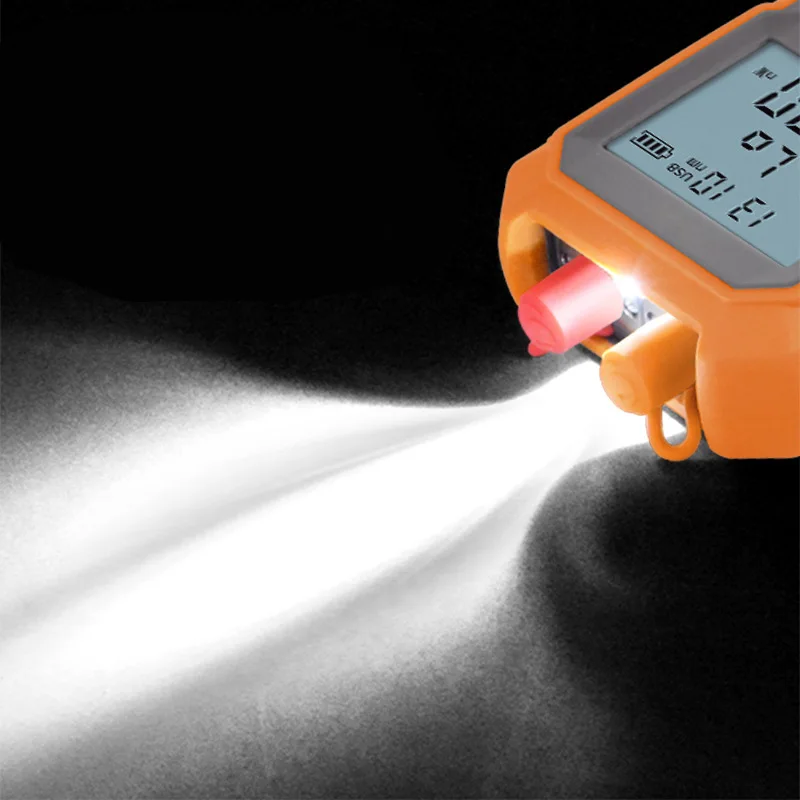

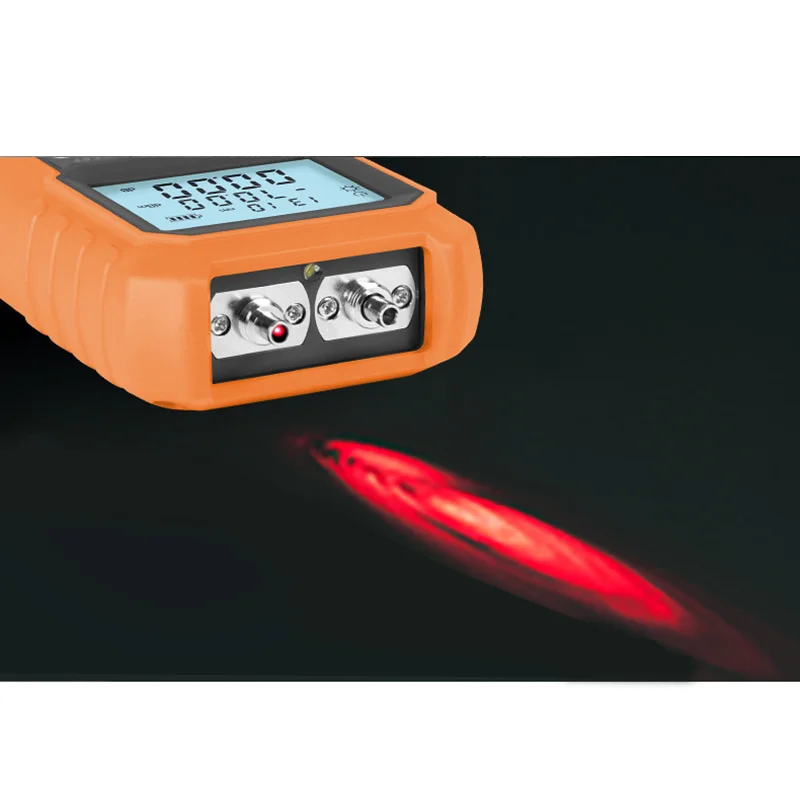

new LED lighting features for dark work environment
Can choose 6 kinds of wavelength:850nm.1300nm.1310nm.1490nm.1550nm.1625nm.

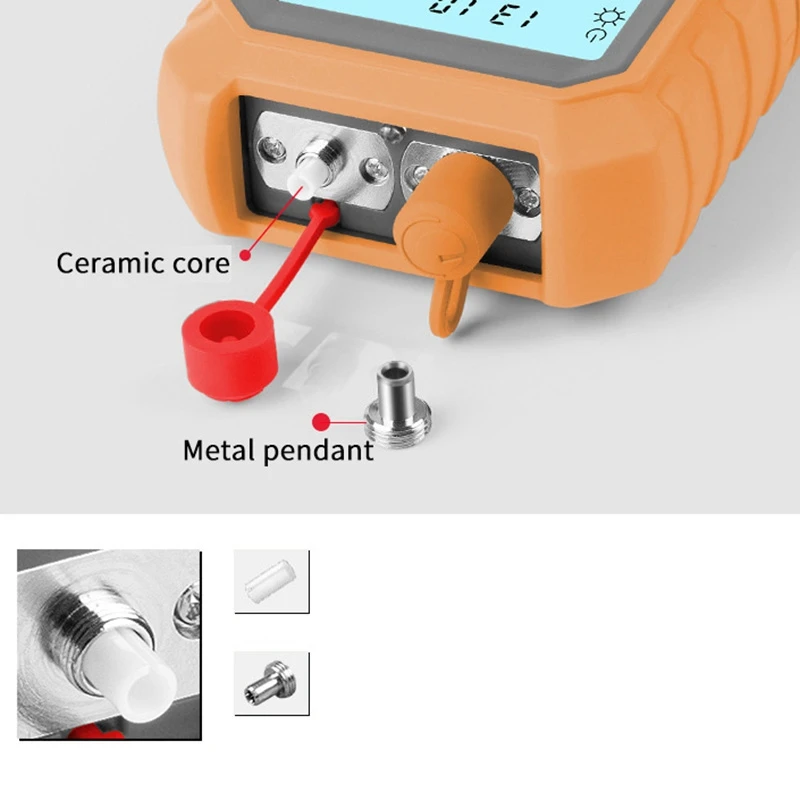

Support three kinds of interface:FC .SC ,ST
Outgoing maintenance only one machine
Function upgrade 3 in 1

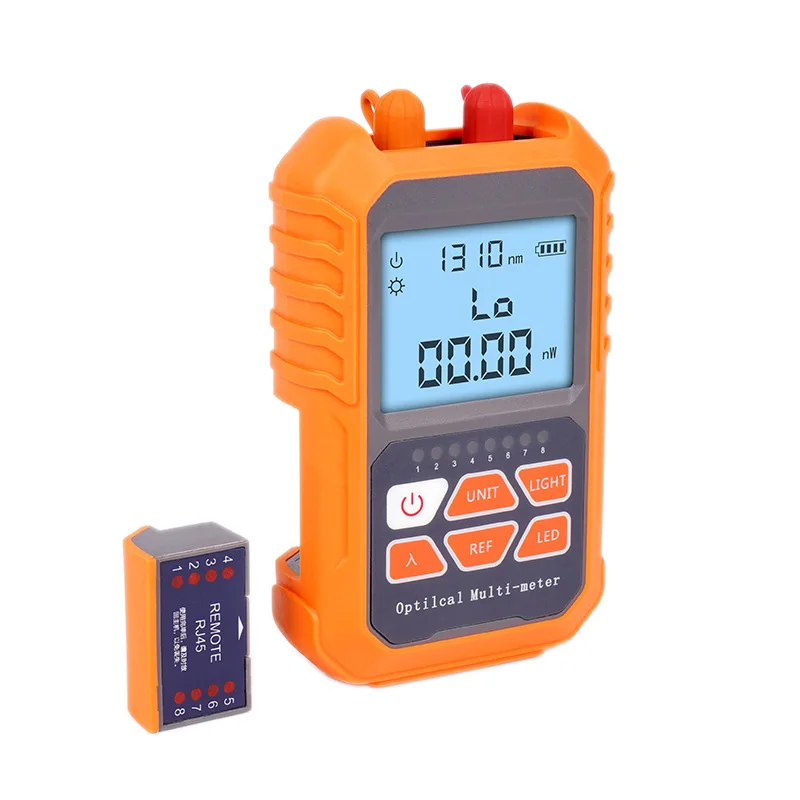

Optical Power Meter + Visual Fault Locator + Network Cable Test
DIY self-calibration
According to the actual test needs self-test parameters
At the same time press the λ + REF + UNIT button,enter the user mode,the screen displays the letter "CAL"
Press the "REF" and "UNIT" keys at the same time to restore the power meter to the factory state
Button UNIT,reducing 0.05dB
Press the power button.Save
Press REF + UNIT:restore factory settings
Press the key λ to switch the wavelength
Press REF,increase 0.05dB
Set the current test result as a reference value,make relative power measurement,the display will show the set DBM
Detector type:InGaAs
Measuring range:-70 to +3
Uncertainty:± 5%
Display resolution:linear display,0.1% logarithmic display:0.01dBm
Red working wavelength:650nm
Red power:more than 5mW
Operating temperature:-10 ~+60 ℃
Storage temperature:-25 ~+70 ℃
Automatic shutdown time:10min
Battery continuous working hours (h):more than equal 48

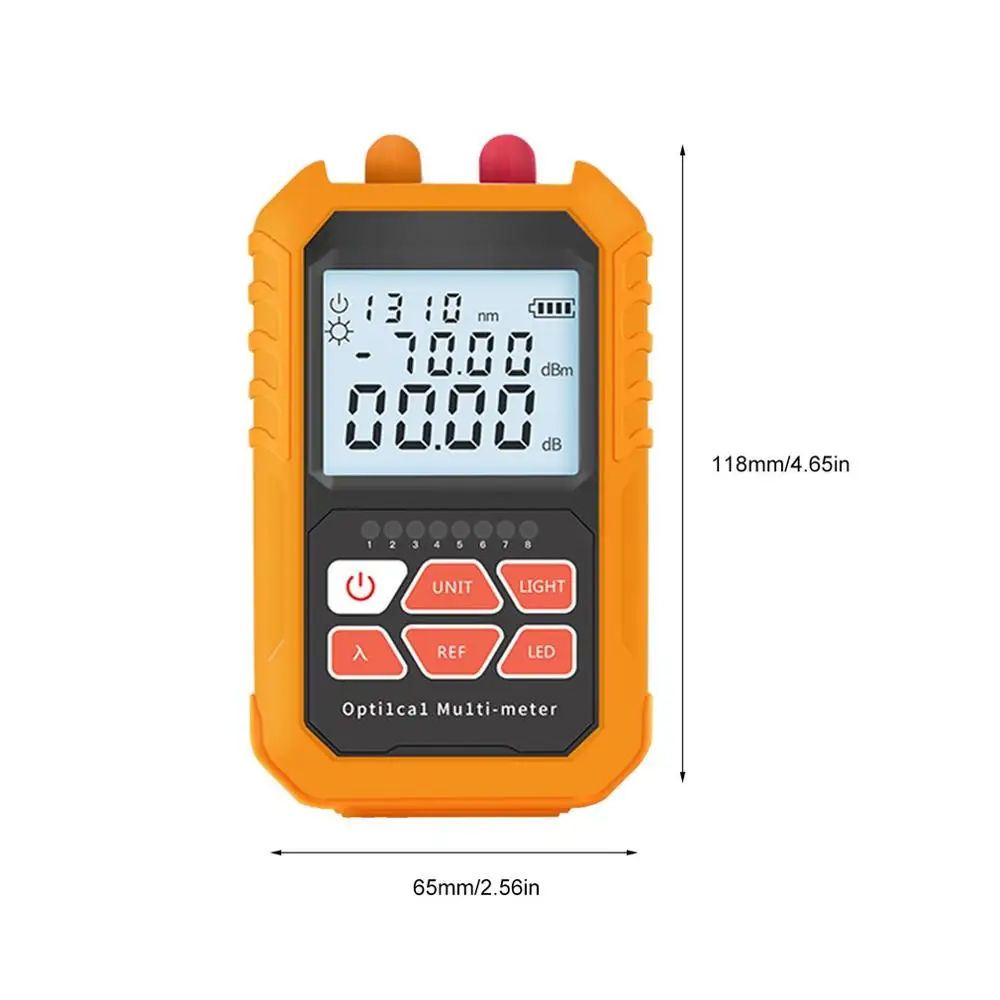

Product Size:118 * 68 * 30mm

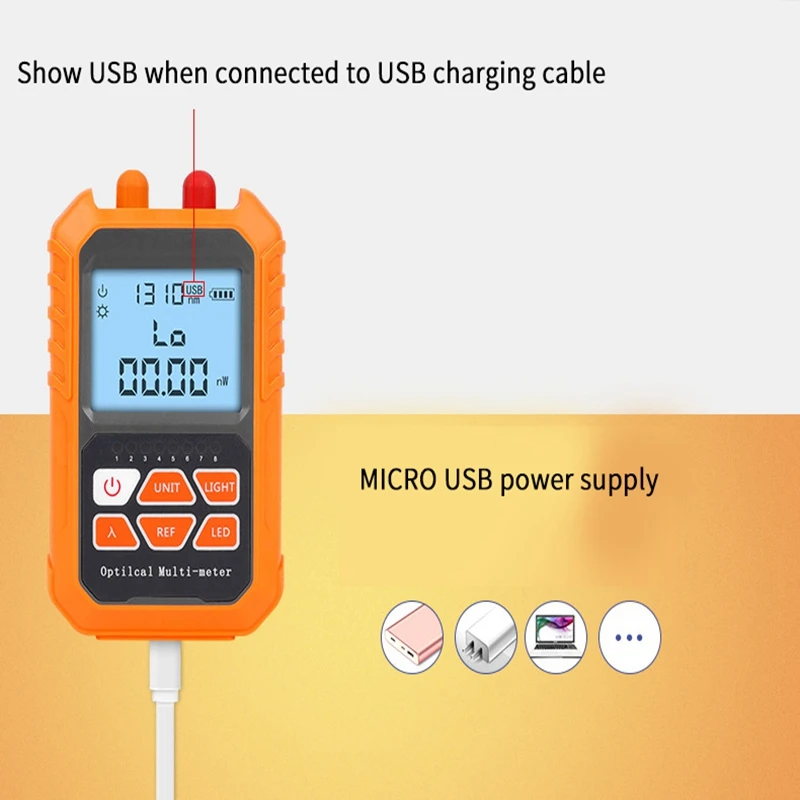

Power:1.5VAAA * 2(Not included)/Rechargeable lithium battery
colour:yellow
Material:plastic
Package Contents:
1 * Optical Fiber Tester
1 * network cable port
Only the above package content, other products are not included.
