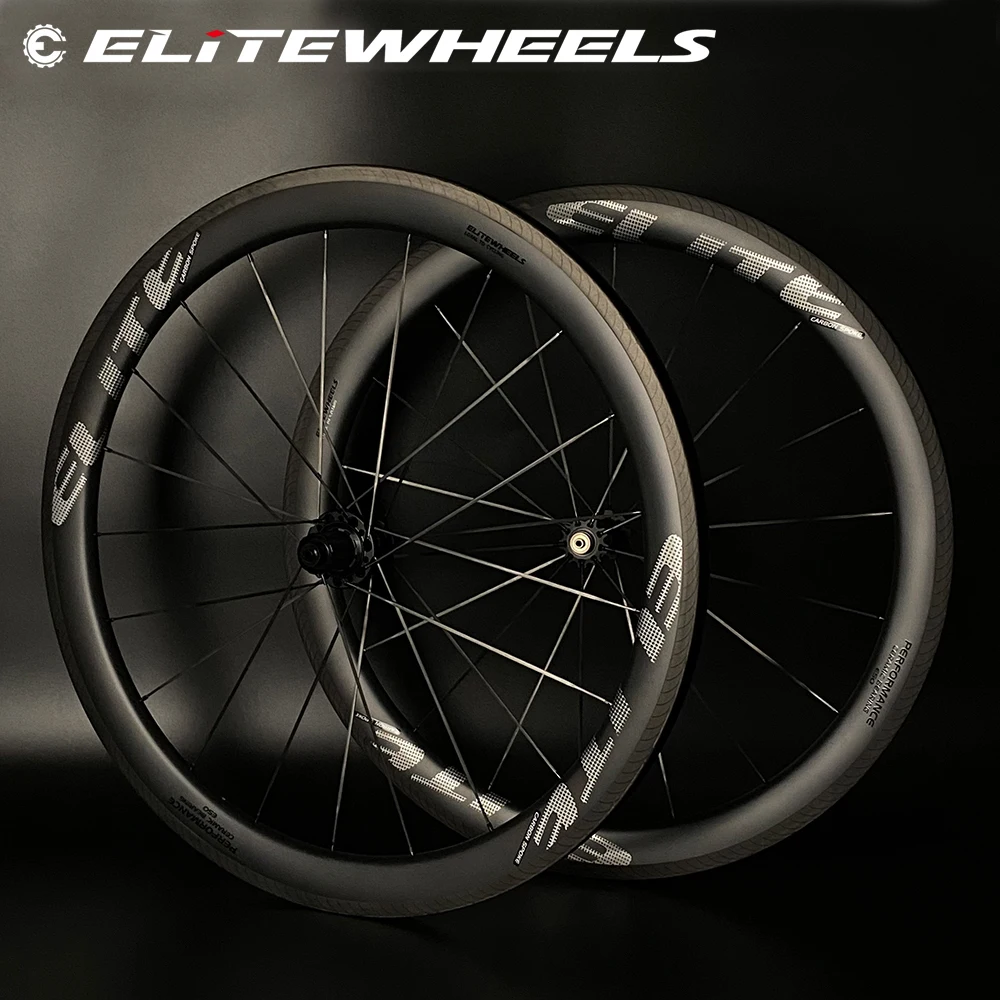

ELITEWHEELS 700c PE Road Carbon Spoke Wheelset 40mm 50mm Tubeless Compatible High TG Brake Surface Brake Rim Ceramic Bearing Hub

：

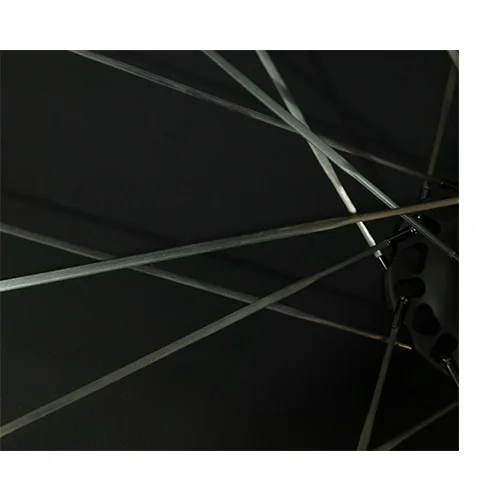

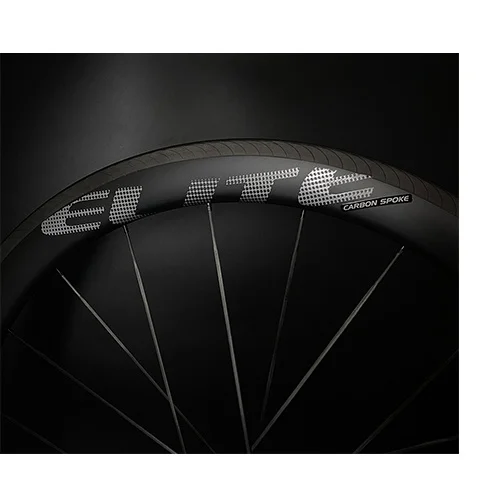

Carbon fiber spokes have higher stiffness and higher tensile strength, and the lateral response is 7% higher than that of the same steel spokes, and the high frequency vibration absorption capacity of carbon spokes is stronger than that of steel spokes.It can provide better aerodynamics and excellent stability, allowing you to have an advantage in full sprint and high-power climbing.

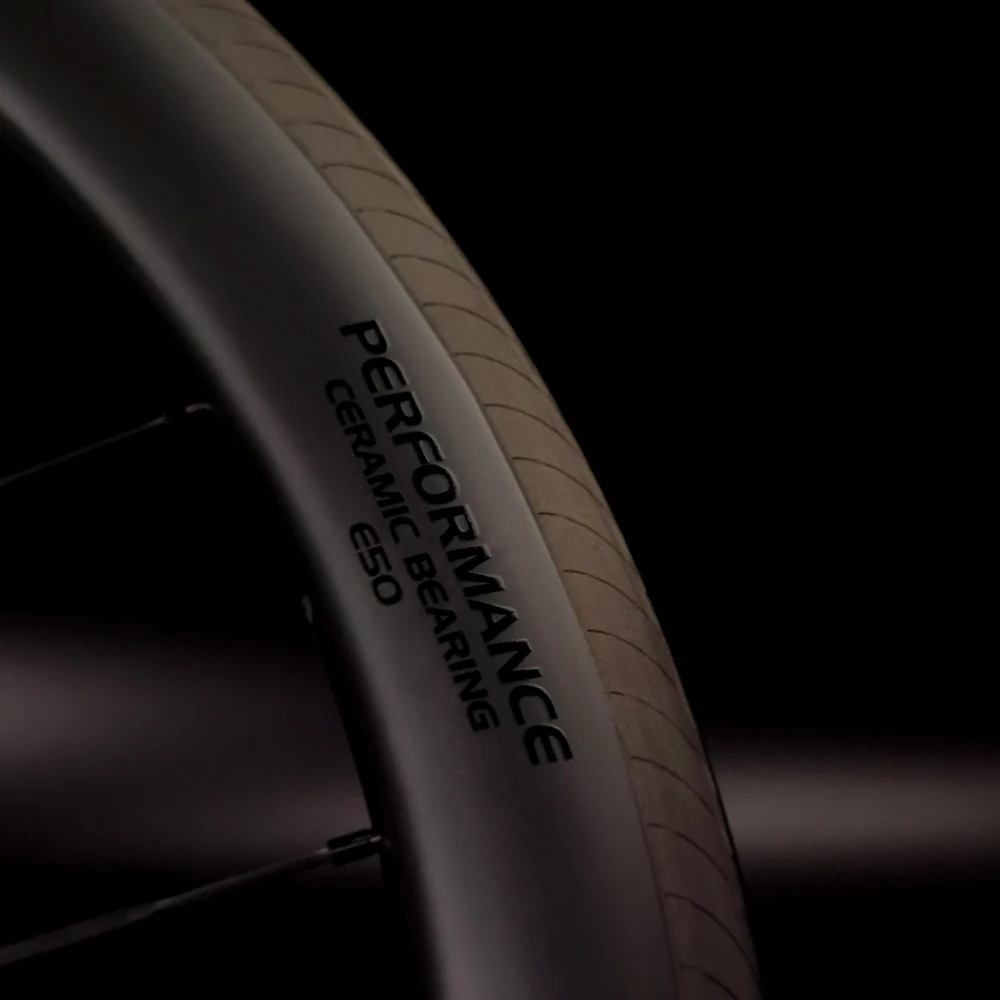

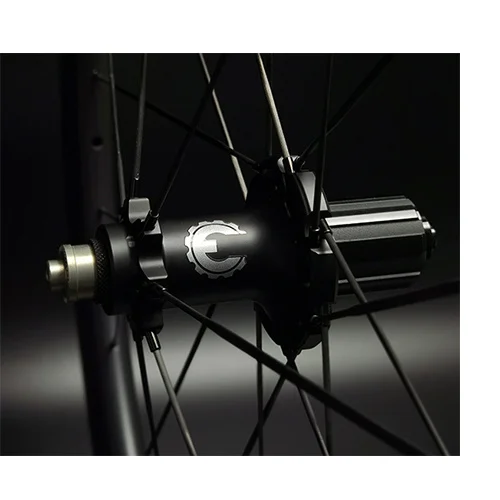

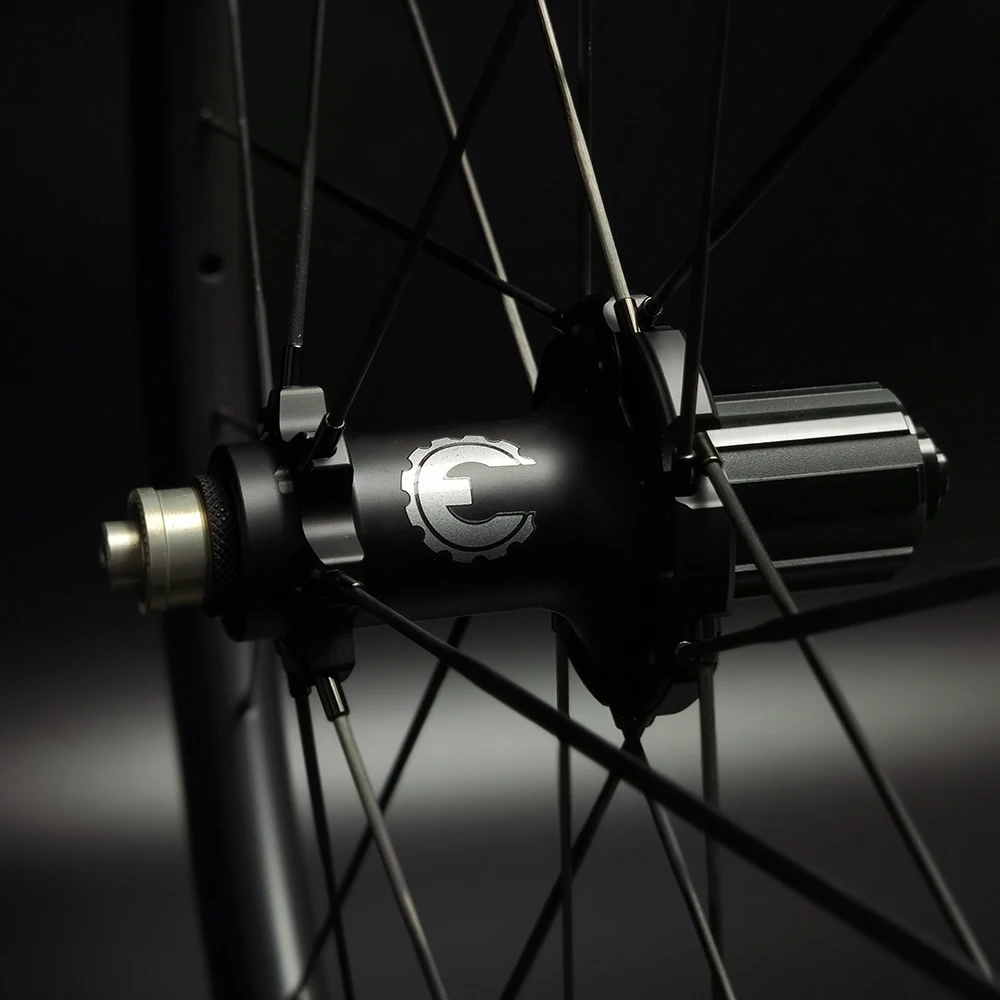

 Both front and rear hubs use S&S ceramic bearings,ceramic bearings further increase hub rolling efficiency with lower rolling resistance.At the same time, the non-driving side of the front and rear hubs have bearing pre-tightening side covers.

The front and rear hubs use 6902 bearings. The larger the bearing, the better the rigidity. On the premise of ensuring the performance output of the hub, we try to reduce the weight on the hub body and minimize the rolling resistance.

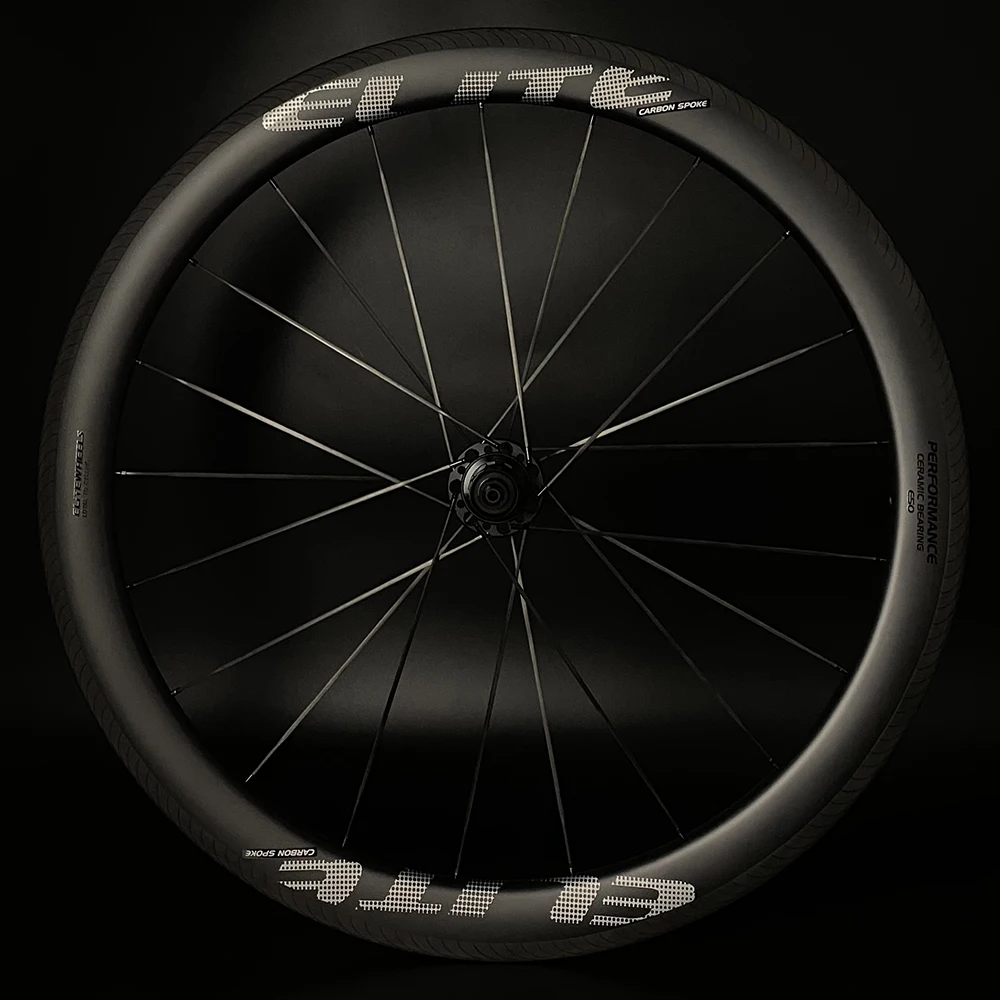

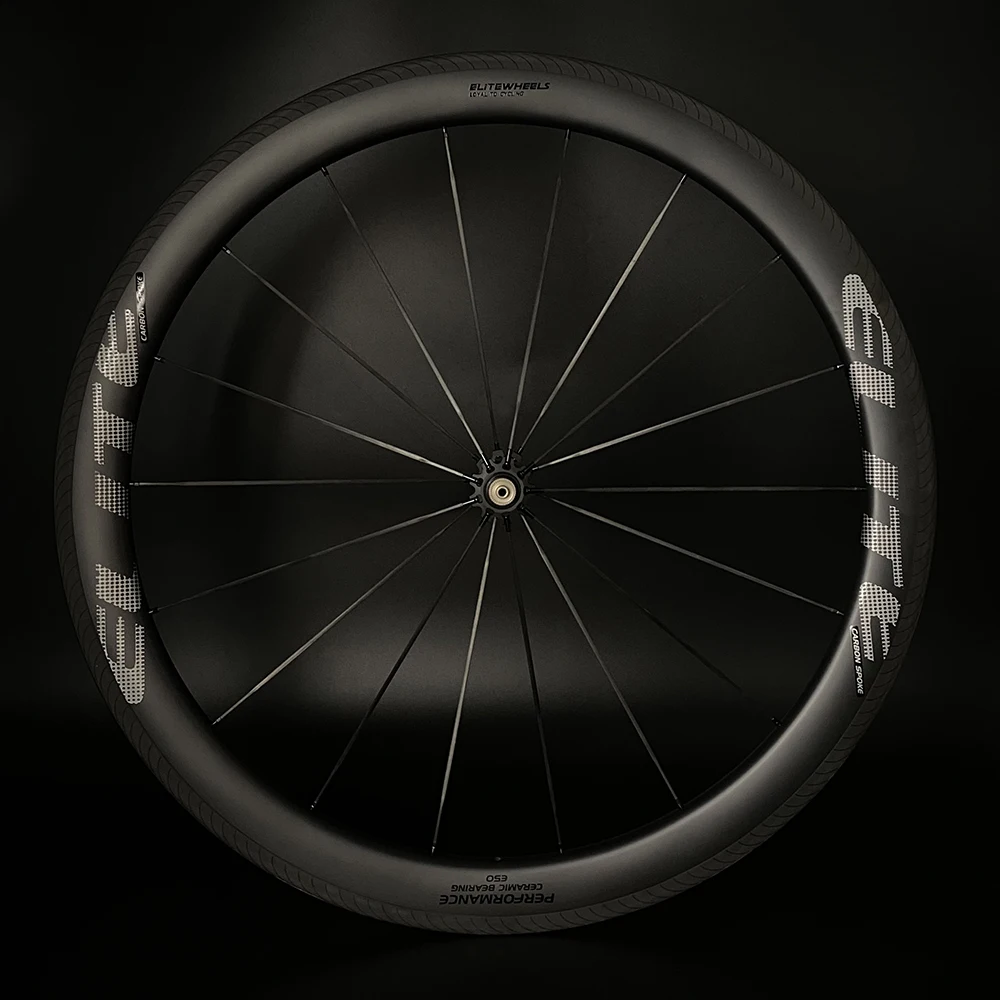

The  hub uses 18 spokes on the front wheel,  The rear hub has 21 spokes, 14 on the drive side and 7 on the non-drive side.

After 6 months of continuous design and continuous improvement, we have found the best geometric angle of the hub so that the spoke tension on the driving side is the same as the tension on the non-driving spoke side, which is very important. In this way, the stability of the wheels can be improved to a greater extent when entering a curve quickly.

All PE wheel series are tubeless compatible, if you want to use tubeless tire, we will be equipped with tubeless rim tape and tubeless valve.

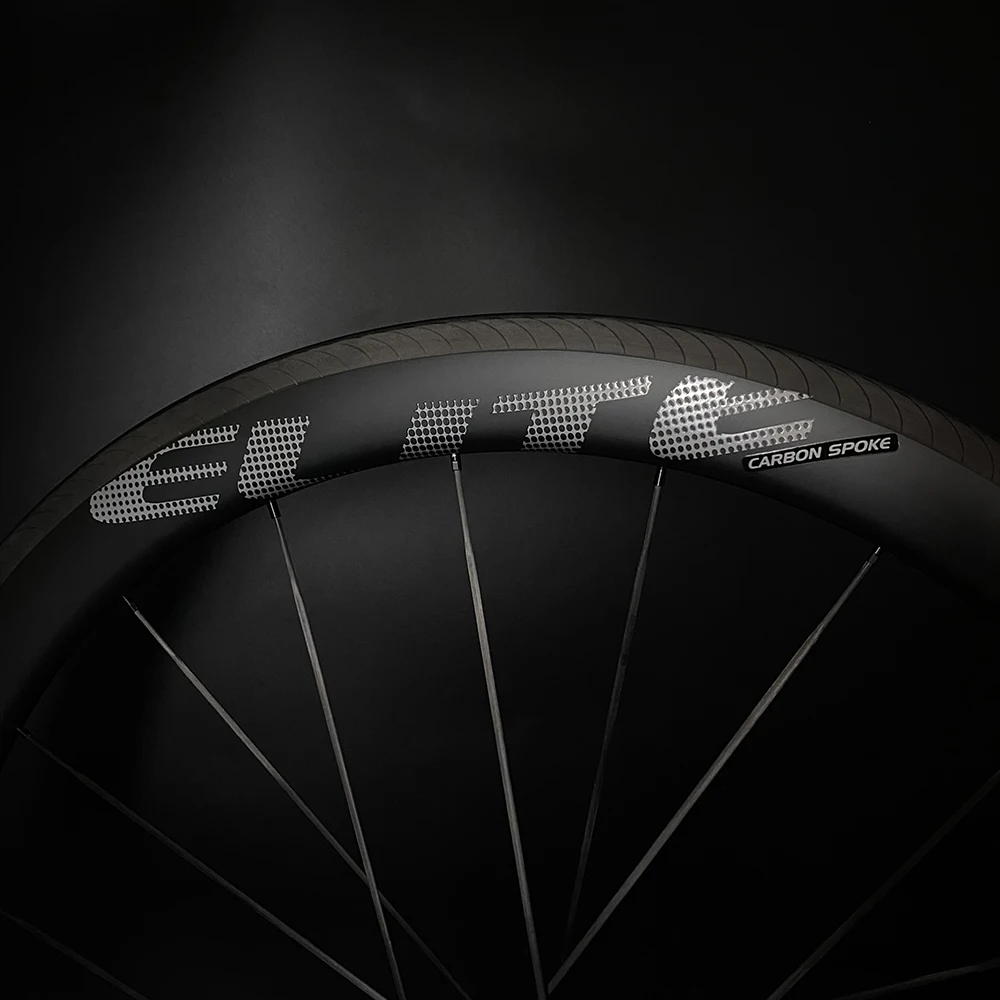

  The brake surface uses a mixture of 270 degrees Celsius high temperature resin and T800 material, and also adds a drain groove, regardless of dry weather or wet weather, the performance of the brake side has a good performance.

SPECIFICATIONS

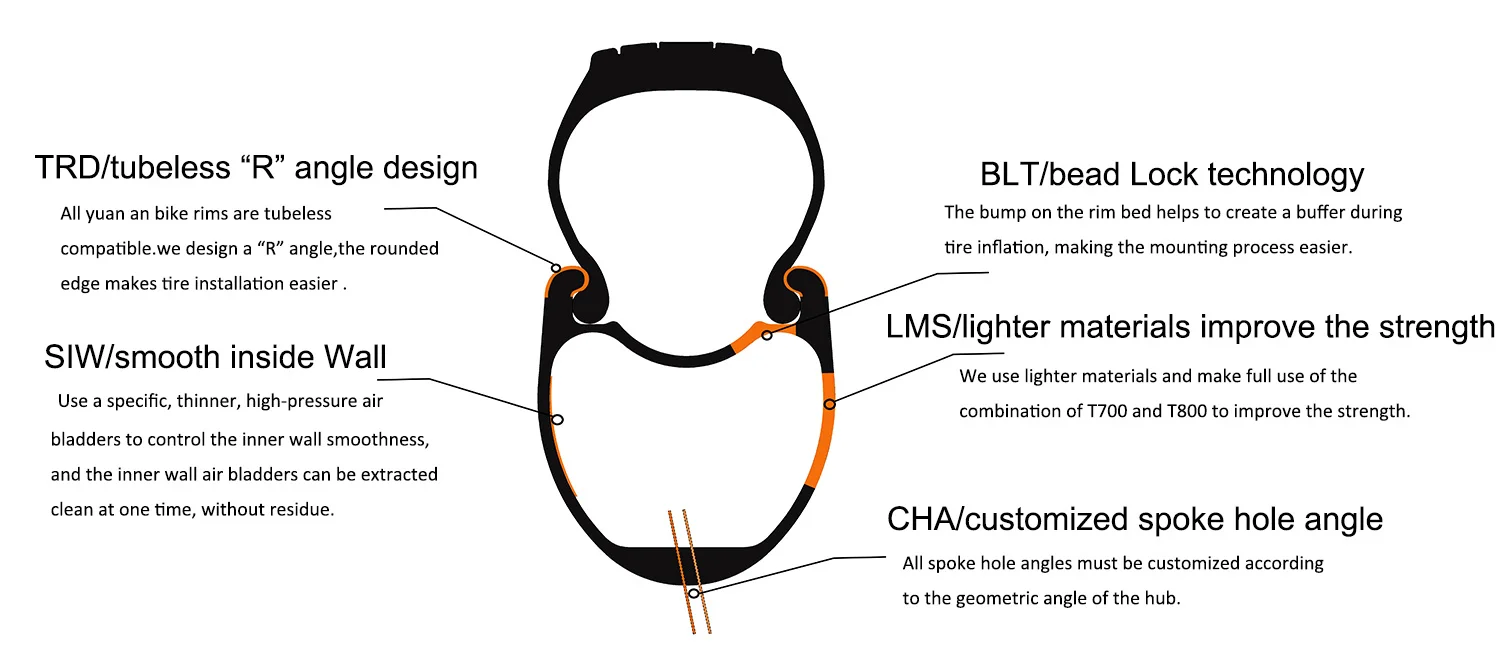

TECHNOLOGY

CHA/Customized spoke hole angle

All spoke hole angles must be customized according to the geometric angle of the hub.all drilled holes are inspected to ensure they are free of burrs.You can request a customized drilling pattern if you have a unique wheel build.

TRD/Tubeless R angle design

All yuan an bike are tubeless compatible.We design a R angle,The rounded edge makes tire installation easier and offers increased support during hard cornering with a softer edge and larger surface area.

LMS/lighter materials improve the strength

We use lighter materials and make full use of the combination of T700 and T800 to improve the strength.

SIW/smooth Inside Wall

We use a specific, thinner, high-pressure air bladders to control the inner wall smoothness, and the inner wall air bladders can be extracted clean at one time, without residue, not only effectively improve the tightness of the carbon fiber yarn, but also allow the spoke cap to be more tightly integrated with the spoke hole

OPT/one piece technology

Compared to the technology of 3 piece, our one piece tech is more technically difficult and takes longer to produce, but the rigidity of the rim is at least 7% higher

BLT/Bead Lock technology

The bump on the rim bed helps to create a buffer during tire inflation, making the mounting process easier. When the tire is mounted, the raised portion reinforces the tire bead, making it harder to “burp” or fall back into the drop channel.

WHY CHOOSE ELITEWHEELS?

TEAM

The carbon fiber materials accumulated by the founder of elitewheels for many years are used in every detail of the production line.and make testing the most important thing,fitting them to the bikes of world champions, listening to suggestions and comments from the world of racing and from our clients.this continual exchange of ideas enables us to imagine and develop our new projects.

Only products which fulfill our high requirements and safety standards are released for our customers.

Our strong supply capabilities and senior R&D capabilities are the cornerstones of our preparations.

Our strong supply capabilities and senior R&D capabilities, from resin R&D and deployment, prepreg weaving, rim design and production, hub design and production, spoke cap design, painting, and wheel knitting, all supply chains are produced by our own company. Such a complete supply chain system can better control high-quality wheels, faster product delivery, and provide customers with more supporting services.

QUALITY

Every production link of ELITEWHEELS has QC to strictly control and record the production process, the resin content of the prepreg, the rim weight, the ambient temperature, the weaving method, the number of materials, the drilling angle, the spoke tension, the bearing wetness, the wheel Group rigidity, tire pressure and all the details are the focus of our concern, just to deliver the most perfect product to the customer.

SERVICE

Elitewheel is a global brand. There are eLiteWheels distributors in Europe, Asia, and America. The dealers from all countries can repair and upgrade for customers' rounds, and we are committed to developing distributors in every country around the world, only for more Convenient, fast to provide customers with the after-sales service.

At the same time, we have 16 network products sales service teams, all passengers will reply to the first time, and there is no exception 365.

Packaging + delivery：
