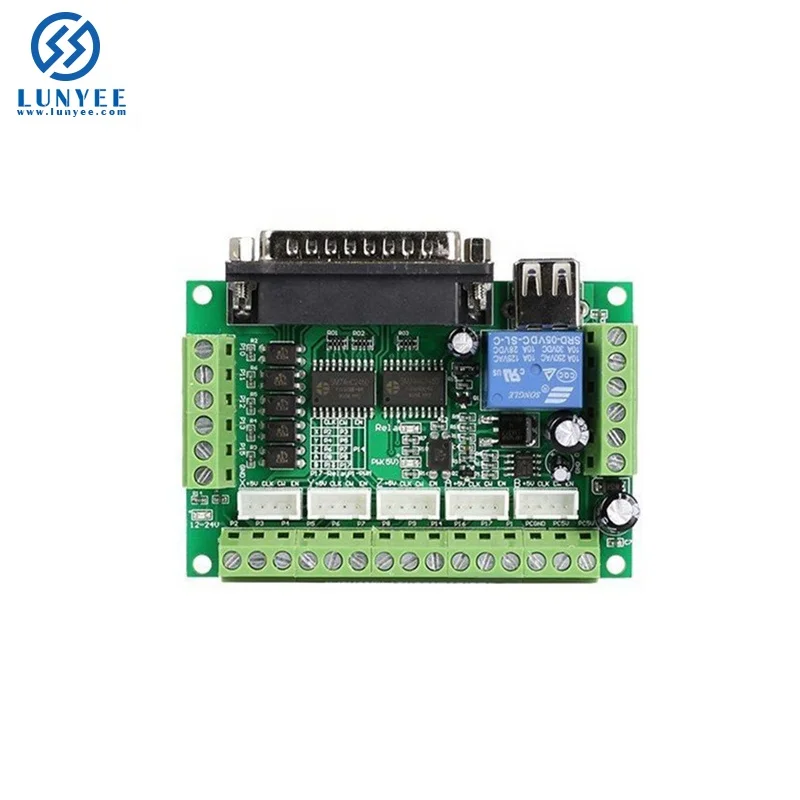

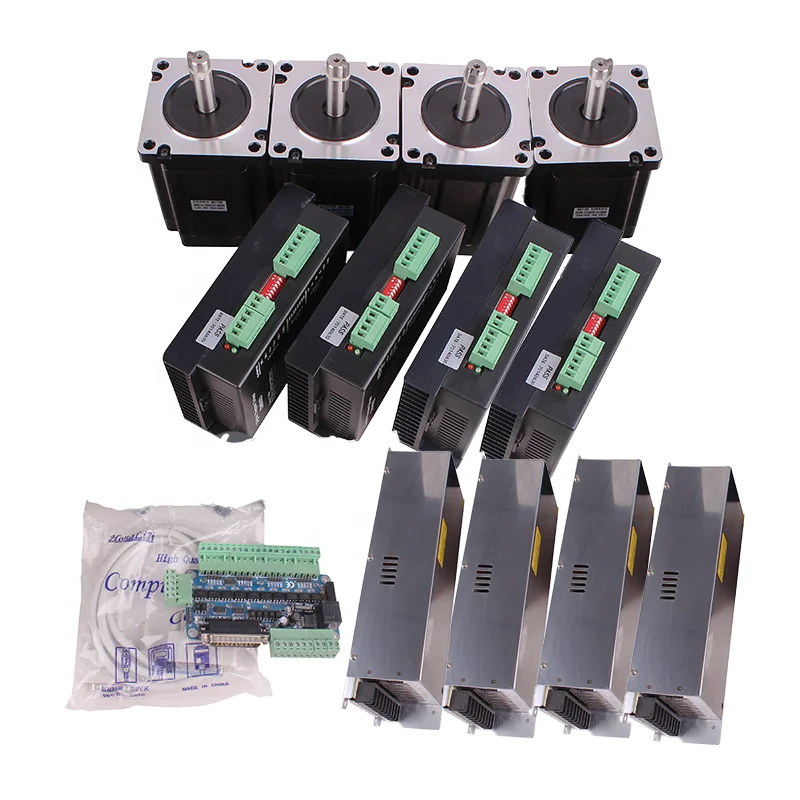

4Axis CNC Kit Nema34 12Nm Stepper Motor With Mach3 Breakout Board Driver DM860D And Power Supply |

#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{font-size:24px}#detail_decorate_root .magic-6{width:750px}#detail_decorate_root .magic-7{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-9{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-10{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-11{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-12{width:750px;border-collapse:collapse}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;overflow:hidden;width:190px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;overflow:hidden;width:516px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;overflow:hidden;width:121px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;overflow:hidden;width:46px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{text-align:center}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;overflow:hidden;width:45px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;overflow:hidden;width:53px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;overflow:hidden;width:43px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;overflow:hidden;width:42px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{margin:0;padding:0}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:545.058px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:545.058px}#detail_decorate_root .magic-25{overflow:hidden;width:750px;height:676.508px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:750px;height:676.508px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:834.507px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750px;height:834.507px}#detail_decorate_root .magic-29{padding:5px 10px;overflow:hidden;width:124px;box-sizing:content-box}#detail_decorate_root .magic-30{padding:5px 10px;overflow:hidden;width:130px;box-sizing:content-box}#detail_decorate_root .magic-31{padding:5px 10px;overflow:hidden;width:117px;box-sizing:content-box}#detail_decorate_root .magic-32{padding:5px 10px;overflow:hidden;width:126px;box-sizing:content-box}#detail_decorate_root .magic-33{padding:5px 10px;overflow:hidden;width:123px;box-sizing:content-box}#detail_decorate_root .magic-34{padding:5px 10px;overflow:hidden;width:127px;box-sizing:content-box}#detail_decorate_root .magic-35{padding:5px 10px;overflow:hidden;width:129px;box-sizing:content-box}#detail_decorate_root .magic-36{padding:5px 10px;overflow:hidden;width:122px;box-sizing:content-box}#detail_decorate_root .magic-37{padding:5px 10px;overflow:hidden;width:125px;box-sizing:content-box}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:542.933px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:542.933px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:435.759px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:435.759px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:1395px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:1395px} Products Show Package List: 4pcs nema34 12nm stepper motor 4pcs 36v 200w power supply 4pcs DM860D driver  one breakout board with cable Product Description Item Specifications Step Angle 1.8° Temperature Rise 80°C Max Ambient Temperature -20°C Max~+50°C Insulation Resistance 100M ΩMin., 500V DC Dielectric Strength 500VAC for 1 minute Shaft Radial Play 0.02Max(450g-load) Shaft Axial Play 0.08Max(450g-load) Max.Radial Force 220N(20mm from the flange) Model No Rated Voltage(V) Rated Current(A) Phase Inductance(mH) Holding Torque(Kg.cm) Detent Torque(g.cm Max) Rotor Inertia(g.cm²) Motor Length(mm) Lead Wires No. Motor Weight(Kg) 86HS156-5504 3.9 5.5 0.7 120 4000 3600 156 4 5.5

Motor Dimension

Wiring Diagram

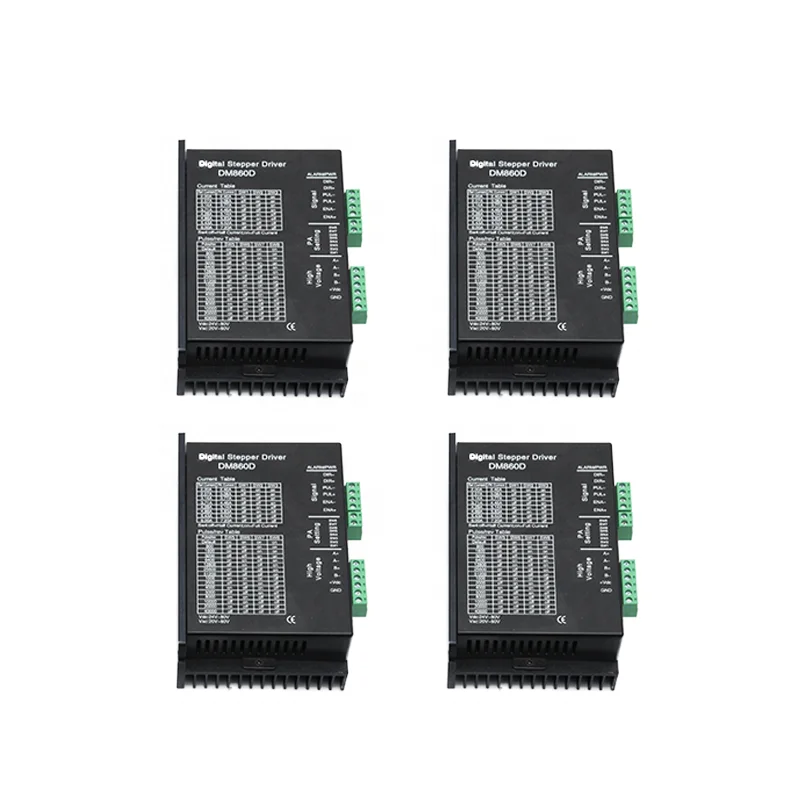

Driver Dimension

Driver Microstep Selection

Pluse/Rev SW5 SW6 SW7 SW8 Default on on on on 800 off on on on 1600 on off on on 3200 off off on on 6400 on on off on 12400 off on off on 25600 on off off on 51200 off off off on 1000 on on on off 2000 off on on off 4000 on off on off 5000 off off on off 8000 on on off off 10000 off on off off 20000 on off off off 40000 off off off off

Current Selection

REF Peak SW2 SW2 SW3 2A 2.4A on on on 2.57A 3.08A off on on 3.14A 3.77A on off on 3.71A 4.45A off off on 4.28A 5.14A on on off 4.86A 5.83A off on off 5.43A 6.52A on off off 6A 7.2A off off off Application

    Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industral automatic equipment.

Packing & Delivery

1. Inner Packing: Waterproof packing with cling film and cardboard surrounded.
Each case is lined with foam plastics in order to protect the goods against press.
We promose the products must be well protected against dampness, moisture, rust and shock.
2. As per the clients requirements.

Our Company FAQ

Q1: Do you offer customized products?
A: Yes, customized orders are welcomed.

Q2: What kind of payment methods do you accept?
A: We can accept Paypal, L/C, D/A, T/T, Western Union.

Q3: Do your products come with warranty?
A: Yes, we promise 1 year warranty.
