Тренажёрный модуль / кабель пульта дистанционного управления Tarot-RC TL2931 с 8 каналами SBUS для мультикоптеров и рамок.

Тренажёрный модуль / кабель пульта дистанционного управления Tarot-RC TL2931 с 8 каналами SBUS для мультикоптеров и рамок.

Tarot-Rc TL2931 8-Channels SBUS Remote Controller Trainer Module/Trainer Cable For Quadcopter Multicopter Frame / Rc Drone Parts

Products include:

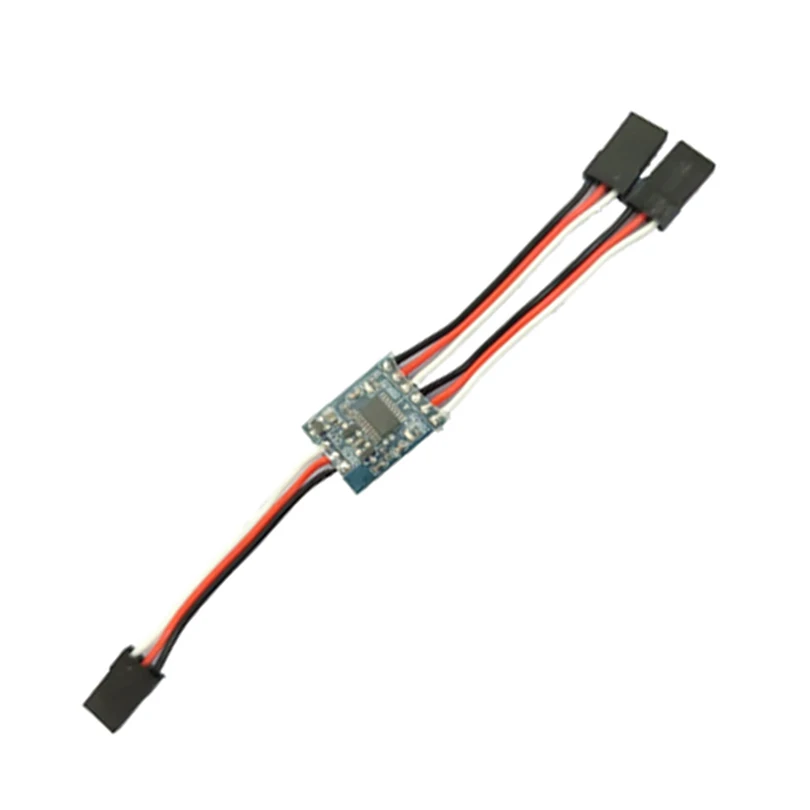

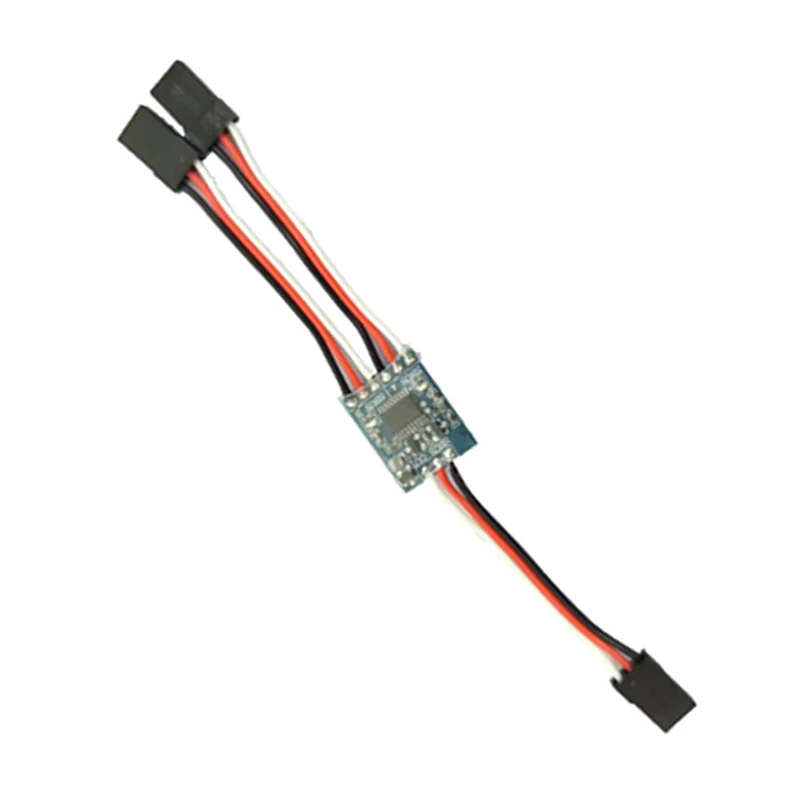

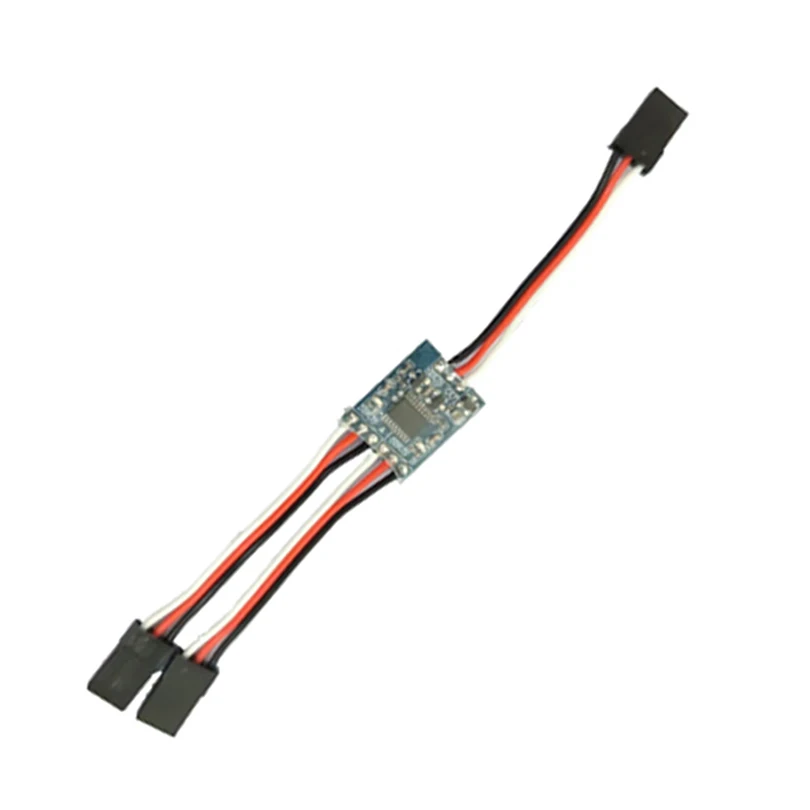

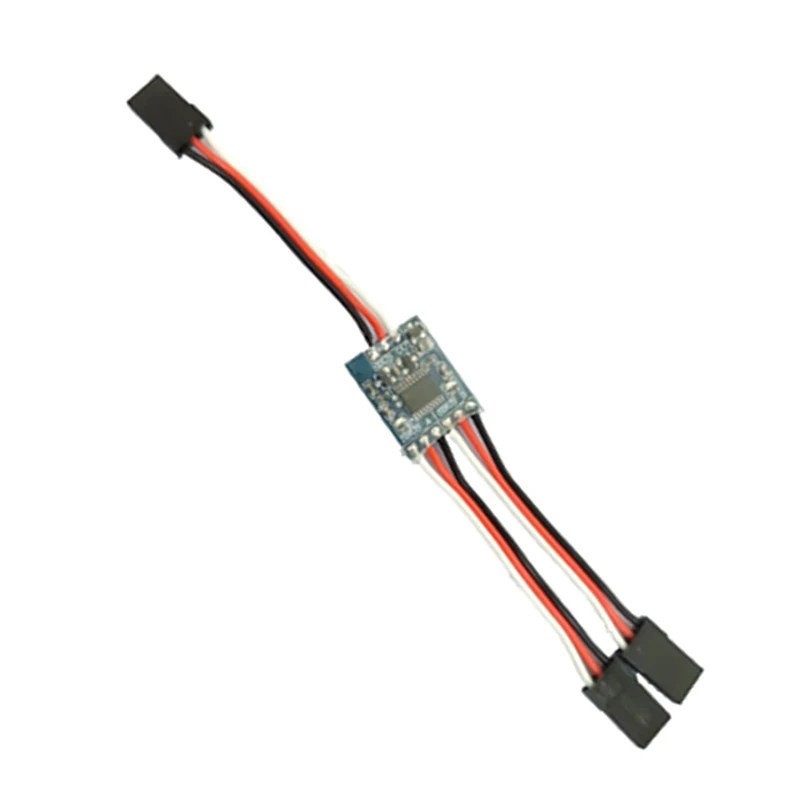

SBUS coach module×1

Size: 2CM×1.6CM

3P signal line length: 6CM

Weight: 5G

Steps:

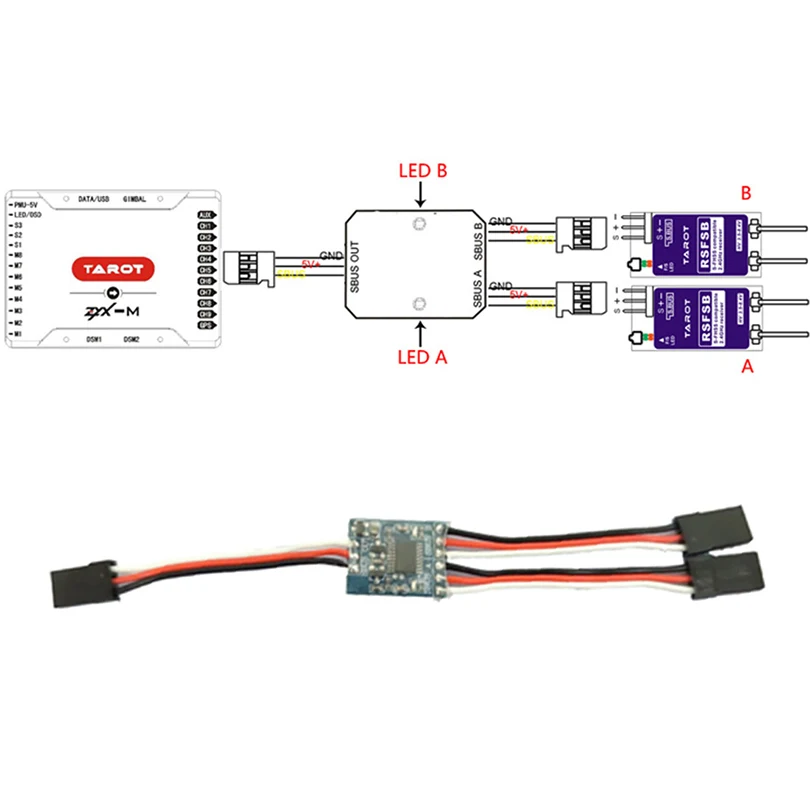

1: The receiver (A) corresponding to the trainer remote control (A) is plugged into the SBUS A input terminal of the trainer module

  The receiver (B) corresponding to the student remote control (B) is plugged into the SBUS B input terminal of the coach module;

2: The SBUS OUT output terminal of the trainer module is plugged into the flight control/gyro device of the UAV;

3: The 8th channel (fixed channel, cannot be changed) of the coach remote control (A) is mapped to a two-stage or three-stage switch. Toggle this switch back and forth, you can freely switch between the coach remote control (A) or the student remote control ( B) Output signal to control UAV;

4: When the trainer receiver (A) outputs a signal, the indicator LED A lights up, and when the student receiver (B) outputs a signal, the indicator LED B lights up.

Product manual:

The 8-channel SBUS coach module is compact and exquisite for wireless use, which eliminates the problem of restricting the freedom of movement of the two due to the fixed line length of the coach; this SBUS coach module is not restricted by the remote control brand, which eliminates the need for students to connect with the coach. The problem of brand remote control operation greatly improves the compatibility of teaching between different brands.
